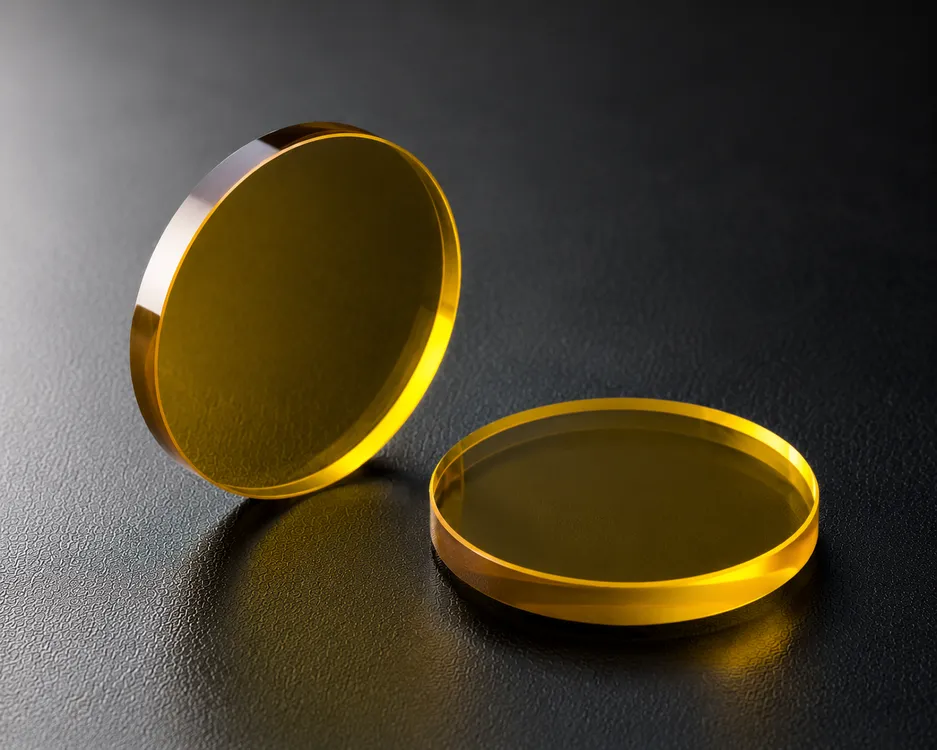

Zinc Selenide Optical Windows
Zinc Selenide (ZnSe) optical windows are infrared-transmitting components used in CO₂ laser systems, thermal imaging, spectroscopy and MWIR/LWIR optical equipment. Chenyu Optics manufactures custom ZnSe windows with controlled dimensions, thickness, flatness, parallelism, surface quality and wavelength-specific AR coatings.
Zinc Selenide Optical Window Overview
Zinc Selenide optical windows provide infrared transmission while protecting sensitive detectors, laser assemblies and imaging systems from the external environment.
CVD ZnSe is commonly selected for MWIR and LWIR equipment and for 10.6 μm CO₂ laser systems. Material thickness, surface finish and coating design are reviewed according to the operating band, incident power and service environment.
Chenyu Optics manufactures custom round, square and drawing-defined ZnSe windows with specified dimensions, thickness, flatness, parallelism, surface quality, edge treatment and infrared AR coating.
Key Advantages of Zinc Selenide Optical Window
Infrared Transmission & System Protection
ZnSe windows transmit the specified infrared band while providing a protective barrier for CO₂ laser equipment, thermal cameras, sensors and spectroscopy instruments.
Typical Specifications of Zinc Selenide Optical Window
| Material | CVD Zinc Selenide (ZnSe) |
|---|---|
| Optical Function | Infrared transmission and protection |
| Operating Bands | MWIR, LWIR and 10.6 μm CO₂ laser |
| Diameter / Size | Custom |
| Thickness | Custom |
| Flatness | According to customer drawing |
| Parallelism | According to customer drawing |
| Surface Quality | 20-10, 40-20 scratch-dig or custom |
| Coating | Uncoated, MWIR AR, LWIR AR or 10.6 μm AR |
| Edge | Ground, chamfered or polished |
ZnSe Infrared Transmission Reference
Why Choose Chenyu Optics for Zinc Selenide Optical Window
Chenyu Optics supports drawing-based ZnSe window manufacturing for CO₂ laser, thermal imaging, spectroscopy and infrared sensing equipment. Prototype, small-batch and repeat-production requirements are reviewed against the specified operating band and mechanical drawing.
Manufacturing Capability for Zinc Selenide Optical Window
Precision Grinding & Polishing
Controlled grinding and polishing to meet drawing-defined dimensions, thickness, flatness, parallelism and surface finish.
Optical Coating
MWIR AR, LWIR AR and 10.6 μm AR coating options are reviewed for the specified operating band and application.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Zinc Selenide Optical Window
Dimensions & Thickness
Custom diameter, length, width and thickness are manufactured according to the customer drawing and application requirements.
Surface & Optical Quality
Flatness, parallelism, surface quality and clear aperture are specified according to the drawing and inspection requirements.
Coating & Wavelength Design
Uncoated, MWIR AR, LWIR AR and 10.6 μm AR options can be specified for the operating band, angle of incidence and environment.
Applications of Zinc Selenide Optical Windows
CO₂ Laser Protection Windows
Protective transmitting windows for 10.6 μm laser beam paths and enclosed laser equipment.
Thermal Imaging Systems
Infrared windows for thermal cameras and imaging assemblies.
MWIR/LWIR Sensors
Protective optical interfaces for infrared detectors and sensing systems.
Infrared Spectroscopy
ZnSe transmission windows for analytical and laboratory instruments.

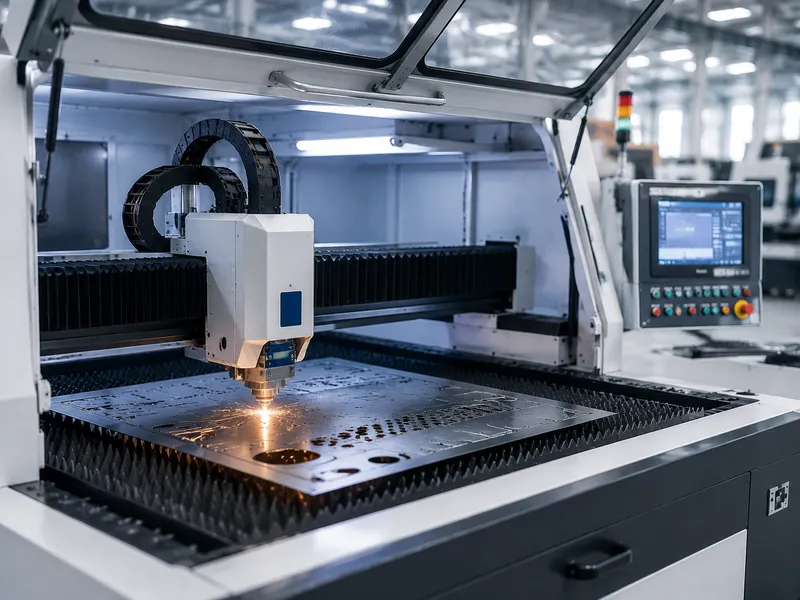

Industrial Laser Equipment
Replaceable protective windows for laser processing and monitoring equipment.
Zinc Selenide Optical Windows FAQ
What are zinc selenide optical windows used for?
ZnSe windows transmit infrared radiation while protecting detectors, laser assemblies and imaging systems. Typical uses include CO₂ laser equipment, thermal imaging and infrared spectroscopy.
Which operating bands can be specified?
Windows can be supplied for MWIR, LWIR or 10.6 μm CO₂ laser applications. The exact coating design must be specified for the required wavelength band and operating conditions.
Which coating options are available?
Options include uncoated ZnSe and wavelength-specific MWIR, LWIR or 10.6 μm AR coatings, subject to technical review.
Can the size and thickness be customized?
Yes. Diameter or rectangular dimensions, thickness, edge treatment and dimensional tolerances can be manufactured according to the customer drawing.
What information is required for a quotation?
Please provide size, thickness, operating wavelength, flatness, parallelism, surface quality, coating requirements, quantity and a drawing if available.
