Reflective Neutral Density Filter
Reflective neutral density filters use metallic or dielectric coatings to reduce optical intensity by reflecting a controlled portion of incident energy. They deliver stable, uniform attenuation across broad wavelength ranges and are especially suitable for high-power laser, optical measurement, imaging and spectroscopy systems.
Reflective Neutral Density Filter Overview
Reflective neutral density filters are precision optical filters designed to reduce optical intensity through controlled reflection while maintaining spectral stability. Metallic or dielectric reflective coatings deposited on high-quality optical glass substrates provide uniform attenuation, broadband performance and excellent power handling capability.
Unlike absorptive neutral density filters, reflective ND filters reflect a controlled portion of incident energy instead of converting it primarily into heat. This lower-absorption design improves thermal management and makes reflective filters well suited to high-power laser systems.
Chenyu Optics manufactures custom reflective ND filters according to customer drawings, target optical density, wavelength range, reflectance, size, thickness and application conditions.
Key Advantages

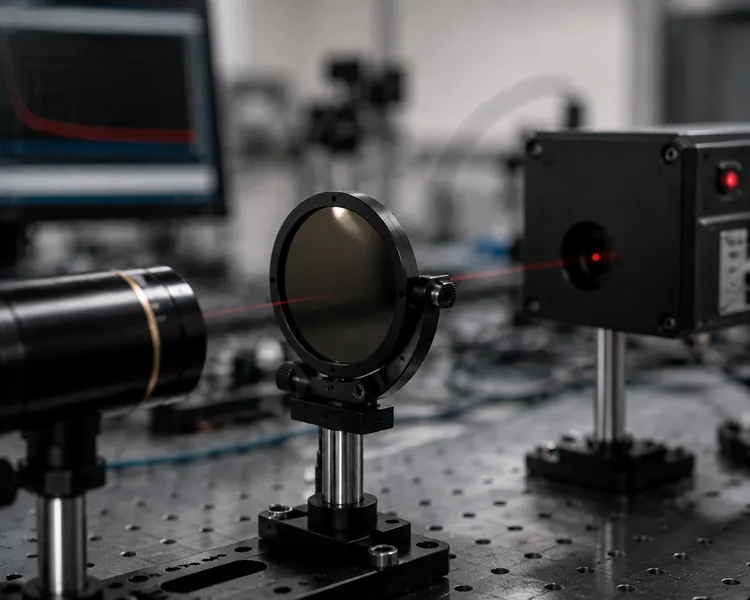

Laser Power Control & Beam Attenuation
Reflection-based attenuation provides dependable optical power control while limiting heat buildup in demanding laser and measurement systems.
Typical Specifications
| Material Options | Optical Glass Substrate |
|---|---|
| Coating Type | Metallic / Dielectric Reflective Coating |
| Optical Function | Optical intensity attenuation by reflection |
| Filter Type | Reflective Neutral Density Filter |
| Optical Density (OD) | Customized |
| Wavelength Range | Customized |
| Reflectance | Customized |
| Size | Customized |
| Thickness | Customized |
| Surface Quality | High precision optical finish |
Typical Spectral Attenuation
Why Choose Chenyu Optics
Chenyu Optics supports drawing-based development and manufacturing of non-standard reflective ND filters, from prototype verification through repeat production.
Manufacturing Capability
Precision Polishing
Controlled substrate processing, dimensional control and high-quality optical surface finishing.
Reflective Coating
Metallic and dielectric coating fabrication with precise thickness control for target attenuation.
Inspection & Packaging
Dimensional, surface and spectral inspection followed by clean, protective packaging.
Available Reflective ND Coatings
Metallic ND Coatings
Provide broadband reflective attenuation for general optical power reduction, with customized optical density levels available.
Dielectric Reflective Coatings
Provide precise reflectance control for laser and precision optical systems, optimized for selected wavelength ranges.
Custom Optical Density Coatings
Designed around the required attenuation level, wavelength range, incident angle, polarization and operating conditions.
Reflective vs. Absorptive ND Filters
| Characteristic | Reflective ND Filter | Absorptive ND Filter |
|---|---|---|
| Attenuation Method | Reflects a controlled portion of incident light | Absorbs a controlled portion of incident light |
| Thermal Load | Lower absorption and reduced heat buildup | Higher heat absorption in the filter |
| Power Handling | Well suited to high-power laser applications | Typically preferred for lower-power applications |
| System Consideration | Reflected beam must be safely managed | Heat dissipation must be considered |
| Typical Use | Laser power control and high-energy systems | Imaging, illumination and general attenuation |
Applications
Laser Power Control
Controlled attenuation for precise adjustment of laser output power.
High-Power Lasers
Low-absorption attenuation for demanding high-energy systems.
Optical Measurement
Stable intensity control in metrology and detector setups.
Imaging Systems
Broadband light reduction for cameras and imaging optics.
Spectroscopy
Signal-level control for spectroscopic instruments.
Beam Attenuation
Reliable laser beam reduction in optical assemblies.
Scientific Research
Custom attenuation for laboratory and research equipment.
Precision Assemblies
Integrated intensity control in precision optical systems.
Reflective ND Filter FAQ
What is a reflective neutral density filter used for?
A reflective neutral density filter reduces optical intensity by reflecting a controlled amount of incident light while maintaining spectral stability.
What is the difference between reflective and absorptive ND filters?
Reflective ND filters reduce light through reflection, resulting in lower heat absorption and better suitability for high-power optical applications. Absorptive ND filters reduce intensity by absorbing optical energy.
Are reflective ND filters suitable for laser systems?
Yes. Reflective ND filters are commonly used in laser power control and beam attenuation systems due to their high power handling capability.
Can reflective ND filters be customized?
Yes. Chenyu Optics provides customized optical density, wavelength range, dimensions, substrate options and coating designs.
Handling & Design Considerations
Protect the Coating
Avoid touching reflective surfaces directly. Protect the coating from scratches, particles, moisture and contamination.
Manage the Reflected Beam
Include an appropriate beam dump, enclosure or safe reflected-light path in the optical system design.
Define Operating Conditions
Specify optical density, wavelength, incident angle, polarization, beam size and power level when requesting a design.
Need Custom Reflective Neutral Density Filters?
Send us your target optical density, wavelength range, dimensions, incident angle, polarization, laser power and quantity. Chenyu Optics will review your requirements and recommend a suitable substrate and reflective coating solution.
