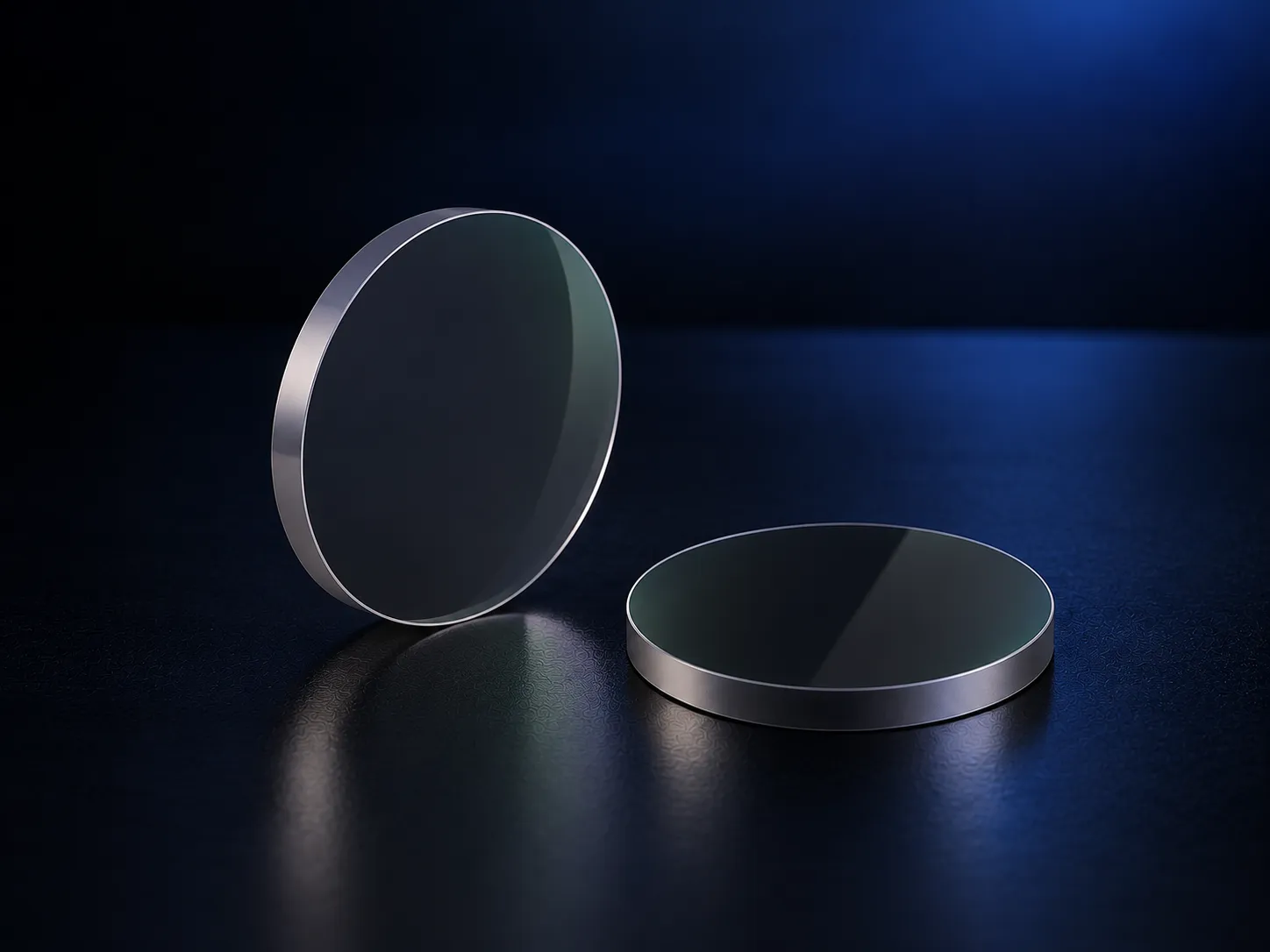

AR Coated Silicon Window
AR coated silicon windows are precision infrared optical components manufactured from silicon substrates with anti-reflection coatings optimized for specific infrared wavelength ranges. Silicon combines good infrared transmission with high thermal conductivity, relatively low density and excellent thermal stability, making it suitable for demanding infrared optical systems. Because uncoated silicon has relatively high surface reflection, AR coatings are commonly applied to improve transmission and reduce reflection losses. Chenyu Optics provides custom AR coated silicon windows with coating designs optimized for MWIR, selected LWIR ranges, or application-specific infrared wavelengths.
AR Coated Silicon Window Overview
AR Coated Silicon Windows are infrared optical components manufactured from silicon substrates with anti-reflection coatings designed to improve transmission over specific infrared wavelength ranges.
Silicon has a high refractive index, so uncoated surfaces can produce significant reflection losses. A properly designed AR coating is therefore important when high transmission is required. Silicon transmission also varies across the infrared spectrum, so the required wavelength range should be clearly specified rather than treating silicon as uniformly transmissive throughout the entire MWIR and LWIR regions.
Final transmission depends on silicon material properties, substrate thickness, wavelength range, angle of incidence, and AR coating design. Chenyu Optics provides custom AR coated silicon windows with coating designs optimized for MWIR, selected LWIR ranges, or application-specific infrared wavelengths.
Window dimensions, thickness, surface specifications, and coating performance can be customized for infrared imaging, thermal imaging, spectroscopy, IR sensors, and other infrared optical systems.
Key Advantages of AR Coated Silicon Window

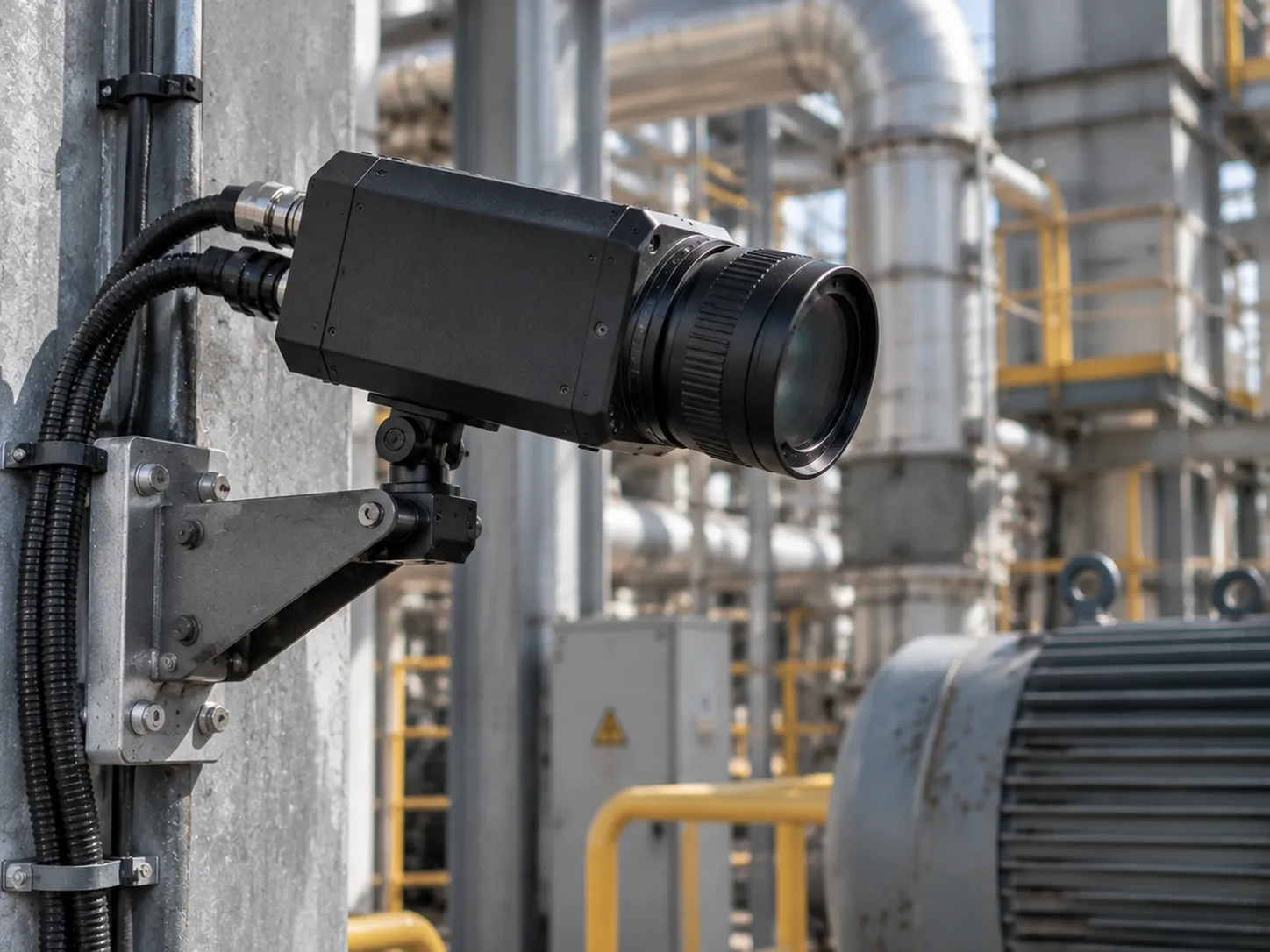

Infrared Imaging & Sensing Systems
AR coated silicon windows provide protective, high-transmission optical access for infrared imaging, thermal imaging and IR sensor systems when the operating wavelength and coating are appropriately selected.
Typical Specifications of AR Coated Silicon Window
| Material | Silicon (Si) |
|---|---|
| Product Type | AR Coated Silicon Window |
| Optical Function | Infrared transmission / Optical protection |
| Operating Wavelength | Customized |
| Infrared Region | MWIR / Selected LWIR |
| Diameter / Size | Customized |
| Thickness | Customized |
| Surface Flatness | Customized |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Coating | IR AR / MWIR AR / LWIR AR |
| Transmission | Wavelength and coating dependent |

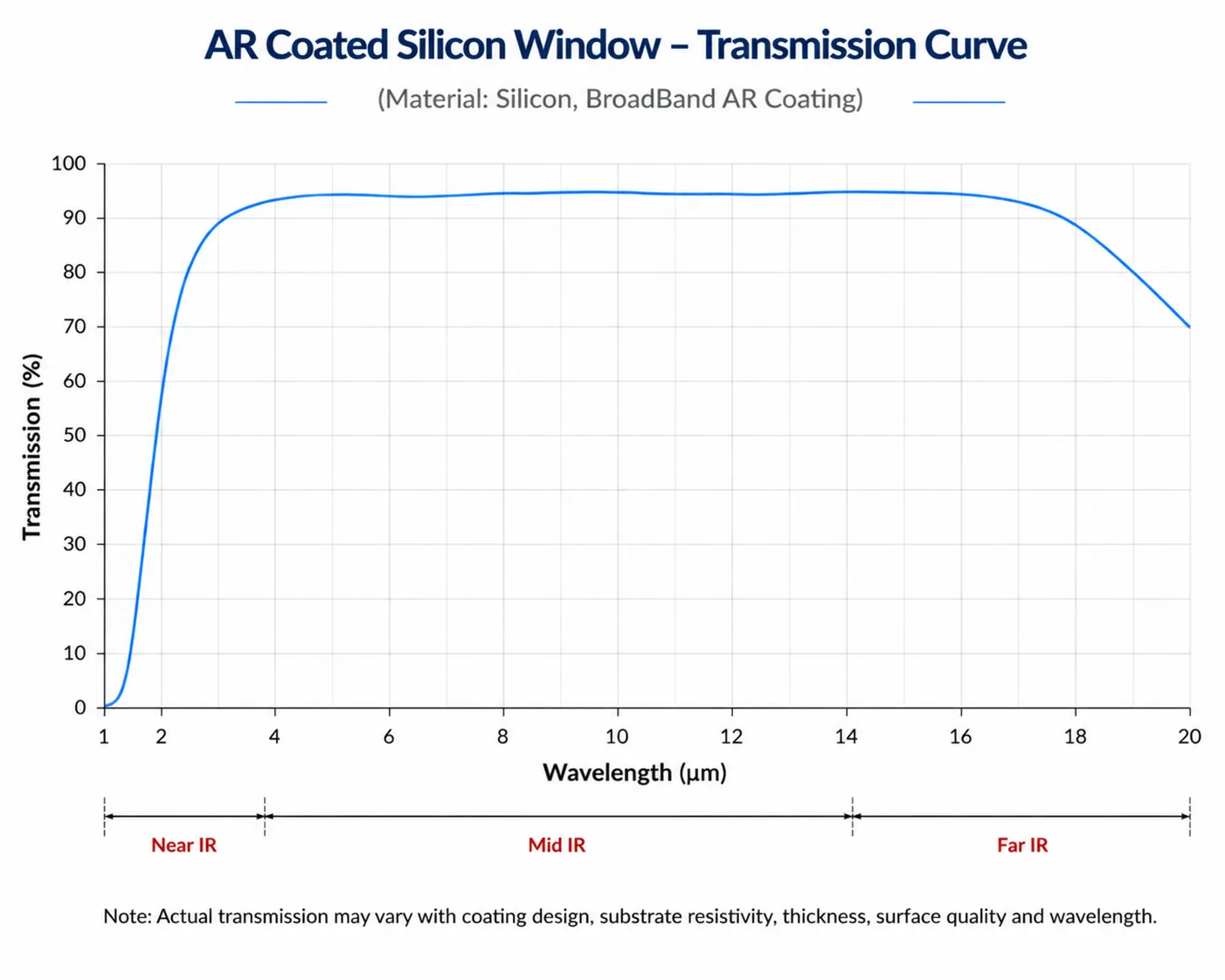

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for AR Coated Silicon Window
Chenyu Optics manufactures silicon optical substrates to custom diameter, dimensions and thickness, with precision optical polishing, surface flatness control and edge/dimensional tolerance control. Our MWIR and LWIR AR coating fabrication is supported by precision coating control and spectral performance inspection, from prototype through production quantities.
Manufacturing Capability for AR Coated Silicon Window
Precision Polishing
Silicon substrate polishing with surface flatness, surface quality and edge/dimensional tolerance control.
MWIR / LWIR AR Coating
Precision AR coating fabrication optimized for wavelength range, angle of incidence, polarization and environmental requirements.
Inspection & Packaging
Spectral performance and dimensional inspection according to agreed requirements, followed by protective optical packaging.
Available AR Coating Options
AR Coated vs Uncoated Silicon Window
| Property | AR Coated Silicon Window | Uncoated Silicon Window |
|---|---|---|
| Surface Reflection | Reduced through an AR coating designed for the specified wavelength range | Relatively high Fresnel reflection due to silicon's high refractive index |
| Transmission | Improved transmission over the coated wavelength range | Lower transmission from uncorrected surface reflection losses |
| Typical Use | Infrared imaging, thermal imaging, spectroscopy and IR sensor systems requiring high transmission | Applications where surface reflection loss is acceptable or a coating is not required |
| Design Considerations | Coating must be matched to wavelength range, AOI and polarization | No coating-related design constraints, but higher reflection loss |
Important Considerations for AR Coated Silicon Windows
Applications and Selection Considerations
Infrared Imaging Systems
Provides high-transmission optical access for infrared imaging assemblies.
Thermal Imaging Equipment
Supports thermal imaging systems requiring good MWIR / LWIR transmission.
IR Sensors & Detectors
Serves as a protective, high-transmission window in front of infrared detectors.
Infrared Spectroscopy
Used in infrared spectroscopy systems where wavelength-specific transmission is required.
Industrial Thermal Inspection
Provides durable, transmissive optical access for thermal inspection instruments.
Protective IR Optical Assemblies
Protects internal optics and detectors while maintaining infrared transmission.
AR Coated Silicon Window FAQ
Why are AR coatings used on silicon windows?
Silicon has a high refractive index and therefore relatively high Fresnel reflection at uncoated surfaces. AR coatings reduce these reflection losses and improve infrared transmission.
What wavelength ranges are suitable for silicon windows?
Silicon is commonly used in infrared optical systems, particularly in portions of the MWIR and longer infrared spectrum. The exact usable range depends on material grade, thickness, coating, and system requirements.
Can silicon windows be used for thermal imaging?
Yes. Silicon windows can be used in compatible thermal and infrared imaging systems when the operating wavelength and coating are appropriately selected.
Can the AR coating be customized?
Yes. Chenyu Optics can customize the AR coating according to wavelength range, angle of incidence, polarization, and required transmission.
Can custom sizes and thicknesses be manufactured?
Yes. Custom diameter, rectangular dimensions, thickness, surface specifications, and coating designs are available.
What information should I provide for a quotation?
Please provide the operating wavelength or wavelength range, required transmission, angle of incidence, polarization (if relevant), window dimensions, thickness, surface flatness, surface quality, AR coating requirement, operating environment and quantity.
Related Products for AR Coated Silicon Window
Need AR Coated Silicon Windows?
Send us your wavelength range, required transmission, angle of incidence, dimensions, thickness, surface specifications, AR coating requirements, operating environment and quantity. Chenyu Optics will review the requirements for technical evaluation and quotation.
