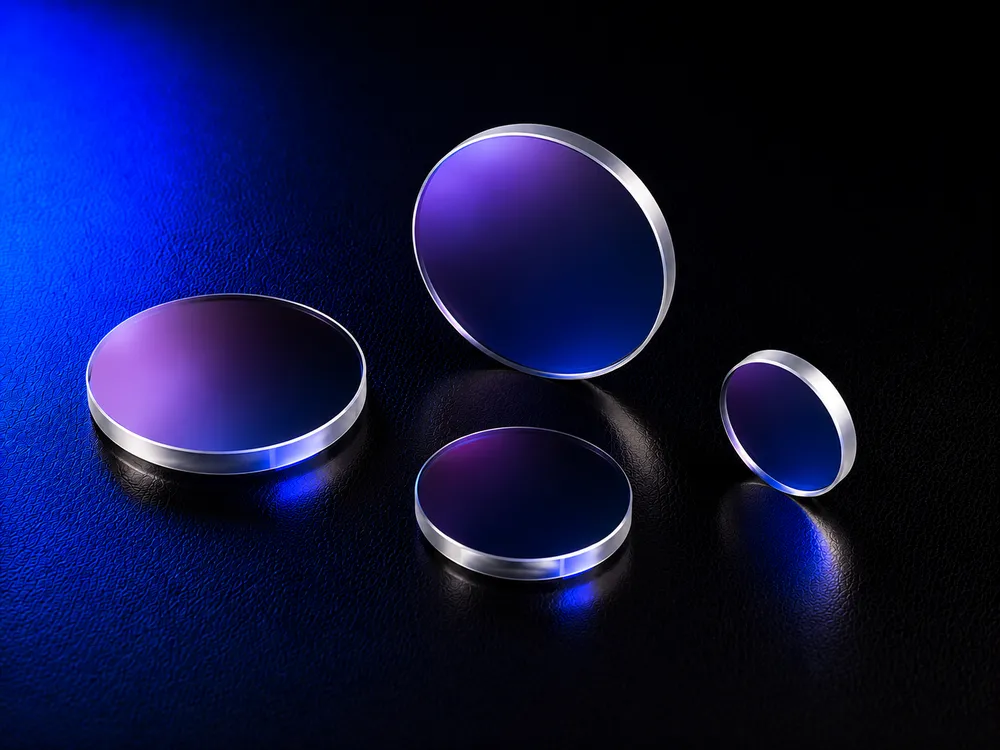

High Energy Laser Mirror
High Energy Laser Mirrors are precision optics for demanding systems requiring high reflectivity, low absorption, high laser damage threshold and excellent thermal stability.
High Energy Laser Mirror Overview
High Energy Laser Mirrors are precision optics for demanding systems requiring high reflectivity, low absorption, high laser damage threshold and excellent thermal stability.
Fused silica or selected optical glass substrates receive high-performance dielectric coatings that minimize absorption and energy loss under high-energy laser exposure.
Chenyu Optics provides wavelength-specific high-LIDT mirrors with customized AOI, polarization, dimensions and surface specifications for pulsed lasers, processing, beam delivery and scientific systems.
Key Advantages of High Energy Laser Mirrors

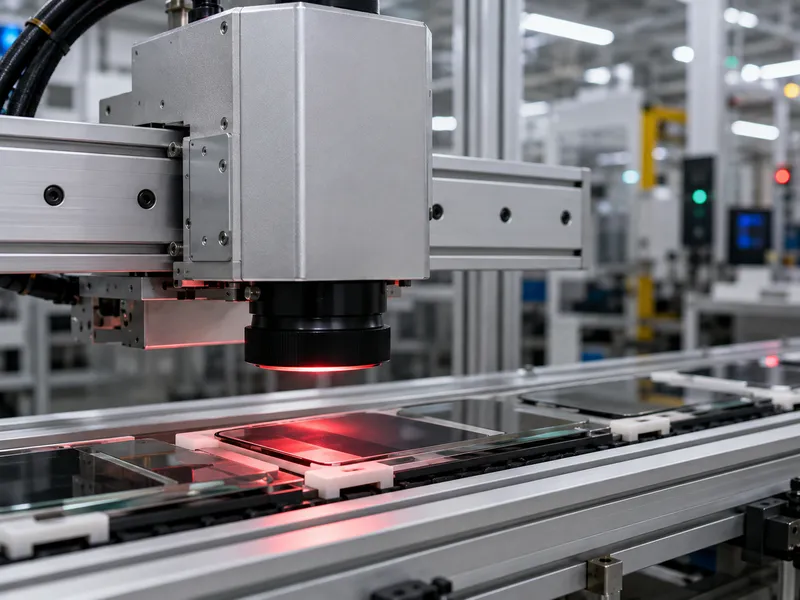

Laser Focusing, Collimation & High LIDT
High energy laser mirrors provide efficient, low-absorption beam reflection and reliable steering in pulsed, high-power, processing and scientific laser systems.
Typical Specifications of High Energy Laser Mirror
| Material | Fused Silica / Optical Glass |
|---|---|
| Optical Function | High-energy laser beam reflection |
| Product Type | High Energy Laser Mirror |
| Wavelength Range | Customized |
| Reflectivity | Customized |
| Diameter / Size | Customized |
| Angle of Incidence | Customized |
| Thickness | Customized |
| Polarization | S / P / Unpolarized, application dependent |
| Surface Accuracy | Customized |
| Surface Quality | Up to 20-10 scratch-dig |
Reflectance Curve & Coating Structure
Why Choose Chenyu Optics for High Energy Laser Mirrors
Chenyu Optics supports drawing-based high energy laser mirror manufacturing for laser, ultraviolet, sensing and aerospace optical systems, from prototype verification through repeat production.
Manufacturing Capability for High Energy Laser Mirrors
Precision Mirror Substrate Polishing
Precision polishing of fused silica and optical glass substrates with custom diameter, thickness, flatness and surface quality.
Multilayer Dielectric Coating
High-reflectivity, low-absorption multilayer coatings optimized for wavelength, AOI, polarization and laser operating conditions.
Inspection & Packaging
Dimensional, surface and optical inspection followed by clean handling and protective packaging for precision high energy laser mirrors.
Coating Options for High Energy Laser Mirrors
High-LIDT Dielectric Coating
Optimized for high laser damage threshold under demanding pulsed and high-power conditions.
High Reflective Coating
Provides high reflectivity at specified laser wavelengths while minimizing beam-delivery losses.
Low Absorption Coating
Customized for wavelength, pulse duration, repetition rate, AOI, polarization and laser power.
High Energy Laser Mirror Coating Selection
| Option | Typical Range | Recommended Use | Design Note |
|---|---|---|---|
| High-LIDT Dielectric | Specified laser wavelength | High-energy pulsed systems | Provide complete pulse and beam parameters |
| High Reflective | Custom laser band | High-power beam delivery | Specify AOI and polarization |
| Low Absorption | Customer specified | Thermally sensitive systems | Minimizes heat generation and energy loss |
| Custom Laser | Application specific | Processing, welding and research | Provide wavelength, power, pulse and geometry data |
Applications of High Energy Laser Mirrors
High Energy Lasers
High-LIDT mirrors for demanding high-energy systems.
Pulsed Lasers
Low-absorption reflection for pulsed laser beams.
Beam Delivery
Efficient high-power beam steering and delivery.
Laser Cutting
Durable mirrors for cutting and processing equipment.
Laser Welding
Thermally stable mirrors for welding systems.
Scientific Research
Custom high-energy mirrors for research lasers.
Precision Instruments
Stable reflection in laser measurement instruments.
Beam Steering
Precision turning mirrors for high-power optical paths.
High Energy Laser Mirror FAQ
What is a high energy laser mirror?
It efficiently reflects high-energy or high-power laser beams while minimizing absorption, thermal effects and coating damage.
What determines the laser damage threshold?
LIDT depends on wavelength, pulse duration, repetition rate, beam size, energy density, substrate preparation, surface quality and coating design.
What substrates are available?
Fused silica and selected optical glasses are available according to wavelength, power level, thermal requirements and optical specifications.
Can the mirror be designed for different angles?
Yes. The dielectric coating can be optimized for the required wavelength, angle of incidence and polarization.
Can you provide custom high-LIDT coatings?
Yes. Coating solutions can be developed around the customer's complete laser parameters and optical performance requirements.
Handling & Manufacturing Notes
Need High Energy Laser Mirrors for Precision Optical Systems?
Send us your wavelength, laser type (CW or pulsed), pulse duration, pulse energy, repetition rate, average power, beam diameter, AOI, polarization, required reflectivity, mirror dimensions and quantity. Chenyu Optics will review the coating requirements and provide a suitable high-energy mirror solution.
