Infrared Transmission
Materials and coatings must be matched to the required MWIR or LWIR spectral range.
Application Solution
Infrared Optics for Thermal Imaging Systems
Custom infrared windows and lenses for MWIR and LWIR imaging systems.
Chenyu Optics manufactures infrared optical components for thermal cameras, infrared sensors and electro-optical imaging systems. Material, coating and optical specifications are selected according to the operating wavelength, environment and system requirements.

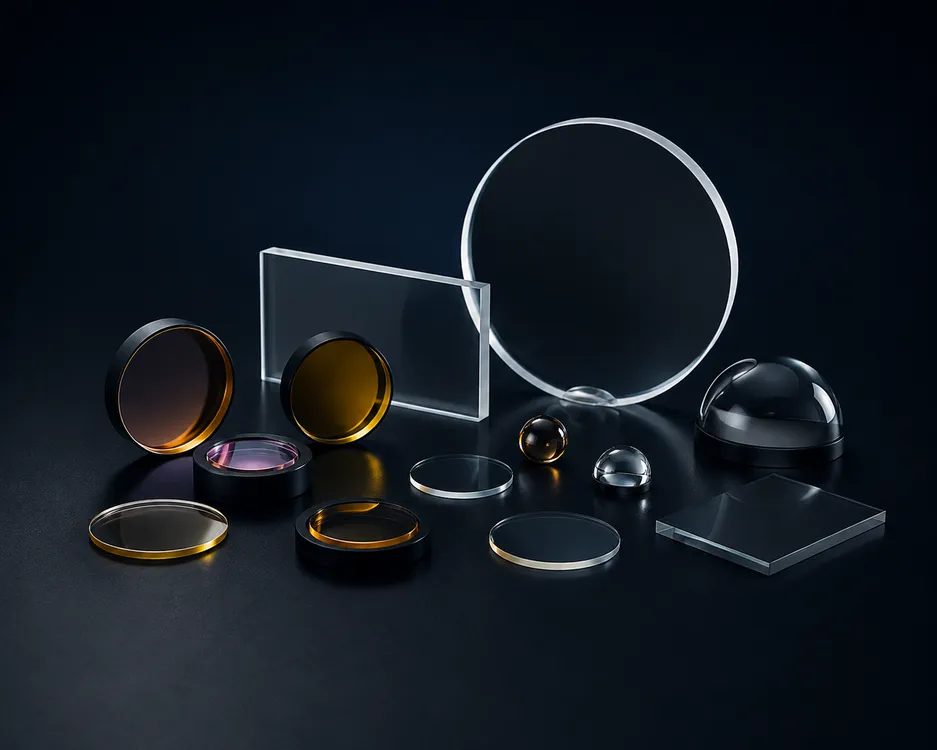

Thermal Imaging System VisualApplication Overview
Infrared Imaging Requirements
Infrared imaging systems require optical components with suitable transmission, imaging performance and environmental stability within the specified spectral range. Material selection, surface specifications, coating design and mechanical integration must be evaluated together.
The optimal solution depends on spectral range, detector architecture, environmental exposure and system-level requirements.
Imaging Performance
Surface accuracy, surface quality and optical design influence image formation.
Environmental Protection
Exposed windows and domes may require durable materials or protective coatings.
Material Selection
Spectral range, temperature and mechanical requirements guide material selection.
Material Solutions
Infrared Optical Material Selection
Material characteristics should be evaluated against spectral range, optical design, mechanical requirements and operating environment.
Ge
Germanium
- High refractive index
- Commonly used in LWIR imaging
Applications: LWIR cameras and thermal imaging systems
Si
Silicon
- Lower density than germanium
- Suitable for selected MWIR systems
Applications: MWIR cameras and infrared sensors
ZnSe
Zinc Selenide
- Broad infrared transmission
- Available for custom windows and lenses
Applications: Infrared imaging and multispectral systems
ZnS
Zinc Sulfide
- Broad infrared transmission
- Suitable for durable external windows
Applications: MWIR, LWIR and electro-optical sensor systems
Final material selection depends on wavelength range, optical design, environmental exposure and mechanical requirements.
Core Product Solutions
Infrared Imaging Optical Components
Germanium IR OpticsGermanium IR Windows And Lenses
Germanium optical components are widely used for LWIR thermal imaging systems due to their high refractive index and infrared transmission performance.
Thermal Imaging CamerasLWIR SystemsInfrared Sensors
View Germanium IR Optics

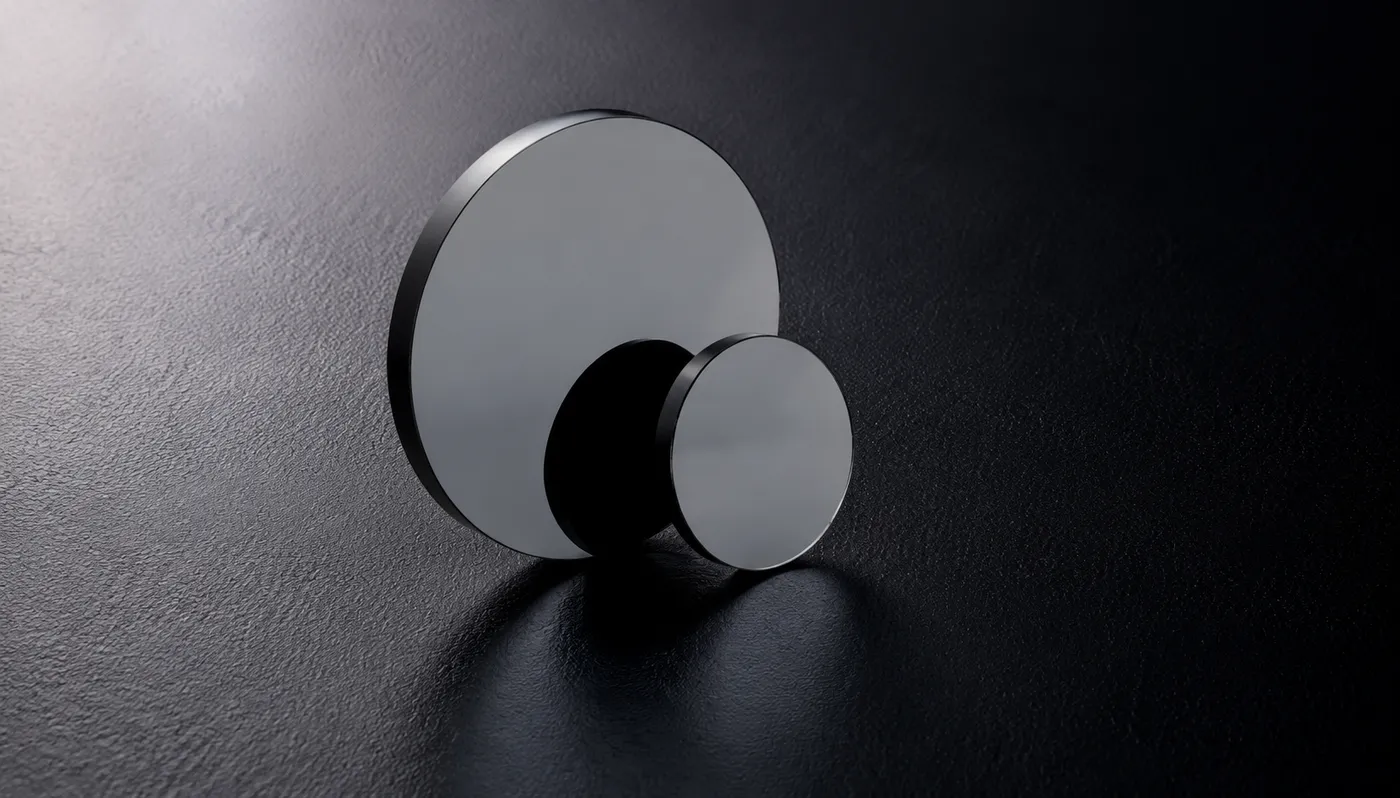

Silicon IR OpticsSilicon IR Windows And Lenses
Silicon infrared optics provide lightweight solutions for MWIR imaging systems and infrared sensing applications.
MWIR CamerasInfrared SensorsCompact Imaging Systems
View Silicon IR Optics
ZnSe IR OpticsZnSe IR Windows And Lenses
Zinc selenide optical components provide broad infrared transmission and are used in infrared imaging and laser optical systems.
Infrared ImagingCO₂ Laser SystemsIR Detection Systems
View ZnSe IR Optics
ZnS IR OpticsZnS IR Windows And Domes
Zinc sulfide provides broadband infrared transmission and durability for selected MWIR and LWIR optical systems.
EO/IR SystemsThermal ImagingInfrared Sensor Protection
View ZnS IR Optics
Germanium IR LensGermanium Infrared Lenses
High-index germanium lenses for focusing and image formation in selected LWIR thermal imaging systems.
View Germanium Lenses
Silicon IR LensSilicon Infrared Lenses
Lightweight silicon lenses for focusing and compact optical layouts in selected MWIR imaging systems.
View Silicon Lenses
ZnSe IR LensZnSe Infrared Lenses
Zinc selenide lenses provide broad infrared transmission for imaging, detection and selected laser optical systems.
View ZnSe Lenses
ZnS IR LensZnS Infrared Lenses
Durable zinc sulfide lenses for selected MWIR, LWIR and multispectral imaging requirements.
View ZnS LensesManufacturing Support
Infrared Optical Manufacturing Support
Chenyu Optics supports infrared optical component manufacturing from material processing and precision polishing through coating and final inspection.
- Material Processing
- Precision Polishing
- Optical Coating
- Final Inspection
End-Use Markets
Infrared Imaging Applications
Thermal Imaging Cameras
Optical windows and lenses for compact thermal imaging modules.
Industrial Thermal Inspection
Infrared optics for equipment monitoring and temperature inspection.
Security and EO/IR Systems
Custom optical components for surveillance and integrated sensor systems.
Scientific Infrared Imaging
Optical solutions for infrared measurement and research systems.
Technical FAQ
Infrared Imaging Optics FAQ
Which materials are commonly used for infrared imaging optics?
Germanium, silicon, zinc selenide and zinc sulfide are commonly considered for infrared imaging. Suitability depends on the wavelength range and system requirements.
How do I select between germanium, silicon, zinc selenide and zinc sulfide?
Selection depends on the required spectral range, optical design, temperature, mechanical requirements and environmental exposure. The final material should be confirmed during drawing review.
Are anti-reflection and protective coatings available for infrared optics?
Coating options are available depending on wavelength, substrate material, component geometry and operating environment. The coating design is confirmed for each requirement.
What information is required for a quotation?
Please provide the component drawing, material preference, wavelength range, coating requirements, surface specifications, quantity and operating environment.
Related Products
Related Infrared Optical Products
Need Custom Infrared Imaging Optics?
Send us your drawing, wavelength range, coating requirements, quantity and operating conditions for manufacturability review.
