Silicon Optical Window
Silicon Optical Windows are precision optical components designed to transmit infrared wavelengths while protecting internal optical systems in infrared imaging, thermal sensing and optical measurement applications. Manufactured from high-quality silicon optical substrates with excellent infrared transmission, high thermal stability and mechanical strength, these windows provide reliable IR transmission and stable environmental performance. Chenyu Optics manufactures silicon optical windows uncoated or with IR AR, MWIR AR, LWIR AR and DLC coatings.
Silicon Optical Window Overview
Silicon Optical Windows are precision optical components designed to transmit infrared wavelengths while protecting internal optical systems in infrared imaging, thermal sensing and optical measurement applications.
Manufactured from high-quality silicon optical substrates with useful infrared transmission characteristics, high thermal stability and mechanical strength, silicon optical windows provide reliable IR performance, low optical distortion and stable environmental performance. The commonly used transmission region is approximately 1.2–7 μm, with silicon used primarily in the 3–5 μm MWIR band. Some references extend the nominal material range toward 15 μm, but CZ silicon has an absorption feature near 9 μm; FZ or high-resistivity FZ silicon must therefore be evaluated for specialized longer-wavelength or THz requirements. Typical applications include MWIR thermal cameras, infrared sensors, remote sensing equipment, filter substrates and scientific instruments.
Chenyu Optics supports custom silicon window manufacturing according to customer drawings, including custom diameter, thickness and coating design for prototype and repeat production.
Key Advantages of Silicon Optical Window

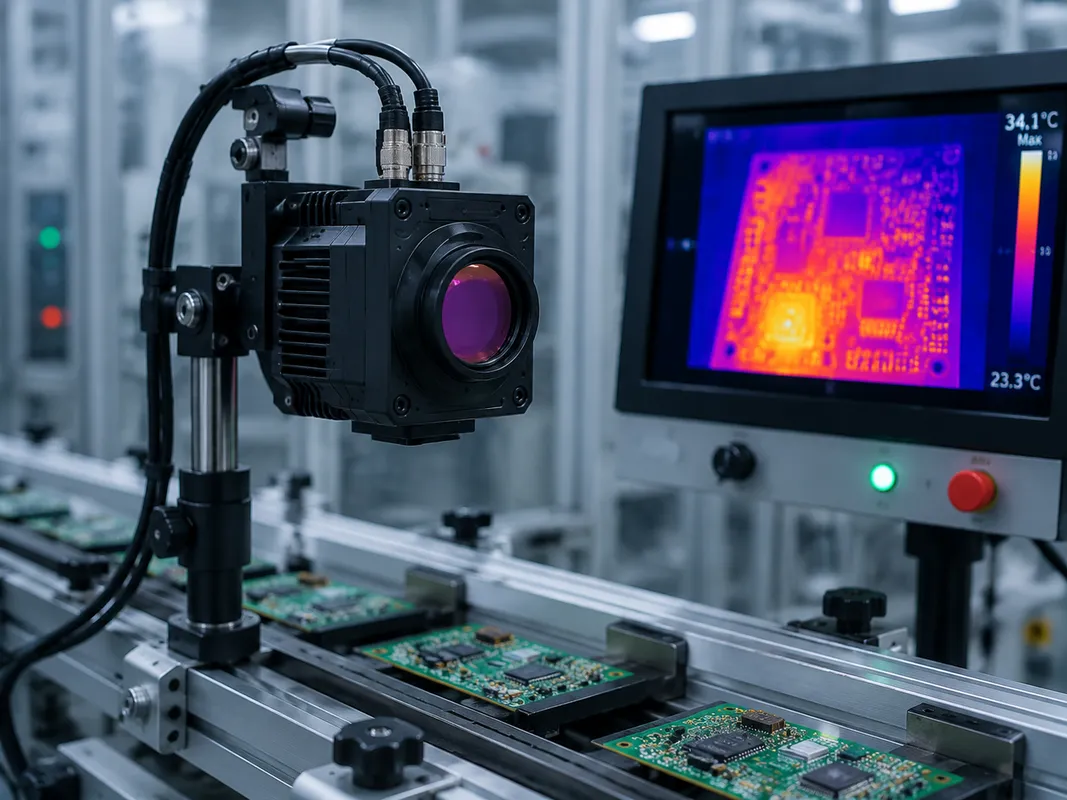

Thermal Imaging & Infrared Sensing Systems
Silicon optical windows are widely used for MWIR and LWIR transmission in thermal imaging cameras, infrared sensor systems and remote sensing equipment.
Typical Specifications of Silicon Optical Window
| Material / Grade | Single-crystal Silicon (Si); optical CZ silicon, Float-Zone (FZ) silicon and high-resistivity FZ silicon available subject to wavelength and application review |
|---|---|
| Silicon Transmission Range | Typically 1.2–7 μm for standard NIR/MWIR optics; primary operating band 3–5 μm. Specialized FZ/HRFZ grades may support longer-wave or THz applications. CZ silicon has an absorption feature near 9 μm. |
| Refractive Index | Approx. 3.422 at 5 μm; use wavelength- and temperature-specific optical constants for system design |
| Resistivity Options | Optical-grade CZ silicon typically 5–40 Ω·cm; FZ and high-resistivity FZ silicon available for reduced free-carrier absorption and specialized IR/THz requirements |
| Thickness and Diameter | Custom diameter, rectangular size and thickness according to customer drawing; final range depends on silicon grade, geometry, flatness and quantity |
| Surface Quality | 60-40, 40-20, 20-10 or 10-5 scratch-dig, depending on application and manufacturability |
| Flatness | Typically λ/4 to λ/10 at 632.8 nm, subject to size, thickness and clear aperture |
| Parallelism | Drawing-defined; precision parallelism available according to thickness, diameter and system requirements |
| AR / DLC Coating Options | Uncoated, 3–5 μm MWIR AR, wavelength-specific IR AR, broadband AR and DLC protective coating; LWIR designs require silicon-grade and wavelength review |
| MWIR / LWIR Applications | MWIR thermal imaging, infrared detectors, gas sensing, remote sensing, optical filter substrates and protected sensor windows; specialized LWIR use requires FZ-grade and coating evaluation |
| Clear Aperture | Drawing-defined; specify usable optical aperture and edge exclusion |
| Custom Specifications | Custom material grade, resistivity, diameter, shape, thickness, dimensional tolerances, flatness, parallelism, surface quality, clear aperture, bevel, coating band, AOI and inspection documentation |

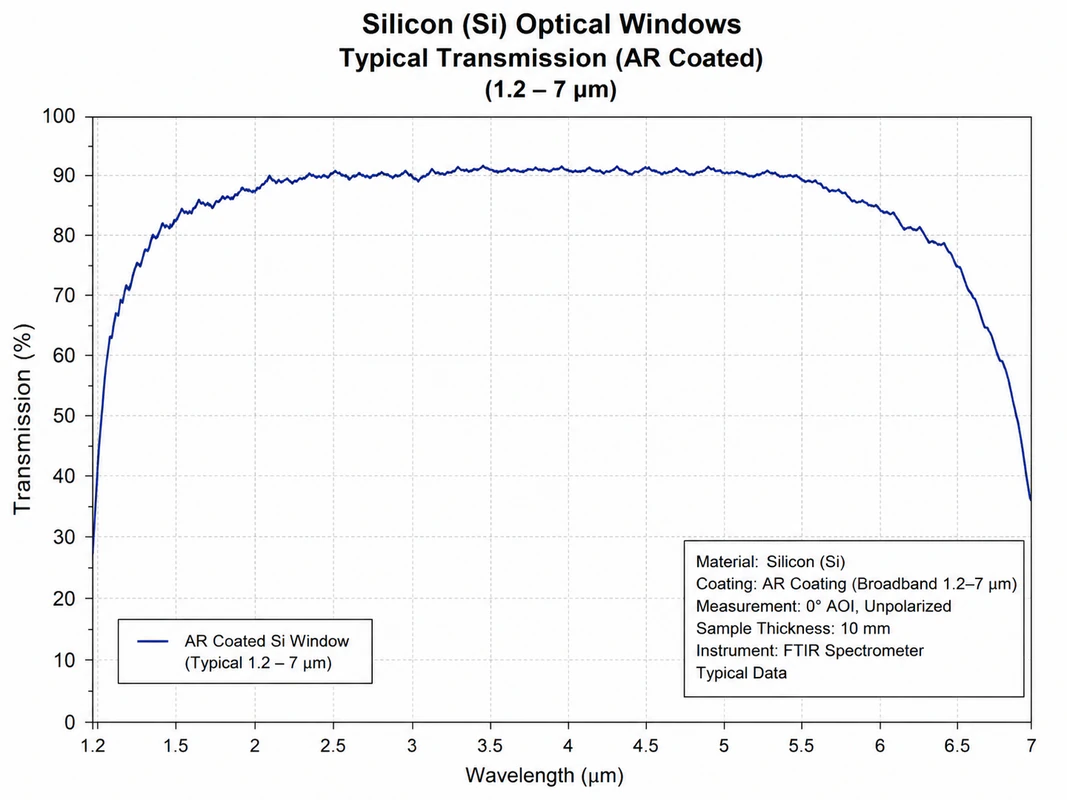

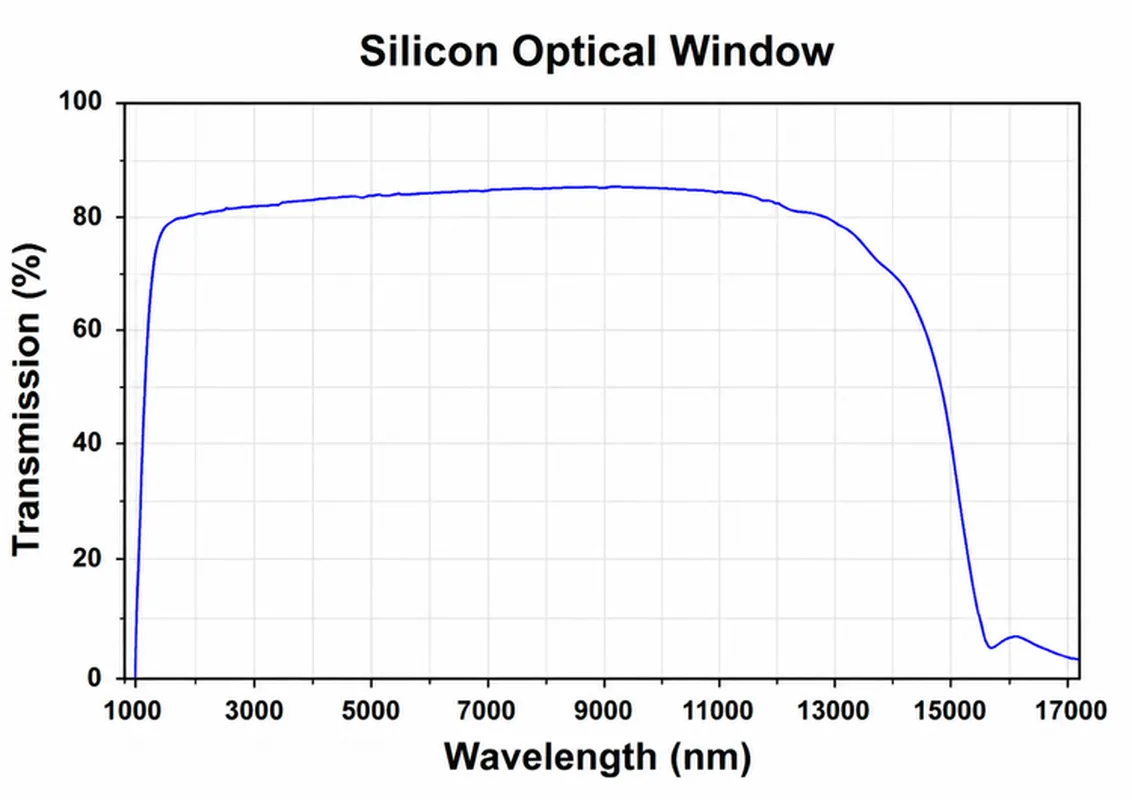

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Silicon Optical Window
Chenyu Optics focuses on drawing-based precision infrared window manufacturing for MWIR and LWIR optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard silicon windows.

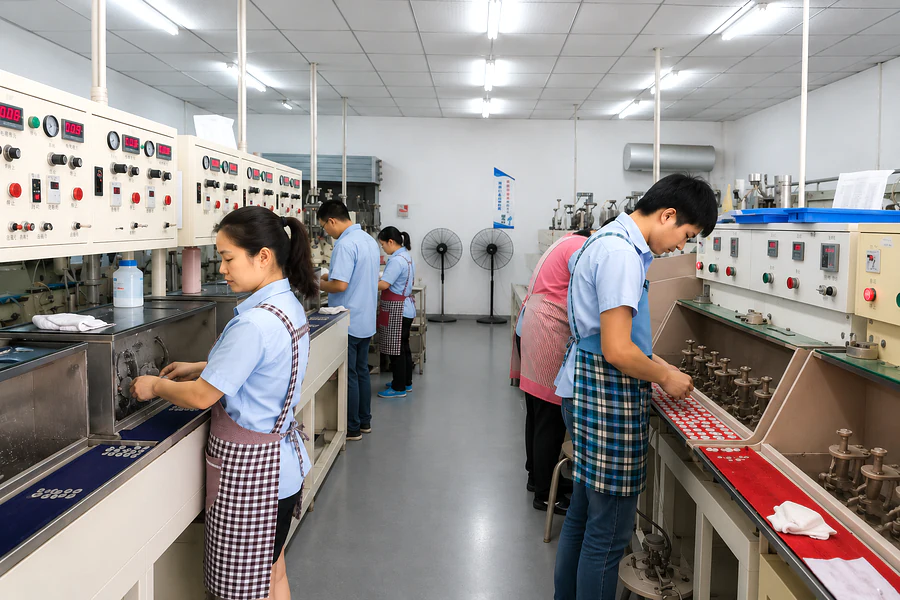

Manufacturing Capability for Silicon Optical Window

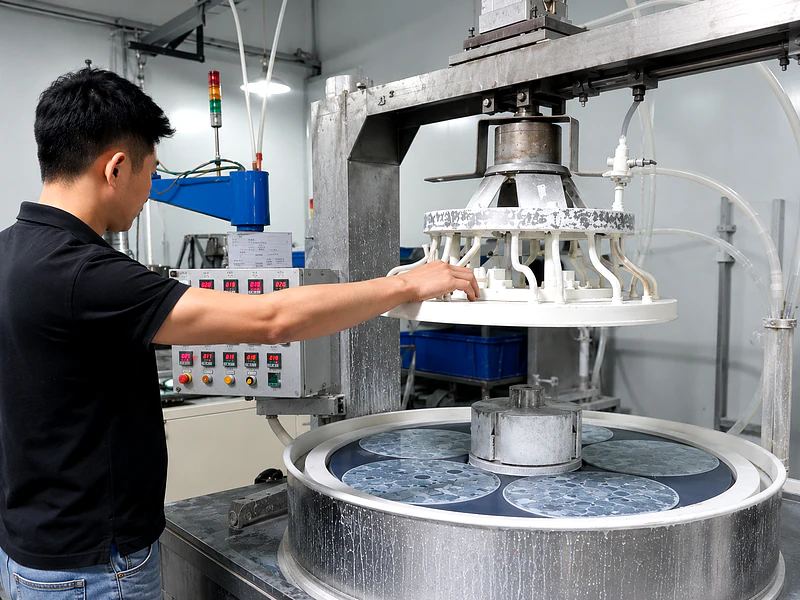

Precision Polishing
Controlled grinding and polishing procedures for stable infrared transmission and low optical distortion in silicon substrates.

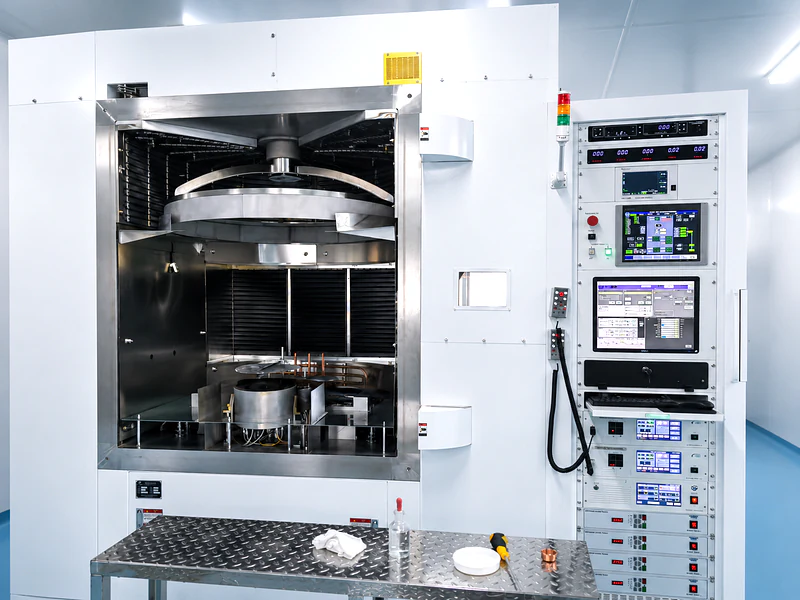

Optical Coating
IR AR, MWIR AR, LWIR AR and DLC coating options for infrared imaging and thermal sensing applications.

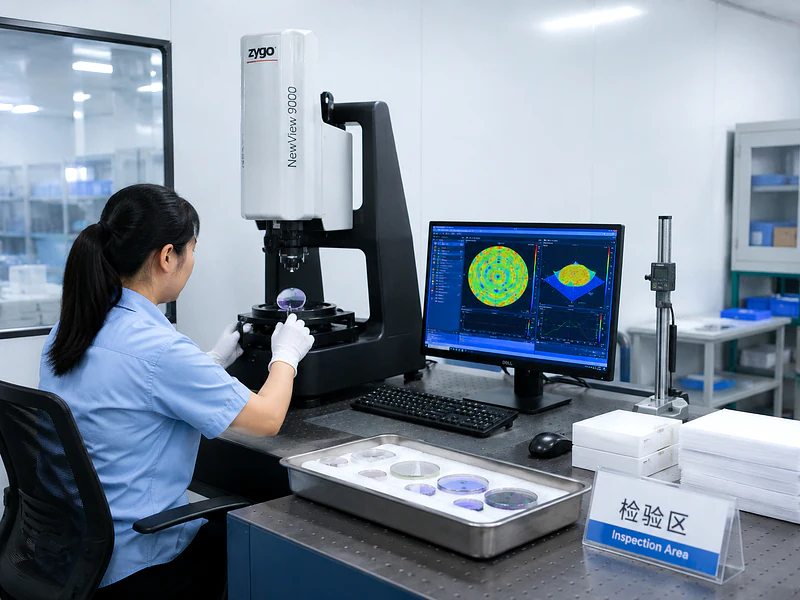

Inspection & Packaging
Dimensional inspection, surface review, infrared performance checking and protective packaging before shipment.
Custom Manufacturing Options for Silicon Optical Window
Dimensions & Geometry
Custom diameter, rectangular size, thickness, clear aperture, bevel and dimensional tolerances can be manufactured according to customer drawings. Final capability depends on silicon grade, geometry, flatness and quantity.
Surface & Mechanical Quality
Surface quality from 60-40 to 10-5 scratch-dig, flatness from λ/4 to λ/10 at 632.8 nm, and drawing-defined parallelism can be selected subject to size, thickness and manufacturability.
Coating & Wavelength Design
Uncoated, 3–5 μm MWIR AR, wavelength-specific IR AR, broadband AR and DLC protective coatings can be specified. Longer-wavelength designs require joint review of silicon grade, resistivity, thickness, AOI and coating band.
Silicon Window Material Comparison
| Silicon (Si) | Germanium (Ge) | Sapphire | Zinc Selenide (ZnSe) | |
|---|---|---|---|---|
| Transmission | Typically 1.2–7 μm; primary use at 3–5 μm. Specialized grades extend to longer wavelengths | MWIR to LWIR, approx. 2 – 14 μm | UV to MWIR, commonly 0.2 – 5.5 μm | Visible to LWIR, approx. 0.5 – 15 μm |
| Refractive Index | Approx. 3.42 @ 4 μm | Approx. 4.00 @ 10 μm | Approx. 1.76 | Approx. 2.40 @ 10 μm |
| Mechanical Notes | High thermal stability, good mechanical strength, low density | Hard and brittle, high density, sensitive to elevated temperature | Very hard and chemically durable | Soft and moisture-tolerant, moderate mechanical strength |
| Typical Use | MWIR/LWIR imaging, thermal cameras, IR sensing | Thermal imaging optics, LWIR lenses and windows | Protective windows, harsh environment optics | CO₂ laser optics, broadband IR transmission |
Applications of Silicon Optical Window

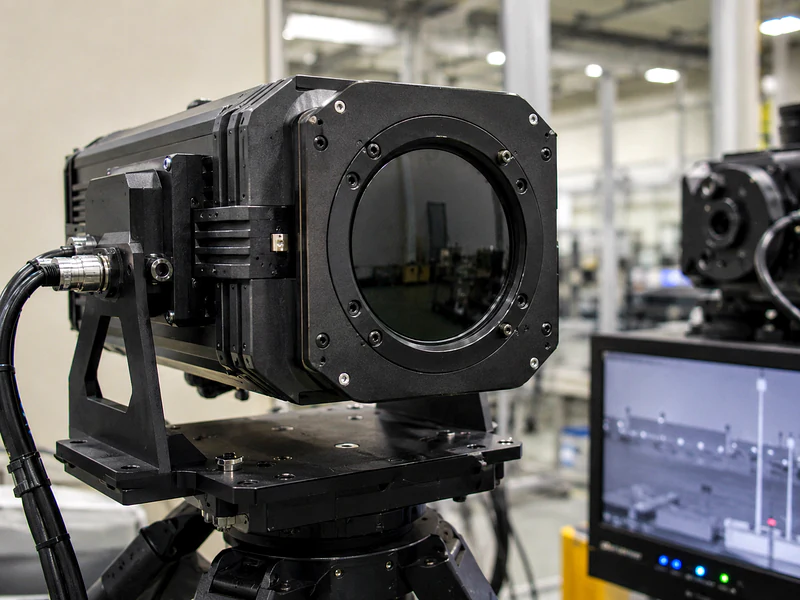

MWIR Infrared Imaging Systems
High transmission windows for mid-wave infrared imaging.
LWIR Thermal Imaging Cameras
Reliable windows for long-wave infrared thermal cameras.
Infrared Sensor Systems
Stable infrared windows for sensor and detector systems.
Remote Sensing Equipment
Durable IR windows for remote sensing instruments.
Thermal Inspection Systems
Windows for thermal inspection and monitoring equipment.
Security & Surveillance Imaging
Robust infrared windows for surveillance camera systems.
Silicon Optical Window FAQ
What is the function of a silicon optical window?
A silicon optical window transmits infrared wavelengths while protecting internal optical components in thermal imaging, infrared sensing and measurement systems.
Why is silicon used for infrared optical windows?
Silicon provides excellent MWIR and LWIR transmission, high thermal stability, good mechanical strength and stable infrared optical performance, making it suitable for demanding infrared applications.
What coating options are available for silicon optical windows?
Silicon optical windows can be manufactured with IR AR coatings, MWIR AR coatings, LWIR AR coatings, DLC coatings and custom optical coatings for different infrared wavelength requirements.
Can custom silicon optical windows be manufactured?
Yes. Chenyu Optics provides customized silicon optical windows with different sizes, thicknesses, surface quality, coatings, clear apertures and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide diameter, thickness, surface flatness, surface quality, coating requirement, quantity and drawing if available.
