Fused Silica Spherical Lens
Chenyu Optics supplies custom fused silica spherical lenses according to the specified fused silica grade, UV/VIS/NIR wavelength range, diameter, center thickness, radius, focal length, centration, surface requirements, clear aperture and AR coating wavelength. Final material and optical specifications are confirmed against the customer drawing and inspection requirements.
Fused Silica Spherical Lens Overview
Fused Silica Spherical Lenses are spherical optical elements manufactured from a specified fused silica grade selected for the operating wavelength and application environment.
UV, visible and near-infrared suitability depends on material grade, purity, absorption characteristics and coating design. For laser use, wavelength, pulse conditions, beam diameter, energy density and coating requirements must be reviewed rather than inferred from the material name alone.
Chenyu Optics supports drawing-based production with diameter, center thickness, radius, EFL/BFL, centration, surface quality, surface figure, clear aperture and AR coating wavelength specified for prototype or repeat production.
Key Advantages of Fused Silica Spherical Lens
Laser & Spectroscopy Systems
Fused silica spherical lenses are widely used for stable UV and laser optical performance in laser systems, spectroscopy equipment and precision optical assemblies.
Typical Specifications of Fused Silica Spherical Lens
| Fused Silica Grade | Specified according to wavelength, purity and application requirements; available upon request |
|---|---|
| UV / VIS / NIR Suitability | Depends on fused silica grade, thickness and coating design |
| Diameter | Available upon request |
| Center Thickness | According to customer drawing; available upon request |
| Radius Tolerance | Depends on lens geometry and optical requirements |
| EFL / BFL Tolerance | Available upon request; confirmed against the optical design |
| Centration | According to drawing and assembly requirements |
| Surface Quality | According to drawing and inspection requirements |
| Surface Figure | Available upon request; measurement aperture and reference wavelength must be specified |
| AR Coating Wavelength | Specified according to wavelength range, angle of incidence and application |
| Clear Aperture | According to customer drawing; available upon request |
| Inspection Report | Available upon request; report content follows the agreed inspection items |

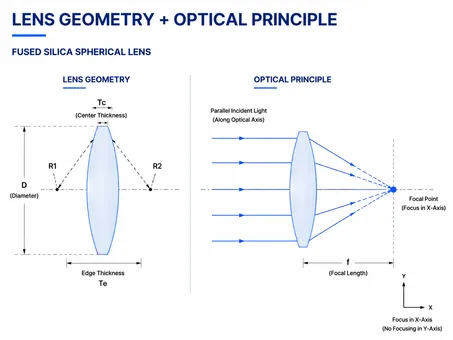

Lens Geometry & Optical Principle
Why Choose Chenyu Optics for Fused Silica Spherical Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for UV, laser and spectroscopy optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard fused silica spherical lenses.
Manufacturing Capability for Fused Silica Spherical Lens
Precision Spherical Polishing
Spherical surfaces and dimensions are processed according to the approved radius, thickness, centration and surface requirements.
Optical Coating
UV AR, VIS AR and NIR AR coating options for laser, imaging and spectroscopy applications.
Inspection & Packaging
Inspection follows the agreed dimensional, focal, centration, surface and clear-aperture requirements, followed by protective packaging.
Custom Manufacturing Options for Fused Silica Spherical Lens
Dimensions & Curvature
Custom diameter, radius of curvature and focal length can be manufactured according to customer drawings and optical design requirements.
Surface & Optical Quality
Surface figure, surface quality, centration and clear aperture are specified according to the optical design and inspection requirements.
Coating & Wavelength Design
Uncoated, UV AR, VIS AR, NIR AR and custom AR coatings can be specified for laser, imaging or spectroscopy applications.
Fused Silica Lens Material Comparison
| Fused Silica | Optical Glass (BK7) | Sapphire | Calcium Fluoride (CaF₂) | |
|---|---|---|---|---|
| Transmission | UV to NIR, approx. 0.18 – 2.5 μm | Visible to NIR | UV to MWIR, commonly 0.2 – 5.5 μm | UV to MWIR, approx. 0.13 – 8.0 μm |
| Laser Damage Resistance | High | Moderate | Very high | High |
| Thermal Expansion | Low | Moderate | Low | Moderate |
| Typical Use | UV optics, laser systems, spectroscopy | General-purpose visible/NIR optics | Harsh environment, high-power laser optics | UV spectroscopy, excimer laser optics |
Applications of Fused Silica Spherical Lens
Laser Systems
Stable focusing and beam control for laser optical systems.
Laser Focusing & Beam Control
Precision focusing for laser beam control applications.
Imaging Systems
High-clarity imaging for precision optical systems.
Spectroscopy Equipment
Stable UV-to-NIR performance for spectroscopic measurement.
Optical Instruments
Precision lenses for instrument optics.
UV Optical Systems
Reliable UV transmission for ultraviolet optical systems.
Fused Silica Spherical Lens FAQ
Why is fused silica used for spherical lenses?
Fused silica provides excellent UV transmission, low thermal expansion, and high laser damage resistance, making it suitable for precision optical applications.
What wavelength range does a fused silica spherical lens support?
Fused silica can support UV, visible and near-infrared applications, but the usable range depends on material grade, lens thickness, surface condition and coating design.
Are fused silica spherical lenses suitable for laser systems?
They can be specified for laser systems after reviewing wavelength, pulse conditions, beam diameter, energy density, material grade and coating requirements.
Can fused silica spherical lenses be customized?
Yes. Chenyu Optics provides customized diameters, radii, focal lengths, surface quality, and AR coating options.
What information should I provide for a quotation?
Please provide fused silica grade, UV/VIS/NIR wavelength range, diameter, center thickness, radius tolerance, EFL/BFL tolerance, centration, surface quality, surface figure, AR coating wavelength, clear aperture, quantity and drawing.
Where can I learn more about lens design?
Additional information on lens design can be found from Edmund Optics.
Need Custom Fused Silica Spherical Lenses?
Send us your drawing, fused silica grade, UV/VIS/NIR wavelength range, diameter, center thickness, radius tolerance, EFL/BFL tolerance, centration, surface quality, surface figure, AR coating wavelength, clear aperture and quantity.
