Custom Optical Mirror
Chenyu Optics manufactures custom optical mirrors according to customer drawings, including custom shapes, substrates, surface accuracy and reflective coatings for laser, imaging, spectroscopy and infrared systems.
Custom Optical Mirror Overview

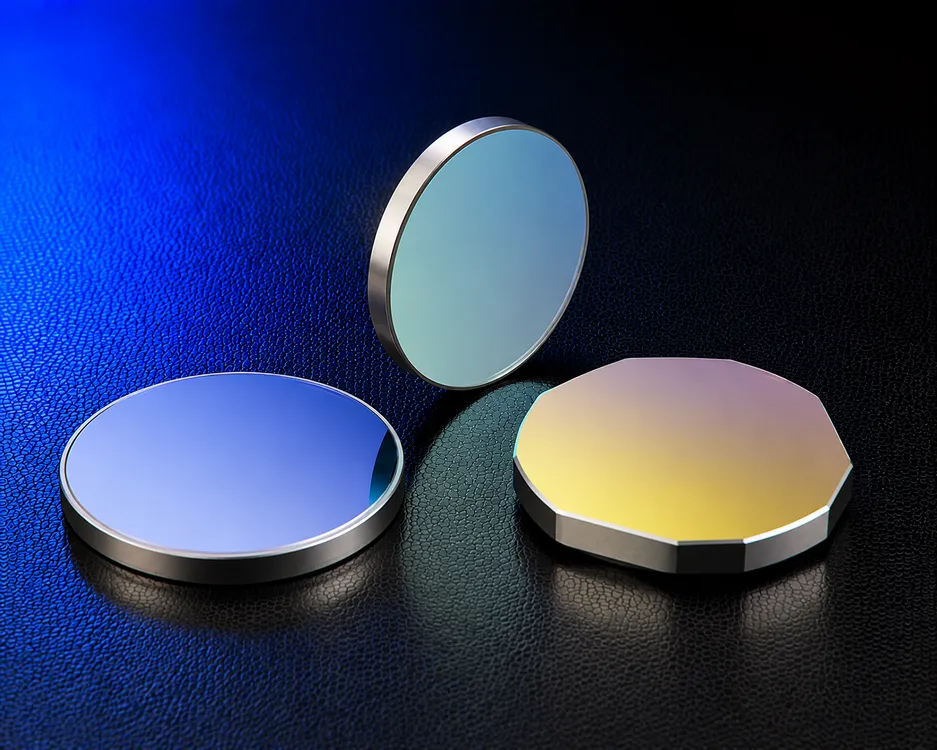

Custom Optical Mirrors are precision reflective components designed and manufactured according to specific optical system requirements. By optimizing substrate selection, mirror geometry, surface accuracy and coating design, custom mirrors provide reliable beam reflection, steering and optical path control performance.
Chenyu Optics offers fused silica, optical glass and metal substrates combined with dielectric, aluminum, silver and gold coatings. Compare the wider product family on our Optical Mirrors page and review coating options through Optical Coating. Custom mirrors are used in laser, imaging, spectroscopy, infrared and beam-steering systems.
Chenyu Optics supports custom optical mirror manufacturing according to customer drawings, including custom shape, dimensions, substrate material and coating design for prototype and repeat production.
Key Advantages of Custom Optical Mirror
Laser & Imaging Systems

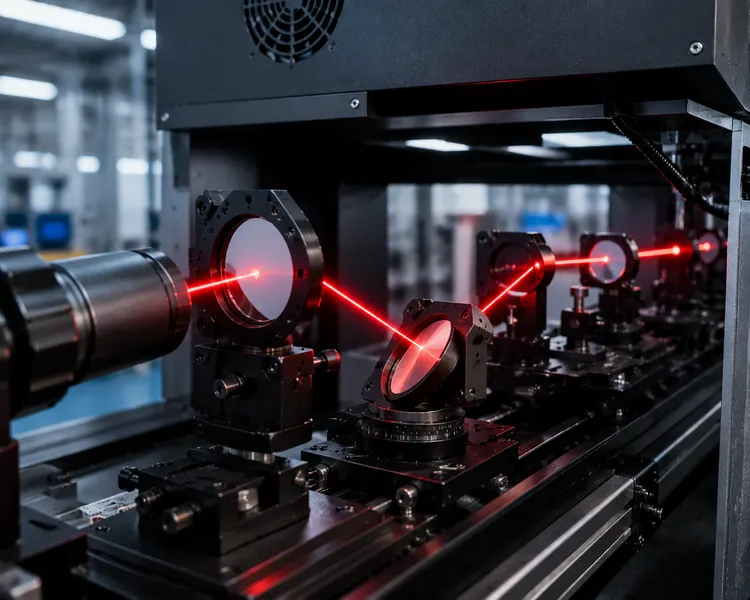

Custom optical mirrors are widely used for application-specific beam reflection and steering in laser systems, imaging systems and precision optical instruments.
Typical Specifications of Custom Optical Mirror
| Material / Substrate | Fused silica, optical glass or metal substrate |
|---|---|
| Minimum Size | Available upon request |
| Maximum Size | Available upon request |
| Thickness Range | Available upon request |
| Standard Dimensional Tolerance | Available upon request; confirmed according to mirror size, thickness, geometry and substrate |
| Surface Quality | 20-10 or 40-20 scratch-dig, subject to drawing review |
| Surface Flatness | λ/4 to λ/10 @ 633 nm, subject to drawing review and confirmation of mirror size, substrate, geometry, specified clear aperture and interferometric test method |
| Parallelism | Available upon request |
| Edge / Chamfer | Custom according to drawing |
| Clear Aperture | Available upon request |
| Coating Type | Dielectric, protected aluminum, protected silver, protected gold or custom coating |
| Reflectivity | Available upon request; dependent on wavelength, coating design, angle of incidence and polarization |
| Wavelength Range | UV / VIS / NIR / IR, depending on coating design |
| Inspection Method | Dimensional inspection, surface-quality inspection, interferometric surface-figure review and spectral reflectance testing as agreed |
| Inspection Report | Available upon request; report items and format must be agreed before quotation |
Final tolerances depend on mirror size, substrate, geometry, coating design and inspection requirements.
Reflectance Curve (Typical, by Coating)
Optical Mirror Coating Options
| Coating Type | Typical Wavelength | Main Advantage | Typical Applications |
|---|---|---|---|
| Protected Aluminum | 450 nm – 20 µm | Broad wavelength coverage | Imaging systems, optical instruments |
| Protected Silver | 450 nm – 20 µm | High reflectivity from visible to infrared | Imaging systems, spectroscopy |
| Protected Gold | 800 nm – 20 µm | Excellent infrared reflectivity | Infrared systems |
| Dielectric Coating | Designed wavelength or wavelength band | High reflectivity at designed wavelength | Laser systems |
Why Choose Chenyu Optics for Custom Optical Mirror
Chenyu Optics focuses on drawing-based precision mirror manufacturing for laser, imaging, spectroscopy and instrumentation systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard custom optical mirrors.
Manufacturing Capability for Custom Optical Mirror
Precision Grinding & Polishing
Surface processing is selected according to mirror geometry, figure and finish requirements. See Optical Polishing.
Reflective Coating
Dielectric, protected aluminum, silver and gold coating options for laser, imaging and spectroscopy applications.
Inspection & Packaging
Dimensional, surface, interferometric and spectral checks are agreed for each drawing. See Optical Metrology Inspection.
Custom Manufacturing Options for Custom Optical Mirror
Shape & Dimensions
Custom shape, diameter and thickness can be manufactured according to customer drawings and system integration requirements.
Substrate & Wavelength Range
Fused silica, optical glass or metal substrate can be selected according to UV, visible, NIR or IR operating requirements.
Coating & System Design
Dielectric, protected aluminum, silver, gold or custom wavelength coatings can be specified for laser, imaging or spectroscopy applications.
Mirror Type Comparison
| Custom Optical Mirror | Parabolic Mirror | Turning Mirror | CO2 Laser Mirror | |
|---|---|---|---|---|
| Design Flexibility | Fully customized to application, broadest range | Fixed parabolic profile per design | Fixed flat profile per design | Fixed 10.6 μm-optimized design per application |
| Primary Function | Application-defined: focusing, steering, or reflection | Aberration-free focusing/collimation of parallel rays | Fixed-angle beam steering, no added optical power | High-power beam handling at 10.6 μm |
| Substrate Options | Fused silica, optical glass, metal | Optical glass, fused silica, aluminum | Optical glass, fused silica, aluminum | Silicon, molybdenum, copper, ZnSe |
| Typical Applications | Laser, imaging, spectroscopy, custom assemblies | Laser focusing, telescopes, spectrometers | Beam steering, path folding, instrumentation | Laser cutting, welding, marking systems |
Applications of Custom Optical Mirror
Laser Systems
Custom-designed mirrors for laser beam reflection and control.
Beam Steering Systems
Application-specific beam redirection for system integration.
Imaging Systems
Custom mirror geometry for complex imaging system integration.
Spectroscopy Equipment
Custom reflective optics for spectroscopic instrumentation.
Optical Alignment Systems
Precision mirrors for optical alignment and calibration.
Scientific Research Equipment
Precision custom mirrors for research and laboratory optical setups.
Custom Optical Mirror FAQ
What types of custom optical mirrors can be manufactured?
Custom optical mirrors can be manufactured in different shapes, sizes, substrates, and coating configurations according to optical system requirements.
Which substrates are available for custom optical mirrors?
Available substrates include fused silica, optical glass, and metal substrates, selected according to wavelength range, thermal stability, and mechanical requirements.
What coatings are available for custom optical mirrors?
Available coatings include dielectric coatings, protected aluminum, protected silver, protected gold, and custom wavelength-specific coatings.
Can custom optical mirrors be designed for laser systems?
Yes. Chenyu Optics provides laser mirror solutions with customized coatings, surface accuracy, and power handling requirements.
What information is required for a custom optical mirror quotation?
Please provide the mirror shape, dimensions, substrate, operating wavelength, angle of incidence, polarization, surface quality, surface figure, coating requirements, quantity and drawing if available.
Where can I learn more about mirror design?
Additional information on mirror design can be found from Edmund Optics.
Related Products for Custom Optical Mirror
Need Custom Optical Mirrors?
Send your drawing, dimensions, substrate, wavelength, angle of incidence, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications, inspection requirements and coating feasibility before quotation.
