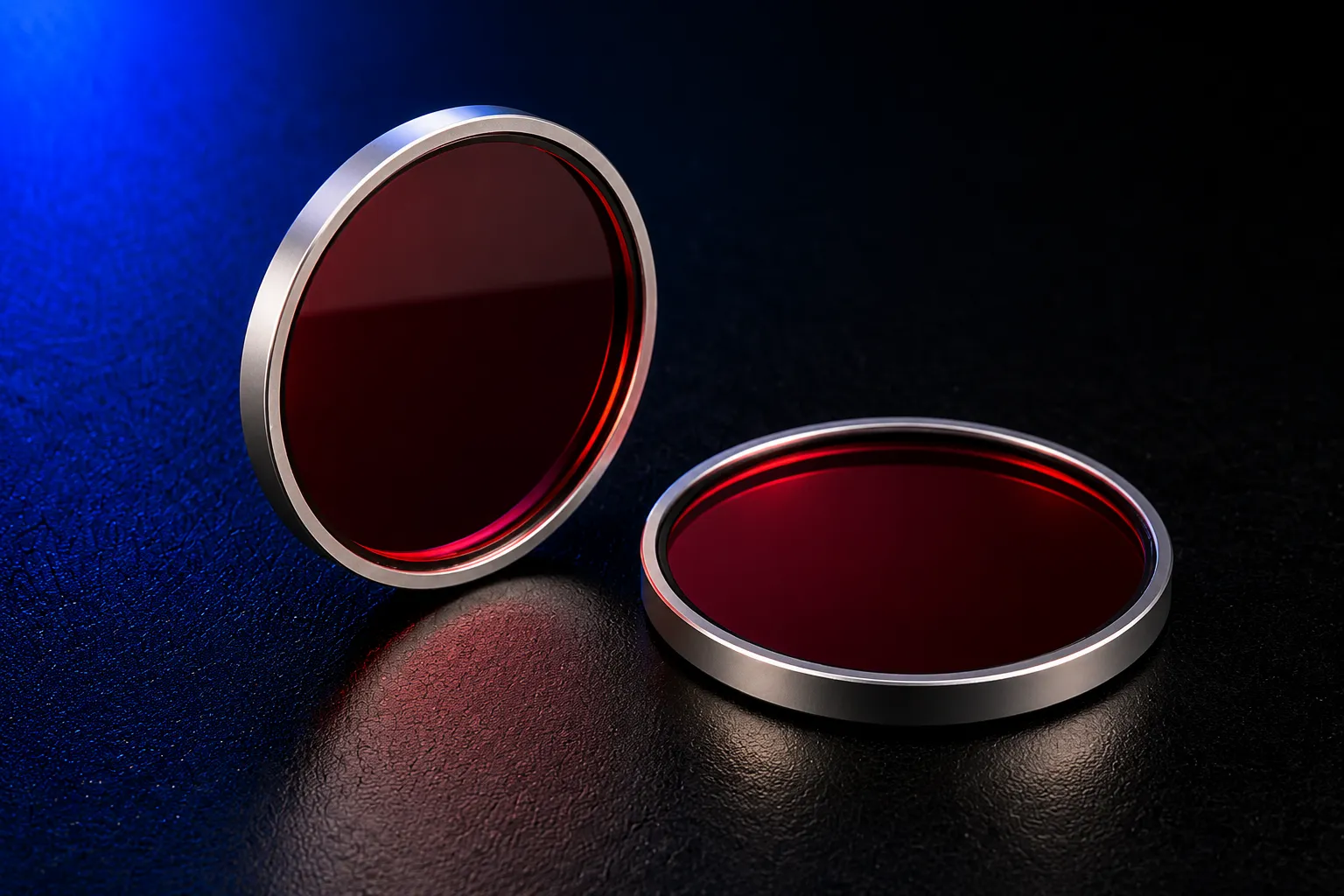

Red Color Glass Filter
Red Color Glass Filters use colored optical glass to transmit red light while absorbing selected shorter wavelengths. Spectral performance depends on the glass grade and thickness. Chenyu Optics supports drawing-based filter inquiries for imaging, sensing and optical instruments.
Red Color Glass Filter Overview
Red Color Glass Filters provide wavelength-selective transmission through absorption within colored optical glass.
These filters can be used for red-channel selection, contrast control and suppression of unwanted shorter-wavelength light. Select the glass grade using the required transmission curve.
Send Chenyu Optics your drawing, target spectrum, glass grade and thickness for manufacturing review. Dimensions, surface finish and coating requirements should be agreed before production.
Key Advantages of Red Color Glass Filter

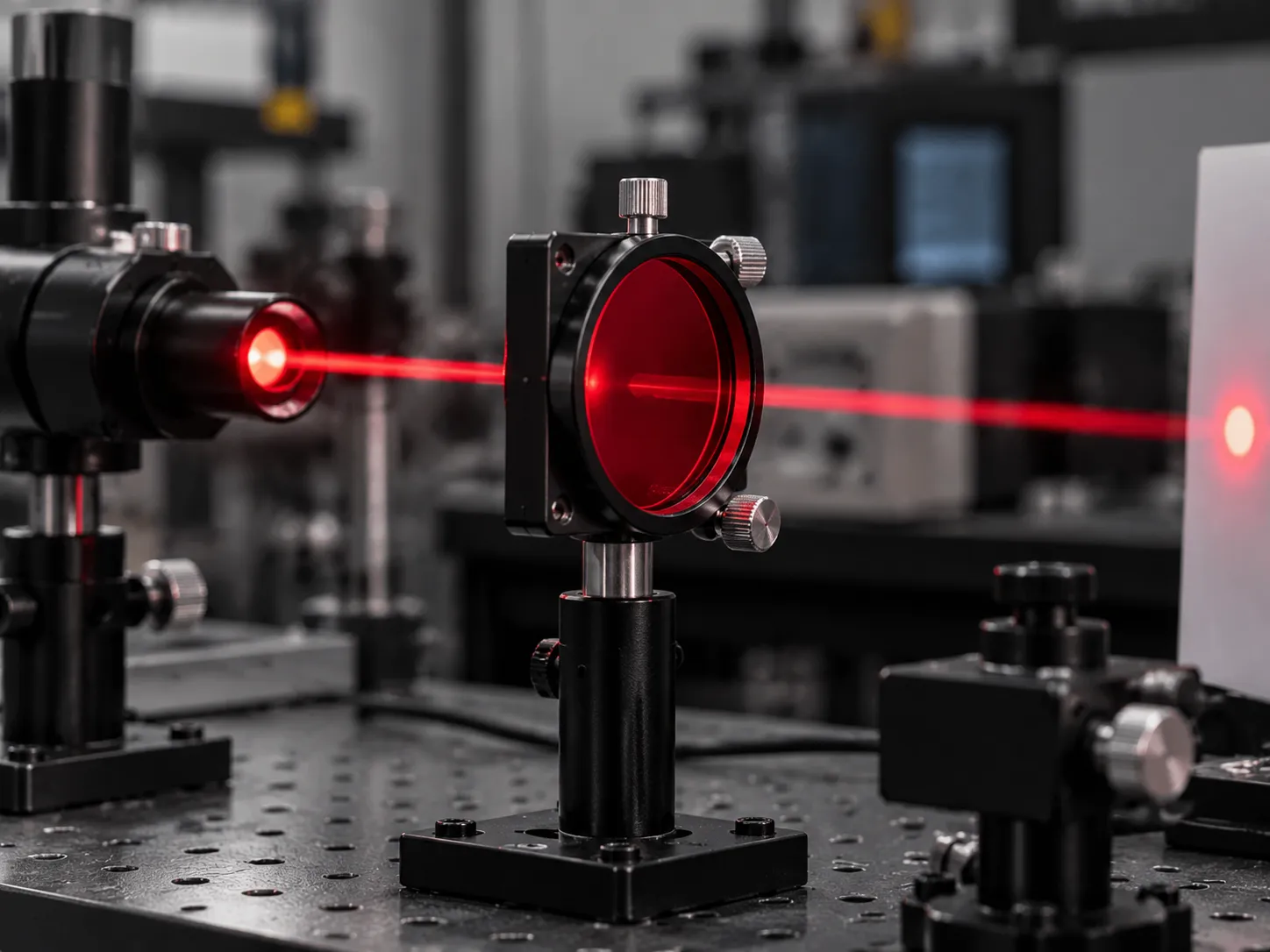

Imaging & Optical Sensing
Red color glass filters help select red illumination and reduce unwanted shorter-wavelength light in imaging and sensing systems.
Typical Specifications of Red Color Glass Filter
| Material | Red colored optical glass; grade to be confirmed |
|---|---|
| Filtering Mechanism | Selective absorption within the glass |
| Optical Function | Red light transmission and shorter-wavelength suppression |
| Spectral Edge | Depends on glass grade and thickness |
| Transmission | Specify the required curve and measurement wavelengths |
| Dimensions & Thickness | According to approved drawing |
| Surface Quality | According to agreed application requirements |
| Surface Treatment | Uncoated or coating requirements subject to review |

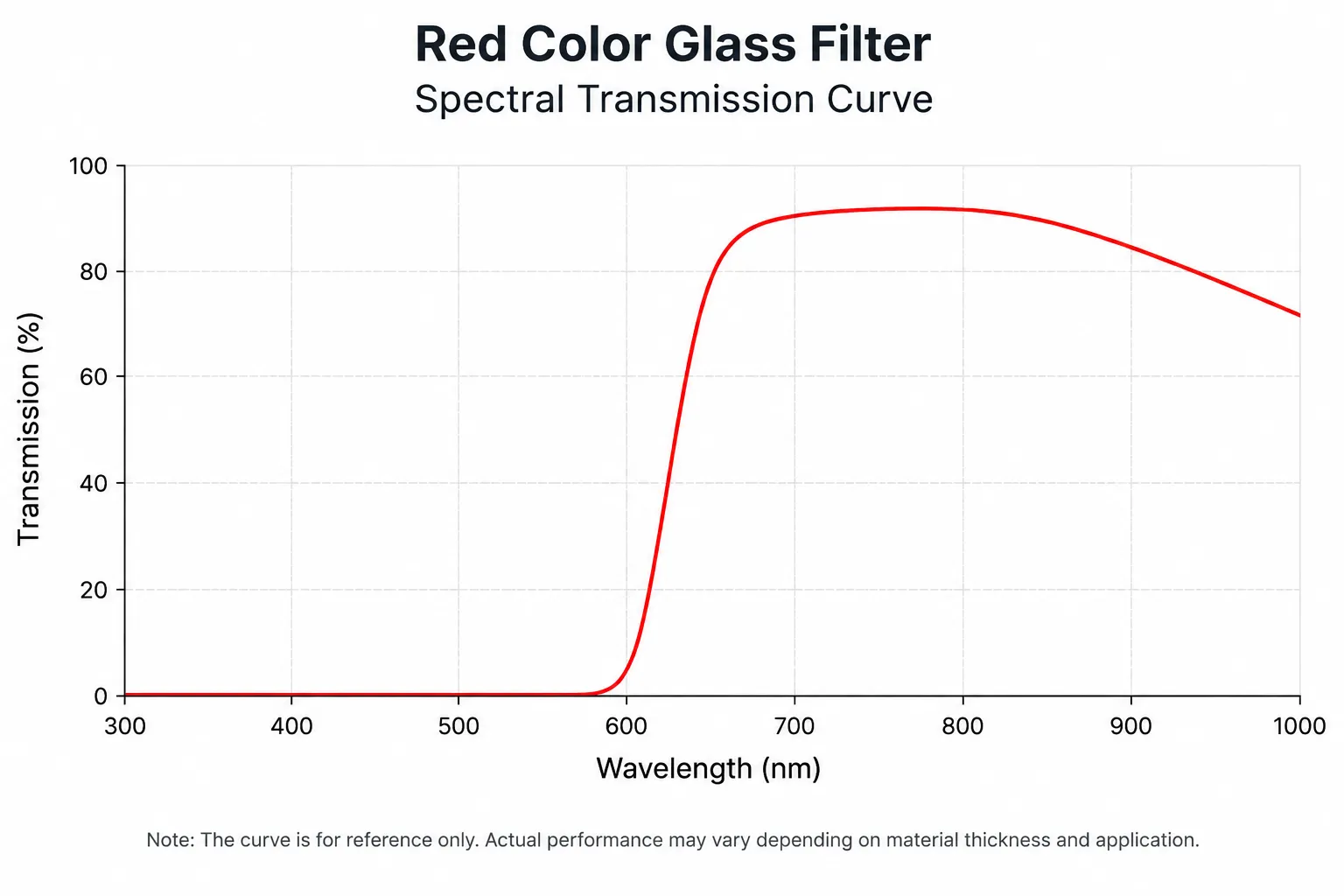

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Red Color Glass Filter
Chenyu Optics supports drawing-based filter manufacturing inquiries for imaging, sensing and industrial optical systems. Share your target spectrum and mechanical requirements for a production review.
Manufacturing Capability for Red Color Glass Filter
Precision Polishing
High surface quality processing for stable filter performance.
Surface Treatment Review
Uncoated surfaces or requested antireflection treatments can be reviewed against the selected glass and operating range.
Inspection & Packaging
Inspection requirements for dimensions, surface quality and spectral transmission are agreed before production, with protective packaging for shipment.
Custom Red Color Glass Filter Options
Bandpass Filter Type Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Typical Applications |
|---|---|---|---|---|
| Red Color Glass Filter | N/A — grade-dependent spectral edge | Depends on glass grade and thickness | Wavelength-dependent; specify required blocking | Red-channel imaging, sensing, color separation |
| Narrow Bandpass Filter | 1 – 10 nm | >90% | OD4 – OD6+ | Laser line selection, fluorescence |
| Standard Bandpass Filter | 10 – 50 nm | >90% | OD4 – OD6+ | Machine vision, instrumentation |
| Wide Bandpass Filter | 50 – 200 nm | >90% | OD4 – OD6 | Imaging, spectroscopy |
Applications of Red Color Glass Filter
Machine Vision
Red illumination selection for inspection systems.
Imaging Systems
Red-channel imaging and contrast control.
Color Separation
Spectral selection for color analysis.
Optical Sensing
Filtering unwanted shorter-wavelength light in sensor systems.
Optical Measurement
Spectral conditioning for optical instruments.
Spectroscopy
Order sorting where the selected glass spectrum suits the instrument.
Red Color Glass Filter FAQ
What is a red color glass filter?
A red color glass filter is an absorptive optical element used to transmit red light and suppress selected shorter wavelengths.
What determines the transmission curve?
The glass grade and thickness determine the spectral response. Specify the required transmission and blocking at the wavelengths relevant to your application.
Does a red color glass filter block infrared light?
Do not assume infrared blocking from its red appearance. Some red filter glasses also transmit near-infrared light; check the selected glass spectrum.
Is a coating required for color filtering?
Color filtering is provided by the glass itself. Additional surface coatings should be specified separately if needed.
Can I request custom dimensions?
Send your required dimensions, thickness, tolerances and surface specifications to Chenyu Optics for manufacturing review.
What information should I provide for a quotation?
Please provide the target transmission curve or glass grade, thickness, dimensions, surface requirements, quantity and drawing if available.
Related Products for Red Color Glass Filter
Need Custom Red Color Glass Filters?
Send us your target transmission curve, glass grade if specified, thickness, dimensions, surface requirements and quantity. Chenyu Optics will review your optical and mechanical specifications for a suitable manufacturing solution.
