Wide Bandpass Filter

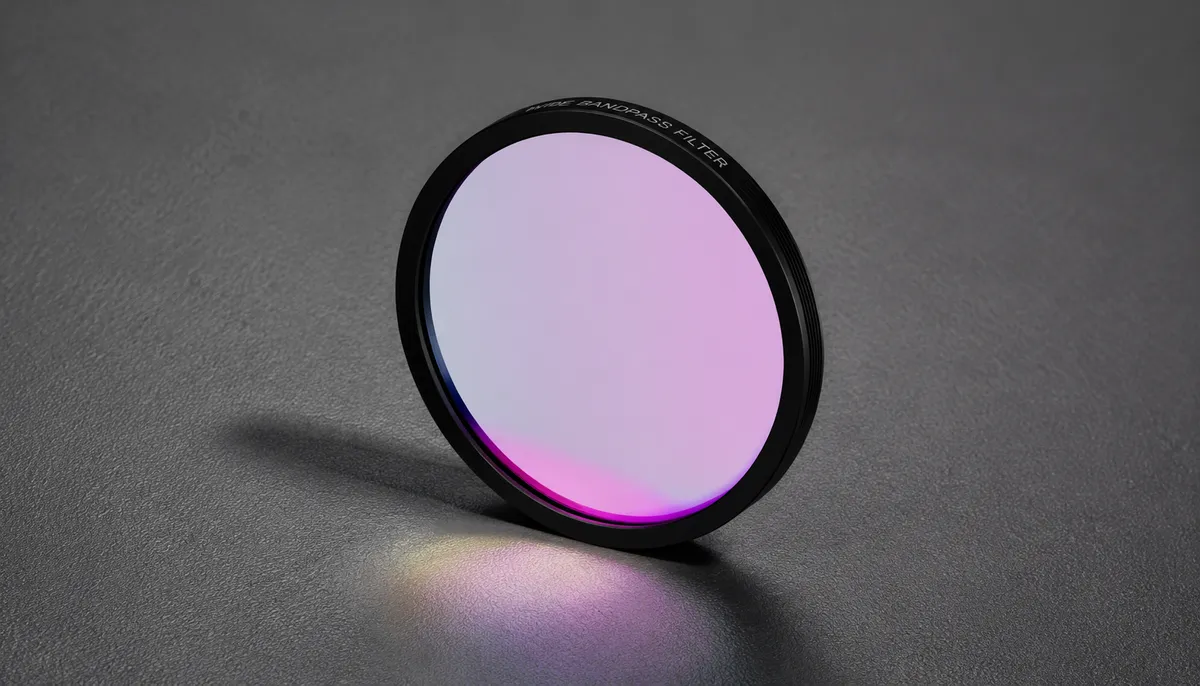

Wide Bandpass Filters are precision optical filters that transmit a wide range of target wavelengths. Unwanted spectral regions are blocked at the same time. This combination delivers high transmission efficiency and stable spectral performance. As a result, these filters suit imaging systems, spectroscopy, laser applications and optical instruments. Chenyu Optics manufactures wide bandpass filters using advanced multilayer coating technology, with custom wavelength ranges, bandwidths, sizes and coating designs.
Wide Bandpass Filter Overview
Wide Bandpass Filters are precision optical filters that transmit a broad range of target wavelengths. Unwanted spectral components are controlled at the same time. This combination enables efficient wavelength selection. In particular, it ensures stable optical transmission for imaging, spectroscopy and optical measurement systems.
Using advanced multilayer coating technology, wide bandpass filters provide high transmission efficiency and accurate spectral control. Excellent optical stability is maintained across the selected wavelength range. As a result, engineers use them in imaging systems, fluorescence detection, machine vision, spectroscopy, laser applications and optical instruments. For example, a stable passband helps machine vision cameras maintain consistent color and intensity readings under varying light sources.
In addition, Chenyu Optics supports custom wide bandpass filter manufacturing according to customer requirements. This includes custom substrate materials, dimensions, center wavelength, bandwidth range and coating design. However, every custom configuration still goes through the same prototype and repeat-production process to confirm optical performance before full-scale manufacturing.
Key Advantages of Wide Bandpass Filter
Imaging & Spectroscopy Systems

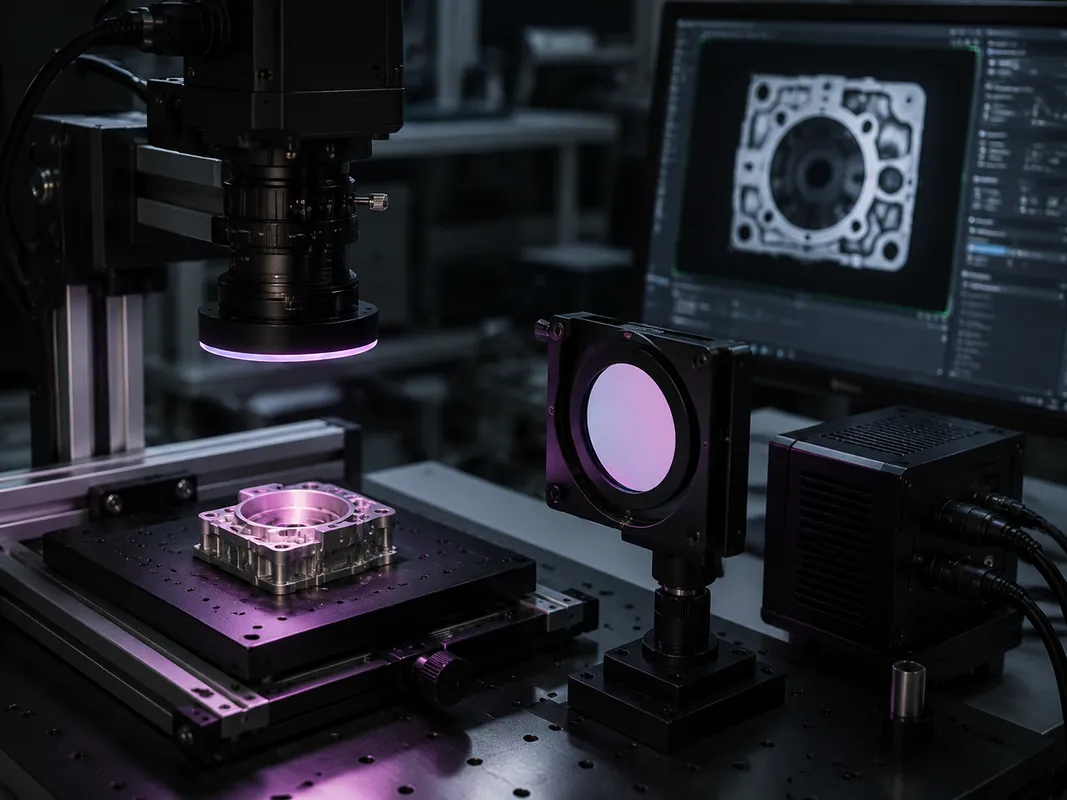

Wide bandpass filters are widely used for broad spectral transmission in imaging systems, spectroscopy equipment, machine vision and optical instruments.
Typical Specifications of Wide Bandpass Filter
| Material Options | BK7, Fused Silica |
|---|---|
| Coating Type | Multilayer dielectric bandpass coating |
| Optical Function | Broad spectral transmission and wavelength selection |
| Center Wavelength | Customizable |
| Bandwidth (FWHM) | 50 – 200 nm typical, custom available |
| Transmission | High transmission across passband |
| Blocking Performance | High optical density outside passband |
| Surface Quality | High precision optical finish |

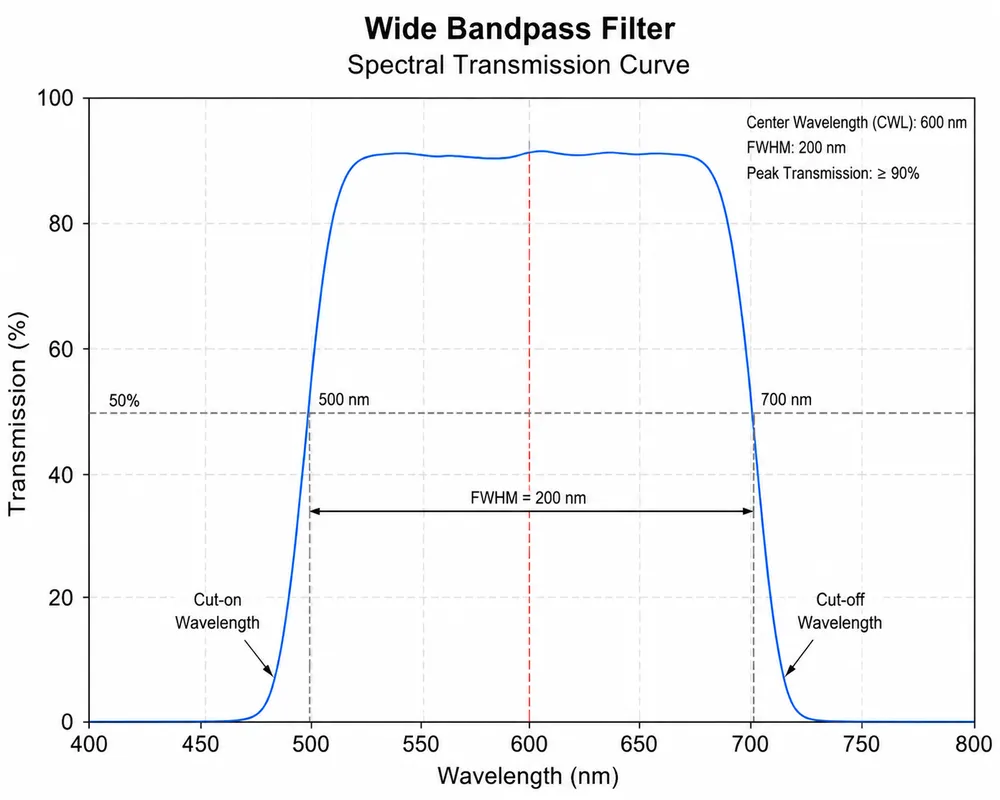

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Wide Bandpass Filter
Chenyu Optics focuses on drawing-based precision filter manufacturing for imaging, spectroscopy, laser and optical instrument applications. In addition, we support prototype verification, small-batch production and repeat manufacturing for non-standard wide bandpass filters.
Manufacturing Capability for Wide Bandpass Filter
Precision Polishing
High surface quality processing for stable filter performance.
Multilayer Coating
High performance multilayer dielectric coating for precise wide-band wavelength selection.
Inspection & Packaging
Strict quality control on center wavelength, bandwidth and blocking performance, with clean protective packaging before shipment.
Custom Wide Bandpass Filter Options
Bandpass Filter Type Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Typical Applications |
|---|---|---|---|---|
| Wide Bandpass Filter | 50 – 200 nm | >90% | OD4 – OD6 | Imaging, spectroscopy |
| Narrow Bandpass Filter | 1 – 10 nm | >90% | OD4 – OD6+ | Laser line selection, fluorescence |
| Standard Bandpass Filter | 10 – 50 nm | >90% | OD4 – OD6+ | Machine vision, instrumentation |
| Fluorescence Filter | 10 – 40 nm (excitation/emission) | >90% | OD4 – OD6+ | Fluorescence microscopy, biomedical imaging |
Applications of Wide Bandpass Filter
Imaging Systems
Broad spectral transmission for optical imaging equipment.
Fluorescence Detection
Wide-band spectral selection for fluorescence signal detection.
Machine Vision Systems
Stable wavelength selection for machine vision applications.
Spectroscopy Equipment
Wide-band wavelength selection for spectroscopic measurement.
Laser Applications
Precise spectral filtering for laser-based optical systems.
Optical Instruments
Reliable wide bandpass filtering for laboratory and testing instruments.
Wide Bandpass Filter FAQ
What is the function of a wide bandpass filter?
A wide bandpass filter transmits a broad range of target wavelengths while blocking unwanted spectral components outside the passband.
How does a wide bandpass filter differ from a narrow bandpass filter?
A wide bandpass filter transmits a broader wavelength range, typically 50–200 nm FWHM, compared to the 1–10 nm FWHM of a narrow bandpass filter.
Can wide bandpass filters be customized for different wavelength ranges?
Yes. Center wavelength, bandwidth, substrate material, and coating design can be customized.
Why is blocking performance important for wide bandpass filters?
High blocking performance reduces unwanted spectral components and improves signal contrast.
What information should I provide for a quotation?
Please provide center wavelength, bandwidth, substrate material, dimensions, quantity and drawing if available.
Where can I learn more about wide bandpass filter design?
Additional information on wide bandpass filter design can be found from Edmund Optics.
