Cube Beam Splitter
Cube Beam Splitters are precision optical components designed to divide incident light into transmitted and reflected beams with controlled splitting ratios. They consist of two precision optical prisms cemented together with a beam splitting coating applied on the internal interface. Chenyu Optics manufactures cube beam splitters in BK7, fused silica and UV fused silica with custom splitting ratios and coatings.
Cube Beam Splitter Overview
Cube Beam Splitters are precision optical components designed to divide incident light into transmitted and reflected beams with controlled splitting ratios. They consist of two precision optical prisms cemented together with a beam splitting coating applied on the internal interface.
With excellent optical stability and low wavefront distortion, cube beam splitters are widely used in laser systems, interferometry, imaging systems and optical measurement equipment. Compared with plate beam splitters, the cube structure provides better mechanical stability and reduced sensitivity to alignment errors.
Chenyu Optics supports custom cube beam splitter manufacturing according to customer drawings, including custom cube size, splitting ratio and coating design for prototype and repeat production.
Key Advantages of Cube Beam Splitter

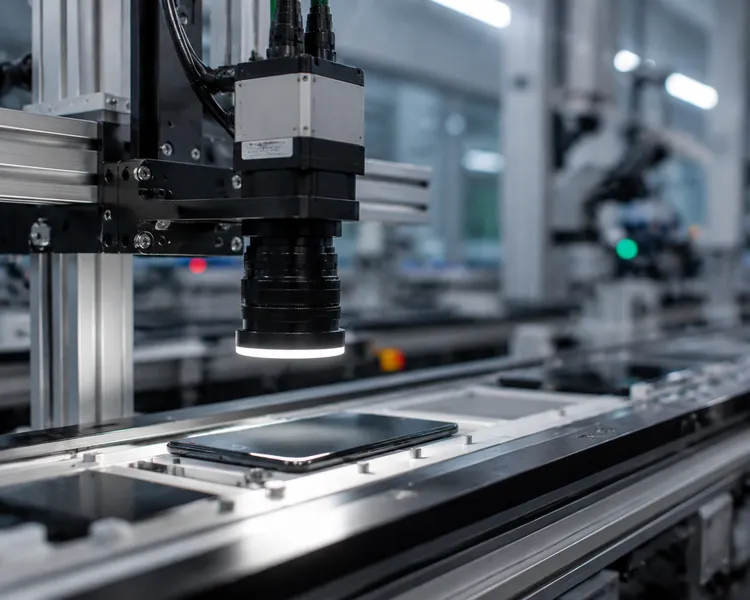

Laser Systems & Interferometry
Cube beam splitters are widely used for controlled beam splitting in laser optical systems, interferometry setups and precision optical measurement equipment.
Typical Specifications of Cube Beam Splitter
| Material Options | BK7, Fused Silica, UV Fused Silica |
|---|---|
| Optical Function | Beam splitting |
| Splitting Ratio | Customizable, e.g. 50:50, 70:30 |
| Transmission | High optical transmission |
| Wavefront Distortion | Low |
| Surface Accuracy | λ/4 – λ/10 @ 633 nm |
| Surface Quality | 20-10, 40-20 scratch-dig |
| Coating Accuracy | Precision controlled |
| Cube Size | Custom sizes available |
| Edge Treatment | Fine ground, chamfered or polished |
| Coating Options | Broadband beam splitting, non-polarizing BS, polarizing BS, broadband AR, laser wavelength-specific coating, custom coating |
Cube Beam Splitter Structure
Why Choose Chenyu Optics for Cube Beam Splitter
Chenyu Optics focuses on drawing-based precision beam splitter manufacturing for laser, interferometry and imaging optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard cube beam splitters.
Manufacturing Capability for Cube Beam Splitter
Precision Polishing & Cementing
Controlled polishing and precision cementing of two prism halves for surface accuracy, cube geometry and low wavefront distortion.
Beam Splitting Coating
Broadband, non-polarizing, polarizing and laser wavelength-specific beam splitting coating options applied to the internal interface.
Inspection & Packaging
Dimensional inspection, splitting ratio verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Cube Beam Splitter
Dimensions & Geometry
Custom cube size can be manufactured according to customer drawings, with splitting ratio customized according to system requirements.
Surface & Mechanical Quality
Surface accuracy, surface quality and wavefront distortion can be controlled according to application precision requirements and mounting structure.
Coating & Wavelength Design
Broadband beam splitting, non-polarizing, polarizing and laser wavelength-specific coatings can be specified depending on the optical system.
Cube Beam Splitter Material Comparison
| BK7 | Fused Silica | UV Fused Silica | |
|---|---|---|---|
| Transmission | Visible to near-infrared, limited UV performance | UV to NIR, depending on grade | Deep UV to visible, optimized UV transmission |
| Thermal Stability | Moderate thermal stability | Excellent, low thermal expansion | Excellent, low thermal expansion |
| Typical Use | General visible imaging and cost-sensitive systems | Laser systems, interferometry, broadband imaging | UV laser systems, UV imaging, analytical instruments |
| Selection Note | Preferred for general visible applications with lower cost requirements | Preferred when broadband UV-to-NIR performance is required | Preferred when deep UV transmission is required |
Applications of Cube Beam Splitter
Laser Optical Systems
Controlled beam splitting for laser system design.
Interferometry Systems
Stable beam splitting for interferometric measurement setups.
Imaging Systems
Beam splitting elements for optical imaging system design.
Optical Measurement Instruments
Precision beam splitting for measurement and metrology equipment.
Microscopy Systems
Beam splitting components for microscopy and imaging optical paths.
Spectroscopy Equipment
Beam splitting elements for spectroscopy and spectral analysis systems.
Cube Beam Splitter FAQ
What is the function of a cube beam splitter?
A cube beam splitter separates incident light into reflected and transmitted beams with a controlled splitting ratio.
Can the splitting ratio be customized?
Yes. Common ratios include 50:50, 70:30, and custom designs based on system requirements.
What is the advantage of a cube beam splitter compared with a plate beam splitter?
Cube beam splitters provide better mechanical stability, lower beam deviation and reduced sensitivity to alignment errors.
Can cube beam splitters be used for laser applications?
Yes. Laser wavelength-specific coatings can be customized for different laser systems.
What information should I provide for a quotation?
Please provide material, cube size, splitting ratio, surface quality, surface accuracy, coating requirement, quantity and drawing if available.
Where can I learn more about optical beam splitters?
Additional optical beam splitter information can be found from Edmund Optics.
Related Products for Cube Beam Splitter
Need Custom Cube Beam Splitters?
Send us your drawing, material preference, cube size, splitting ratio, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable cube beam splitter manufacturing suggestion.
