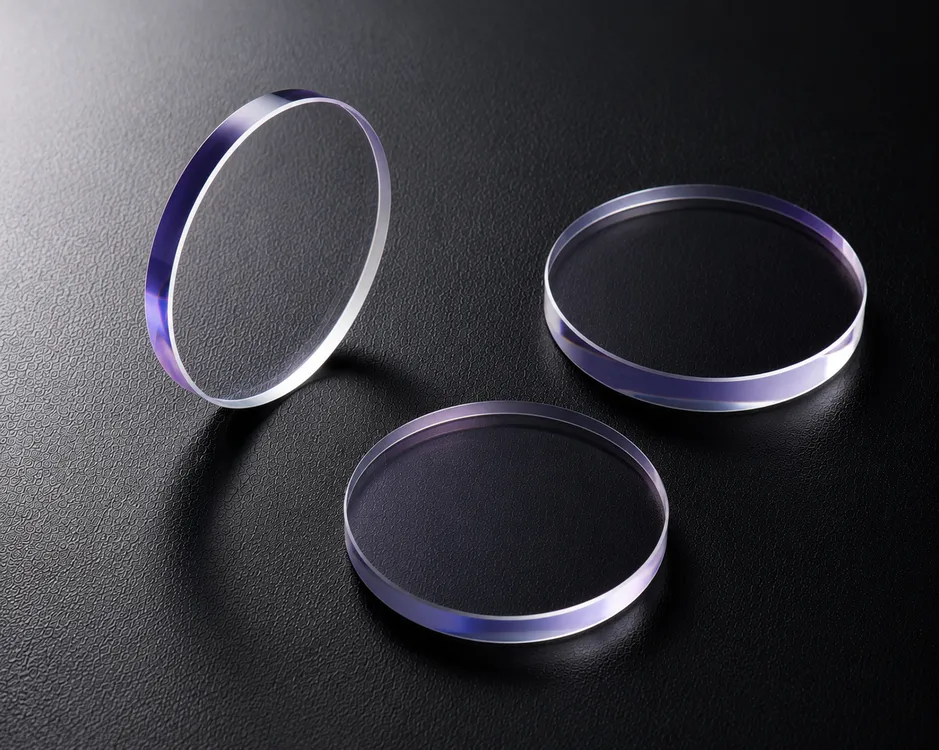

Laser Protective Windows
Chenyu Optics manufactures laser protective windows for equipment, optical assemblies and laser processing systems. Substrate, dimensions, surface quality and coating are selected according to the laser wavelength, operating mode, beam diameter, power or pulse energy, angle of incidence and environmental requirements.
Laser Protective Windows Overview
Laser protective windows isolate sensitive optical components from contamination, debris and process environments while transmitting the required laser wavelength. The window material and coating must be selected for the actual wavelength, continuous-wave or pulsed operation, power density, pulse duration, repetition rate, beam diameter and angle of incidence.
Available substrate options include fused silica optical windows, optical glass and sapphire optical windows. Custom diameter, thickness, surface quality, flatness, wedge, clear aperture and wavelength-specific coatings can be reviewed according to the customer drawing and operating conditions.
Related options include Laser Line AR Windows. See our Optical Coating and Optical Metrology Inspection capabilities.
Key Advantages of Laser Protective Windows

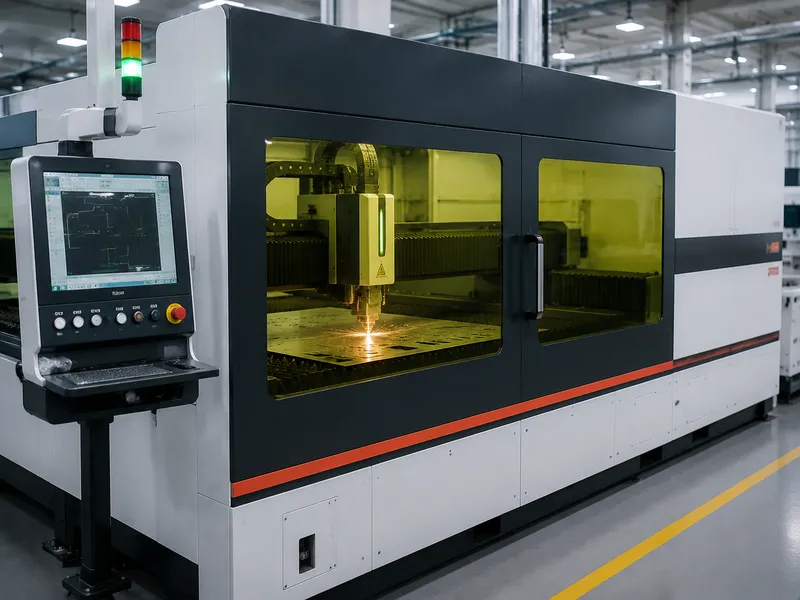

Laser Processing & Laser Processing Systems
Laser protective windows are widely used to shield sensitive optics in laser processing systems, laser cutting equipment and industrial laser equipment.
Typical Specifications of Laser Protective Windows
| Material | Fused silica, optical glass or sapphire |
|---|---|
| Operating Wavelength | Customer-specified |
| Laser Operation | CW or pulsed; laser type specified by customer |
| Power / Pulse Data | Average power or pulse energy, pulse duration and repetition rate |
| Beam Conditions | Beam diameter, power density and angle of incidence |
| Size & Thickness | Drawing-defined |
| Clear Aperture | Drawing-defined |
| Optical Tolerances | Flatness, surface quality and parallelism or wedge |
| Coating Performance | Customer-specified and engineering-reviewed |
| LIDT Requirement | Evaluated against complete laser operating conditions |
| Inspection Report | Available according to agreed inspection items |
Spectral Transmission Curve (Typical)
How to Specify a Laser Protective Window
Start with the laser wavelength and operating mode, then specify the average power or pulse energy, pulse duration, repetition rate, beam diameter and angle of incidence. The mechanical drawing should define the window size, thickness, clear aperture, flatness, parallelism or wedge, surface quality and mounting conditions.
Why Choose Chenyu Optics for Laser Protective Windows
Chenyu Optics focuses on drawing-based precision optical window manufacturing for laser processing and laser processing systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard laser protective windows.
Manufacturing Capability for Laser Protective Windows
Precision Polishing
High surface quality processing to support reliable performance under high-power laser exposure.
Laser Protection Coating
UV AR, VIS AR, NIR AR and custom laser coatings optimized for specific wavelengths and power levels.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Laser Protective Windows
Dimensions & Geometry
Custom diameter and thickness can be manufactured according to customer drawings, with standard or custom window shapes.
Material & Damage Threshold
Fused silica, optical glass or sapphire can be selected according to laser wavelength, power density and damage threshold requirements.
Coating & Wavelength Design
UV AR, VIS AR, NIR AR and custom laser protection coatings can be specified according to wavelength, pulse duration and power requirements.
Laser Protective Windows Material Comparison
| Fused Silica | Optical Glass (BK7) | Sapphire | |
|---|---|---|---|
| Laser Damage Threshold | Application-specific; engineering review required | Application-specific; engineering review required | Application-specific; engineering review required |
| Absorption | Very low | Low | Very low |
| Thermal Stability | Excellent, low thermal expansion | Good | Excellent, very high thermal conductivity |
| Typical Use | UV and laser processing systems, precision instruments | General-purpose visible/NIR laser protection | Harsh environment, industrial laser systems |
Applications of Laser Protective Windows
Laser Processing Systems
Reliable optical protection for laser processing systems.
Laser Cutting Equipment
Durable protective windows for laser cutting applications.
Laser Welding Systems
Application-specific laser review windows for laser welding equipment.
Industrial Laser Equipment
Reliable protection for industrial laser processing lines.
Laser Marking Systems
Stable optical protection for laser marking equipment.
High-Power Laser Assemblies
Application-specific laser review windows for demanding laser applications.
Laser Protective Windows FAQ
What is the purpose of laser protective windows?
Laser protective windows isolate internal optical components from contamination, debris and process environments while transmitting the required laser wavelength.
Which materials are suitable for laser protective windows?
Common options include fused silica, optical glass and sapphire. Selection depends on wavelength, laser conditions and operating environment.
What determines the laser-induced damage threshold?
Wavelength, operating mode, pulse duration, repetition rate, beam diameter, power density, substrate, surface condition, coating, cleanliness and mounting conditions must all be considered.
Can laser protective windows be customized?
Yes. Dimensions, material, surface requirements and wavelength-specific coating can be reviewed according to the drawing.
What information is required for a laser protective window quotation?
Please provide the operating wavelength, laser type, continuous-wave or pulsed operation, average power, peak power or pulse energy, pulse duration, repetition rate, beam diameter, angle of incidence, required transmission, dimensions, material preference, coating requirements, quantity and drawing.
Are laser protective windows suitable for personal eye protection?
No. These windows are designed to protect equipment and internal optical components. They are not certified laser safety eyewear and must not be used as personal eye protection.
Related Products for Laser Protective Windows
Need Custom Laser Protective Windows?
Send us your drawing and complete laser operating conditions, including wavelength, operating mode, power or pulse energy, pulse duration, repetition rate, beam diameter, angle of incidence, required transmission, dimensions, coating requirements and quantity.
