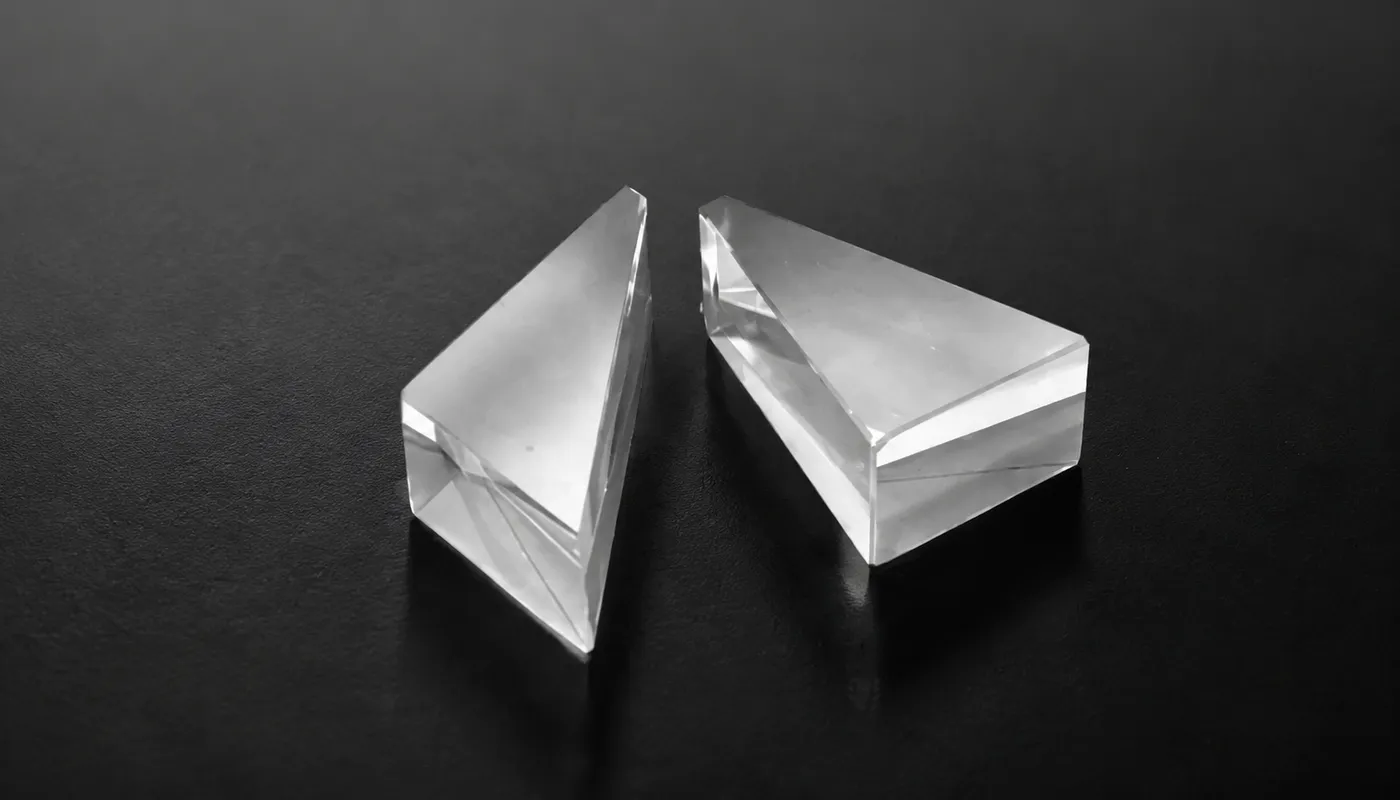

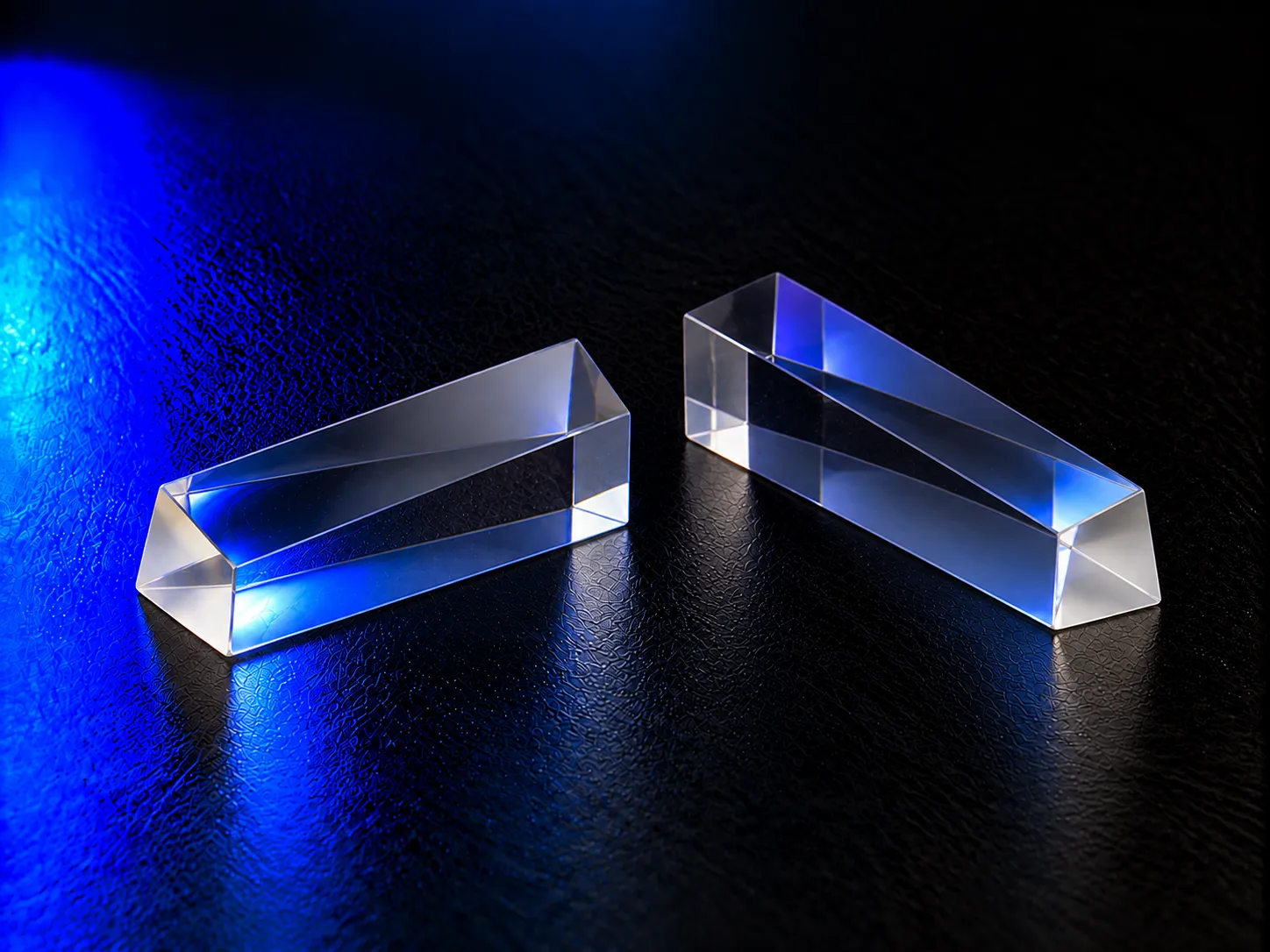

Anamorphic Prism Pair
Anamorphic Prism Pairs are precision optical components designed to expand or compress laser beams in one axis while maintaining beam quality for laser shaping, beam correction and optical alignment applications. Manufactured from fused silica, BK7 optical glass, N-BK7 and custom optical substrates as a matched pair of precision prisms with carefully controlled wedge angles, these components provide accurate beam magnification or reduction in a single direction without affecting the orthogonal beam dimension. Chenyu Optics manufactures anamorphic prism pairs uncoated or with AR, broadband AR and laser AR coatings for laser shaping, beam expander and alignment systems.
Anamorphic Prism Pair Overview
Anamorphic Prism Pairs are precision optical components designed to expand or compress laser beams in one axis while maintaining beam quality for laser shaping, beam correction and optical alignment applications.
By using a matched pair of precision prisms with carefully controlled wedge angles and optical surfaces, anamorphic prism pairs provide accurate beam magnification or reduction in a single direction without affecting the orthogonal beam dimension. They are widely used in laser systems, beam expanders, laser projection systems, optical communication equipment and scientific instruments where precise beam shaping is required.
Chenyu Optics supports custom anamorphic prism pair manufacturing according to customer drawings, including custom magnification ratio, prism angle, material and coating design for prototype and repeat production.
Key Advantages of Anamorphic Prism Pair

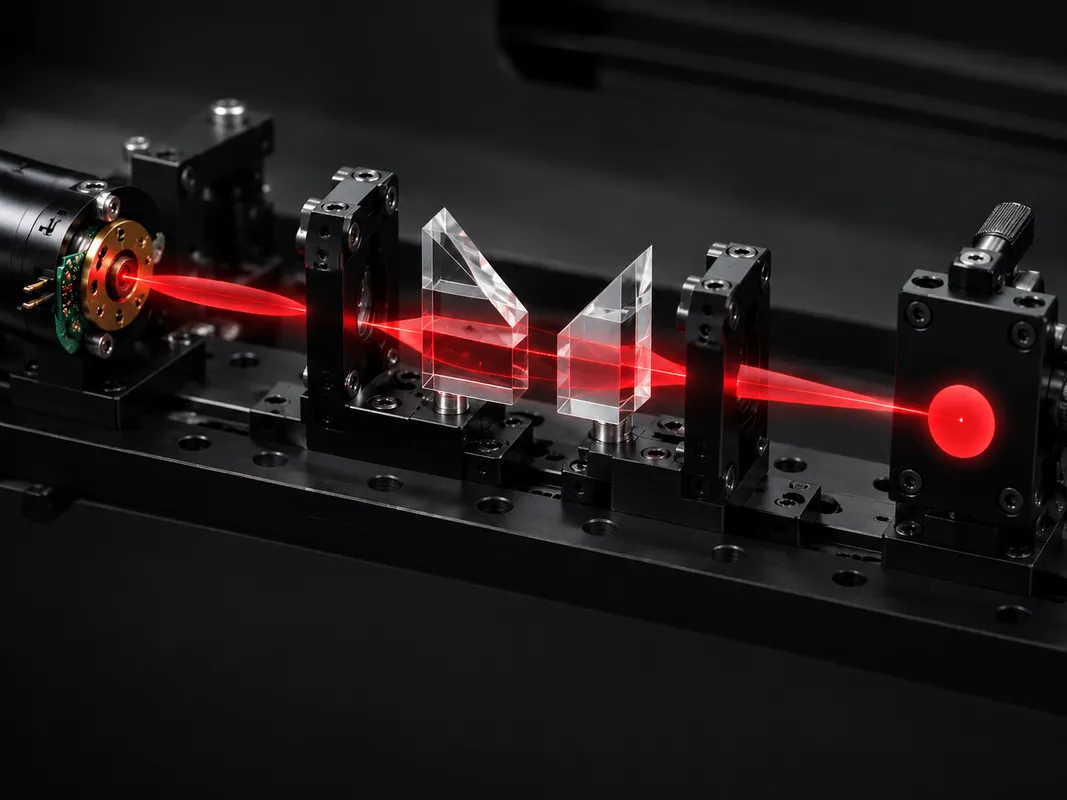

Laser Beam Expander & Alignment Systems
Anamorphic prism pairs are widely used for single-axis beam correction in laser beam expanders, laser projection systems and optical alignment equipment.
Typical Specifications of Anamorphic Prism Pair
| Material Options | Fused Silica / BK7 Optical Glass / N-BK7 / Custom Optical Substrate Available |
|---|---|
| Optical Function | Expanding or compressing laser beams in one axis while maintaining beam quality |
| Coating Options | Uncoated / AR Coating / Broadband AR Coating / Laser AR Coating / Custom Optical Coating |
| Optical Characteristics | High transmission, low distortion, precise beam shaping, excellent surface quality, stable optical performance |
| Magnification Ratio | Custom |
| Prism Angle | Custom |
| Wavelength Range | Custom |
| Prism Pair Type | Anamorphic Prism Pair / Custom Prism Geometry Available |
| Dimension | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Angle Tolerance | Custom |

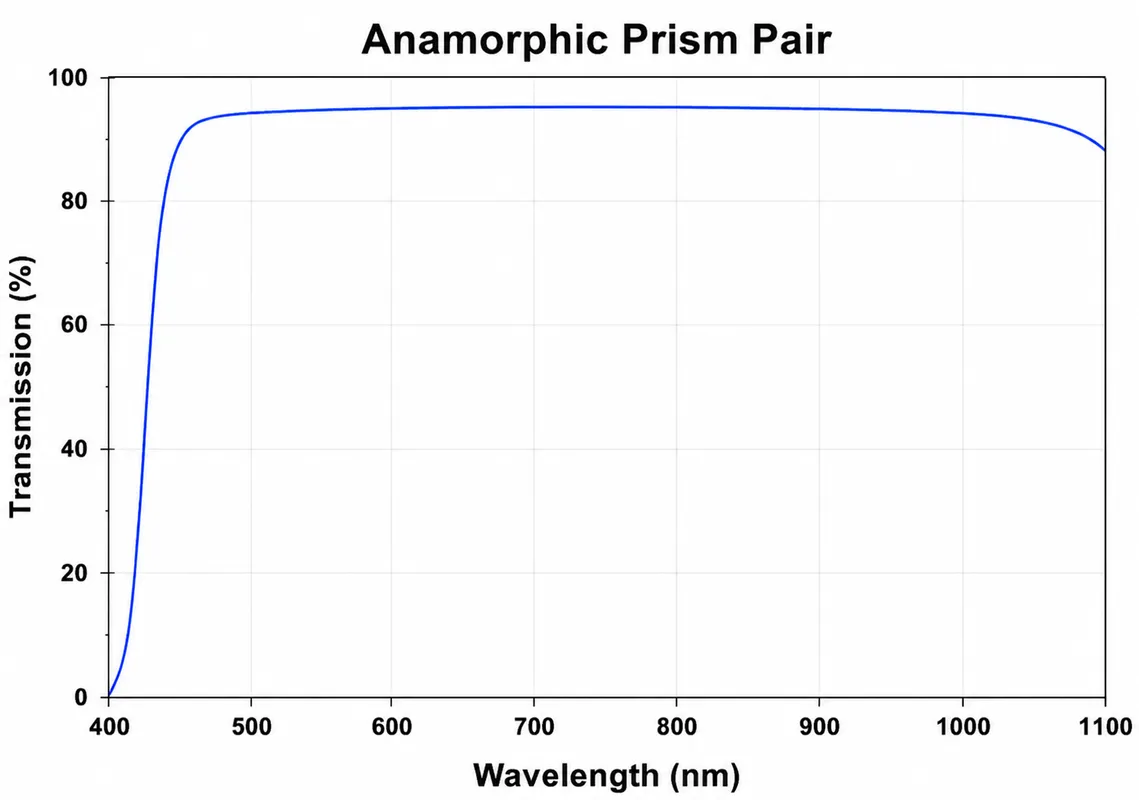

Beam Shaping Geometry & Optical Principle
Why Choose Chenyu Optics for Anamorphic Prism Pair
Chenyu Optics focuses on drawing-based precision prism manufacturing for laser beam shaping, expander and alignment optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard anamorphic prism pairs.
Manufacturing Capability for Anamorphic Prism Pair
Precision Angular Polishing
Precise prism machining, angular polishing and matched-pair alignment to achieve accurate magnification ratio and beam quality.
Optical Coating
AR, broadband AR and laser AR coating options for laser shaping and beam expander applications.
Inspection & Packaging
Dimensional inspection, angle verification, beam shaping performance testing and protective packaging before shipment.
Custom Manufacturing Options for Anamorphic Prism Pair
Magnification Ratio & Prism Angle
Custom magnification ratio and prism angle can be manufactured according to customer drawings and beam shaping requirements.
Material Selection
Fused silica, BK7 optical glass, N-BK7 or custom optical substrates can be selected according to wavelength and environmental requirements.
Coating & Wavelength Design
Uncoated, AR, broadband AR and laser AR coatings can be specified for laser shaping, expander or alignment applications.
Beam Shaping Optics Comparison
| Anamorphic Prism Pair | Cylindrical Lens Pair | Galilean Beam Expander | Wedge Prism | |
|---|---|---|---|---|
| Beam Shaping Axis | Single axis, magnifies or reduces beam width in one direction only | Single axis, similar function using cylindrical curvature instead of prism wedges | Both axes equally, circular beam expansion | No magnification, beam deviates at a fixed small angle |
| Magnification Control | Set by prism wedge angle, continuously adjustable by rotation | Set by lens focal length ratio, fixed once assembled | Set by lens focal length ratio, fixed once assembled | Not applicable, fixed beam deviation only |
| Beam Quality Impact | Low distortion, preserves beam quality in the unaffected axis | Low distortion, but sensitive to lens alignment | Low distortion for symmetric beams | Minimal impact, mainly used for steering rather than shaping |
| Typical Use | Correcting elliptical laser diode beams, beam shaping systems | Line generation, one-axis beam shaping | Symmetric laser beam expansion for collimated systems | Beam steering, alignment systems |
Applications of Anamorphic Prism Pair
Laser Beam Shaping Systems
Single-axis beam correction for laser optical systems.
Laser Beam Expanders
Accurate beam magnification for laser expander assemblies.
Laser Marking & Engraving Systems
Precision beam shaping for marking and engraving applications.
Laser Projection Systems
Stable beam correction for laser projection optics.
Optical Communication Systems
Reliable beam shaping for optical communication equipment.
Laser Alignment Systems
Precise beam correction for laser alignment applications.
Anamorphic Prism Pair FAQ
What is the function of an anamorphic prism pair?
An anamorphic prism pair is used to expand or compress a laser beam in one axis while maintaining the original beam quality in the other axis.
Why are anamorphic prism pairs used in laser systems?
They provide accurate beam shaping and correction, helping optimize laser beam profiles for applications requiring specific beam dimensions.
What materials are available for anamorphic prism pairs?
Anamorphic prism pairs can be manufactured from fused silica, BK7 optical glass, N-BK7 and other custom optical substrates depending on wavelength requirements.
Can custom anamorphic prism pairs be manufactured?
Yes. Chenyu Optics provides customized anamorphic prism pairs with different magnification ratios, prism angles, materials, coatings, dimensions and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide material, magnification ratio, prism angle, dimension, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about laser beam shaping?
Additional information on laser beam shaping can be found from Edmund Optics.
Related Products for Anamorphic Prism Pair
Need Custom Anamorphic Prism Pairs?
Send us your drawing, material, magnification ratio, prism angle and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable anamorphic prism pair manufacturing suggestion.
