Zinc Selenide Optical Dome
Zinc Selenide Optical Domes are precision infrared optical components manufactured from chemical vapor deposited zinc selenide (ZnSe) material. With broadband infrared transmission, low absorption, excellent MWIR–LWIR optical performance and good thermal stability, ZnSe domes provide reliable optical protection and transmission for advanced infrared systems. Chenyu Optics manufactures zinc selenide optical domes with custom geometry, surface accuracy and infrared coatings.
Zinc Selenide Optical Dome Overview
Zinc Selenide Optical Domes are precision infrared optical components manufactured from chemical vapor deposited zinc selenide (ZnSe) material. With broadband infrared transmission, low absorption, excellent MWIR–LWIR optical performance and good thermal stability, ZnSe domes provide reliable optical protection and transmission for advanced infrared systems.
Due to their excellent infrared transmission characteristics and environmental durability, zinc selenide optical domes are widely used in thermal imaging systems, infrared cameras, IR sensors, laser systems and aerospace optical windows.
Chenyu Optics supports custom zinc selenide optical dome manufacturing according to customer drawings, including custom diameter, dome shape, surface accuracy and coating design for prototype and repeat production.
Key Advantages of Zinc Selenide Optical Dome

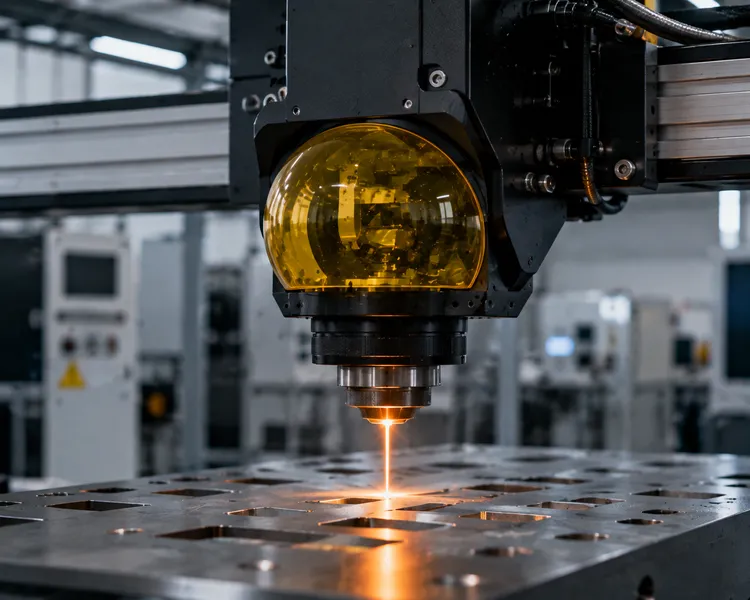

Thermal Imaging & Infrared Laser Systems
Zinc selenide optical domes are widely used as protective windows for thermal imaging systems, infrared cameras and infrared laser applications.
Typical Specifications of Zinc Selenide Optical Dome
| Material | Zinc Selenide (ZnSe), Chemical Vapor Deposited |
|---|---|
| Optical Function | Infrared protective window / Dome window |
| Dome Type | Zinc Selenide Optical Dome |
| Transmission Range | ~0.5–15 μm |
| Infrared Region | MWIR / LWIR |
| Absorption | Low |
| Thermal Stability | Good |
| Diameter | Customized |
| Dome Shape | Customized |
| Surface Accuracy | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Coating Options | Uncoated, MWIR AR, LWIR AR, custom infrared AR coating |
Zinc Selenide Optical Dome Structure
Why Choose Chenyu Optics for Zinc Selenide Optical Dome
Chenyu Optics focuses on drawing-based precision manufacturing of infrared optical components for imaging, laser and sensing systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard zinc selenide optical domes.
Manufacturing Capability for Zinc Selenide Optical Dome
Precision Dome Polishing
Controlled dome polishing for surface accuracy, surface quality and stable infrared optical performance.
Infrared Coating
MWIR AR, LWIR AR and custom infrared AR coating options tailored to wavelength range and system requirements.
Inspection & Packaging
Dimensional inspection, dome geometry verification, infrared transmission checking and clean protective packaging before shipment.
Custom Manufacturing Options for Zinc Selenide Optical Dome
Diameter & Dome Geometry
Custom diameter and dome shape can be manufactured according to customer drawings, with precision-controlled geometry for accurate optical performance.
Surface & Mechanical Quality
Surface accuracy and surface quality can be selected according to optical performance requirements and mounting or environmental conditions.
Coating & Wavelength Design
Uncoated surfaces, MWIR AR and LWIR AR coatings can be specified depending on the operating wavelength range and system requirements.
Infrared Dome Material Comparison
| Zinc Selenide | Zinc Sulfide | Germanium | |
|---|---|---|---|
| Transmission Range | ~0.5–15 μm, excellent MWIR–LWIR performance | Visible–LWIR, broadband multispectral | MWIR–LWIR, limited visible transmission |
| Absorption | Low, well suited to laser applications | Low | Moderate, transmission can shift with temperature |
| Mechanical Strength | Moderate, softer than ZnS | Good, better impact resistance | Moderate, brittle under mechanical stress |
| Selection Note | Preferred for infrared laser systems and high-transmission thermal imaging | Preferred for durable multispectral domes exposed to mechanical and thermal stress | Preferred for cost-effective thermal imaging in stable environments |
Applications of Zinc Selenide Optical Dome
Thermal Imaging Systems
Protective dome windows for broadband thermal imaging systems.
Infrared Cameras
Durable optical protection for infrared camera modules and assemblies.
IR Sensor Systems
High-transmission protective windows for infrared sensor systems.
Infrared Laser Systems
Low-absorption optical protection for infrared laser applications.
Aerospace Optical Windows
Durable infrared optical protection for aerospace and high-altitude systems.
Infrared Detection Equipment
Reliable optical clarity and durability for infrared detection equipment.
Zinc Selenide Optical Dome FAQ
What is a zinc selenide optical dome used for?
A zinc selenide optical dome provides infrared protection and high transmission performance for thermal imaging systems, IR cameras, and infrared sensors.
What wavelength range does ZnSe support?
ZnSe provides excellent infrared transmission from approximately 0.5–15 μm, covering visible, MWIR, and LWIR applications.
Why is ZnSe used in infrared optical systems?
ZnSe offers low absorption, excellent infrared transmission, and stable performance, making it suitable for demanding IR applications.
Can ZnSe optical domes be customized?
Yes. Chenyu Optics provides customized diameters, dome shapes, surface quality, and MWIR/LWIR AR coating solutions.
Related Products for Zinc Selenide Optical Dome
Need Custom Zinc Selenide Optical Domes?
Send us your drawing, diameter, dome geometry, surface accuracy and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable zinc selenide optical dome manufacturing suggestion.
