Precision Polished Aspheric Lenses

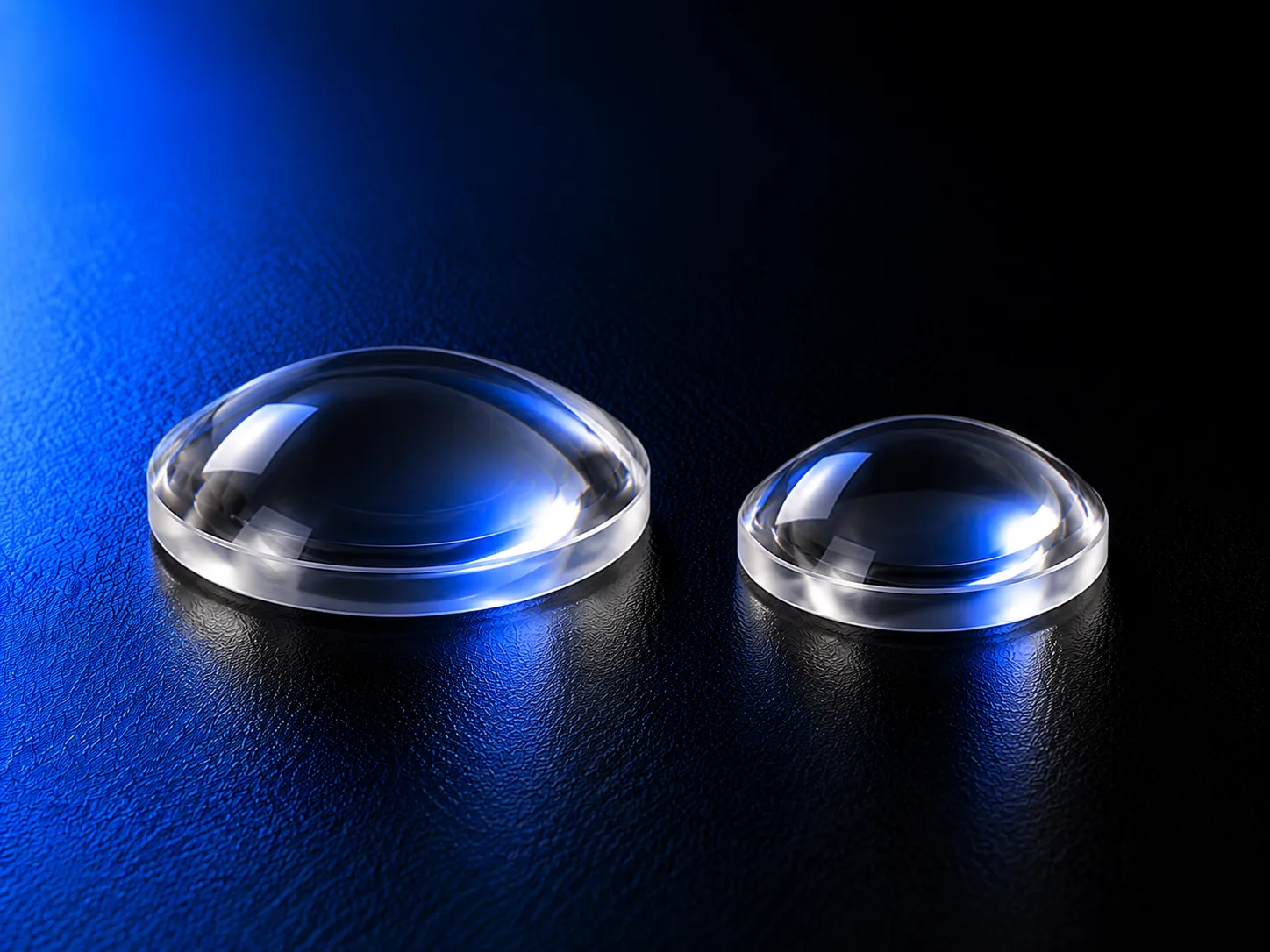

Chenyu Optics manufactures precision polished aspheric lenses according to customer drawings and optical specifications. Available options include custom materials, diameter, center thickness, focal length, aspheric profile, surface quality and wavelength-specific coatings for laser, imaging, machine vision and scientific instrument applications.
Precision Polished Aspheric Lens Overview

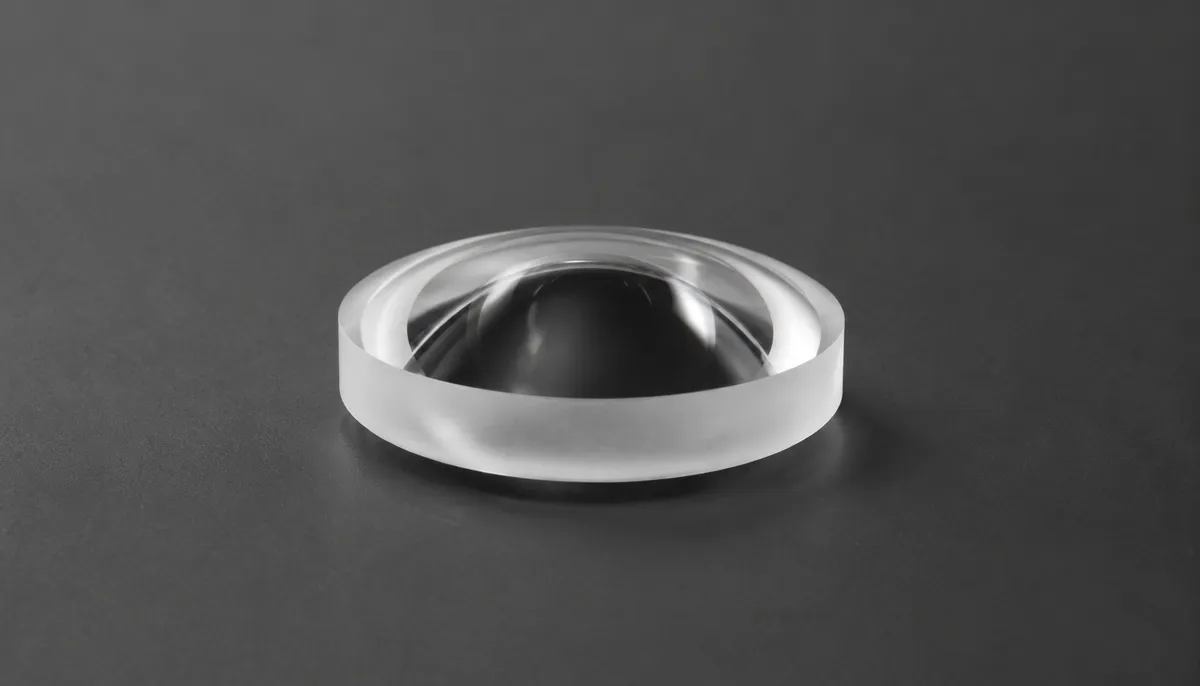

Precision polished aspheric lenses use a controlled non-spherical surface profile to reduce spherical aberration and improve focusing or imaging performance within a single optical element. Unlike molded aspheres, polished aspheric lenses are manufactured through precision generating, polishing and profile inspection processes, making them suitable for custom geometries, specialized materials and demanding optical specifications.
Material, diameter, center thickness, effective focal length, conic constant, aspheric coefficients, clear aperture, surface quality and coating requirements can be specified according to the customer drawing. Final manufacturability and tolerances are confirmed through engineering review.
For drawing-based designs, see Custom Aspheric Lenses. Compare production methods with Precision Molded Aspheric Lenses, or review our Optical Polishing, Optical Coating and Optical Metrology Inspection capabilities.
Key Advantages of Aspheric Lens
Imaging, Beam Shaping & Laser Systems

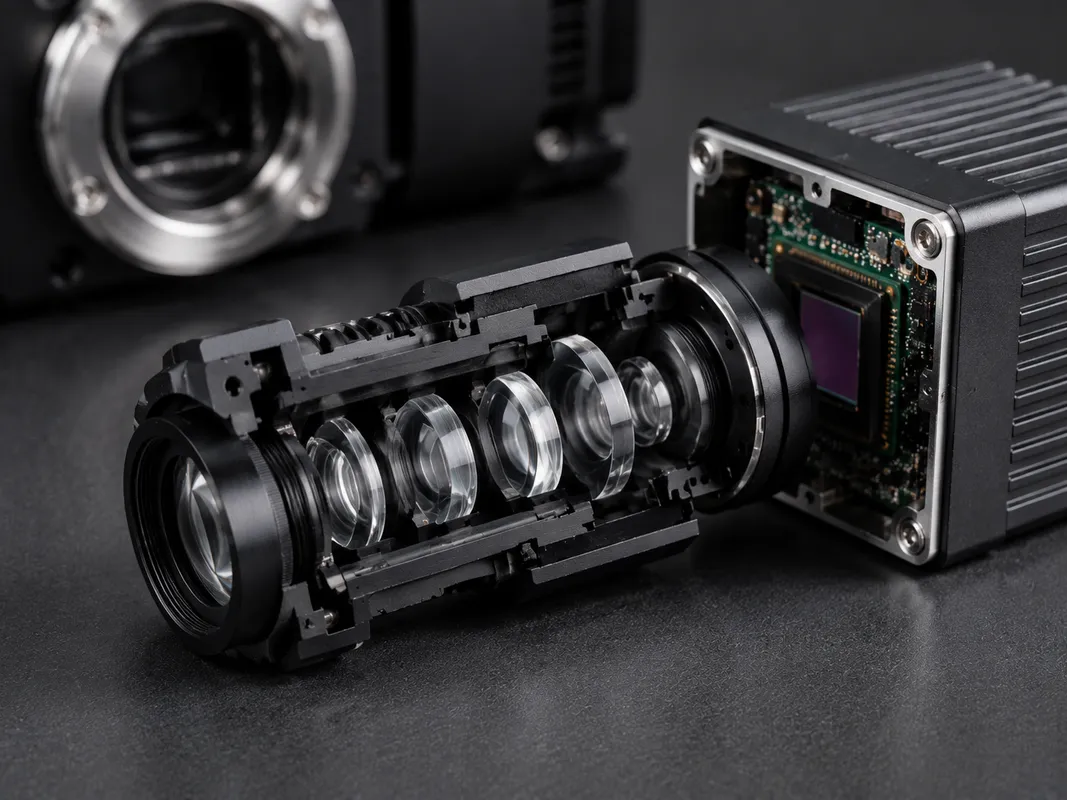

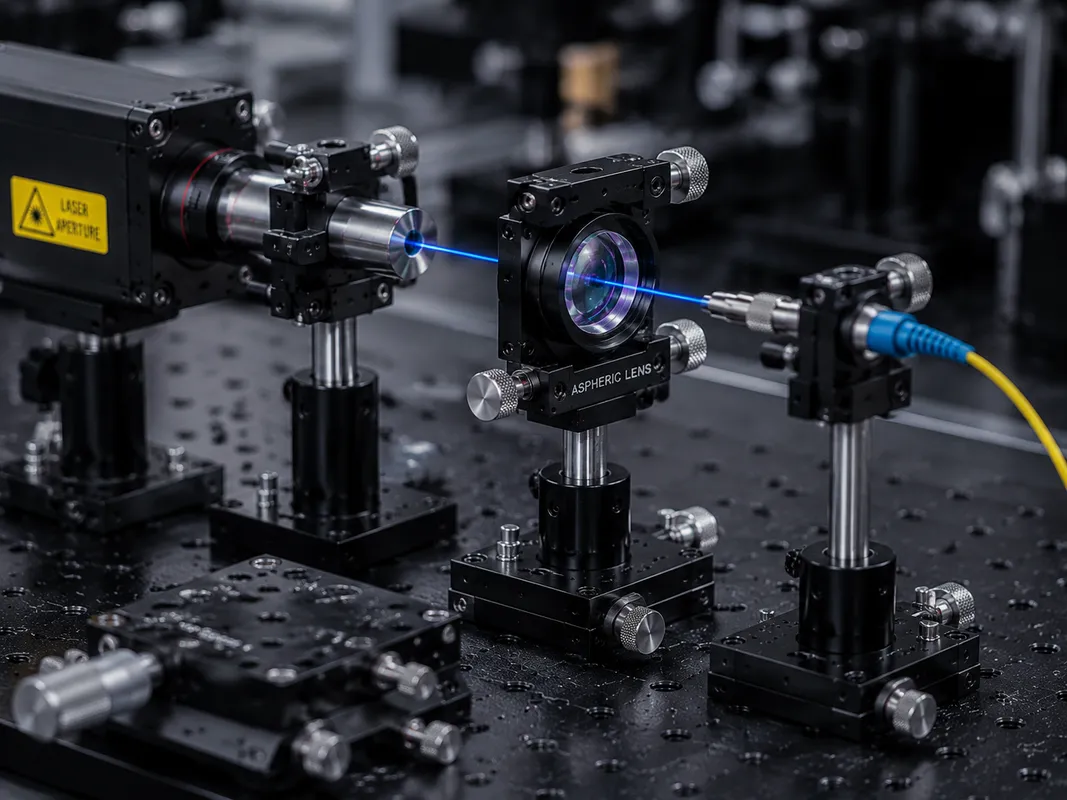

Aspheric lenses are widely used in laser systems, imaging optics, beam shaping assemblies, machine vision systems and scientific instruments requiring high-quality, aberration-corrected focusing performance.
Typical Specifications of Precision Polished Aspheric Lens
| Material | Optical glass, fused silica or infrared material |
|---|---|
| Diameter | Drawing-defined |
| Center Thickness | Drawing-defined |
| Effective Focal Length | Drawing-defined |
| Aspheric Profile | Radius, conic constant and coefficients supplied by customer |
| Clear Aperture | Drawing-defined |
| Surface Quality | Drawing-defined |
| Profile / Surface Accuracy | Subject to geometry and inspection method |
| Centration | Drawing-defined |
| Coating | Uncoated or wavelength-specific AR coating |
| Inspection | Method and report agreed before production |
Required Aspheric Lens Design Information
For manufacturing review, please provide the substrate material, diameter, center thickness, effective focal length, radius, conic constant, aspheric coefficients, clear aperture, surface quality, profile tolerance, centration, coating requirements and operating wavelength. A complete optical drawing or sag table is recommended.
Aspheric Profile Inspection
Inspection requirements are selected according to the aspheric geometry and tolerance. Available review items may include dimensional measurement, surface quality inspection, profile measurement, surface figure evaluation, centration verification and coating performance testing. The inspection method and report format should be agreed before production.

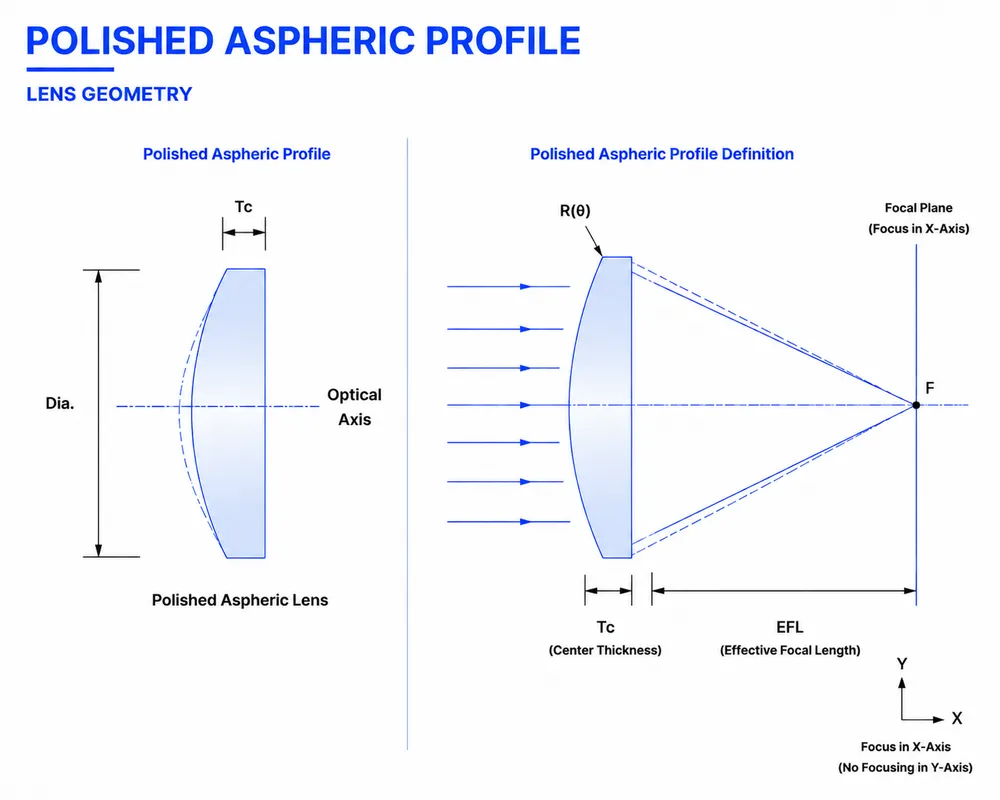

Aspheric Profile Comparison
Why Choose Chenyu Optics for Aspheric Lens
Chenyu Optics supports drawing-based Precision Polishing for laser, imaging and machine vision optical systems. Aspheric profile and surface requirements are reviewed together with the available Metrology and Inspection method before prototype or repeat production.
Manufacturing Capability for Precision Polished Aspheric Lens
Precision Aspheric Figuring & Polishing
Aspheric surfaces are processed according to the specified profile, material, aperture and drawing requirements.
AR Coating
Broadband, laser, UV or IR AR coatings selected according to wavelength and application requirements.
Inspection & Packaging
Inspection equipment and report content are selected according to the agreed surface figure, slope error, roughness, centration and dimensional requirements.
Custom Manufacturing Options for Aspheric Lens
Geometry & Dimensions
Diameter, thickness, focal length and edge treatment can be manufactured according to customer drawings and optical system requirements.
Surface & Profile Quality
Aspheric departure, surface figure, slope error, roughness and clear aperture are reviewed according to the optical design and inspection requirements.
Coating Selection
Uncoated, broadband AR, laser AR, UV AR or IR AR coatings can be specified according to the operating wavelength and application environment.
Aspheric vs. Spherical Lens Comparison

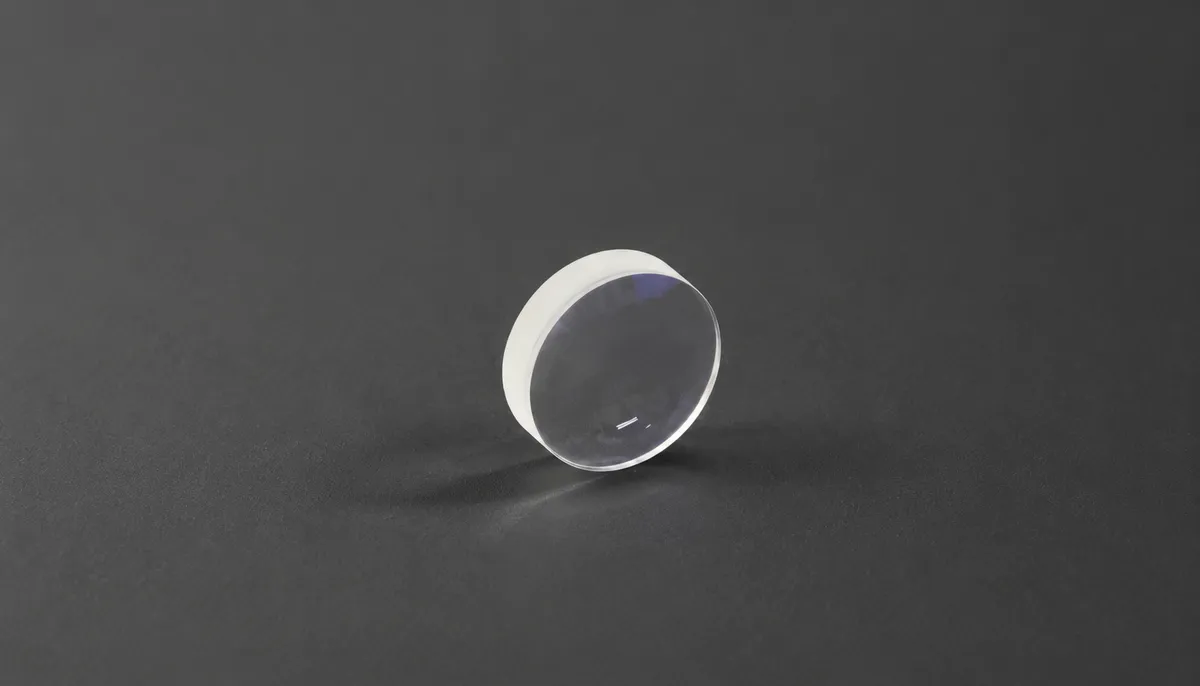

| Spherical Singlet | Spherical Achromatic Doublet | Aspheric Lens | |
|---|---|---|---|
| Aberration Correction | Uncorrected spherical aberration | Chromatic aberration corrected; spherical aberration remains | Spherical aberration corrected within a single element |
| Element Count | One element | Two cemented elements | One element |
| Typical Function | Basic focusing or imaging | Color-corrected focusing | High-quality focusing with reduced element count |
| Typical Applications | General-purpose beam shaping, focusing | Imaging systems requiring color correction | Laser systems, imaging, machine vision, scientific instruments |
Precision polished aspheric lenses are generally selected for custom geometries, specialized materials, prototypes and optical requirements that cannot be met by an existing molded design. Precision molded aspheric lenses are typically more suitable for repeat production when tooling cost and production quantity justify the molding process.
Applications of Aspheric Lens
Laser Systems
Focusing and beam shaping optics for laser system design.
Imaging Systems
Aberration-corrected lenses for precision imaging optics.
Beam Shaping
Aspheric lenses for beam collimation and focusing applications.
Machine Vision
Reliable, aberration-corrected focusing components for machine vision and inspection systems.
Scientific Instruments
Precision optical components for laboratory and research instruments.
Optical Systems Integration
Custom aspheric lenses for OEM optical system assemblies.
Aspheric Lens FAQ
What is an aspheric lens?
An aspheric lens is a lens with a non-spherical surface profile that varies from center to edge, designed to correct spherical aberration within a single optical element.
Which materials are available for aspheric lenses?
Common materials include BK7, fused silica, optical glass, and infrared materials, selected according to the operating wavelength.
Are aspheric lenses suitable for laser applications?
Yes. Depending on material and coating selection, aspheric lenses can be used in laser focusing and beam shaping systems.
Can aspheric lens coatings be customized?
Yes. Coating options include uncoated, broadband AR, laser AR, UV AR, IR AR and custom coatings according to wavelength range and application.
What information is required for a precision polished aspheric lens quotation?
Please provide the material, diameter, center thickness, effective focal length, radius, conic constant, aspheric coefficients, clear aperture, surface quality, profile tolerance, centration, coating requirements, operating wavelength, quantity and optical drawing or sag table.
Related Products for Aspheric Lens
Need Custom Precision Polished Aspheric Lenses?
Send us your optical drawing or sag table together with the material, dimensions, aspheric coefficients, surface requirements, coating specification, operating wavelength and quantity. Our team will review the design and manufacturing requirements.
