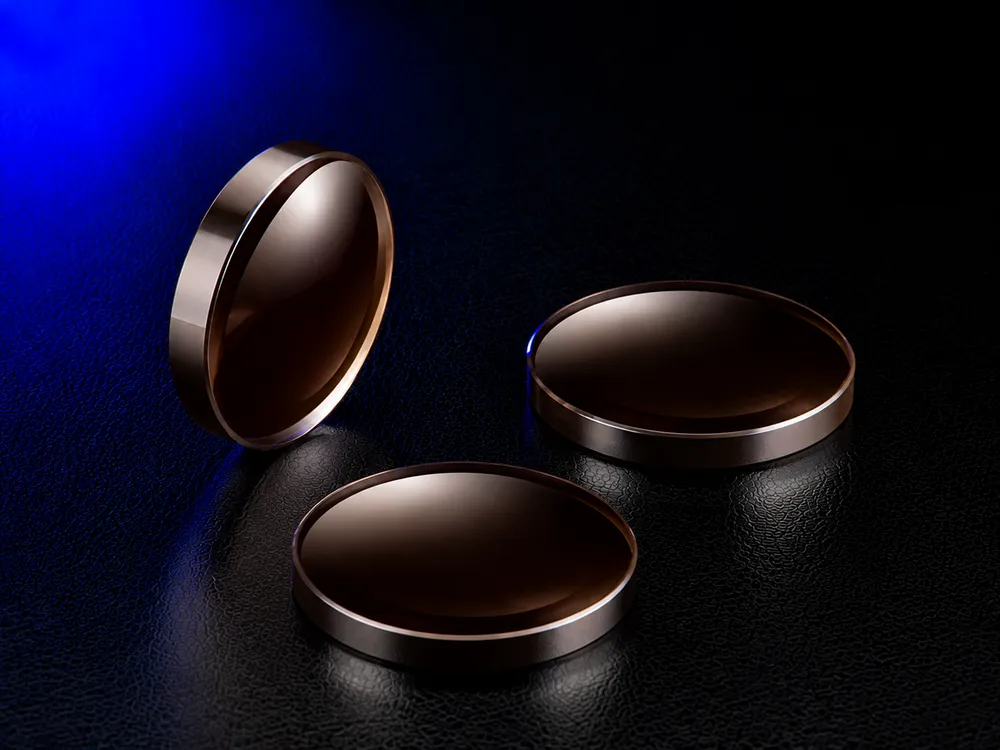

Germanium Lens
Germanium Lenses are precision infrared optical components manufactured from high-purity germanium (Ge) single crystal material. With excellent infrared transmission from approximately 2–14 μm, high refractive index and low chromatic aberration, germanium lenses provide reliable optical performance for demanding infrared imaging systems. Chenyu Optics manufactures germanium lenses uncoated or with MWIR AR, LWIR AR and custom infrared AR coatings for thermal imaging, IR cameras and infrared laser applications.
Germanium Lens Overview
Germanium Lenses are precision infrared optical components manufactured from high-purity germanium (Ge) single crystal material.
With excellent infrared transmission from approximately 2–14 μm, high refractive index and low chromatic aberration, germanium lenses provide reliable optical performance for demanding infrared imaging systems. Due to their excellent MWIR and LWIR optical characteristics, germanium lenses are widely used in thermal imaging systems, infrared cameras, night vision systems, IR sensors and infrared laser applications.
Chenyu Optics supports custom germanium lens manufacturing according to customer drawings, including custom diameter, focal length, surface design and coating design for prototype and repeat production.
Key Advantages of Germanium Lens

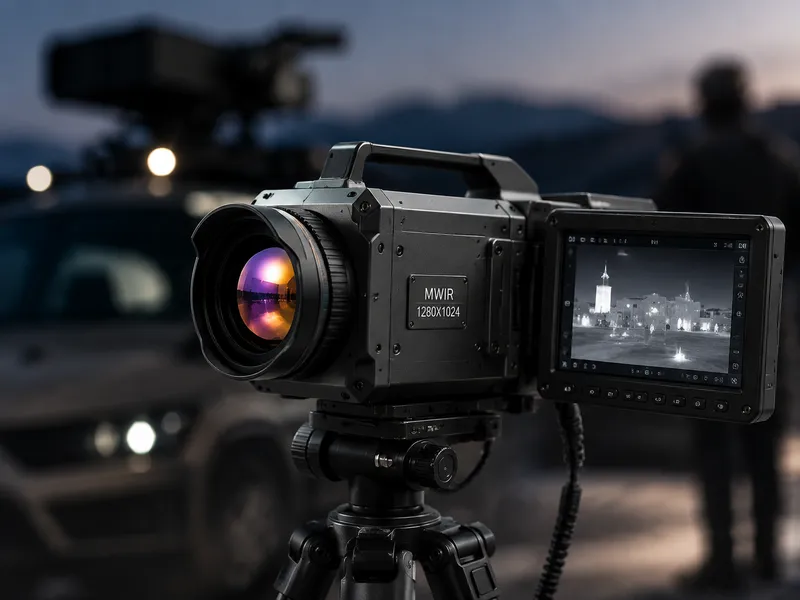

Thermal Imaging & Infrared Camera Systems
Germanium lenses are widely used for MWIR and LWIR focusing and imaging in thermal imaging systems, infrared cameras, night vision systems and IR sensor modules.
Typical Specifications of Germanium Lens
| Material | Germanium (Ge), Single Crystal |
|---|---|
| Optical Function | Infrared focusing / Imaging / Beam control |
| Transmission Range | Approx. 2 – 14 μm |
| Refractive Index | Approx. 4.0 @ 10.6 μm |
| Chromatic Aberration | Low |
| Wavelength Range | MWIR / LWIR |
| Diameter | Customized |
| Focal Length | Customized |
| Surface Accuracy | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
Lens Geometry & Optical Principle
Why Choose Chenyu Optics for Germanium Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for thermal imaging, infrared sensing and laser optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard germanium lenses.
Manufacturing Capability for Germanium Lens
Precision Polishing
Precise optical processing to manage germanium's high refractive index and material characteristics.
Infrared Optical Coating
MWIR AR, LWIR AR and custom infrared AR coating options for thermal imaging and IR sensing applications.
Inspection & Packaging
Dimensional inspection, surface review, infrared optical testing and protective packaging before shipment.
Custom Manufacturing Options for Germanium Lens
Dimensions & Surface Design
Custom diameter, focal length and surface design can be manufactured according to customer drawings and optical design requirements.
Surface & Optical Quality
Surface accuracy and surface quality can be selected according to MWIR or LWIR imaging performance requirements.
Coating & Environmental Design
Uncoated, MWIR AR, LWIR AR and custom infrared AR coatings can be specified for thermal imaging, surveillance or laser applications.
Infrared Lens Material Comparison
| Germanium (Ge) | Silicon (Si) | Chalcogenide Glass | Zinc Selenide (ZnSe) | |
|---|---|---|---|---|
| Transmission | LWIR, approx. 2 – 14 μm | MWIR, approx. 1.2 – 8 μm | MWIR to LWIR, approx. 1 – 14 μm | MWIR to LWIR, approx. 0.6 – 16 μm |
| Refractive Index | Approx. 4.0, very high | Approx. 3.4 | Approx. 2.4 – 2.8, composition dependent | Approx. 2.4 |
| Mechanical Notes | Hard, brittle, sensitive to thermal runaway at elevated temperature | Hard, brittle, good thermal stability | Moldable, good for volume production, relatively soft | Moderate hardness, low absorption, sensitive to handling |
| Typical Use | LWIR thermal imaging, uncooled camera lenses | MWIR imaging, low-cost thermal optics | Molded aspheric IR optics, compact thermal lenses | CO2 laser optics, broadband IR imaging |
Applications of Germanium Lens
Thermal Imaging Systems
Reliable MWIR/LWIR focusing for thermal imaging.
Infrared Cameras
High-performance lenses for IR camera modules.
Night Vision Systems
High infrared transmission for night vision optics.
IR Sensor Modules
Precision focusing for infrared sensing applications.
Infrared Detection Equipment
Reliable germanium optics for infrared detection instruments.
Laser Systems
Infrared-transmitting optics for laser applications.
Germanium Lens FAQ
Why is germanium used for infrared lenses?
Germanium provides excellent infrared transmission from approximately 2–14 μm and a high refractive index, making it suitable for compact infrared optical designs.
What wavelength range do germanium lenses support?
Germanium lenses are commonly used for MWIR (3–5 μm) and LWIR (8–12 μm) infrared applications.
Are germanium lenses suitable for thermal imaging cameras?
Yes. Germanium is one of the most commonly used optical materials for thermal imaging and infrared camera systems.
Can germanium lenses be customized?
Yes. Chenyu Optics provides customized diameters, focal lengths, surface designs, optical quality, and MWIR/LWIR AR coatings.
What information should I provide for a quotation?
Please provide diameter, focal length, surface design requirement, coating requirement, quantity and drawing if available.
Where can I learn more about infrared optical materials?
Additional infrared optical material information can be found from Edmund Optics.
Related Products for Germanium Lens
Need Custom Germanium Lenses?
Send us your drawing, diameter, focal length, surface design and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable germanium lens manufacturing suggestion.
