Fresnel Lens
Fresnel lenses use concentric grooves to provide efficient light collection and focusing with significantly less thickness and weight than conventional lenses.

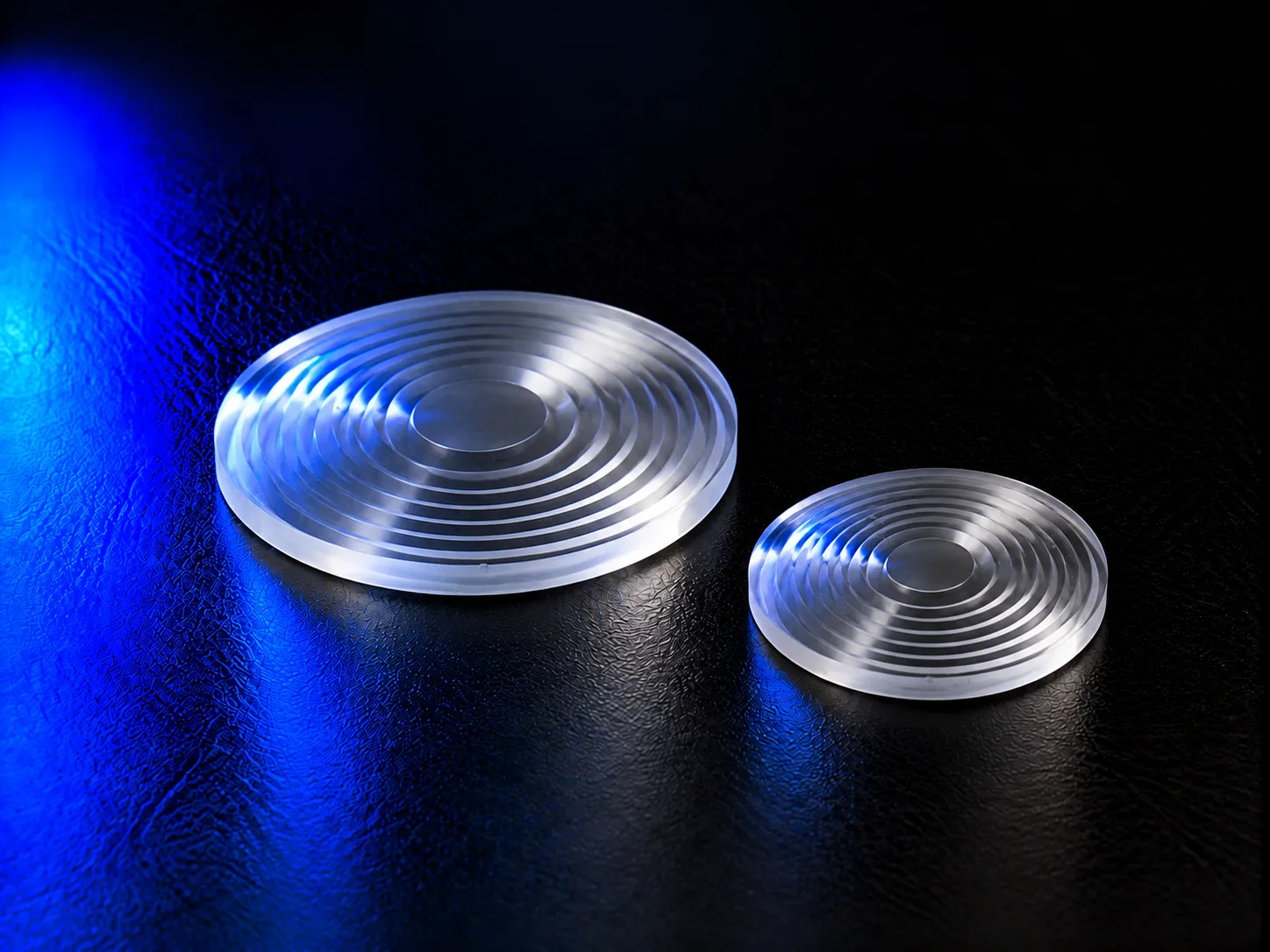

Fresnel Lens Overview
Fresnel Lenses replace a continuous curved optical surface with concentric grooves, delivering effective focusing in a thin and lightweight form.
Chenyu Optics manufactures custom Fresnel lenses from optical acrylic (PMMA), polycarbonate and fused silica. Diameter, focal length, groove structure, groove pitch and optical performance can be customized.
UV and visible AR coatings are available to improve transmission efficiency for solar, lighting, projection and sensing systems.
Key Advantages of Fresnel Lenses
LED, Illumination & Light Collection Systems
Fresnel lenses provide thin, lightweight light collection and focusing for solar, LED, projection and sensing systems.
Typical Specifications of Fresnel Lens
| Material Options | PMMA / Polycarbonate / Fused Silica |
|---|---|
| Product Type | Fresnel Lens |
| Optical Function | Light Focusing / Beam Concentration |
| Diameter / Size | Customized |
| Focal Length | Customized |
| Groove Structure | Customized |
| Groove Pitch | Customized |
| Wavelength Range | UV / VIS / NIR, material dependent |
| Lens Thickness | Customized |
| Surface Quality | Customized |
| Manufacturing Process | Precision Molding / Machining |
| Coating | UV AR / VIS AR |

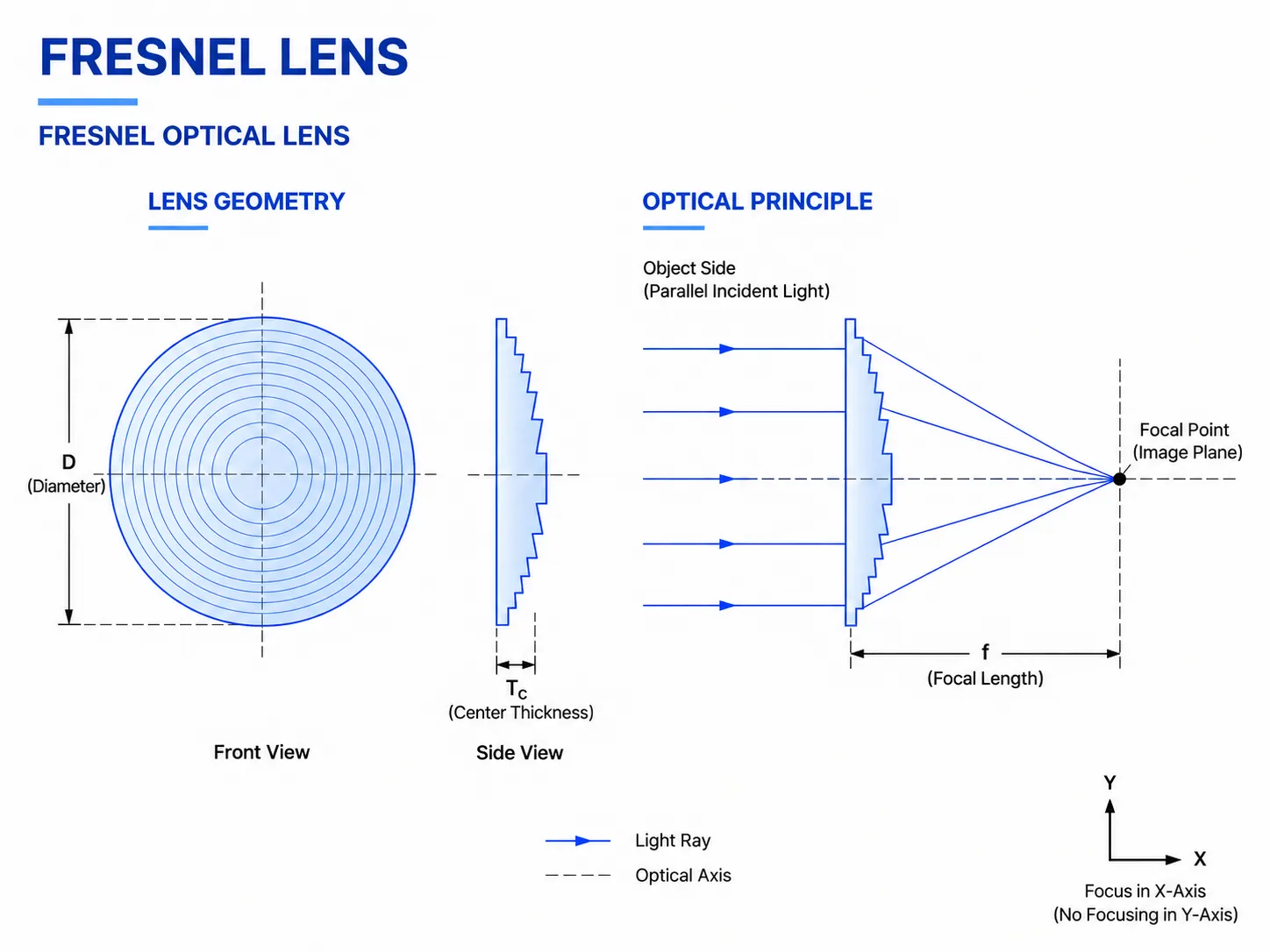

Fresnel Lens Structure
Why Choose Chenyu Optics for Fresnel Lenses
Chenyu Optics supports custom Fresnel lens production for solar, illumination, sensing, projection and optical measurement systems.
Manufacturing Capability for Fresnel Lenses
Precision Molding & Machining
Controlled molding and precision machining for custom diameter, focal length, groove pitch, groove geometry and lens thickness.
Wavelength-Specific AR Coating
UV and visible anti-reflection coatings optimized for material, wavelength, angle of incidence and application requirements.
Inspection & Packaging
Dimensional, focal length, groove geometry and optical performance inspection followed by clean handling and protective packaging.
Custom Fresnel Lens Options
Fresnel Lens Design Options
| Property | PMMA | Polycarbonate | Fused Silica |
|---|---|---|---|
| Key Benefit | High clarity, lightweight and cost-effective | High impact resistance and lightweight construction | High temperature stability and strong UV performance |
| Wavelength Range | VIS / selected NIR | VIS / selected NIR | UV / VIS / NIR |
| Manufacturing Process | Precision molding or machining | Precision molding | Precision machining |
| Typical Applications | Solar, LED lighting and projection | Lighting, sensors and rugged systems | UV optics and high-temperature systems |
| Customization | Diameter, focal length, grooves and coating | Diameter, focal length, grooves and coating | Diameter, focal length, grooves and coating |
Important Considerations for Fresnel Lenses
Applications and Selection Considerations
LED Lighting
Collects LED output and delivers controlled, efficient illumination.
Projection Systems
Concentrates source light for bright and uniform projection optics.
Optical Sensors
Improves light collection efficiency for sensing and detection modules.

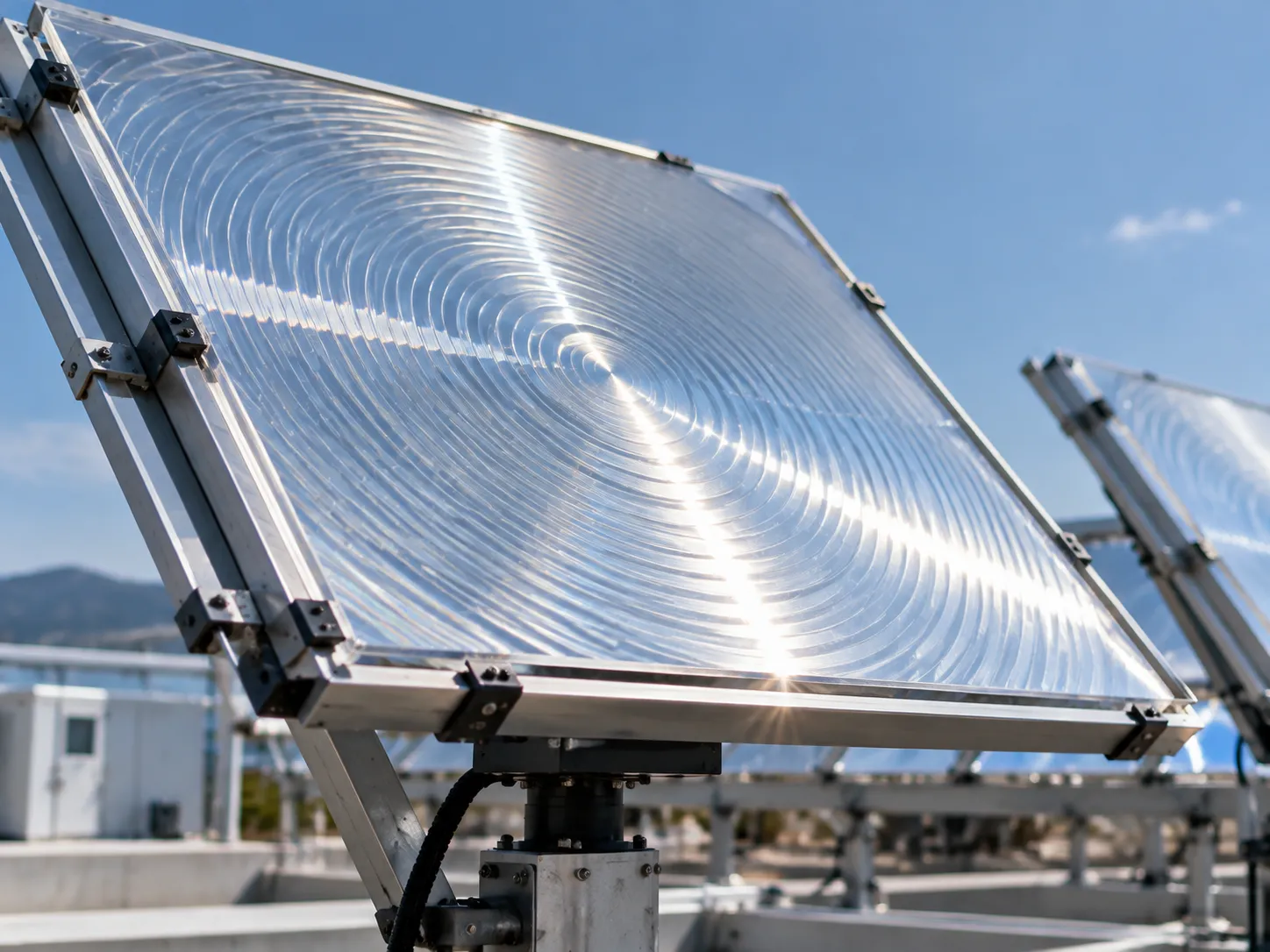

Solar Concentrators
Concentrates incident light onto a smaller receiver or detector area.
Imaging Systems
Provides a thin, lightweight focusing solution for imaging assemblies.
Optical Measurement
Controls source illumination in analytical and measurement instruments.
Fresnel Lens FAQ
What is a Fresnel lens?
A Fresnel lens uses concentric grooves to approximate the focusing effect of a conventional curved lens while reducing thickness and weight.
What are the advantages of Fresnel lenses compared with traditional lenses?
Fresnel lenses provide a thinner, lighter and more compact design, especially for large-aperture applications where reducing weight and material usage is important.
What materials are commonly used for Fresnel lenses?
PMMA and polycarbonate are common for lightweight and high-volume applications. Fused silica is suitable where higher temperature stability and optical performance are required.
Can Fresnel lenses be customized?
Yes. Diameter, focal length, groove design, material and optical performance can be customized according to the application requirements.
Are AR coatings available for Fresnel lenses?
Yes. UV and visible AR coatings can improve transmission efficiency and reduce reflection losses.
What information should I provide for a quotation?
Please provide the application, wavelength, diameter or size, focal length, working distance, groove requirements, material, transmission requirement, operating temperature, coating and quantity.
Related Products for Fresnel Lens
Need Custom Fresnel Lenses?
Send your application, wavelength, diameter, focal length, working distance, groove requirements, material preference, transmission target, coating requirements and quantity for technical evaluation and quotation.
