Achromatic Triplet Lens
Achromatic Triplet Lenses are precision optical components composed of three cemented glass elements designed to reduce chromatic aberration and improve broadband imaging performance. By combining crown glass and flint glass with optimized optical designs, Chenyu Optics manufactures achromatic triplet lenses uncoated or with UV AR, VIS AR and NIR AR coatings for imaging, laser and precision optical systems.
Achromatic Triplet Lens Overview
Achromatic Triplet Lenses are precision optical components composed of three cemented glass elements designed to reduce chromatic aberration and improve broadband imaging performance.
By combining crown glass and flint glass with optimized optical designs, these lenses provide improved color correction, reduced spherical aberration and high image quality across a broad wavelength range. They are widely used in imaging systems, laser applications, microscopy and precision optical instruments.
Chenyu Optics supports custom achromatic triplet lens manufacturing according to customer drawings, including custom glass combination, focal length, dimensions and coating design for prototype and repeat production.
Key Advantages of Achromatic Triplet Lens
Broadband Imaging & Microscopy Systems
Achromatic triplet lenses are widely used for color-corrected imaging in broadband imaging systems, microscopy equipment and precision optical instruments.
Typical Specifications of Achromatic Triplet Lens
| Material Options | Crown Glass, Flint Glass |
|---|---|
| Optical Function | Achromatic imaging / Color correction |
| Design Type | Triple cemented lens assembly |
| Focal Length | Customized |
| Transmission | High optical transmission |
| Surface Accuracy | λ/4 – λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Aberration Control | Reduced chromatic and spherical aberration |

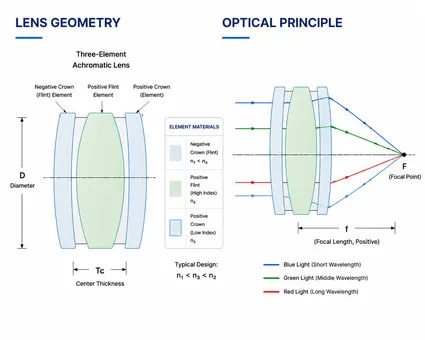

Lens Geometry & Optical Principle
Why Choose Chenyu Optics for Achromatic Triplet Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for imaging, laser and scientific optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard achromatic triplet lenses.
Manufacturing Capability for Achromatic Triplet Lens
Precision Grinding & Cementing
Precise optical design and accurate assembly control to maintain alignment between the three cemented glass elements.
Optical Coating
UV AR, VIS AR and NIR AR coating options for imaging, laser and scientific instrument applications.
Inspection & Packaging
Dimensional inspection, cemented-interface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Achromatic Triplet Lens
Dimensions & Focal Length
Custom diameter and focal length can be manufactured according to customer drawings, with optimized triple cemented glass configurations.
Glass Combination & Optical Quality
Crown and flint glass combinations, surface accuracy, surface quality and aberration control can be selected according to imaging performance requirements.
Coating & Wavelength Design
Uncoated, UV AR, VIS AR, NIR AR and custom AR coatings can be specified for imaging, laser or broadband applications.
Achromatic Lens Design Comparison
| Achromatic Triplet | Achromatic Doublet | Plano-Convex | Biconvex | |
|---|---|---|---|---|
| Element Count | Three cemented elements | Two cemented elements | Single element | Single element |
| Chromatic Correction | Improved broadband correction | Standard two-wavelength correction | Not corrected | Not corrected |
| Spherical Aberration | Reduced | Reduced | Moderate | Moderate |
| Typical Applications | Broadband imaging, microscopy, precision instruments | Imaging, laser focusing, general color correction | Focusing systems, laser collimation | Imaging, beam focusing systems |
Applications of Achromatic Triplet Lens
Broadband Imaging Systems
Color-corrected imaging across a broad wavelength range.
Laser Optical Systems
Precision focusing with reduced chromatic and spherical aberration.
Microscopy Systems
Improved contrast and resolution for microscopy imaging paths.
Machine Vision Systems
Color-accurate imaging for industrial inspection applications.
Optical Instruments
Precision achromatic lenses for optical instrument design.
Scientific Research Equipment
Precision lenses for research and laboratory optical setups.
Achromatic Triplet Lens FAQ
What is the advantage of an achromatic triplet lens?
An achromatic triplet lens provides improved chromatic correction and reduced aberrations compared with simpler lens designs.
Why are multiple glass materials used?
Different glass types provide different dispersion characteristics, allowing better correction of wavelength-dependent focus shifts.
Can triple achromatic lenses be used in laser systems?
Yes. They are commonly used in laser imaging, beam focusing, and precision optical systems.
Can glass combinations and focal lengths be customized?
Yes. Custom glass combinations, focal lengths, dimensions, and AR coatings are available.
What information should I provide for a quotation?
Please provide diameter, focal length, glass combination preference, surface accuracy, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about achromatic lens design?
Additional information on achromatic lens design can be found from Edmund Optics.
