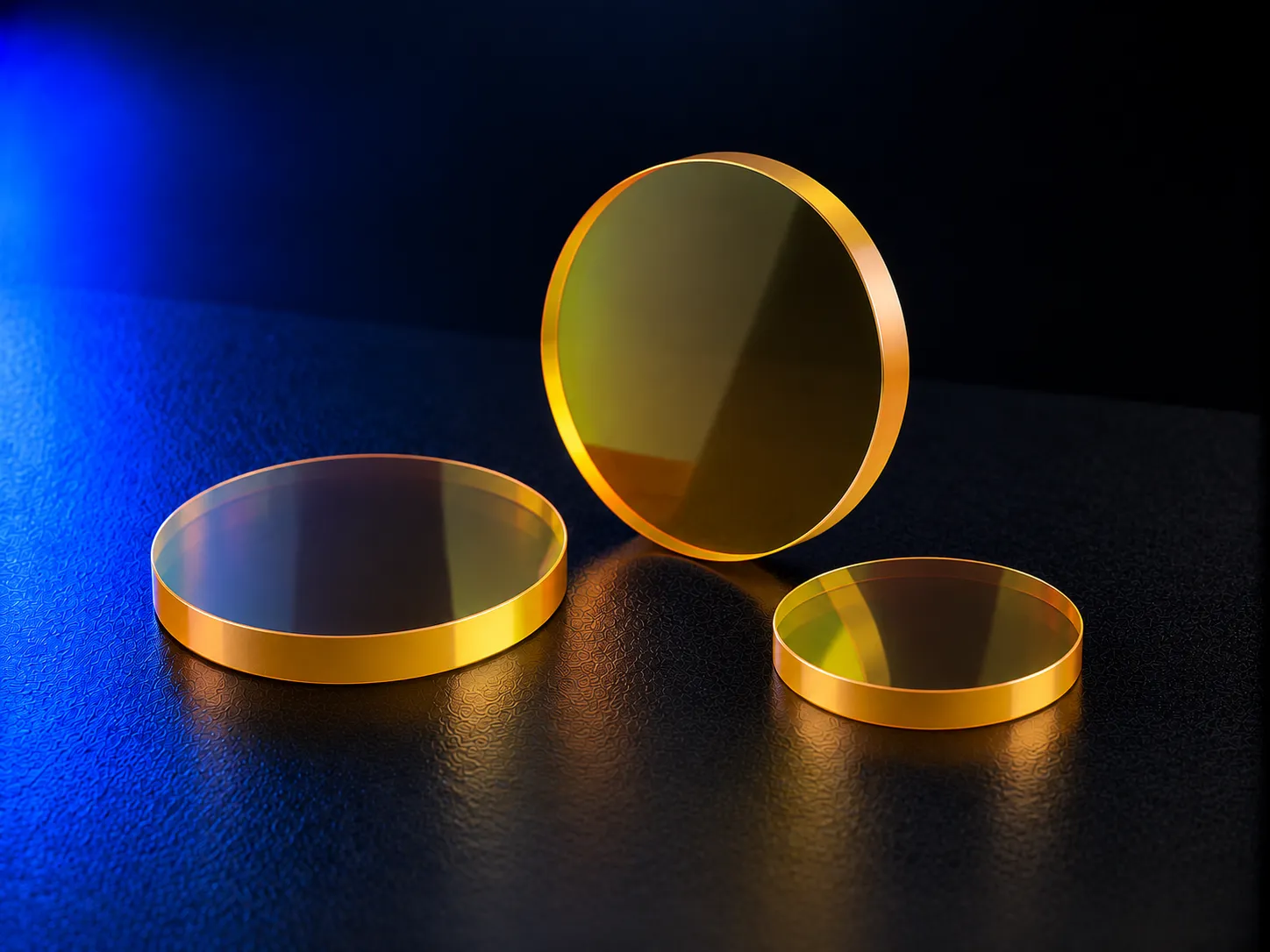

AR Coated Zinc Selenide Window
AR coated zinc selenide windows are precision infrared optical components manufactured from ZnSe substrates with anti-reflection coatings optimized for specific infrared wavelength ranges. Zinc selenide provides broad infrared transmission, low absorption, and good optical uniformity, making it suitable for both infrared imaging and CO₂ laser optical systems. Because ZnSe has relatively high surface reflection when uncoated, wavelength-optimized AR coatings can significantly improve transmission and reduce reflection losses. Chenyu Optics provides custom AR coated ZnSe windows for MWIR, LWIR, and CO₂ laser wavelengths, including 10.6 μm applications.
AR Coated Zinc Selenide Window Overview
AR Coated Zinc Selenide Windows are infrared optical components manufactured from ZnSe substrates with anti-reflection coatings designed to improve transmission over specific infrared wavelength ranges.
ZnSe offers broad infrared transmission and is particularly useful for systems operating in the MWIR, LWIR, and CO₂ laser wavelength regions. Due to its relatively high refractive index, uncoated ZnSe surfaces can produce significant reflection losses, making AR coating important when high transmission is required. For laser applications, coating selection should consider not only wavelength but also laser operating conditions.
Final transmission and laser performance depend on substrate quality, wavelength, thickness, angle of incidence, polarization, and AR coating design. Chenyu Optics provides custom AR coated ZnSe windows for MWIR, LWIR, and CO₂ laser wavelengths, including 10.6 μm applications.
Window size, thickness, surface specifications, and coating design can be customized for thermal imaging, infrared cameras, IR sensors, spectroscopy, and laser systems.
Key Advantages of AR Coated Zinc Selenide Window

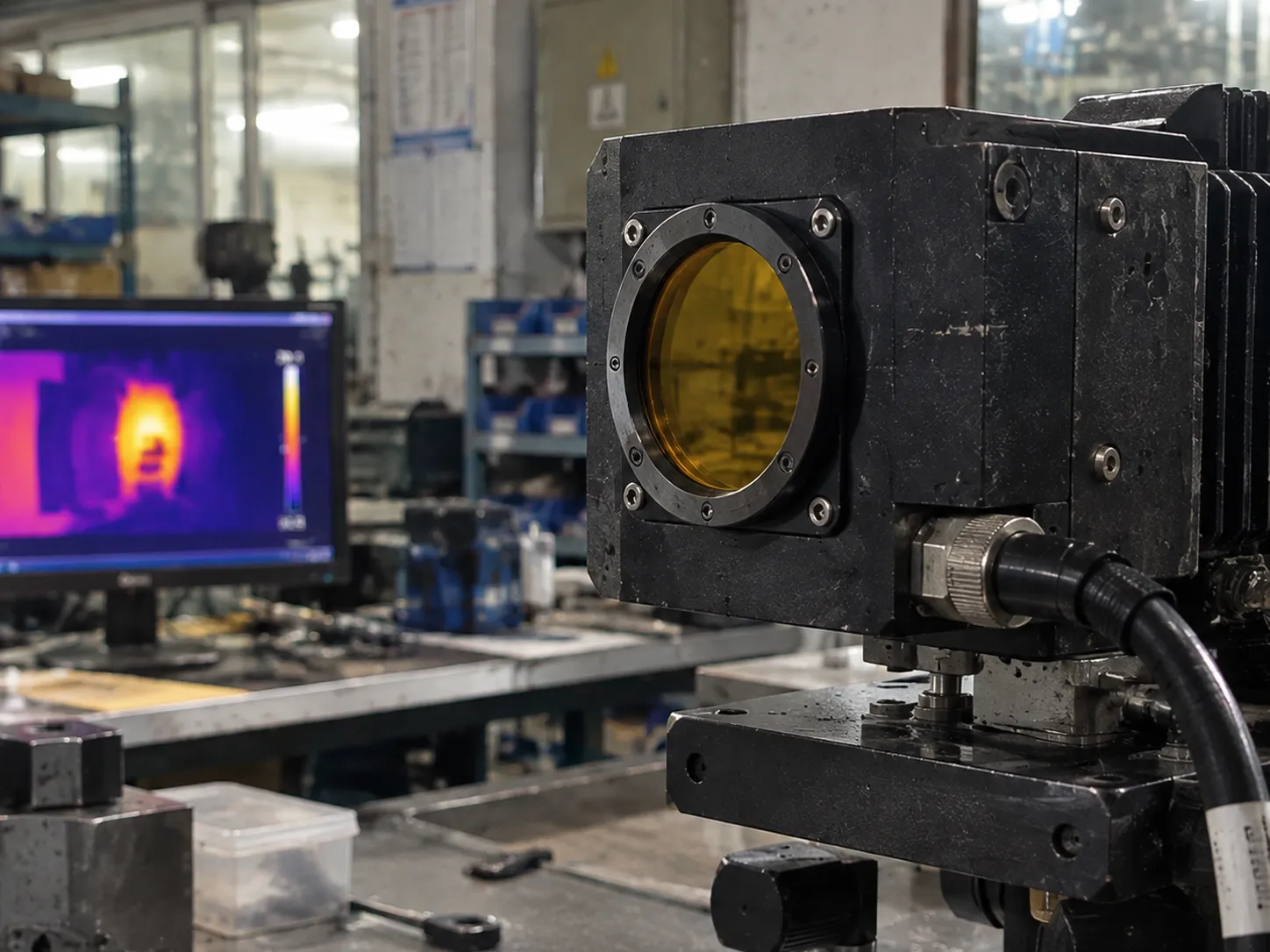

Infrared Imaging & CO₂ Laser Systems
AR coated ZnSe windows provide high-transmission optical access for infrared imaging, thermal imaging, IR sensors and CO₂ laser beam paths when the operating wavelength and coating are appropriately selected.
Typical Specifications of AR Coated Zinc Selenide Window
| Material | Zinc Selenide (ZnSe) |
|---|---|
| Product Type | AR Coated Zinc Selenide Window |
| Optical Function | Infrared / CO₂ laser transmission |
| Transmission Range | Approximately 0.5–20 μm |
| Operating Wavelength | Customized |
| Infrared Region | MWIR / LWIR |
| CO₂ Laser Wavelength | 10.6 μm compatible |
| Diameter / Size | Customized |
| Thickness | Customized |
| Surface Flatness | Customized |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Coating | IR AR / MWIR AR / LWIR AR / CO₂ Laser AR |
Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for AR Coated Zinc Selenide Window
Chenyu Optics manufactures zinc selenide optical substrates to custom round, rectangular and special dimensions, with precision optical polishing, surface flatness control and edge/dimensional tolerance control. Our MWIR, LWIR and CO₂ laser AR coating solutions are supported by precision coating and spectral performance control, from prototype through production quantities.
Manufacturing Capability for AR Coated Zinc Selenide Window
Precision Polishing
ZnSe substrate polishing with surface flatness, surface quality and edge/dimensional tolerance control.
MWIR / LWIR / CO₂ Laser AR Coating
Precision AR coating fabrication optimized for wavelength range, angle of incidence, polarization and laser operating conditions.
Inspection & Packaging
Optical and dimensional inspection according to agreed requirements, followed by protective optical packaging.
Available AR Coating Options
AR Coated ZnSe Window vs Germanium Window
| Property | AR Coated ZnSe Window | Germanium Window |
|---|---|---|
| Transmission Range | Approximately 0.5–20 μm, covering visible through far infrared | Primarily mid- to long-wave infrared, application-dependent |
| Optical Absorption | Low absorption, suitable for CO₂ laser and imaging use | Absorption increases with temperature; thermal runaway should be evaluated in high-power or high-temperature use |
| CO₂ Laser Suitability | Widely used for CO₂ laser optics at 10.6 μm | Less commonly selected for CO₂ laser transmission applications |
| Typical Applications | Infrared imaging, thermal imaging, spectroscopy, CO₂ laser systems | Thermal imaging and infrared systems where germanium's material properties are preferred |
| Coating Requirement | AR coating important due to relatively high refractive index | AR coating important due to high refractive index and associated reflection loss |
Important Considerations for AR Coated ZnSe Windows
Applications and Selection Considerations
Infrared Imaging Systems
Provides high-transmission optical access for infrared imaging assemblies.
Thermal Imaging Equipment
Supports thermal imaging systems requiring good MWIR / LWIR transmission.
CO₂ Laser Systems
Used in CO₂ laser beam paths at 10.6 μm with an AR coating matched to laser operating conditions.
Laser Cutting & Processing
Serves as a window or protective element in laser cutting and processing equipment.
IR Sensors & Detectors
Serves as a protective, high-transmission window in front of infrared detectors.
Infrared Spectroscopy
Used in infrared spectroscopy systems where wavelength-specific transmission is required.
AR Coated Zinc Selenide Window FAQ
What wavelength range does ZnSe transmit?
ZnSe provides broad optical transmission from approximately 0.5 μm into the long-wave infrared region, commonly extending to around 20 μm depending on material grade, thickness, and system requirements.
Why are AR coatings used on ZnSe windows?
ZnSe has a relatively high refractive index, resulting in significant reflection from uncoated surfaces. AR coatings reduce these reflection losses and improve overall transmission.
Are ZnSe windows suitable for CO₂ lasers?
Yes. ZnSe is widely used for CO₂ laser optics, including systems operating at 10.6 μm, because of its low absorption and good infrared transmission.
What is the difference between MWIR, LWIR, and CO₂ laser AR coatings?
Each coating is optimized for a different wavelength range. The appropriate design depends on the required transmission band, AOI, polarization, and laser or imaging conditions.
Can the window and coating be customized?
Yes. Chenyu Optics provides customized dimensions, thicknesses, surface specifications, and AR coatings for specific infrared and CO₂ laser applications.
What information should I provide for a quotation?
Please provide the operating wavelength or wavelength range, application (imaging / sensing / CO₂ laser / other), laser type and power or energy density if applicable, angle of incidence, polarization, required transmission, window dimensions, thickness, surface flatness, surface quality, coating requirement and quantity.
Related Products for AR Coated Zinc Selenide Window
Need AR Coated ZnSe Windows?
Send us your wavelength range, dimensions, thickness, angle of incidence, laser parameters, surface specifications, coating requirements and quantity. Chenyu Optics will review the requirements for technical evaluation and quotation.
