Custom Optical Window

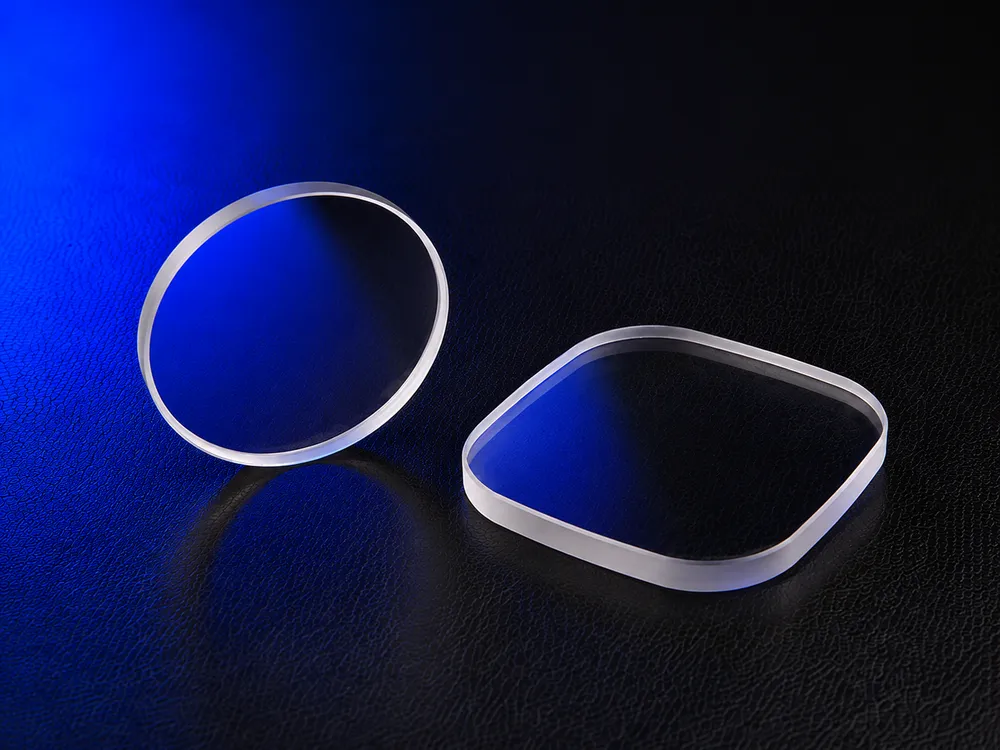

Custom Optical Windows are precision components designed and manufactured according to specific optical system requirements. Suitable material, dimensions, surface specifications and coatings provide excellent transmission, surface quality and mechanical stability.
Custom Optical Window Overview
Custom Optical Windows are precision protective optical components manufactured from high-purity fused silica (SiO₂). The material provides excellent ultraviolet transmission, low optical absorption and stable performance across UV, visible and near-infrared wavelengths.
Chenyu Optics offers optical glass, fused silica, sapphire, calcium fluoride (CaF₂), zinc sulfide (ZnS), zinc selenide (ZnSe), silicon and germanium windows for UV, visible, NIR, MWIR and LWIR applications.
Each optical window can be customized according to customer drawings, including material, shape, size, thickness, surface flatness, surface quality and AR coating.
Key Advantages of Custom Optical Windows
Imaging, Laser & Sensor Protection
Custom optical windows provide reliable transmission and environmental protection for imaging, laser, infrared and sensor systems, with materials and coatings optimized from UV through LWIR.
Typical Specifications of Custom Optical Window
| Material | High-Purity Optical Materials (SiO₂) |
|---|---|
| Optical Function | Protective window / Optical transmission |
| Window Type | Custom Optical Window |
| Transmission Range | UV / VIS / NIR / MWIR / LWIR, material dependent |
| Shape | Customized |
| Thickness | Customized |
| Diameter | Customized |
| Thickness | Customized |
| Surface Flatness | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
Custom Thickness & Optical Principle
Why Choose Chenyu Optics for Custom Optical Windows
Chenyu Optics supports drawing-based custom optical window manufacturing for laser, ultraviolet, sensing and aerospace optical systems, from prototype verification through repeat production.
Manufacturing Capability for Custom Optical Windows
Precision Window Polishing
Controlled custom optical window shaping and polishing for custom curvature, wall thickness, surface accuracy and surface quality.
Optical AR Coating
UV, VIS, NIR, MWIR and LWIR coatings designed for the selected material, wavelength and incident angle.
Inspection & Packaging
Dimensional, surface and optical inspection followed by clean handling and protective packaging for precision optical windows.
Coating Options for Custom Optical Windows
Uncoated Optical Materials
Suitable when the natural UV, visible and near-infrared transmission of fused silica meets the optical system requirements.
UV AR Coating
Optimized to reduce reflection and improve transmission efficiency in ultraviolet imaging, sensing and laser systems.
VIS, NIR & Custom AR Coatings
Designed for visible, near-infrared or customer-specified wavelength ranges, incident angles and environmental conditions.
Custom Optical Window Coating Selection
| Option | Typical Range | Recommended Use | Design Note |
|---|---|---|---|
| Uncoated | Material-dependent range | Broadband systems and prototypes | Natural surface reflection remains |
| UV AR | Customer-specified UV range | UV imaging, sensing and laser systems | Specify operating wavelength and laser conditions |
| VIS AR | Visible wavelength range | Imaging and optical sensor systems | Reduces visible surface reflection |
| NIR AR | Near-infrared wavelength range | NIR imaging and detection systems | Optimized for the specified incident angle |
| Custom AR | Customer specified | Laser and multispectral systems | Specify wavelength, AOI, power and environment |

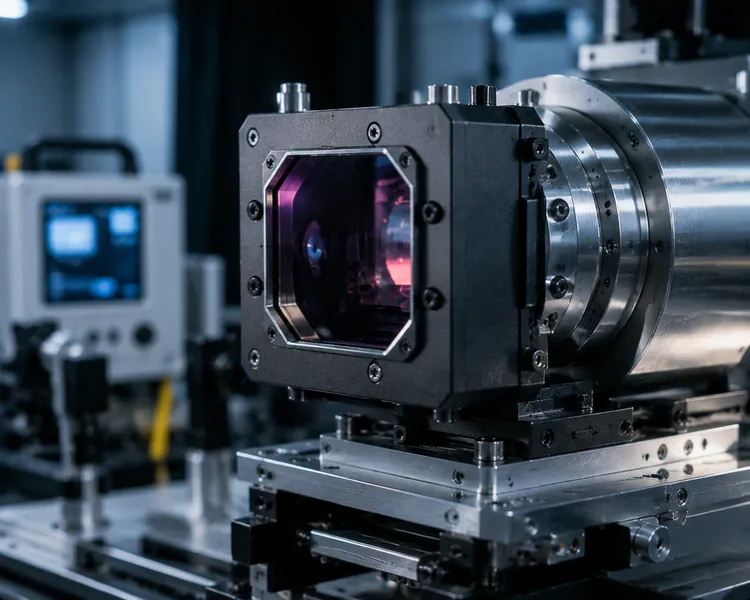

Applications of Custom Optical Windows
Imaging Systems
High-quality transmission windows for cameras and imaging assemblies.
Laser Systems
Low-loss protective windows for laser sources and beam paths.
Infrared Systems
Material-optimized windows for NIR, MWIR and LWIR applications.
Optical Sensors
Environmental protection for sensitive optical sensor assemblies.
Industrial Inspection
Durable optical interfaces for machine vision and inspection equipment.
Thermal Imaging
Infrared-transmitting windows for thermal cameras and detectors.
Scientific Research
Precision windows for laboratory and analytical instruments.
Precision Instruments
Custom windows for high-accuracy optical instruments and assemblies.
Custom Optical Window FAQ
What is a custom optical window used for?
A custom optical window transmits light while protecting internal components from environmental exposure without intentionally focusing or changing the optical beam.
What materials are available for custom optical windows?
Available materials include optical glass, fused silica, sapphire, CaF₂, ZnS, ZnSe, silicon and germanium, selected according to wavelength and application requirements.
Can optical window dimensions and shapes be customized?
Yes. Shape, size, thickness, clear aperture, flatness, surface quality and dimensional tolerances can be customized according to the optical system.
What coatings are available for custom optical windows?
UV, VIS, NIR, MWIR and LWIR antireflection coatings are available according to the selected material, wavelength range and incident angle.
Handling & Manufacturing Notes
Need Custom Optical Windows for Precision Optical Systems?
Send us your drawing, material, shape, size, thickness, surface requirements, operating wavelength, coating specification and quantity. Chenyu Optics will review your requirements and provide a suitable custom optical window solution.
