OPTICAL MATERIAL KNOWLEDGE CENTER

Fused Silica Optical Material for Precision Optical Components

Synthetic fused silica material solutions for optical windows, lenses and prisms requiring excellent UV transmission, low thermal expansion and optical stability.

Chenyu Optics provides fused silica optical material solutions and precision manufacturing capability for drawing-defined optical components. Fused silica is widely selected for UV optics, laser systems, spectroscopy and precision optical applications due to its excellent transmission, low thermal expansion and high optical stability.

REQUEST FUSED SILICA OPTICAL SOLUTION EXPLORE FUSED SILICA OPTICAL WINDOWS

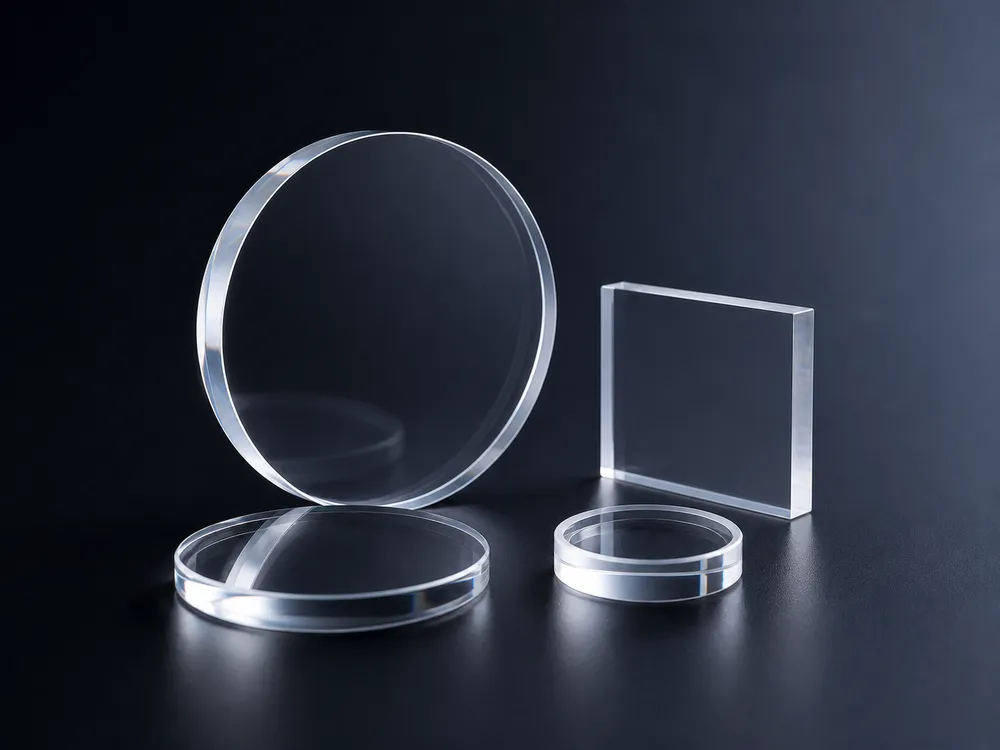

Synthetic fused silica optical material and precision fused silica components

Fused Silica Optical Material Overview

Fused silica optical material is a high-purity synthetic silicon dioxide (SiO₂) material manufactured through controlled processes for demanding optical applications.

Compared with conventional optical glass, fused silica provides excellent ultraviolet transmission, extremely low thermal expansion and superior thermal stability.

Engineers commonly select fused silica for optical windows, precision lenses, prisms, laser optics and spectroscopy components where dimensional stability and wavelength performance are important.

Chenyu Optics manufactures custom fused silica optical components according to drawings, including windows, lenses, prisms and other precision optical parts.

Technical Parameter	Typical Value	Engineering Significance
Composition	High-purity silicon dioxide (SiO₂)	High-purity composition supports UV transmission and precision optical manufacturing.
Material Type	Synthetic Fused Silica	Manufactured through controlled synthetic processes for consistent optical performance.
Structure	Amorphous Glass	Amorphous structure provides isotropic optical properties for precision components.
Thermal Expansion	Very low coefficient of thermal expansion	Provides dimensional and optical stability during temperature changes.
Transmission	0.18–2.5 μm	Supports ultraviolet, visible and near-infrared optical applications.
Density	Approx. 2.20 g/cm³	Relevant to component weight, mounting and precision assembly design.
Refractive Index	Approx. 1.46 @ 589 nm	Important for optical design, surface reflection and AR coating selection.
Typical Components	Windows, lenses, prisms and laser optical components	Used where UV transmission, thermal stability and precision optical performance are required.

Values are general engineering references rather than guaranteed component specifications. Actual performance depends on fused silica grade, wavelength, thickness, surface finish and coating.

Key Properties of Fused Silica Material

Fused silica is selected when ultraviolet transmission, low thermal expansion and stable optical performance are required.

Excellent UV Transmission

Fused silica provides excellent ultraviolet transmission and is widely used in UV optical systems.

Low Thermal Expansion

Very low thermal expansion provides excellent dimensional stability under temperature changes.

High Thermal Stability

Fused silica is suitable for laser systems and environments requiring resistance to thermal stress.

Excellent Optical Quality

High-purity fused silica supports precision imaging, spectroscopy and laser applications.

High Laser Damage Resistance

Fused silica is suitable for demanding laser applications when appropriate surface quality and coatings are applied.

Property	System Benefit	Design Consideration
Excellent UV Transmission	High transmission for ultraviolet optical systems	Material grade and thickness should match the required UV wavelength.
Low Thermal Expansion	Provides dimensional stability during temperature changes	Mounting design should accommodate the complete operating temperature range.
Thermal Stability	Supports laser systems and thermally demanding applications	Thermal gradients, coatings and mounting conditions should be evaluated.
Excellent Optical Quality	Supports precision imaging, spectroscopy and metrology	Material grade and internal quality should match the optical requirement.
Laser Damage Resistance	Supports demanding laser transmission applications	Surface finish, cleanliness and coating affect laser damage performance.

How to Select Fused Silica Optical Material

Engineers should select fused silica by evaluating wavelength, thermal stability, optical quality and manufacturing requirements together.

Choose Fused Silica When

UV transmission is required
The optical system operates in ultraviolet wavelengths requiring high material transmission.

Low thermal expansion is important
The component must maintain dimensional stability during temperature changes.

High optical stability is needed
Precision imaging, spectroscopy or metrology requires stable optical performance.

Laser applications require stable optical performance
The component requires suitable optical quality, low absorption and compatible coatings.

Consider Alternatives When

A large infrared transmission range is required
ZnSe, ZnS or germanium may provide more suitable long-wave infrared transmission.

Extreme mechanical hardness is required
Fused Silica may be preferred where exceptional scratch and abrasion resistance are required.

A large infrared transmission range is required
Dedicated infrared materials should be considered for broader infrared wavelength coverage.

Harsh abrasive exposure is expected
Fused Silica may provide better surface durability for highly abrasive environments.

Selection Step	Question	Information Required
1. Wavelength	Does fused silica transmit the complete operating band?	Minimum wavelength, maximum wavelength and transmission target
2. Environment	What thermal stability is required?	Temperature range, thermal gradients, mounting and cleaning process
3. Mechanical Load	What mechanical and thermal loads must the component withstand?	Pressure, impact, aperture, thickness and mounting method
4. Optical Quality	How precisely must the component control the beam?	Surface quality, flatness, parallelism and transmitted wavefront
5. Coating	Is reduced surface reflection required?	Wavelength, bandwidth, angle of incidence and operating environment

Fused Silica Compared with Other Optical Materials

Preliminary comparison for engineers selecting materials by optical range, environmental performance and application.

Material	Main Advantage	Typical Transmission Range	Application Suitability
Fused Silica	Excellent UV transmission and low thermal expansion	0.18–2.5 μm	UV optics, lasers and spectroscopy
Sapphire	High hardness and durability	0.17–5.5 μm	Protective windows and harsh environments
Calcium Fluoride (CaF₂)	Low dispersion and broad UV-to-mid-IR transmission	0.18–8 μm	Spectroscopy, UV optics and compatible infrared imaging systems
Zinc Selenide (ZnSe)	Broad infrared transmission and low absorption at 10.6 μm	0.5–16 μm	CO₂ laser optics, infrared windows and thermal imaging systems
Germanium	Strong MWIR and LWIR transmission	2–14 μm	Thermal imaging lenses, FLIR systems and long-wave infrared windows

Transmission ranges are approximate and vary by material grade, thickness and coating. Fused silica is generally preferred for UV transmission and low thermal expansion; alternative materials may be better for greater hardness or longer infrared wavelengths.

Fused Silica Optical Applications

Fused silica is used for optical windows, lenses, prisms, laser systems and spectroscopy requiring stable optical performance.

Optical Windows

Precision fused silica windows support UV, laser and imaging systems.

Optical Lenses

Fused silica lenses support imaging, focusing and laser applications.

Optical Prisms

Precision fused silica prisms provide beam deviation and optical path control.

Laser Systems

High-stability fused silica components support laser transmission systems.

Spectroscopy

Low-absorption fused silica components support analytical and scientific instruments.

Application	Primary Fused Silica Function	Important Specification
Optical Window	UV, visible and laser transmission	Wavelength, thickness, surface quality and flatness
Optical Lens	Imaging, focusing and laser beam control	Radius, centration, surface quality and coating
Optical Prism	Beam deviation and optical path control	Angle tolerance, flatness, surface quality and coating
Laser System	Stable laser beam transmission	Wavelength, absorption, surface quality and damage threshold
Spectroscopy	Low-absorption optical transmission	Spectral range, purity, thickness and surface finish

Custom Fused Silica Manufacturing Capability

Chenyu Optics manufactures custom fused silica optical components according to drawings, wavelengths and operating requirements.

Precision Machining

Custom fused silica components are manufactured according to customer drawings.

Optical Polishing

Precision polishing is available for fused silica windows, lenses and prisms.

Custom Dimensions

Round, rectangular and complex-geometry fused silica components are available.

Surface Quality Control

Surface quality, flatness and dimensional accuracy are controlled according to drawing requirements.

AR Coating Options

UV, VIS and broadband AR coatings are available according to wavelength, angle and environmental requirements.

Component Parameter	Available Configuration	Specification Basis
Geometry	Round, square, rectangular or custom	Component function and assembly interface
Dimensions	Custom to drawing	Material availability and manufacturability review
Surface Quality	Precision optical finish	Imaging, sensing, laser and transmission requirements
Flatness	Custom optical specification	Wavelength, aperture and wavefront requirement
Parallelism	Controlled to drawing	Beam deviation and alignment requirements
Coating	AR or BBAR options	Wavelength, bandwidth, angle and environment

Fused Silica Optical Windows

Precision windows for UV, visible, laser and imaging applications.

EXPLORE FUSED SILICA WINDOWS

Fused Silica Optical Lenses

Precision fused silica lenses for imaging, focusing and laser systems.

EXPLORE FUSED SILICA LENSES

Fused Silica Optical Prisms

Precision fused silica prisms for beam deviation and optical path control.

EXPLORE FUSED SILICA PRISMS

Custom Optical Components

Drawing-defined optical components manufactured for OEM and precision optical assemblies.

EXPLORE CUSTOM COMPONENTS

Fused Silica Optical Material Engineering FAQ

What is fused silica optical material?

Fused silica optical material is high-purity synthetic silicon dioxide (SiO₂) used for windows, lenses, prisms and laser optical components requiring UV transmission and thermal stability.

What wavelength range does fused silica transmit?

Optical-grade fused silica typically provides useful transmission from approximately 0.18 to 2.5 μm. Actual performance depends on material grade, thickness, surface finish and coating.

Why is fused silica used for laser optics?

Fused silica combines low thermal expansion, high optical stability, low absorption and suitable laser damage resistance when the surface quality and coating are correctly specified.

What is the difference between fused silica and quartz glass?

Fused silica is a high-purity glass produced from synthetic silica, while quartz glass may also refer to material made from naturally occurring quartz. Purity, hydroxyl content and transmission should be selected for the application.

Can Chenyu Optics manufacture custom fused silica windows, lenses and prisms?

Yes. Chenyu Optics manufactures drawing-defined fused silica windows, lenses, prisms and custom optical components with controlled dimensions, surface quality, flatness and coating specifications.

What coatings are available for fused silica components?

UV, visible and broadband AR coatings can be evaluated according to wavelength, bandwidth, angle of incidence, transmission target and operating environment.
