Machine Vision Filter
Machine Vision Filters are precision optical filters designed to control specific wavelengths in industrial imaging systems. By selectively transmitting or blocking targeted spectral regions, they improve image contrast, reduce unwanted light interference, and enhance inspection accuracy. Using dielectric coating technology, machine vision filters provide stable spectral performance and low optical distortion. Chenyu Optics manufactures machine vision filters in BK7 and fused silica with bandpass, IR cut, longpass, and shortpass coating options.
Machine Vision Filter Overview
Machine Vision Filters are precision optical filters designed to control specific wavelengths in industrial imaging systems.
By selectively transmitting or blocking targeted spectral regions, they improve image contrast, reduce unwanted light interference, and enhance inspection accuracy. Using dielectric coating technology, machine vision filters provide stable spectral performance and low optical distortion. They are widely used in industrial inspection, automation equipment, barcode recognition, and optical imaging systems.
Chenyu Optics supports custom machine vision filter manufacturing according to customer drawings, including custom substrate material, dimensions, wavelength range and coating type for prototype and repeat production.
Key Advantages of Machine Vision Filter

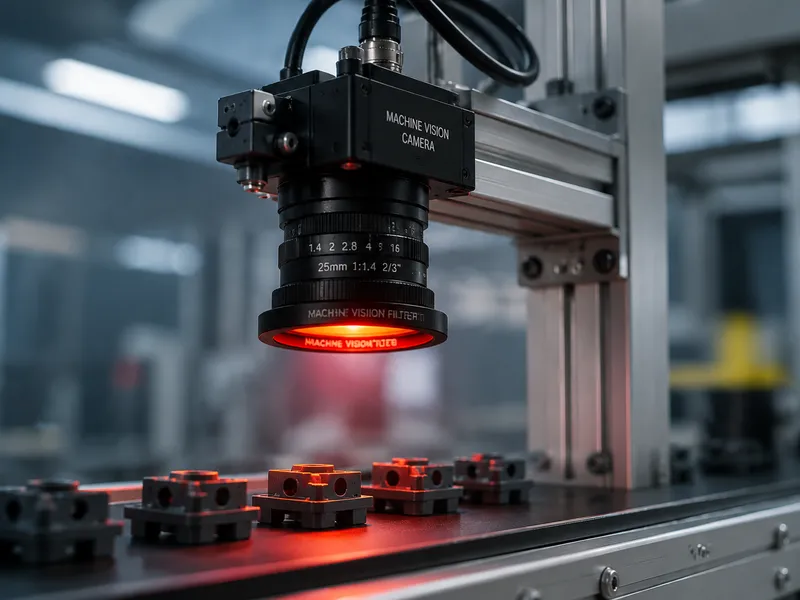

Industrial Imaging & Inspection Systems
Machine vision filters are widely used for wavelength control in industrial inspection systems, automation equipment, barcode recognition and optical imaging systems.
Typical Specifications of Machine Vision Filter
| Material Options | BK7, Fused Silica |
|---|---|
| Coating Type | Bandpass / IR Cut / Longpass / Shortpass Coatings |
| Optical Function | Spectral control for imaging systems |
| Wavelength Range | Customizable |
| Transmission | High transmission in selected band |
| Blocking Performance | Controlled according to application |
| Surface Quality | High precision optical finish |
| Optical Distortion | Low |

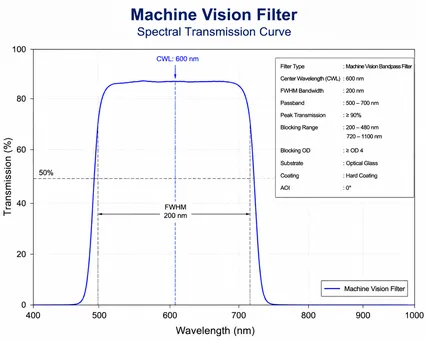

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Machine Vision Filter
Chenyu Optics focuses on drawing-based precision filter manufacturing for industrial imaging, automation, and machine vision systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard machine vision filters.
Manufacturing Capability for Machine Vision Filter
Precision Polishing
High surface quality processing for stable imaging performance and low optical distortion.
Dielectric Coating
Bandpass, IR cut, longpass and shortpass coatings for precise wavelength control.
Inspection & Packaging
Strict quality control on wavelength range, transmission and blocking performance, with clean protective packaging before shipment.
Custom Machine Vision Filter Options
Bandpass Filter Type Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Typical Applications |
|---|---|---|---|---|
| Machine Vision Filter | Varies by coating (Bandpass / IR Cut / LP / SP) | >90% | OD3 – OD5 | Machine vision, industrial inspection, automation |
| Narrow Bandpass Filter | 1 – 10 nm | >90% | OD4 – OD6+ | Laser line selection, fluorescence |
| Standard Bandpass Filter | 10 – 50 nm | >90% | OD4 – OD6+ | Machine vision, instrumentation |
| Wide Bandpass Filter | 50 – 200 nm | >90% | OD4 – OD6 | Imaging, spectroscopy |
Applications of Machine Vision Filter
Machine Vision Inspection Systems
Wavelength control for improved inspection accuracy.
Industrial Automation Equipment
Stable spectral performance for automated imaging lines.
Barcode Recognition Systems
Improved contrast for reliable code reading.
Optical Sorting Systems
Spectral selection for accurate material sorting.
Robotics Vision Systems
Reduced ambient interference for robotic guidance imaging.
Precision Measurement Equipment
Stable wavelength control for measurement accuracy.
Machine Vision Filter FAQ
What is the purpose of a machine vision filter?
A machine vision filter controls selected wavelengths to improve image contrast, reduce interference, and enhance inspection performance.
Which types of filters are commonly used in machine vision systems?
Common options include bandpass filters, IR cut filters, longpass filters, and shortpass filters.
Can machine vision filters be customized?
Yes. Wavelength range, dimensions, substrate materials, and coating designs can be customized.
How should a machine vision filter be selected?
Selection depends on the illumination source, camera sensor response, target material characteristics, and required imaging performance.
What information should I provide for a quotation?
Please provide wavelength range, substrate material, coating type, dimensions, quantity and drawing if available.
Where can I learn more about machine vision filter design?
Additional information on machine vision filter design can be found from Edmund Optics.
Related Products for Machine Vision Filter
Need Custom Machine Vision Filters?
Send us your wavelength range, coating type, substrate, dimensions, and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable machine vision filter manufacturing suggestion.
