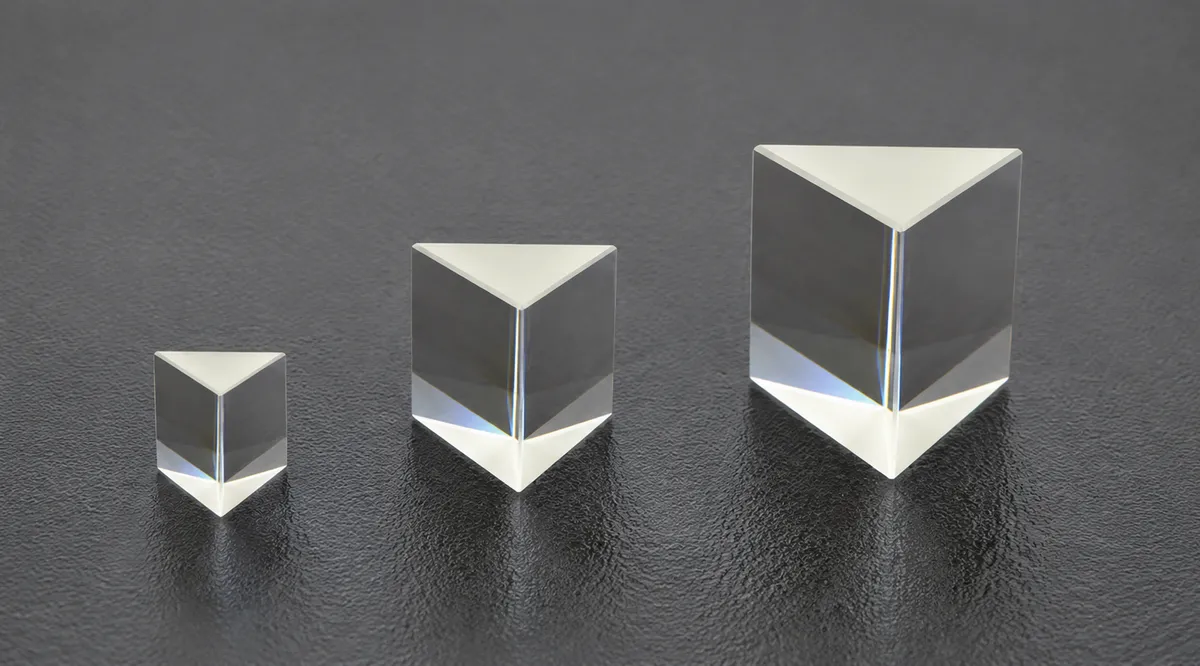

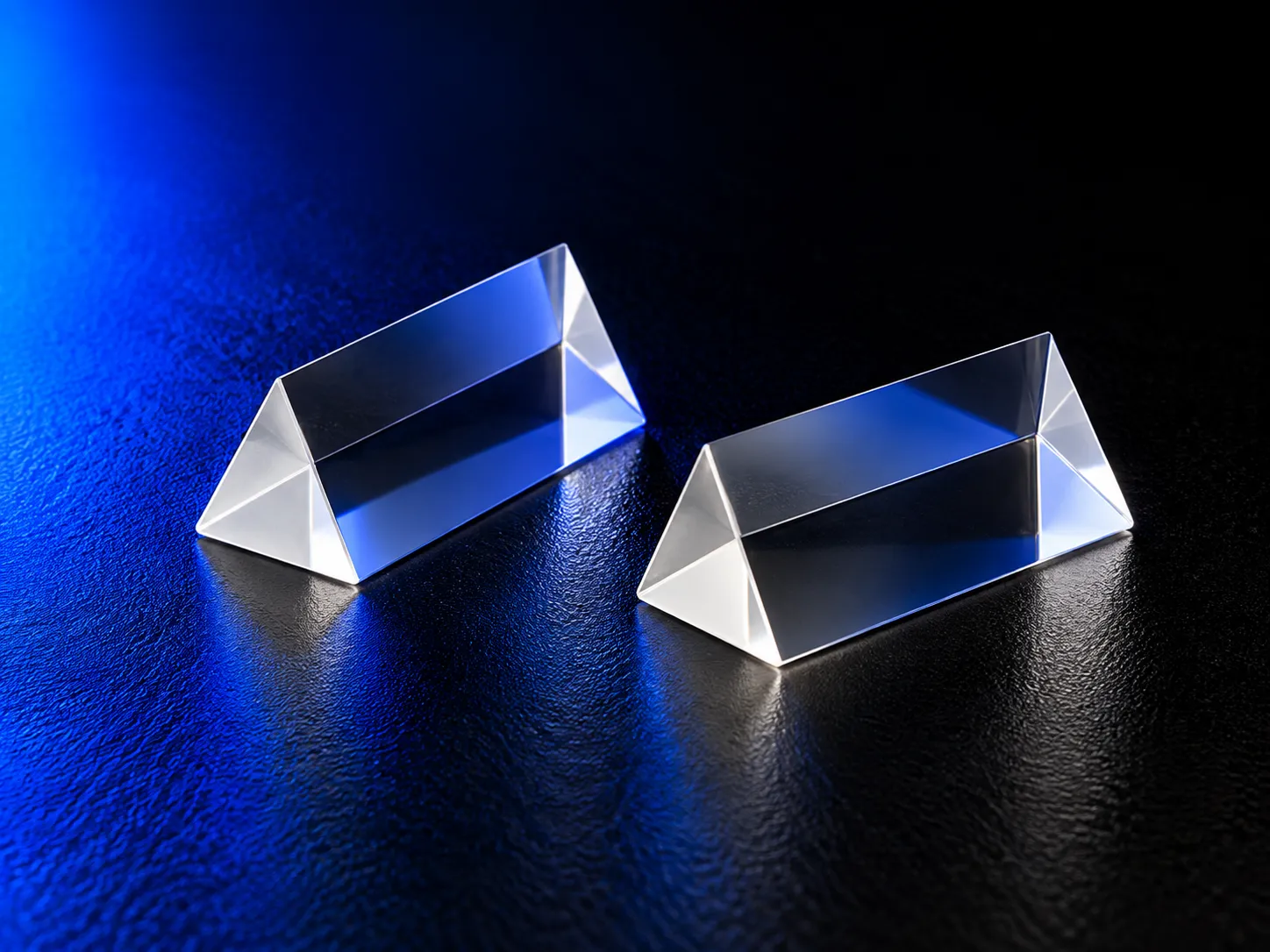

Equilateral Prism
Equilateral Prisms are precision optical components used for beam deviation, wavelength dispersion and spectral analysis in optical systems. Chenyu Optics manufactures Equilateral Prisms with high angular accuracy, precision optical surfaces and optional AR coatings for spectroscopy, laser systems and measurement instruments.
Equilateral Prisms Overview
Equilateral Prisms are precision optical components used for beam deviation, wavelength dispersion and spectral separation in optical systems.
They are commonly selected for spectroscopy and laser applications because they provide accurate angular deviation, consistent optical performance and excellent wavelength separation capability. They are widely used in spectrometers, optical measurement systems, laser instruments and scientific equipment requiring controlled light dispersion.
Chenyu Optics supports custom Equilateral Prism manufacturing according to customer drawings, including different sizes, materials and configurations. Surface quality, angle accuracy, flatness, dimensions, clear aperture and coating design can be specified for prototype and repeat production.
Key Advantages of Equilateral Prisms

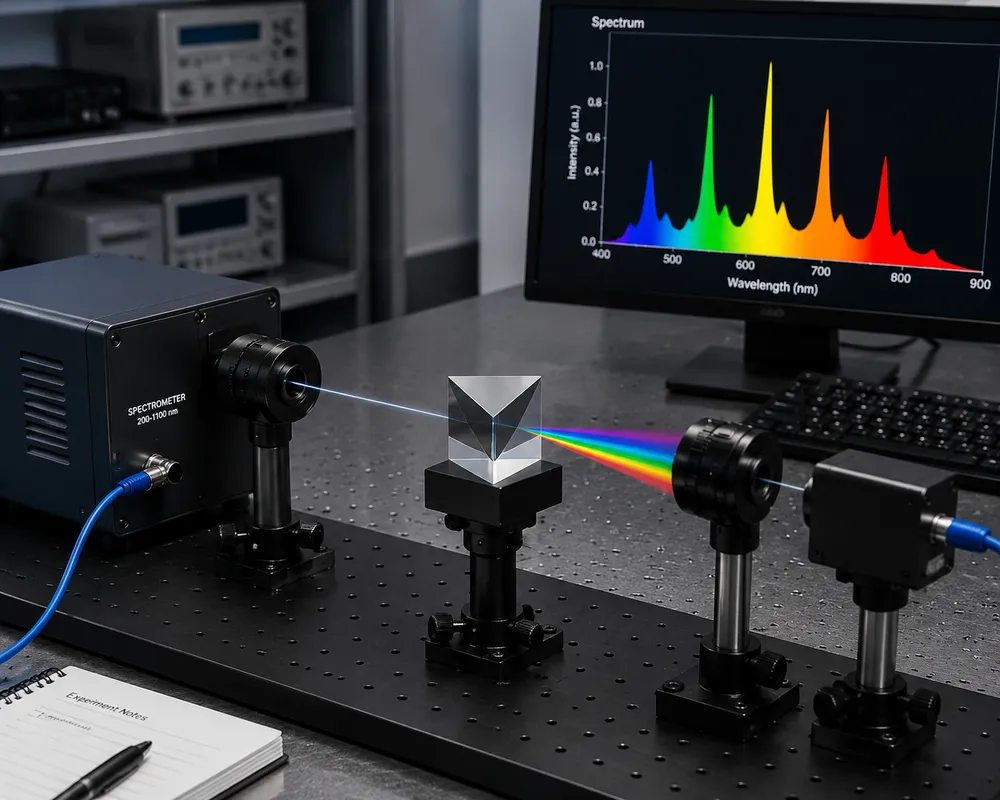

Wavelength Dispersion & Spectral Analysis
Equilateral Prisms are widely used as dispersive elements in spectrometers, laser instruments and scientific equipment that require accurate, repeatable separation of light by wavelength.
Typical Specifications of Equilateral Prisms
| Material | Optical Grade Glass / BK7 |
|---|---|
| Material Type | BK7, Fused Silica or UV-grade Optical Glass |
| Transmission Range | Approx. 350 nm – 2500 nm, depending on material grade, thickness and coating |
| Refractive Index | Approx. 1.516 @ 589 nm (BK7) |
| Density | Approx. 2.51 g/cm³ (BK7) |
| Prism Angle | 60° apex angle or custom |
| Angular Accuracy | ≤ 3 arcmin or custom |
| Surface Quality | 20-10, 40-20, 60-40 or custom |
| Surface Flatness | Up to λ/10 @ 633 nm or drawing-based |
| Parallelism | ≤ 3 arcmin or custom |
| Size / Dimension | Custom round, square, rectangular or special-shaped prisms |
| Dimensional Tolerance | ±0.1 mm, ±0.05 mm or custom |
| Clear Aperture | ≥85% of prism area or drawing-based |
| Chamfer | 0.1 – 0.3 mm × 45° or drawing-based |
| Coating Options | Uncoated, AR, broadband AR, laser wavelength coating, custom coating |

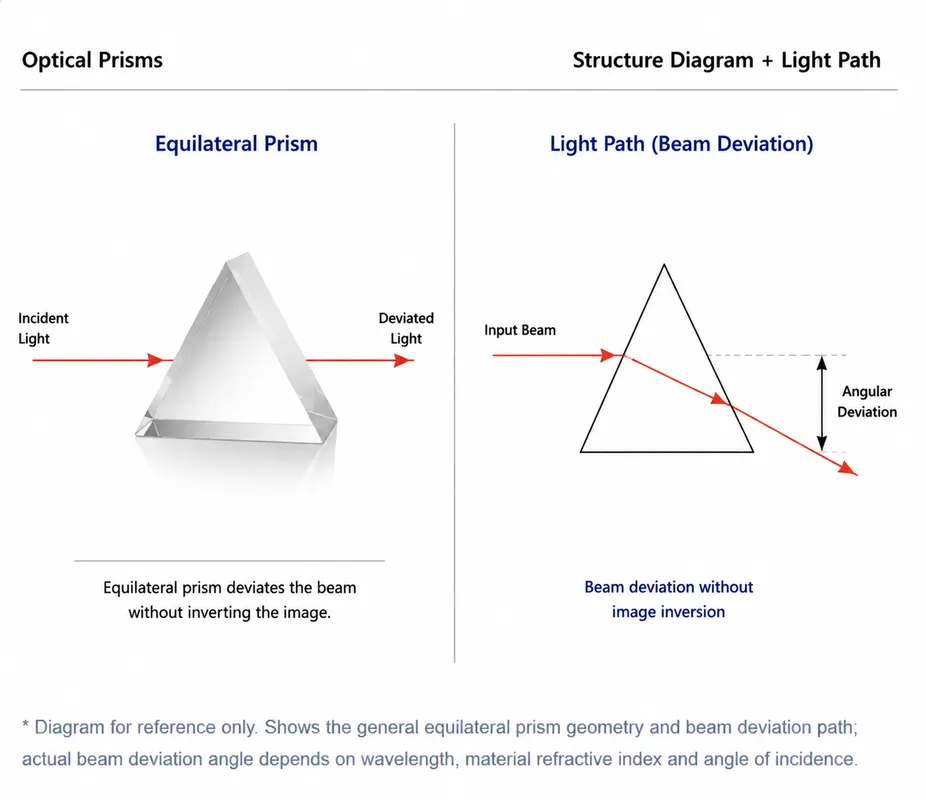

Equilateral Prism Structure
Why Choose Chenyu Optics for Equilateral Prisms
Chenyu Optics focuses on drawing-based precision optical component manufacturing for spectroscopy, laser and measurement-critical optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Equilateral Prisms.
Manufacturing Capability for Equilateral Prisms
Precision Polishing
Controlled lapping and polishing for angular accuracy, surface quality, flatness control and low-scatter optical surfaces.
Optical Coating
AR, broadband AR and laser wavelength coating options for improved transmission in spectroscopy and laser systems.
Inspection & Packaging
Dimensional inspection, angle verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Equilateral Prisms
Dimensions & Geometry
Round, square, rectangular and special-shaped Equilateral Prisms can be manufactured according to customer drawings, including custom clear aperture, edge form and mounting requirements.
Surface & Mechanical Quality
Surface quality, angular accuracy, flatness, chamfer and dimensional tolerances can be selected according to dispersion performance, sealing method and assembly structure.
Coating & Wavelength Design
Uncoated, AR, broadband AR and laser wavelength coatings can be specified for spectroscopy, laser or measurement systems.
Equilateral Prisms vs Other Prism Types
| Equilateral Prism | Right Angle Prism | Dove Prism | Wedge Prism | Penta Prism | |
|---|---|---|---|---|---|
| Function | Beam deviation and wavelength dispersion of incident light | 90° beam deflection or 180° beam return, depending on orientation | Image rotation without deviating the optical axis | Small, adjustable beam deviation or steering | Beam deviation by a constant 90° without image reversal |
| Optical Path | Angular separation of wavelengths across the prism surface | Straight or folded path depending on the reflecting face used | Straight-through path with image inversion around the long axis | Slight angular displacement of the beam | Fixed 90° deviation, insensitive to input tilt |
| Mechanical Notes | Simple triangular geometry, cost-effective to manufacture | Compact geometry, widely used as a basic reflecting element | Longer form factor to accommodate the full aperture | Thin, lightweight form factor | Robust, stable construction for alignment-critical setups |
| Typical Use | Spectrometers, laser instruments, scientific equipment | Beam folding, image rotation, optical instruments | Image rotation, beam expanders, optical processing | Beam steering, optical alignment, laser systems | Rangefinders, alignment systems, surveying instruments |
Applications of Equilateral Prisms
Spectroscopy
Dispersive elements for spectrometers and spectral analysis instruments.
Optical Measurement
Precision prisms for optical testing, calibration and measurement systems.
Laser Systems
Beam deviation and wavelength separation elements for laser instruments.
Scientific Instruments
Equilateral Prisms for research equipment requiring controlled light dispersion.
Wavelength Dispersion
Prisms for separating light into its component wavelengths in optical setups.
Beam Deviation Systems
Precision components for systems requiring accurate, repeatable beam deviation.
Equilateral Prisms FAQ
What is an Equilateral Prism used for?
An Equilateral Prism is used to deviate and disperse light by wavelength, making it useful in spectrometers, laser instruments and scientific equipment requiring controlled light separation.
Why is a 60° apex angle used for Equilateral Prisms?
The 60° apex angle provides a well-established geometry for consistent beam deviation and wavelength dispersion, and is a standard configuration for spectroscopic applications.
What materials are Equilateral Prisms made from?
Equilateral Prisms are commonly manufactured from BK7 optical glass, fused silica or UV-grade optical glass, depending on the required transmission range and application.
Do Equilateral Prisms require AR coating?
AR or broadband AR coating is recommended for most spectroscopy and laser systems to reduce Fresnel reflection loss and improve overall optical transmission.
Can Equilateral Prisms be custom manufactured to a drawing?
Yes. Chenyu Optics manufactures Equilateral Prisms according to customer drawings, including custom size, angular accuracy, surface quality and coating requirements.
What information should I provide for a quotation?
Please provide dimensions, prism angle, angular accuracy, surface quality, flatness, clear aperture, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about optical prisms?
Additional optical prism information can be found from Edmund Optics.
