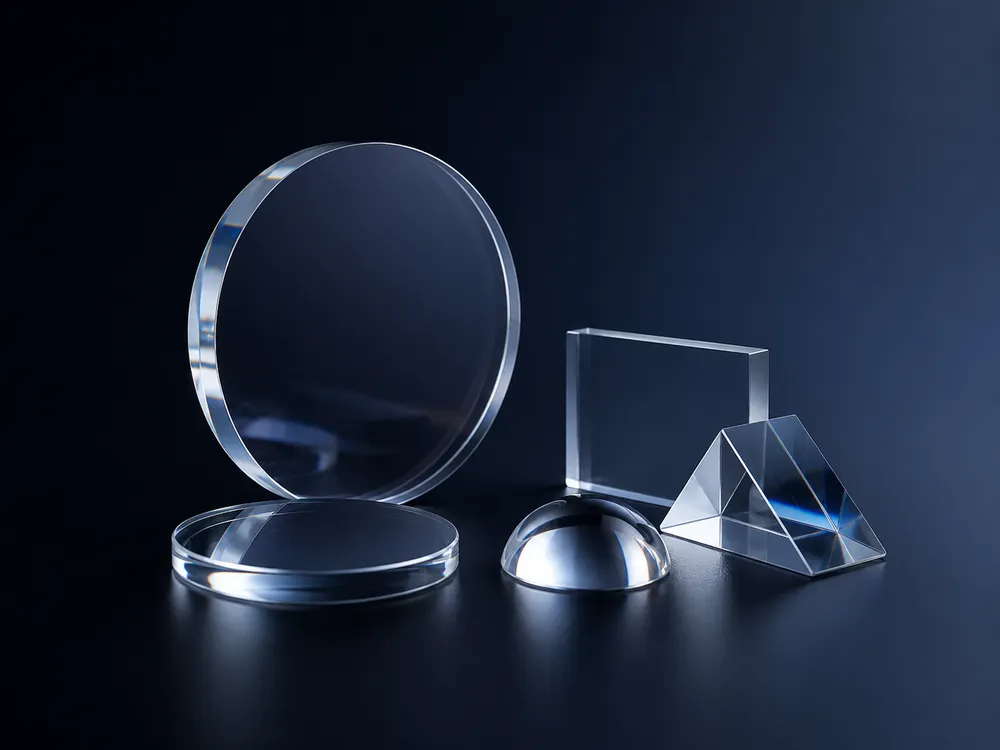

Synthetic sapphire optical material and polished sapphire optical components

Sapphire Optical Material Overview

Sapphire optical material is synthetic single-crystal aluminum oxide (Al₂O₃) manufactured for optical, mechanical and thermal applications. Controlled crystal growth produces sapphire material with consistent composition and structural properties for precision optical fabrication.

Optical-grade synthetic sapphire differs from gemstone sapphire in its intended function and selection criteria. Gemstones are generally evaluated for color and appearance. Optical sapphire is selected according to transmission, material purity, crystal orientation, internal quality, surface specifications and compatibility with precision manufacturing.

Engineers select sapphire when an optical component must transmit light while resisting scratching, abrasion, elevated temperature or chemical exposure. Sapphire material is commonly used for optical windows, lenses, protective covers, laser applications and compatible infrared systems.

Chenyu Optics manufactures sapphire optical components by converting suitable sapphire crystal material into drawing-defined windows, substrates and custom parts. Material grade, thickness, optical finish and coating are selected according to the wavelength and operating environment.

Technical Parameter	Typical Value	Engineering Significance
Composition	Single-crystal aluminum oxide (Al₂O₃)	High-purity crystalline material suitable for precision optical processing.
Material Type	Synthetic Sapphire	Produced under controlled growth conditions for technical applications.
Crystal Structure	Single Crystal	Crystal orientation may be considered during component design and fabrication.
Hardness	Mohs 9	Provides excellent scratch and abrasion resistance.
Transmission	Approx. 0.17–5.5 μm	Covers compatible ultraviolet, visible and infrared wavelengths.
Density	Approx. 3.98 g/cm³	Relevant to component weight and mechanical assembly design.
Refractive Index	Approx. 1.76 @ 589 nm	Important for surface reflection and AR coating design.
Typical Components	Windows, lenses, substrates and protective optics	Used where optical transmission and environmental durability are required together.

Values are general engineering references rather than guaranteed component specifications. Actual performance depends on sapphire grade, orientation, wavelength, thickness, surface finish and coating.

Key Properties of Sapphire Material

Sapphire is selected when optical transmission must be combined with mechanical, thermal and environmental durability.

High Hardness

Sapphire has a Mohs hardness of 9, making it considerably harder than conventional optical glass and resistant to abrasive wear.

Excellent Scratch Resistance

High scratch resistance helps preserve surface quality when a window is exposed to particles, handling or repeated cleaning.

High-Temperature Stability

Sapphire maintains useful structural properties at elevated temperatures when component geometry and mounting are properly designed.

Chemical Resistance

Resistance to many chemicals and contaminants supports use in industrial, analytical and process-control environments.

Broad Optical Transmission

Optical-grade sapphire transmits from approximately 0.17 to 5.5 μm, depending on grade, thickness and surface treatment.

Property	System Benefit	Design Consideration
Mohs 9 Hardness	Long service life in abrasive environments	Hardness increases machining and polishing complexity.
Scratch Resistance	Helps maintain optical surface performance	Edges and mounting surfaces still require appropriate protection.
Thermal Stability	Supports elevated-temperature observation and sensing	Thermal gradients, coatings and mounts must be evaluated.
Chemical Resistance	Supports exposure to demanding process environments	Compatibility should be confirmed for the actual chemical and temperature.
Broad Transmission	Supports UV, visible and compatible infrared systems	Longer-wave IR applications may require another material.

How to Select Sapphire Optical Material

Engineers should select sapphire by evaluating spectral, mechanical, environmental and manufacturing requirements together.

Choose Sapphire When

High scratch resistance is required
The optical surface will be exposed to abrasive particles, mechanical contact or repeated cleaning.

Protective optical windows are needed
A transparent barrier must protect a sensor, detector, camera or laser assembly.

High-temperature environments exist
The component must retain structural function in an elevated-temperature system.

Mechanical durability is important
The application requires resistance to wear, pressure or demanding environmental conditions.

Consider Alternatives When

Lower cost is the priority
Fused silica or another optical glass may be more economical when extreme hardness is unnecessary.

Large aperture size is required
Material availability, blank size, weight and processing cost may favor fused silica or another substrate.

Long-wave infrared transmission is required
ZnSe or germanium may provide more suitable MWIR or LWIR transmission.

A specialized UV-to-IR range is required
CaF₂ may be considered when low dispersion and broader UV-to-mid-IR transmission are important.

Selection Step	Question	Information Required
1. Wavelength	Does sapphire transmit the complete operating band?	Minimum wavelength, maximum wavelength and transmission target
2. Environment	Is sapphire-level durability necessary?	Temperature, chemicals, abrasion, particles and cleaning process
3. Mechanical Load	What must the window withstand?	Pressure, impact, aperture, thickness and mounting method
4. Optical Quality	How precisely must the component control the beam?	Surface quality, flatness, parallelism and transmitted wavefront
5. Coating	Is reduced surface reflection required?	Wavelength, bandwidth, angle of incidence and operating environment

Sapphire Compared with Other Optical Materials

Preliminary comparison for engineers selecting materials by optical range, environmental performance and application.

Material	Main Advantage	Typical Transmission Range	Application Suitability
Sapphire	Mohs 9 hardness and high environmental durability	Approx. 0.17–5.5 μm	Protective windows, flame detectors, laser systems and harsh-environment optics
Fused Silica	Low thermal expansion and strong UV performance	Approx. 0.18–2.5 μm	UV optics, laser windows, spectroscopy and larger precision apertures
Calcium Fluoride (CaF₂)	Low dispersion and broad UV-to-mid-IR transmission	Approx. 0.18–8 μm	Spectroscopy, UV optics and compatible infrared imaging systems
Zinc Selenide (ZnSe)	Broad infrared transmission and low absorption at 10.6 μm	Approx. 0.5–16 μm	CO₂ laser optics, infrared windows and thermal imaging systems
Germanium	Strong MWIR and LWIR transmission	Approx. 2–14 μm	Thermal imaging lenses, FLIR systems and long-wave infrared windows

Transmission ranges are approximate and vary by grade, thickness and coating. Sapphire is generally preferred for hardness and durability; alternative materials may be better for lower cost, larger apertures or specialized infrared wavelengths.

Sapphire Optical Applications

Sapphire material is used for optical windows, lenses and compatible infrared systems requiring a durable optical interface.

Optical Windows

Sapphire windows protect cameras, detectors and sensors from abrasion, particles and demanding environments while transmitting the required wavelength.

Laser Systems

Precision sapphire components support compatible laser wavelengths where hardness, surface durability and thermal stability are required.

Imaging Systems

Sapphire protective windows maintain a stable optical path for cameras and imaging sensors operating in abrasive or contaminated environments.

Infrared Applications

Sapphire can protect compatible infrared sensors and detectors when the complete operating band falls within its useful transmission range.

Sensors

Sapphire covers protect optical and process sensors that require resistance to scratching, heat, chemicals or repeated cleaning.

Application	Primary Sapphire Function	Important Specification
Protective Window	Environmental barrier with optical transmission	Thickness, surface quality, flatness and mechanical load
Laser System	Beam transmission and component protection	Wavelength, surface quality, coating and damage requirements
Imaging System	Protective cover for camera or detector	Transmitted wavefront, parallelism and coating
Infrared Sensor	Durable sensor interface	Complete spectral band, thickness and transmission target
Process Sensor	Resistance to heat, chemicals and contamination	Environment, mounting, sealing and surface durability

Custom Sapphire Manufacturing Capability

Chenyu Optics manufactures custom sapphire optical windows and sapphire optical components according to drawings, wavelengths and operating requirements.

Precision Machining

Sapphire blanks are cut and machined into round, square, rectangular or custom geometries with drawing-defined dimensions and edge features.

Optical Polishing

Controlled grinding, lapping and polishing establish thickness, surface finish, flatness and parallelism.

Custom Dimensions

Diameter, length, width, thickness, clear aperture and edge configuration are evaluated according to the component drawing.

Surface Quality Control

Polished surfaces are inspected against specified surface quality, flatness, parallelism and clear-aperture requirements.

AR Coating Options

AR and BBAR coatings can be evaluated for the required wavelength, angle of incidence, transmission and environmental conditions.

Component Parameter	Available Configuration	Specification Basis
Geometry	Round, square, rectangular or custom	Component function and assembly interface
Dimensions	Custom to drawing	Material availability and manufacturability review
Surface Quality	Precision optical finish	Imaging, sensing, laser and transmission requirements
Flatness	Custom optical specification	Wavelength, aperture and wavefront requirement
Parallelism	Controlled to drawing	Beam deviation and alignment requirements
Coating	AR or BBAR options	Wavelength, bandwidth, angle and environment

Sapphire Optical Windows

Protective and transmitting windows for sensing, imaging, laser and high-temperature applications.

EXPLORE SAPPHIRE WINDOWS

Optical Lenses

Precision lens components for compatible laser, imaging and optical sensing systems.

EXPLORE OPTICAL LENSES

Custom Optical Components

Drawing-defined sapphire substrates, protective optics and custom components for OEM assemblies.

EXPLORE CUSTOM COMPONENTS

Sapphire Optical Material Engineering FAQ

What is sapphire optical material?

Sapphire optical material is synthetic single-crystal aluminum oxide (Al₂O₃) used to manufacture optical windows, lenses, substrates and protective components.

What wavelength range does sapphire transmit?

Optical-grade sapphire typically provides useful transmission from approximately 0.17 to 5.5 μm. Actual transmission depends on grade, crystal orientation, thickness, surface finish and coating.

Why is sapphire harder than glass?

Sapphire has a strong single-crystal aluminum oxide structure and a Mohs hardness of 9. Common optical glasses are softer and provide less resistance to scratching and abrasive wear.

Why are sapphire windows used in optical systems?

Sapphire windows transmit compatible UV, visible and infrared wavelengths while protecting sensors, cameras and laser assemblies from scratching, heat, particles and chemical exposure.

Can sapphire be used for infrared applications?

Yes. Sapphire can be used for compatible near-infrared and selected mid-infrared systems within its approximate 0.17–5.5 μm range. ZnSe or germanium may be more suitable at longer infrared wavelengths.

Does sapphire require an AR coating?

An AR coating is recommended when reduced reflection or higher transmission is required. The coating design should match the wavelength, angle of incidence, bandwidth and operating environment.

What alternatives to sapphire should engineers consider?

Fused silica may suit UV, low-expansion or larger-aperture requirements; CaF₂ offers broad UV-to-mid-IR transmission; ZnSe and germanium provide longer-wave infrared coverage.

Can Chenyu Optics manufacture custom sapphire components?

Yes. Chenyu Optics manufactures custom sapphire optical windows and components with drawing-defined dimensions, surface quality, flatness, parallelism and AR coating requirements.
