Sapphire Optical Dome
Sapphire Optical Domes are precision protective optical components manufactured from high-purity sapphire (Al₂O₃) single crystal material. With outstanding hardness, excellent scratch resistance, wide spectral transmission and superior thermal stability, sapphire domes provide reliable optical protection and high transmission performance in demanding environments. Chenyu Optics manufactures sapphire optical domes with custom geometry, surface accuracy and coatings.
Sapphire Optical Dome Overview
Sapphire Optical Domes are precision protective optical components manufactured from high-purity sapphire (Al₂O₃) single crystal material. With outstanding hardness, excellent scratch resistance, wide spectral transmission and superior thermal stability, sapphire domes provide reliable optical protection and high transmission performance in demanding environments.
Due to their exceptional mechanical durability and environmental resistance, sapphire optical domes are widely used in infrared imaging systems, optical sensors, aerospace windows and protective optical systems requiring high strength and optical clarity.
Chenyu Optics supports custom sapphire optical dome manufacturing according to customer drawings, including custom diameter, dome shape, surface accuracy and coating design for prototype and repeat production.
Key Advantages of Sapphire Optical Dome
Infrared Imaging & Sensor Protection

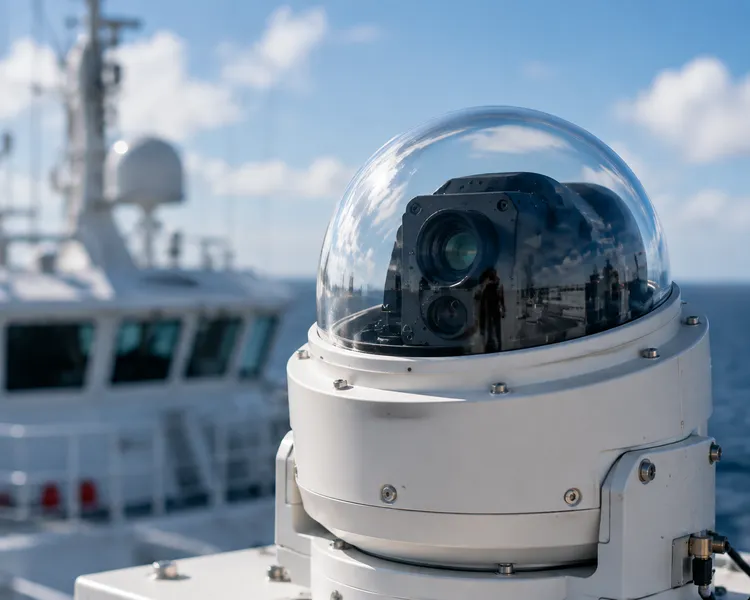

Sapphire optical domes are widely used as protective windows for optical sensors and infrared imaging systems operating in harsh environments.
Typical Specifications of Sapphire Optical Dome
| Material | Sapphire (Al₂O₃), Single Crystal |
|---|---|
| Optical Function | Protective optical window / Dome window |
| Dome Type | Sapphire Optical Dome |
| Transmission Range | UV–NIR (material dependent) |
| Hardness | Mohs hardness ~9 |
| Thermal Stability | Excellent |
| Diameter | Customized |
| Dome Shape | Customized |
| Surface Accuracy | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Coating Options | Uncoated, UV AR, VIS AR, NIR AR, custom coating |
Sapphire Optical Dome Structure
Why Choose Chenyu Optics for Sapphire Optical Dome
Chenyu Optics focuses on drawing-based precision manufacturing of sapphire optical components for imaging, sensing and protective optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard sapphire optical domes.
Manufacturing Capability for Sapphire Optical Dome
Precision Dome Polishing
Controlled dome polishing for surface accuracy, surface quality and long-term optical durability.
Optical Coating
UV AR, VIS AR, NIR AR and custom coating options tailored to wavelength range and application requirements.
Inspection & Packaging
Dimensional inspection, dome geometry verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Sapphire Optical Dome
Diameter & Dome Geometry
Custom diameter and dome shape can be manufactured according to customer drawings, with precision-controlled geometry for accurate optical performance.
Surface & Mechanical Quality
Surface accuracy and surface quality can be selected according to optical performance requirements and mounting or pressure conditions.
Coating & Wavelength Design
Uncoated surfaces, UV AR, VIS AR and NIR AR coatings can be specified depending on the operating wavelength range and environmental conditions.
Sapphire Dome Material Comparison
| Sapphire | Fused Silica | Zinc Selenide | |
|---|---|---|---|
| Hardness | Very high, Mohs ~9 | Moderate, more prone to scratching | Low, soft and easily scratched |
| Thermal Stability | Excellent under extreme temperatures | Excellent, low thermal expansion | Moderate, limited by lower melting point |
| Transmission Range | UV–NIR, material dependent | UV to NIR, depending on grade | Visible to long-wave infrared |
| Selection Note | Preferred for high-strength protective domes in harsh mechanical and thermal environments | Preferred for broadband UV-to-NIR precision optics | Preferred for thermal imaging and infrared laser systems |
Applications of Sapphire Optical Dome
Infrared Imaging Systems
Protective dome windows for infrared imaging and thermal camera systems.
Optical Sensor Protection
High-strength protective windows for optical sensors in harsh environments.
Aerospace Optical Windows
Durable optical protection for aerospace and high-altitude optical systems.
Thermal Imaging Systems
Reliable optical clarity and durability for thermal imaging equipment.
Protective Optical Assemblies
Impact and scratch-resistant domes for demanding optical assemblies.
Industrial Inspection Systems
Durable optical windows for industrial and harsh environment inspection systems.
Sapphire Optical Dome FAQ
What is a sapphire optical dome used for?
A sapphire optical dome provides protection for optical sensors while maintaining high optical transmission in harsh operating environments.
Why choose sapphire instead of standard optical glass?
Sapphire offers much higher hardness, better scratch resistance, and superior thermal stability compared with conventional optical glass materials.
Are sapphire optical domes suitable for infrared imaging systems?
Yes. Sapphire domes are commonly used as protective windows for optical sensors and imaging systems requiring high durability.
Can sapphire optical domes be customized?
Yes. Chenyu Optics provides customized dome diameters, shapes, surface accuracy, and UV/VIS/NIR AR coating options.
Related Products for Sapphire Optical Dome
Need Custom Sapphire Optical Domes?
Send us your drawing, diameter, dome geometry, surface accuracy and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable sapphire optical dome manufacturing suggestion.
