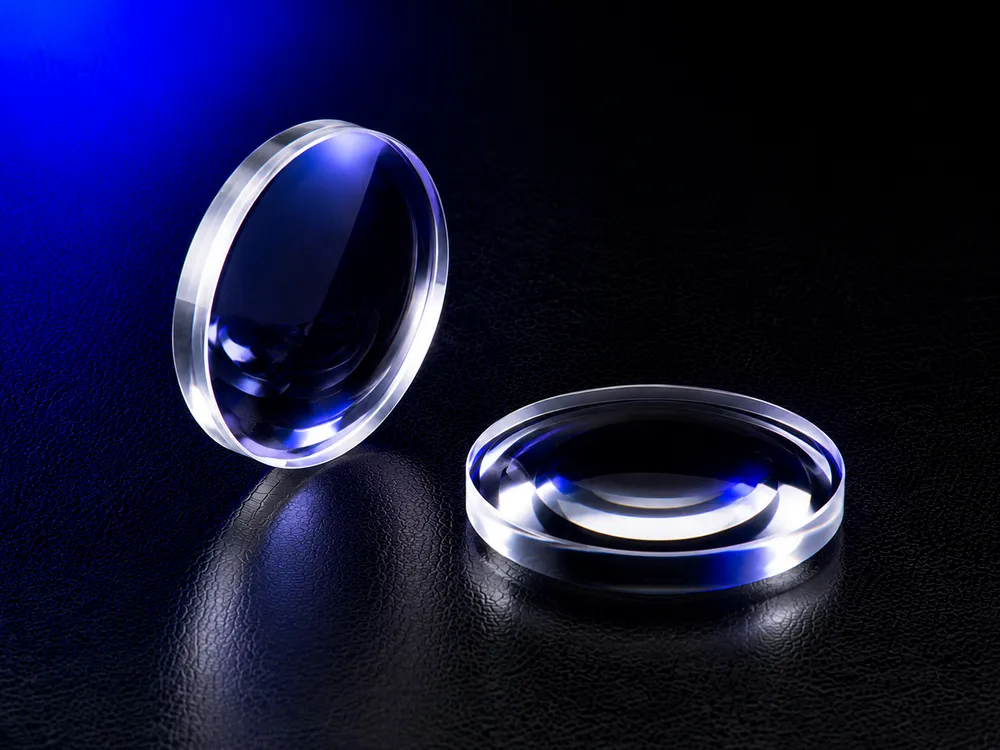

Collimating Lens
Collimating Lenses are precision optical components designed to convert divergent light from a point source into a parallel or nearly parallel beam. By providing accurate beam collimation and focusing performance, these lenses improve optical efficiency and system stability. Chenyu Optics manufactures collimating lenses in BK7, fused silica and sapphire, uncoated or with UV AR, VIS AR and NIR AR coatings for laser, fiber coupling and imaging systems.
Collimating Lens Overview
Collimating Lenses are precision optical components designed to convert divergent light from a point source into a parallel or nearly parallel beam.
By providing accurate beam collimation and focusing performance, these lenses improve optical efficiency and system stability. Manufactured from high-quality optical materials including BK7, fused silica and sapphire, collimating lenses offer high transmission, low optical distortion and reliable performance. They are widely used in laser systems, fiber coupling, optical sensors, imaging systems and laser measurement equipment.
Chenyu Optics supports custom collimating lens manufacturing according to customer drawings, including custom diameter, focal length, material and coating design for prototype and repeat production.
Key Advantages of Collimating Lens

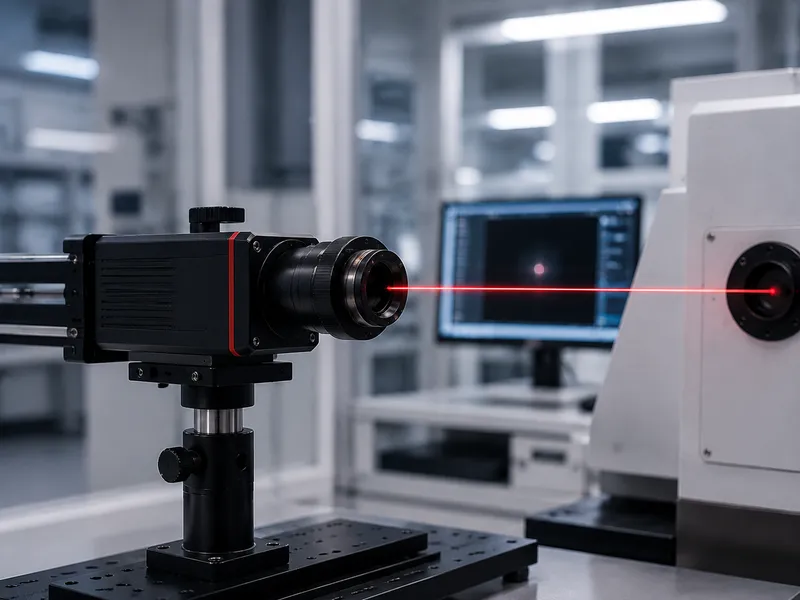

Laser Collimation & Fiber Coupling Systems
Collimating lenses are widely used for precise beam alignment in laser collimation systems, fiber coupling assemblies and optical sensor modules.
Typical Specifications of Collimating Lens
| Material Options | BK7, Fused Silica, Sapphire |
|---|---|
| Optical Function | Beam collimation / Focusing |
| Diameter | Customized |
| Focal Length | Customized |
| Transmission | High optical transmission |
| Surface Accuracy | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Optical Distortion | Low |
Lens Geometry & Optical Principle
Why Choose Chenyu Optics for Collimating Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for laser, fiber coupling and imaging optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard collimating lenses.
Manufacturing Capability for Collimating Lens
Precision Polishing
Precise focal length control and optical surface quality to achieve stable beam collimation performance.
Optical Coating
UV AR, VIS AR and NIR AR coating options for laser, fiber coupling and imaging applications.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Collimating Lens
Dimensions & Focal Length
Custom diameter and focal length can be manufactured according to customer drawings and source/working distance requirements.
Material & Optical Quality
Material selection, surface accuracy and surface quality can be optimized according to collimation performance requirements.
Coating & Wavelength Design
Uncoated, UV AR, VIS AR, NIR AR and custom AR coatings can be specified for laser, fiber coupling or imaging applications.
Lens Function Comparison

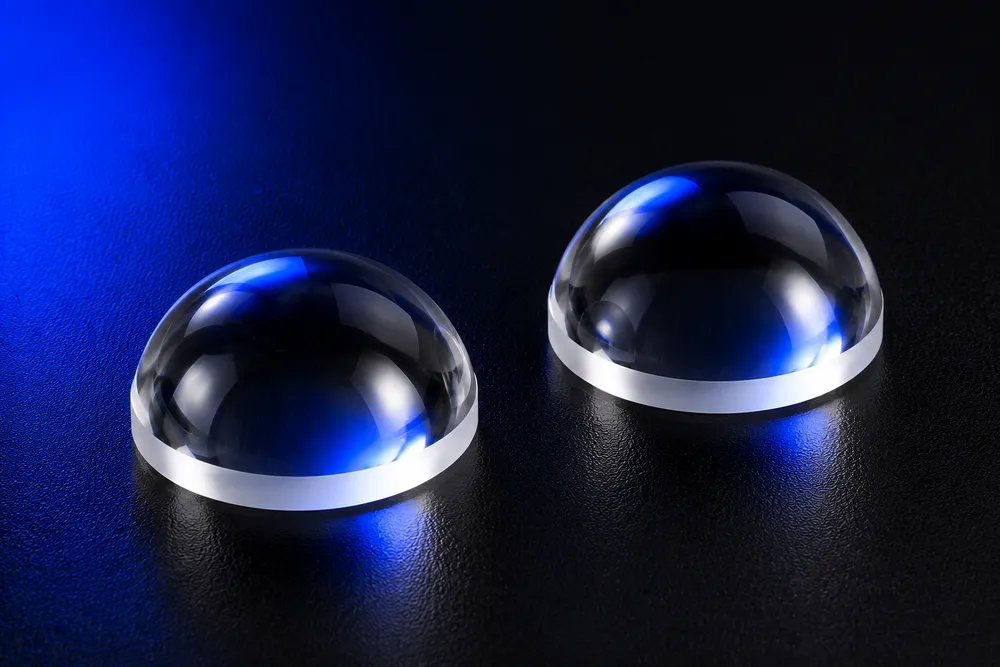

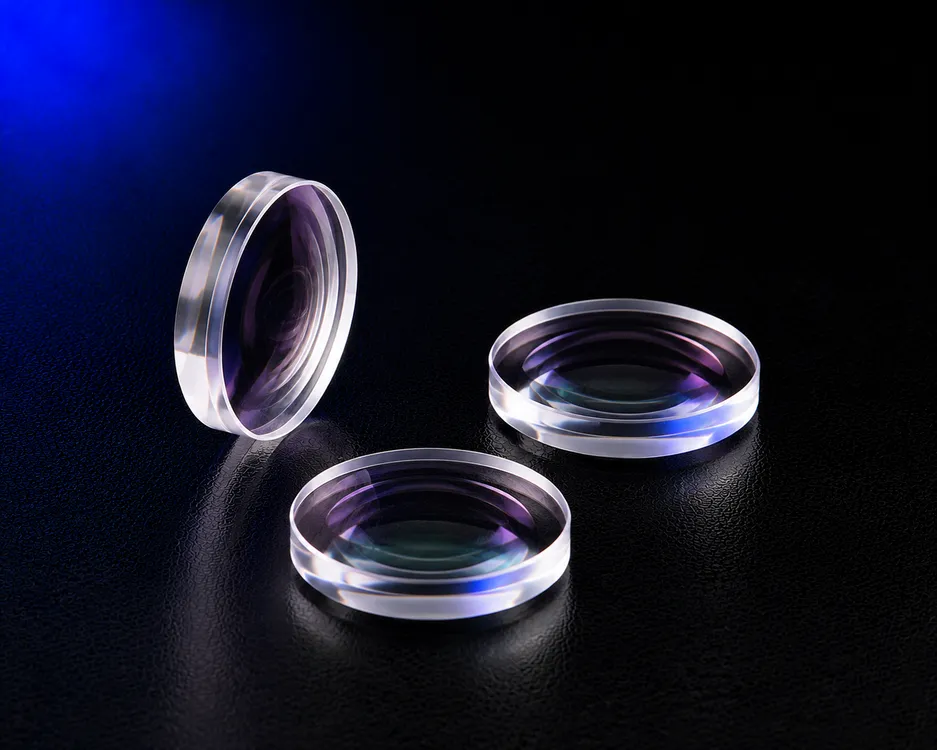

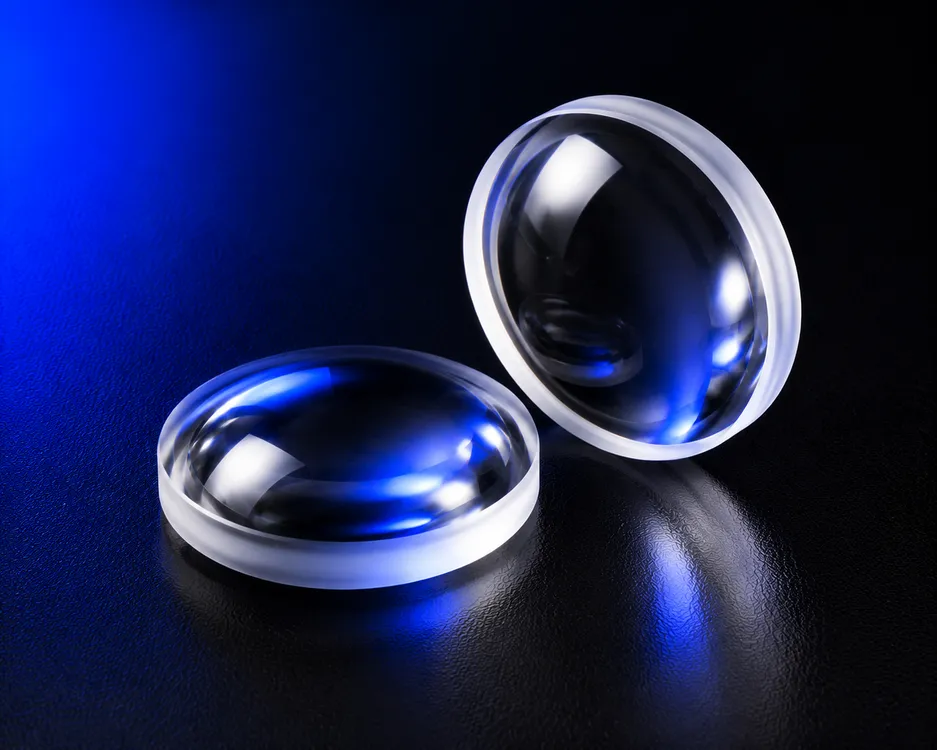

| Collimating Lens | Laser Focusing Lens | Half Ball Lens | Custom Spherical Lens | |
|---|---|---|---|---|
| Primary Optical Function | Converts divergent light into a parallel beam | Focuses a beam into a small spot | High-NA light collection and coupling | Application-defined focusing or imaging |
| Typical Position in System | At or near the light source | At the beam delivery / work point | At the fiber or detector interface | Varies by application |
| Typical Materials | BK7, fused silica, sapphire | Fused silica, optical glass, CaF₂, ZnSe | BK7, fused silica, sapphire | BK7, fused silica, sapphire, CaF₂ |
| Typical Applications | Laser collimation, fiber coupling, sensors | Laser cutting, marking, welding | Fiber coupling, sensors, microscopy | Imaging, laser, sensors, custom assemblies |
Applications of Collimating Lens
Laser Collimation Systems
Precise beam collimation for laser optical systems.
Fiber Coupling Systems
Stable beam alignment for fiber-optic coupling.
Optical Sensor Modules
Precision collimation for sensing applications.
Imaging Systems
Stable beam control for imaging optical systems.
Laser Measurement Systems
Reliable collimation for laser measurement equipment.
Optical Communication Equipment
Precision beam alignment for optical communication systems.
Collimating Lens FAQ
What is the function of a collimating lens?
A collimating lens converts divergent light from a point source into a parallel beam, improving optical efficiency and beam control.
Where are collimating lenses commonly used?
They are widely used in laser systems, fiber coupling, optical sensors, imaging systems, and measurement equipment.
What materials are available for collimating lenses?
Common materials include BK7, fused silica, and sapphire, selected according to wavelength and application requirements.
Can collimating lenses be customized?
Yes. Chenyu Optics provides customized diameters, focal lengths, materials, surface quality, and AR coating options.
What information should I provide for a quotation?
Please provide diameter, focal length, material, surface accuracy, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about lens design?
Additional information on lens design can be found from Edmund Optics.

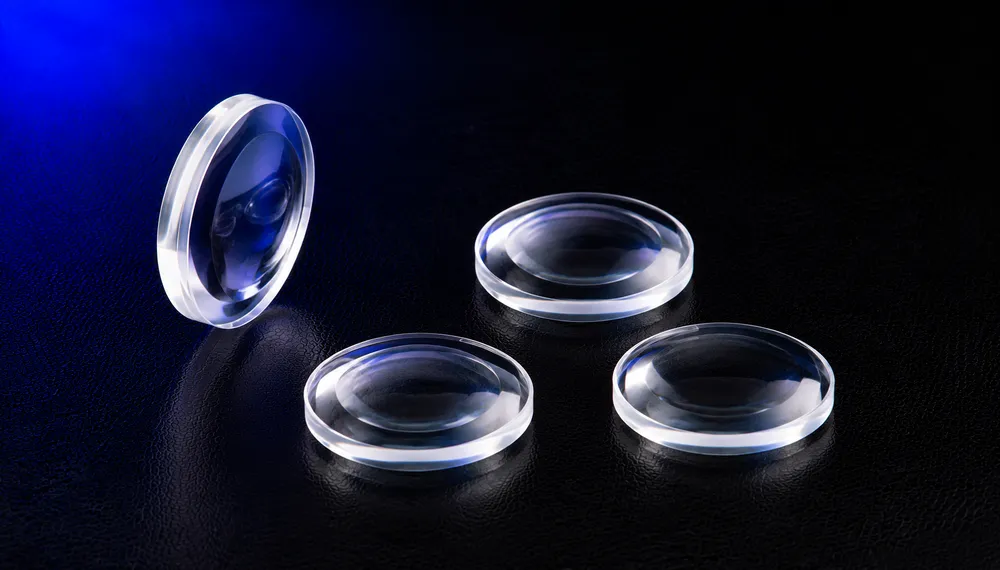

Related Products for Collimating Lens
Need Custom Collimating Lenses?
Send us your drawing, focal length, diameter, material and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable collimating lens manufacturing suggestion.
