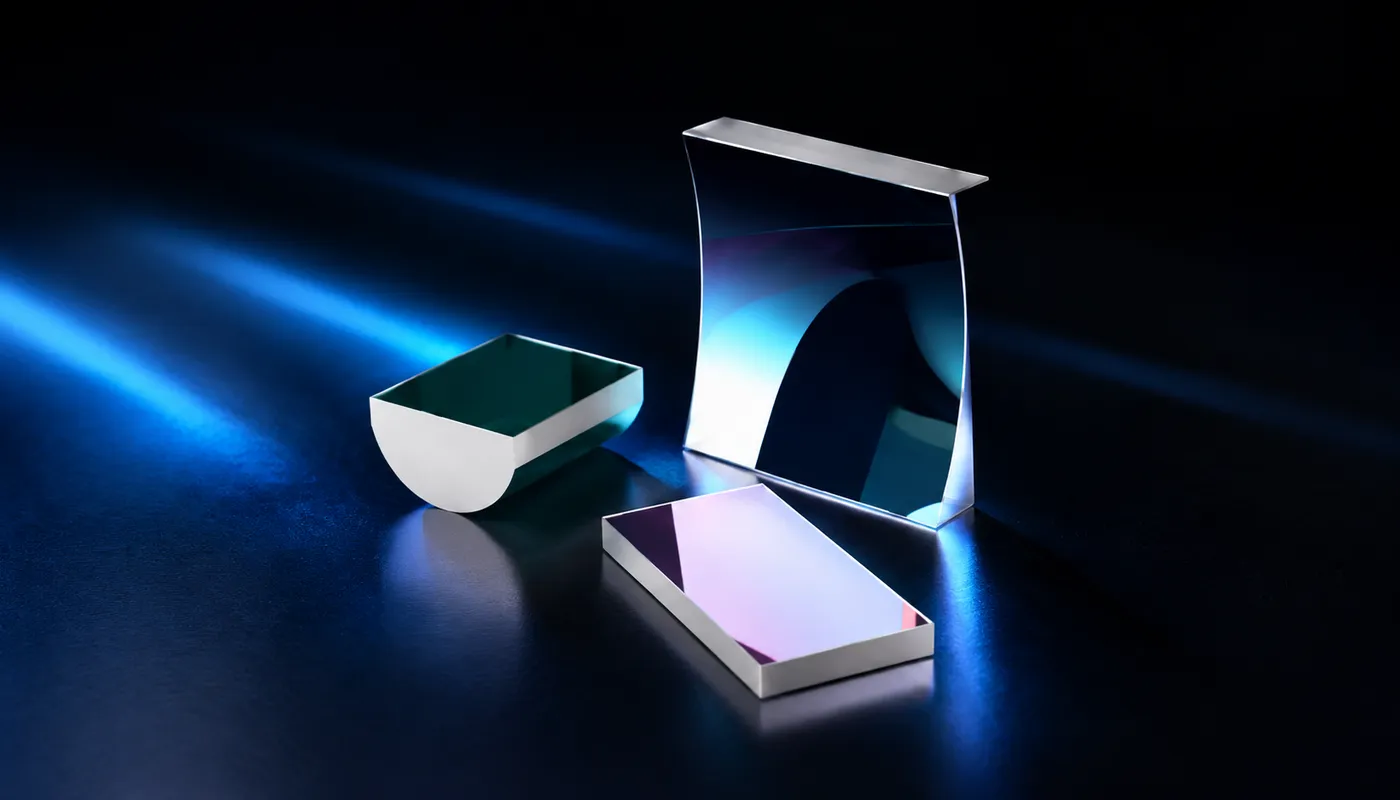

Cylindrical Mirror
Cylindrical Mirrors are precision optical components designed for one-dimensional beam focusing, expansion and shaping applications in laser systems, imaging systems and optical instruments. Manufactured from optical glass, fused silica, metal substrates and custom optical substrates with cylindrical reflective surface designs, these mirrors provide accurate one-axis optical control, high reflectivity and stable optical performance. Chenyu Optics manufactures cylindrical mirrors in concave and convex configurations with aluminum, silver, gold and dielectric coating options for laser, imaging and scanning systems.
Cylindrical Mirror Overview
Cylindrical Mirrors are precision optical components designed for one-dimensional beam focusing, expansion and shaping applications in laser systems, imaging systems and optical instruments.
By using cylindrical reflective surface designs with metal or dielectric coating structures, cylindrical mirrors provide accurate one-axis optical control, high reflectivity, low scattering and stable optical performance. They are widely used in laser beam shaping systems, laser line generation systems, optical scanning equipment, machine vision systems and scientific instruments where precise beam profile control is required.
Chenyu Optics supports custom cylindrical mirror manufacturing according to customer drawings, including custom radius of curvature, focal length, substrate and coating design for prototype and repeat production.
Key Advantages of Cylindrical Mirror

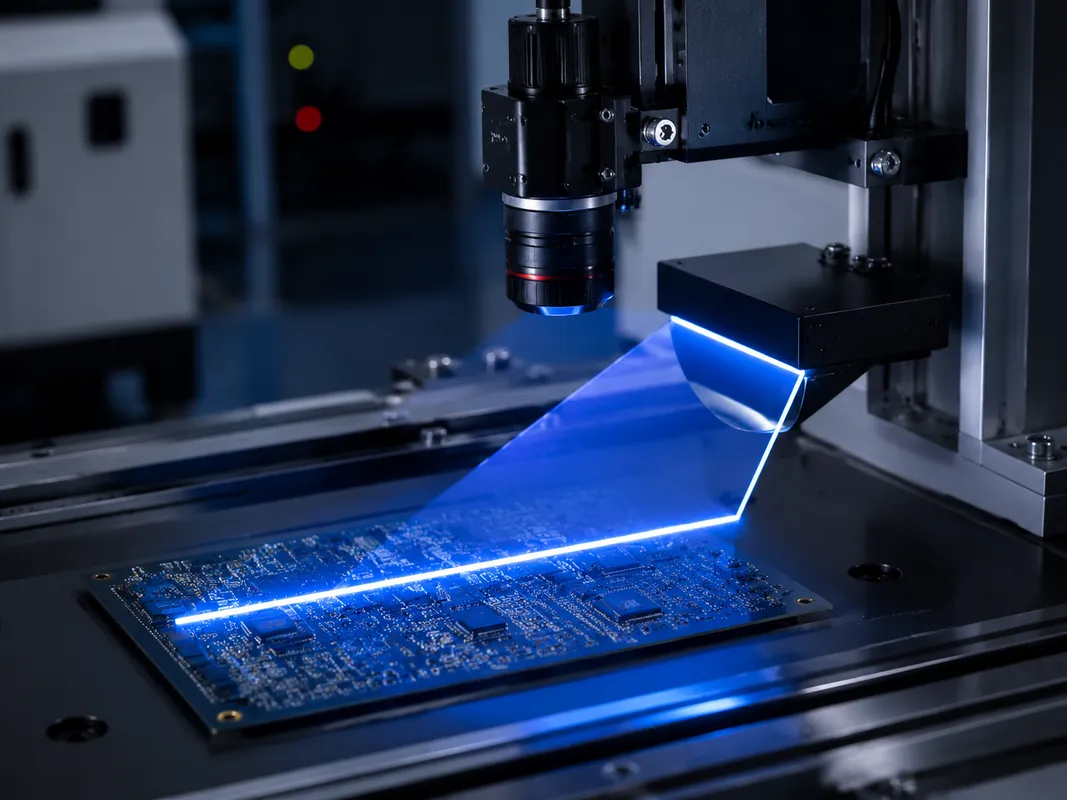

Laser Beam Shaping & Scanning Systems
Cylindrical mirrors are widely used for one-axis beam control in laser beam shaping systems, laser line generation systems and optical scanning equipment.
Typical Specifications of Cylindrical Mirror
| Material Options | Optical Glass / Fused Silica / Metal Substrate / Custom Optical Substrate Available |
|---|---|
| Optical Function | One-dimensional beam focusing, expansion and shaping |
| Coating Options | Aluminum Coating / Silver Coating / Gold Coating / Dielectric Coating / Custom Optical Coating |
| Optical Characteristics | High reflectivity, low scattering, precise cylindrical curvature, excellent surface quality, stable optical performance |
| Mirror Type | Concave Cylindrical Mirror / Convex Cylindrical Mirror |
| Radius of Curvature | Custom |
| Focal Length | Custom |
| Wavelength Range | Custom |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/20, depending on requirement |
| Clear Aperture | Available |
| Angle of Incidence (AOI) | Custom |

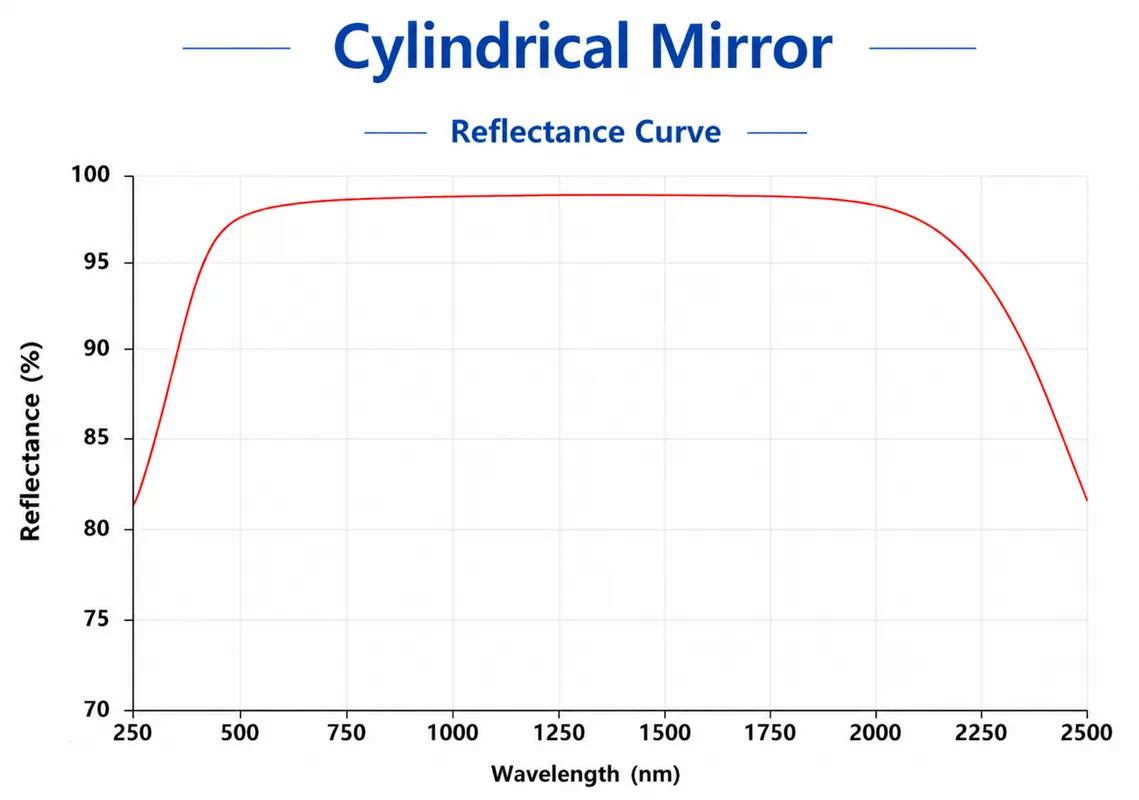

Mirror Geometry & Optical Principle
Why Choose Chenyu Optics for Cylindrical Mirror
Chenyu Optics focuses on drawing-based precision mirror manufacturing for laser beam shaping, imaging and scanning optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard cylindrical mirrors.
Manufacturing Capability for Cylindrical Mirror
Precision Cylindrical Machining
Precise cylindrical surface machining and polishing to achieve accurate curvature and low scattering performance.
Reflective Coating
Aluminum, silver, gold and dielectric coating options for laser, imaging and scanning applications.
Inspection & Packaging
Dimensional inspection, curvature verification, reflective performance testing and protective packaging before shipment.
Custom Manufacturing Options for Cylindrical Mirror
Curvature & Mirror Type
Custom radius of curvature and concave or convex configuration can be manufactured according to customer drawings and beam shaping requirements.
Material Selection
Optical glass, fused silica, metal substrates or custom optical substrates can be selected according to wavelength and environmental requirements.
Coating & Wavelength Design
Aluminum, silver, gold, dielectric and custom optical coatings can be specified for laser, imaging or scanning applications.
Mirror Type Comparison
| Cylindrical Mirror | Spherical Mirror | Flat Mirror | Parabolic Mirror | |
|---|---|---|---|---|
| Beam Control Axis | Single axis, focuses or expands light in one direction only | Both axes equally, rotationally symmetric focusing | No focusing, redirects beam without changing shape | Both axes, focuses collimated light to a single point |
| Focusing Behavior | Line focus, ideal for shaping a beam into a line or correcting one-axis divergence | Point or image focus depending on concave/convex design | None, purely reflective redirection | Point focus with minimal spherical aberration |
| Aberration | Astigmatism if used off-axis with spherical beams | Spherical aberration at large apertures | None, flat surface introduces no focusing aberration | Very low on-axis aberration |
| Typical Use | Laser line generation, one-axis beam shaping | General imaging and focusing systems | Beam steering, folding optical paths | Telescopes, high-precision focusing systems |
Applications of Cylindrical Mirror
Laser Beam Shaping Systems
One-axis beam control for laser optical systems.
Laser Line Generation Systems
Precision line generation for alignment and measurement applications.
Optical Scanning Systems
Stable reflective performance for optical scanning equipment.
Machine Vision Systems
Accurate beam shaping for machine vision optical paths.
Laser Projection Systems
Stable beam correction for laser projection optics.
Imaging Systems
Reliable reflective optics for imaging optical paths.
Cylindrical Mirror FAQ
What is the function of a cylindrical mirror?
A cylindrical mirror is used to focus, expand or shape optical beams in one direction for laser, imaging and beam control applications.
What is the difference between concave and convex cylindrical mirrors?
Concave cylindrical mirrors focus light in one axis, while convex cylindrical mirrors expand or modify beam profiles depending on optical system requirements.
What coating options are available for cylindrical mirrors?
Cylindrical mirrors can be manufactured with aluminum, silver, gold, dielectric and custom optical coatings for different wavelength requirements.
Can custom cylindrical mirrors be manufactured?
Yes. Chenyu Optics provides customized cylindrical mirrors with different curvature radii, focal lengths, substrates, coatings, dimensions, surface quality and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide mirror type (concave/convex), radius of curvature, dimension, coating requirement, quantity and drawing if available.
Where can I learn more about reflective optics design?
Additional information on reflective optics design can be found from Edmund Optics.
Related Products for Cylindrical Mirror
Need Custom Cylindrical Mirrors?
Send us your drawing, mirror type, radius of curvature, dimension and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable cylindrical mirror manufacturing suggestion.
