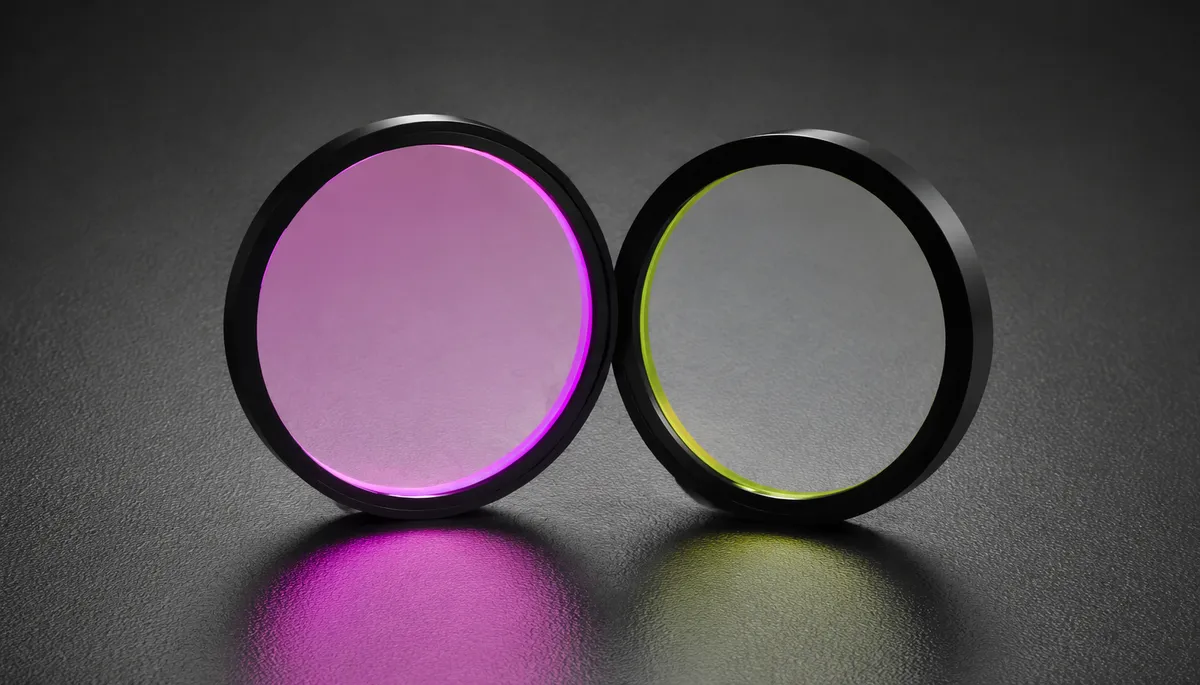

UV Pass Filter
UV Pass Filters are precision optical filters designed for ultraviolet imaging and spectral selection. They transmit UV wavelengths while blocking visible and infrared light. This makes them suitable for scientific research, inspection systems and optical detection applications. Chenyu Optics manufactures UV pass filters in optical glass and fused silica, with custom UV transmission ranges, sizes and coatings.
UV Pass Filter Overview
UV Pass Filters are precision optical filters that transmit required UV wavelengths. They block unwanted visible and infrared spectral components at the same time. This provides accurate ultraviolet transmission and spectral selection for demanding optical systems.
Using advanced optical coating technology, UV pass filters provide high transmission at target ultraviolet wavelengths. They also deliver excellent visible light blocking performance and reliable spectral separation. As a result, engineers use them in UV imaging, scientific research, inspection systems and optical detection applications.
In addition, Chenyu Optics supports custom UV pass filter manufacturing according to customer requirements. This includes custom substrate material, dimensions, wavelength range and coating design for prototype and repeat production.
Key Advantages of UV Pass Filter

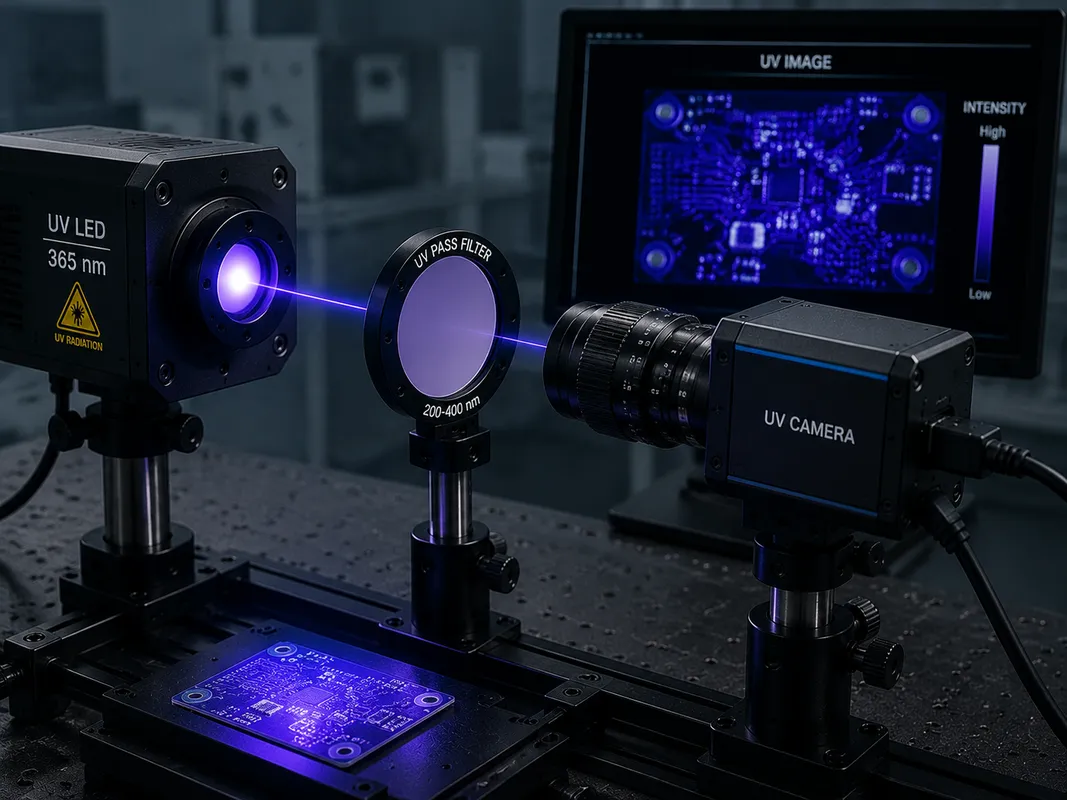

UV Imaging & Detection Systems
UV pass filters are widely used for ultraviolet transmission in UV imaging systems, scientific research instruments and optical detection equipment.
Typical Specifications of UV Pass Filter
| Material Options | Optical Glass, Fused Silica |
|---|---|
| Coating Type | UV transmission coating |
| Optical Function | Ultraviolet transmission and spectral separation |
| Transmission Range | Custom UV wavelength range |
| Blocking Performance | High blocking of visible and infrared light |
| Background Interference | Low |
| Surface Quality | High precision optical finish |
| Coating Performance | Precision controlled |

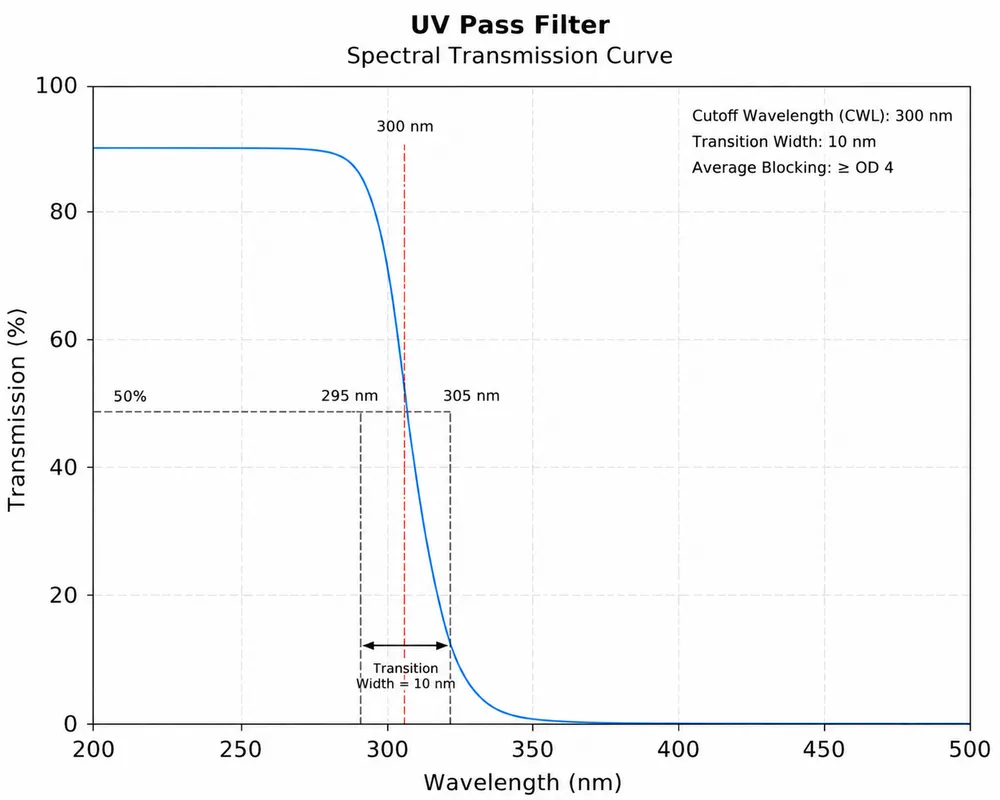

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for UV Pass Filter
Chenyu Optics focuses on drawing-based precision filter manufacturing for UV imaging, scientific research, inspection systems and optical detection applications. We support prototype verification, small-batch production and repeat manufacturing for non-standard UV pass filters.
Manufacturing Capability for UV Pass Filter
Precision Polishing
High surface quality processing for stable filter performance.
Optical Coating
High performance UV transmission coatings for precise ultraviolet spectral selection.
Inspection & Packaging
Strict quality control on wavelength, transmission and blocking performance, with clean protective packaging before shipment.
Custom UV Pass Filter Options
Bandpass Filter Type Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Typical Applications |
|---|---|---|---|---|
| UV Pass Filter | 80 – 250 nm (UV band) | >85% | OD3 – OD5 | UV imaging, scientific research, inspection |
| Narrow Bandpass Filter | 1 – 10 nm | >90% | OD4 – OD6+ | Laser line selection, fluorescence |
| Standard Bandpass Filter | 10 – 50 nm | >90% | OD4 – OD6+ | Machine vision, instrumentation |
| Wide Bandpass Filter | 50 – 200 nm | >90% | OD4 – OD6 | Imaging, spectroscopy |
Applications of UV Pass Filter
UV Imaging Systems
Ultraviolet transmission for UV imaging and machine vision applications.
Scientific Research Instruments
Precision UV filtering for laboratory and research equipment.
Inspection Systems
UV spectral selection for industrial inspection equipment.
Optical Detection Systems
High signal-to-noise UV filtering for detection instruments.
Analytical Instruments
Reliable UV transmission for analytical measurement systems.
UV Spectroscopy Equipment
Precision ultraviolet filtering for spectroscopic systems.
UV Pass Filter FAQ
What is the function of a UV pass filter?
A UV pass filter transmits ultraviolet wavelengths while blocking visible and infrared light to improve detection performance.
What materials are used for UV pass filters?
Common substrates include optical glass and fused silica, selected based on the required UV transmission range.
Can UV pass filters be customized for different wavelength ranges?
Yes. Transmission range, substrate material, dimensions, and coating design can be customized.
Why is blocking performance important for UV pass filters?
High blocking performance reduces unwanted visible and infrared light and improves signal contrast.
What information should I provide for a quotation?
Please provide UV transmission wavelength range, substrate material, dimensions, quantity and drawing if available.
Where can I learn more about UV pass filter design?
Additional information on UV pass filter design can be found from Edmund Optics.
Related Products for UV Pass Filter
Need Custom UV Pass Filters?
Send us your UV transmission wavelength range, substrate, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable UV pass filter manufacturing suggestion.
