Front Surface Mirror

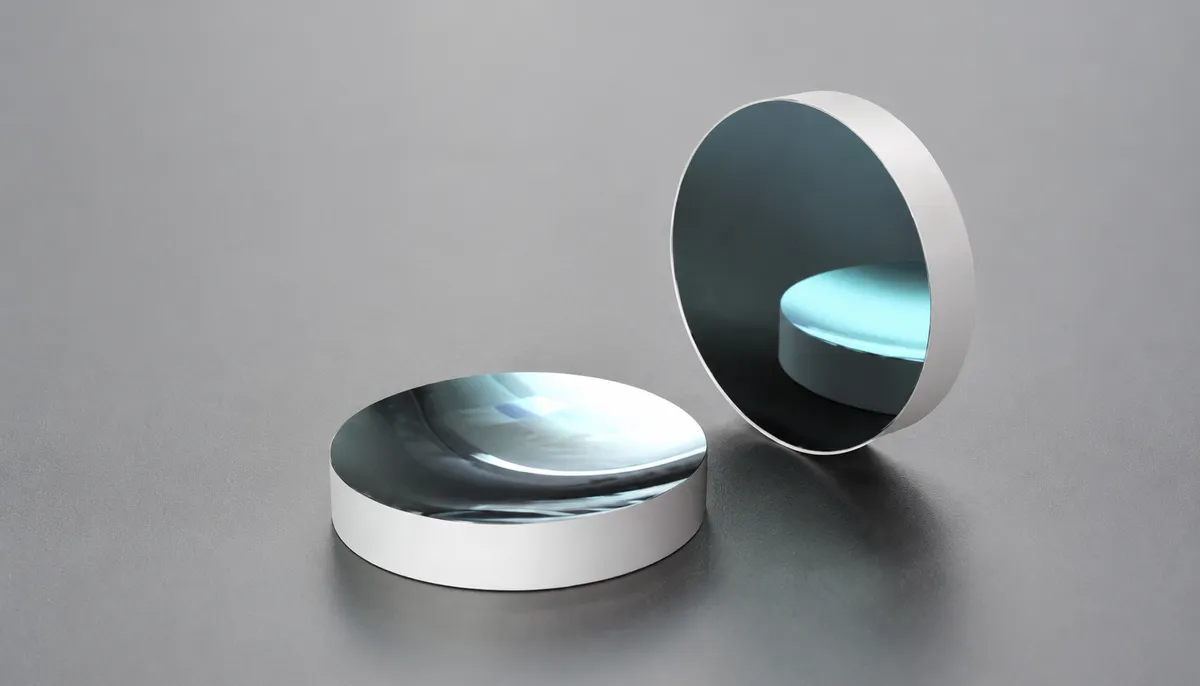

Front Surface Mirrors are precision reflective optical components used to control, redirect, focus or separate light paths in laser systems, imaging systems, machine vision and scientific instruments. Chenyu Optics manufactures Front Surface Mirrors on BK7 optical glass, fused silica, silicon, germanium or other optical glass substrates, with aluminum, silver, gold, dielectric or custom optical coatings.
Front Surface Mirror Overview
Front Surface Mirrors are precision reflective optical components used to control, redirect, focus or separate optical paths without the secondary reflections and image degradation associated with back-surface mirrors.
These mirrors are widely used in laser systems, imaging systems, machine vision, optical instruments, scientific research and infrared systems, where high reflectivity, low scattering and a stable, precision reflective surface are required.
Chenyu Optics supports custom Front Surface Mirror manufacturing according to customer drawings, including custom substrate selection, coating design, diameter, thickness and tolerance for prototype and volume production.
Key Advantages of Front Surface Mirror
Beam Control & Optical Path Management
Front Surface Mirrors are widely used to control, redirect, focus or separate light paths in laser systems, imaging systems, machine vision setups and scientific instruments.
Typical Specifications of Front Surface Mirror
| Material Options | BK7 Optical Glass, Fused Silica, Silicon, Germanium (for IR applications), Optical Glass, Custom Substrate Available |
|---|---|
| Coating Options | Aluminum Coating, Silver Coating, Gold Coating, Dielectric Coating, Custom Optical Coating |
| Optical Function | Controlling, redirecting, focusing or separating optical paths |
| Optical Characteristics | High reflectivity, low scattering, precision reflective surface, stable coating performance, custom wavelength range available |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/20, depending on requirement |
| Clear Aperture | Available |
| Angle of Incidence (AOI) | Custom |

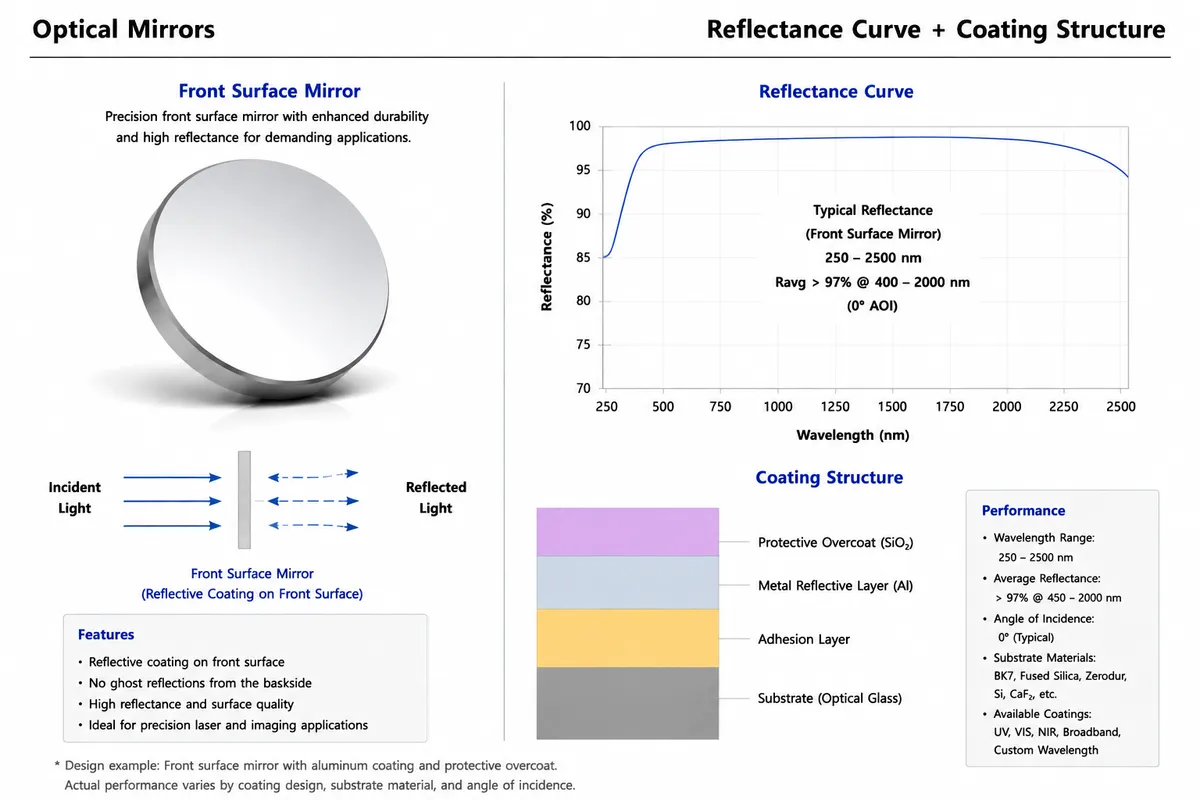

Front Surface Mirror Structure
Why Choose Chenyu Optics for Front Surface Mirror
Chenyu Optics focuses on drawing-based precision mirror manufacturing for laser, imaging and industrial optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Front Surface Mirrors.
Manufacturing Capability for Front Surface Mirror
Precision Polishing
Custom diameter and shape with precision polishing for surface quality and flatness suited to the intended optical performance.
Optical Coating
Aluminum, silver, gold, dielectric or custom optical coating for stable reflectivity performance across the required wavelength range.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Front Surface Mirror
Substrate & Geometry
Custom diameter, shape and thickness can be manufactured according to customer drawings, with substrate selected from BK7 optical glass, fused silica, silicon, germanium, optical glass or a custom substrate.
Surface & Mechanical Quality
Surface quality from 60-40 to 10-5 and flatness from λ/4 to λ/20 can be selected according to the intended optical performance and mounting structure.
Coating & Wavelength Design
Aluminum, silver, gold, dielectric or custom optical coatings can be specified for a custom wavelength range according to the intended angle of incidence and optical system.
Front Surface Mirror Material Comparison
| BK7 Optical Glass | Fused Silica | Silicon | Germanium | Optical Glass | |
|---|---|---|---|---|---|
| General Character | Standard optical crown glass substrate, widely used and cost-effective | High-purity substrate with good dimensional stability | Substrate option suited to infrared-related applications, per material and coating design | Substrate option suited to infrared applications, per material and coating design | General-purpose optical glass substrate for standard mirror applications |
| Coating Compatibility | Aluminum, silver, gold or dielectric coatings | Aluminum, silver, gold or dielectric coatings | Coating selected according to the intended infrared wavelength range | Coating selected according to the intended infrared wavelength range | Aluminum, silver, gold or dielectric coatings |
| Typical Use | General industrial optical systems, laser and imaging setups | Precision optical instruments requiring high dimensional stability | Infrared systems, according to material and coating selection | Infrared systems, according to material and coating selection | General-purpose reflective components for standard optical systems |
| Selection Note | Suitable as a default substrate unless a specific requirement calls for another material | Selected when higher dimensional stability is required | Selected for infrared-related systems per drawing requirements | Selected for infrared systems per drawing requirements | Selected for standard mirror applications without special substrate requirements |
Applications of Front Surface Mirror

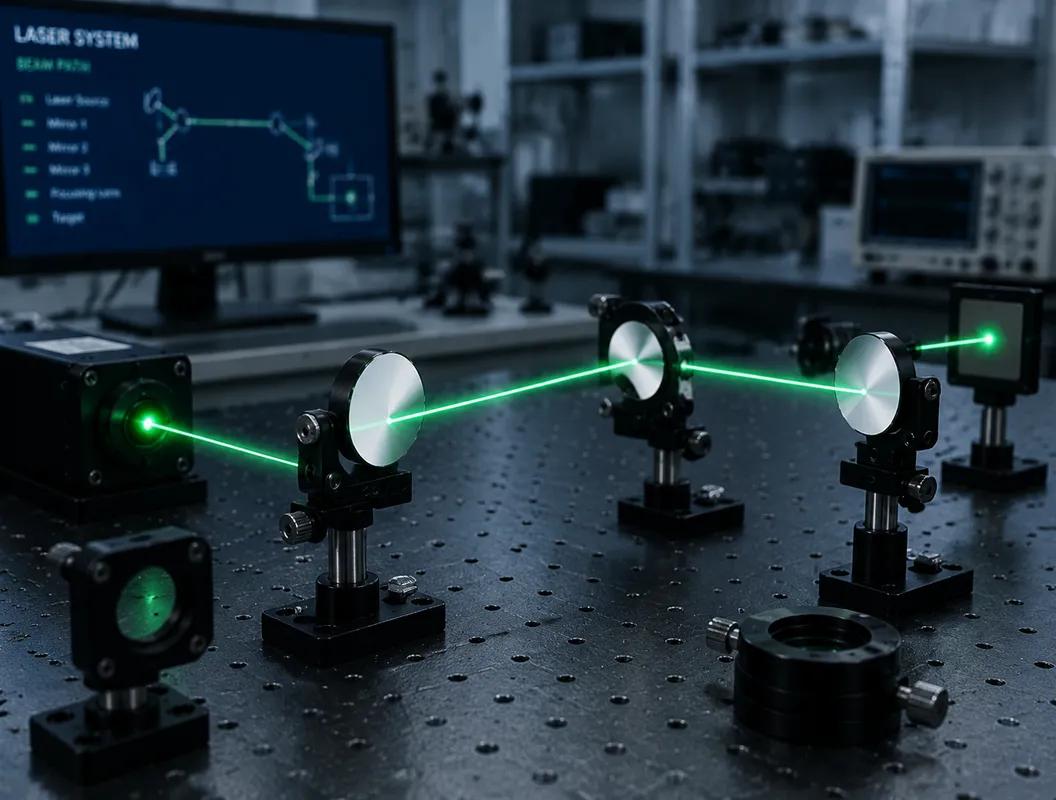

Laser Systems
Beam control and redirection elements for industrial and scientific laser systems.
Imaging Systems
Reflective elements for optical path control in imaging system design.
Machine Vision
Precision mirrors for beam redirection in machine vision setups.
Optical Instruments
Reflective components for precision optical instrument assemblies.
Scientific Research
Custom mirrors for laboratory and research optical setups.
Infrared Systems
Front Surface Mirrors for infrared systems, according to substrate material and coating selection.
Front Surface Mirror FAQ
What is a front surface mirror used for?
A front surface mirror is used to control, redirect, focus or separate optical paths in laser systems, imaging systems, machine vision and other precision optical instruments.
What substrate materials are available for front surface mirrors?
Front Surface Mirrors can be manufactured on BK7 optical glass, fused silica, silicon, germanium (for IR applications), other optical glass or a custom substrate according to system requirements.
What coating options are available?
Aluminum, silver, gold, dielectric and custom optical coatings are available, selected according to the required reflectivity and wavelength range.
What surface quality and flatness can be achieved?
Surface quality from 60-40 to 10-5 and flatness from λ/4 to λ/20 can be provided depending on the requirement.
Can front surface mirrors be manufactured to custom sizes?
Yes. Custom diameter, thickness, shape and tolerance can be manufactured according to customer drawings for prototype and volume production.
What information should I provide for a quotation?
Please provide substrate preference, coating requirement, diameter, thickness, surface quality, flatness, clear aperture, angle of incidence (AOI), quantity and drawing if available.
Where can I learn more about optical mirror coatings?
Additional optical mirror and coating information can be found from Edmund Optics.
Related Products for Front Surface Mirror
Need Custom Front Surface Mirrors?
Send us your drawing, substrate preference, coating requirement, diameter, thickness, surface quality, flatness and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Front Surface Mirror manufacturing suggestion.
