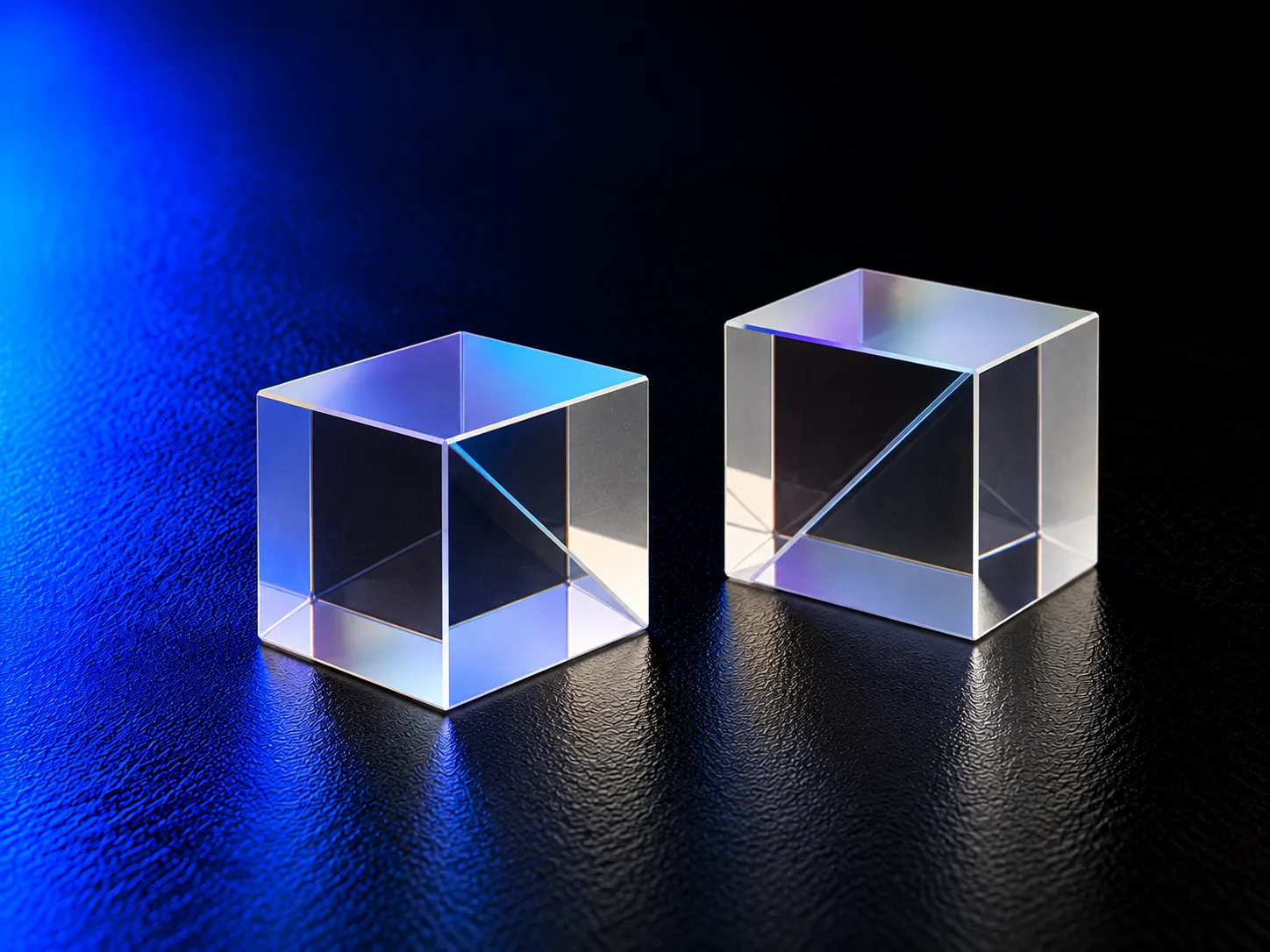

Non-Polarizing Beamsplitter Cube
Non-Polarizing Beamsplitter Cubes are precision optical components designed to split incident light into transmitted and reflected beams with minimal polarization dependence for imaging, laser and optical measurement systems. Using precision dielectric coating structures bonded between two high-quality optical prisms, these cubes provide balanced splitting ratios, excellent transmission performance and stable polarization characteristics. Chenyu Optics manufactures non-polarizing beamsplitter cubes in BK7, fused silica and custom optical substrates with non-polarizing dielectric, broadband and laser coating options.
Non-Polarizing Beamsplitter Cube Overview
Non-Polarizing Beamsplitter Cubes are precision optical components designed to split incident light into transmitted and reflected beams with minimal polarization dependence for imaging, laser and optical measurement systems.
By using precision dielectric coating structures between two high-quality optical prisms, non-polarizing beamsplitter cubes provide balanced splitting ratios, excellent transmission performance and stable polarization characteristics. They are widely used in laser systems, interferometers, imaging systems, optical instruments and scientific research equipment where consistent beam splitting performance is required.
Chenyu Optics supports custom non-polarizing beamsplitter cube manufacturing according to customer drawings, including custom splitting ratio, wavelength range, dimension and coating design for prototype and repeat production.
Key Advantages of Non-Polarizing Beamsplitter Cube

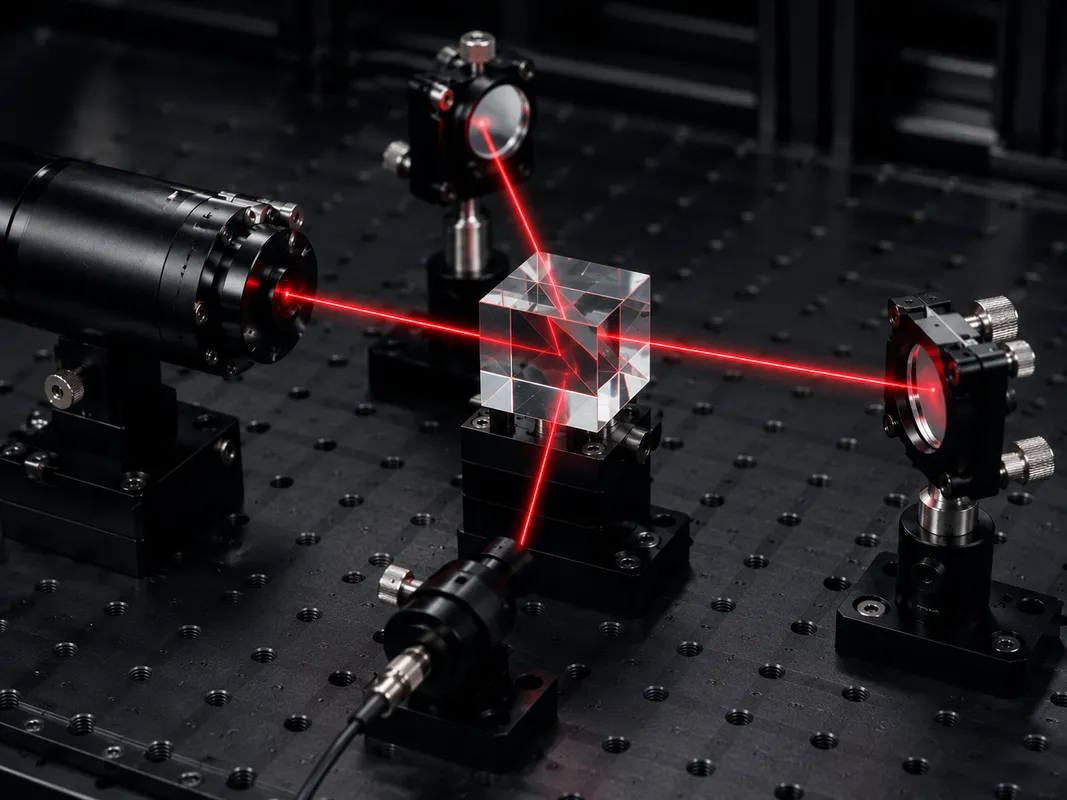

Laser & Interferometer Systems
Non-polarizing beamsplitter cubes are widely used for stable, low-polarization beam splitting in laser systems, interferometers and optical measurement equipment.
Typical Specifications of Non-Polarizing Beamsplitter Cube
| Material Options | BK7 Optical Glass / Fused Silica / Optical Glass / Custom Optical Substrate Available |
|---|---|
| Optical Function | Splitting incident light into transmitted and reflected beams with minimal polarization dependence |
| Coating Options | Non-Polarizing Dielectric Coating / Broadband Coating / Laser Coating / Custom Optical Coating |
| Optical Characteristics | Low polarization sensitivity, high transmission, high reflection efficiency, excellent wavefront quality, stable coating performance |
| Splitting Ratio | Custom (50:50, 30:70, 70:30 Available) |
| Wavelength Range | Custom |
| Dimension | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Angle of Incidence (AOI) | 45° / Custom |

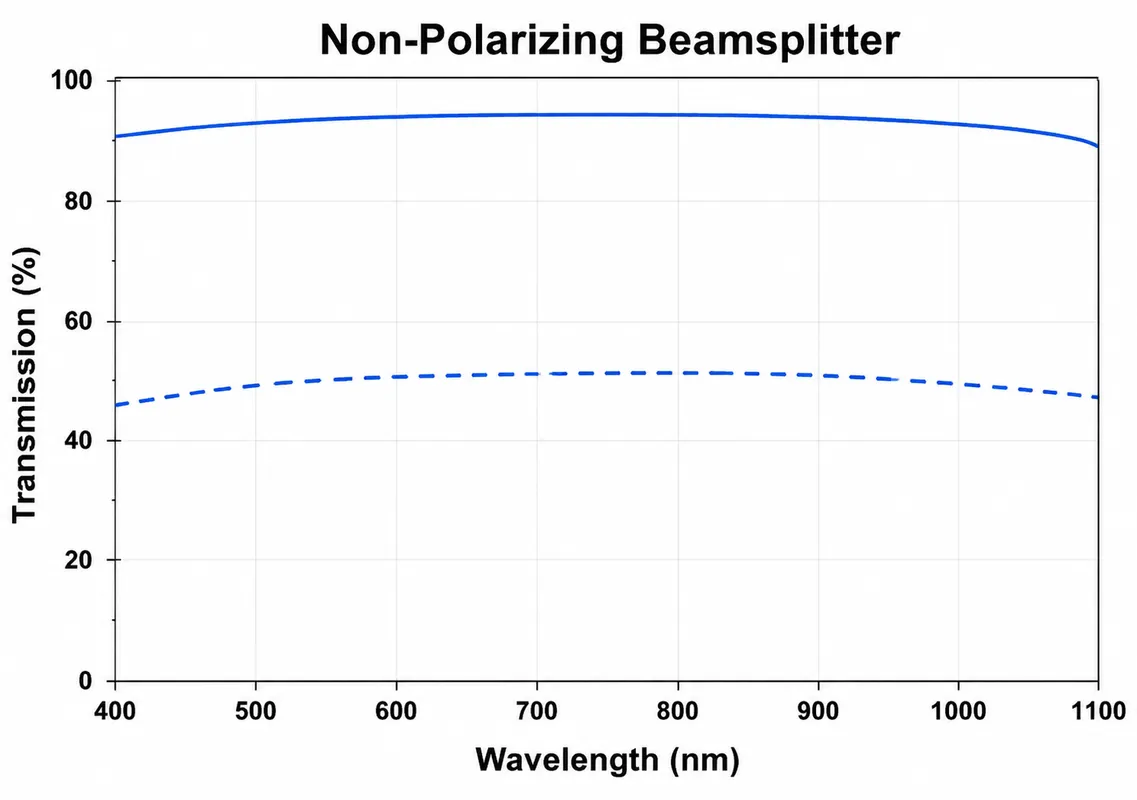

Beam Splitting Geometry & Optical Principle
Why Choose Chenyu Optics for Non-Polarizing Beamsplitter Cube
Chenyu Optics focuses on drawing-based precision beamsplitter manufacturing for laser, imaging and measurement optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard non-polarizing beamsplitter cubes.
Manufacturing Capability for Non-Polarizing Beamsplitter Cube
Precision Prism Bonding
Precise surface polishing, prism bonding and dimensional control to achieve stable splitting ratio and beam quality.
Dielectric Coating
Non-polarizing dielectric, broadband and laser coating options for imaging, laser and measurement applications.
Inspection & Packaging
Dimensional inspection, splitting ratio verification, optical performance testing and protective packaging before shipment.
Custom Manufacturing Options for Non-Polarizing Beamsplitter Cube
Dimensions & Splitting Ratio
Custom dimension and splitting ratio (50:50, 30:70, 70:30 or custom) can be manufactured according to customer drawings and system requirements.
Material & Wavelength Range
BK7, fused silica or custom optical substrates can be selected according to operating wavelength and environmental requirements.
Coating & Performance Design
Non-polarizing dielectric, broadband, laser and custom optical coatings can be specified for imaging, laser or measurement applications.
Beamsplitter Type Comparison
| Non-Polarizing Beamsplitter Cube | Polarizing Beamsplitter Cube | Plate Beamsplitter | Dichroic Beamsplitter | |
|---|---|---|---|---|
| Polarization Dependence | Low, consistent splitting for both s- and p-polarization | High, designed to separate s- and p-polarization | Moderate, depends on angle of incidence and coating | Low for target bands, wavelength-selective rather than polarization-based |
| Splitting Behavior | Fixed splitting ratio across a wavelength range | Separates orthogonal polarization states into two paths | Simple amplitude splitting, thin substrate | Splits by wavelength band (reflect one band, transmit another) |
| Form Factor | Cube, bonded from two right-angle prisms | Cube, bonded from two right-angle prisms | Thin flat plate at an angle to the beam | Cube or plate, depending on design |
| Typical Use | Interferometers, imaging, general beam splitting | Polarization control, laser isolators, polarimetry | Compact optical systems, low ghosting requirements | Fluorescence imaging, multi-wavelength laser combining |
Applications of Non-Polarizing Beamsplitter Cube
Laser Beam Splitting Systems
Stable, low-polarization beam splitting for laser optical paths.
Interferometer Systems
Consistent beam division for interferometric measurement.
Imaging Systems
Reliable beam splitting for imaging optical paths.
Optical Measurement Equipment
Accurate beam division for optical measurement instruments.
Microscopy Systems
Stable beam splitting for microscopy illumination and detection paths.
Spectroscopy Instruments
Consistent beam splitting for spectroscopic measurement systems.
Non-Polarizing Beamsplitter Cube FAQ
What is the function of a non-polarizing beamsplitter cube?
A non-polarizing beamsplitter cube separates incident light into transmitted and reflected beams while maintaining similar performance for different polarization states.
Why are non-polarizing beamsplitter cubes used in optical systems?
They provide stable beam splitting with low polarization dependence, making them suitable for laser systems, imaging applications and precision optical measurements.
What coating options are available for non-polarizing beamsplitter cubes?
Non-polarizing beamsplitter cubes can be manufactured with dielectric coatings, broadband coatings, laser coatings and custom optical coatings for different wavelength requirements.
Can custom non-polarizing beamsplitter cubes be manufactured?
Yes. Chenyu Optics provides customized beamsplitter cubes with different materials, splitting ratios, wavelengths, dimensions, surface quality, coatings and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide dimension, splitting ratio, wavelength range, material, coating requirement, quantity and drawing if available.
Where can I learn more about beamsplitter design?
Additional information on beamsplitter design can be found from Edmund Optics.
Related Products for Non-Polarizing Beamsplitter Cube
Need Custom Non-Polarizing Beamsplitter Cubes?
Send us your drawing, dimension, splitting ratio, wavelength range and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable beamsplitter cube manufacturing suggestion.
