Plano Convex Aspheric Lens
Plano convex aspheric lenses feature one flat surface and one convex aspheric surface. The controlled profile reduces spherical aberration, improves focusing and collimation, and can enable compact optical systems with fewer lens elements.
Plano Convex Aspheric Lens Overview
Plano convex aspheric lenses are precision optical components with one plano surface and one convex aspheric surface.
Unlike a conventional spherical singlet, the aspheric profile provides additional ray control to reduce spherical aberration and improve focusing, collimation or imaging performance.
Chenyu Optics manufactures custom designs in optical glass, fused silica and optical plastic with customized diameter, focal length, aspheric prescription, center thickness and coating.
Key Advantages of Plano Convex Aspheric Lens
Laser Focusing & Precision Imaging
Custom aspheric geometry supports efficient focusing, beam collimation and compact imaging systems across UV, visible and near-infrared wavelengths.
Typical Specifications of Plano Convex Aspheric Lens
| Material Options | Optical Glass / Fused Silica / Optical Plastic |
|---|---|
| Product Type | Plano Convex Aspheric Lens |
| Optical Design | Plano / Convex Aspheric |
| Optical Function | Imaging / Focusing / Collimation |
| Diameter | Customized |
| Effective Focal Length | Customized |
| Back Focal Length | Customized |
| Radius of Curvature | Customized |
| Center Thickness | Customized |
| Aspheric Profile | Customized |
| Conic Constant | Customized |
| Aspheric Coefficients | Customized |
| Wavelength Range | UV / VIS / NIR, Material Dependent |
| Surface Accuracy | Customized |
| Surface Quality | 20-10 / 40-20 Scratch-Dig |
| Clear Aperture | Customized |
| Coating | Uncoated / UV AR / VIS AR / NIR AR |

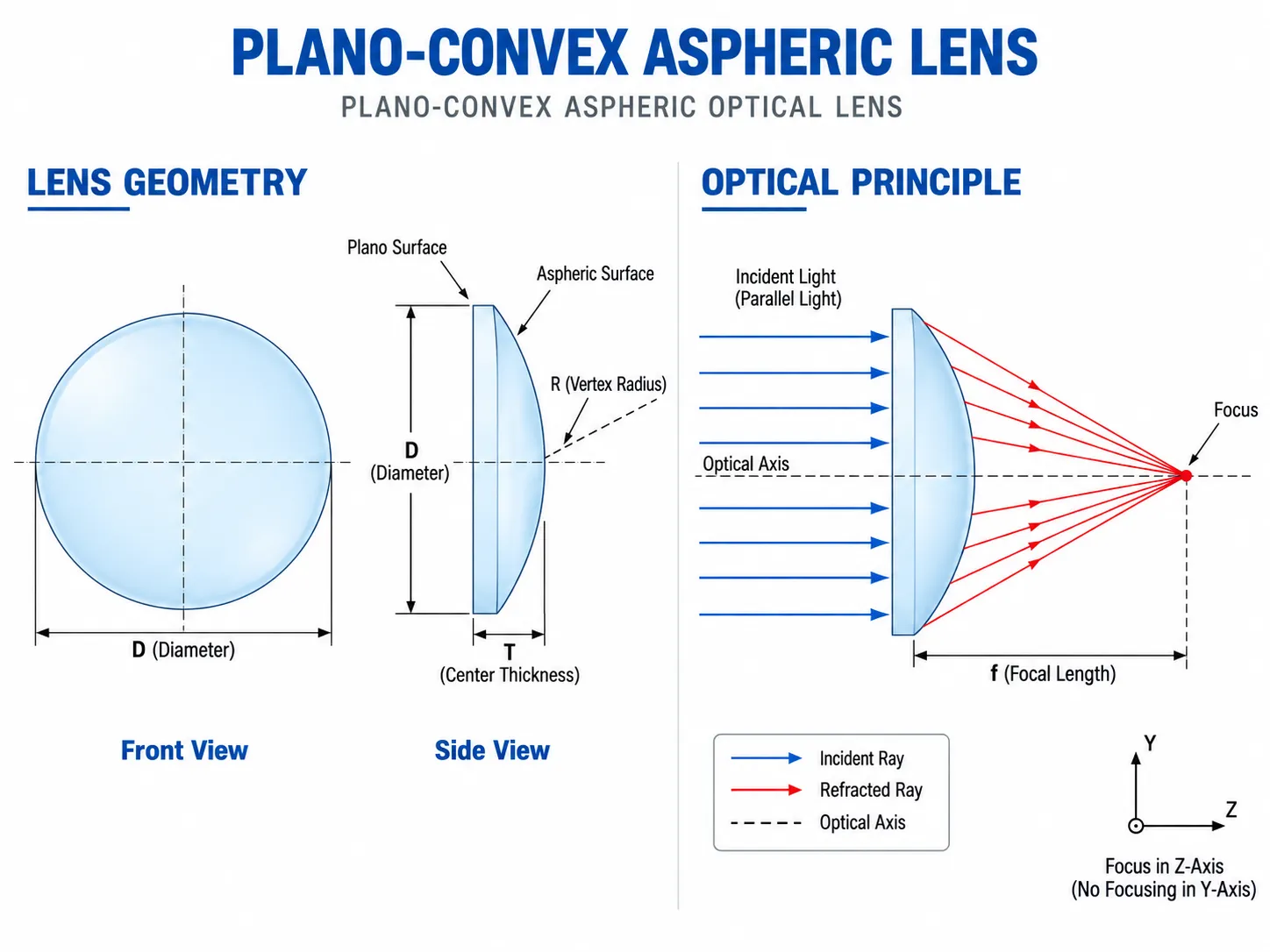

Plano Convex Aspheric Lens Structure
Why Choose Chenyu Optics for Plano Convex Aspheric Lens
Chenyu Optics supports custom plano convex aspheric lens development for imaging, laser, spectroscopy, machine vision and scientific instruments, from optical review through repeat production.
Manufacturing Capability for Plano Convex Aspheric Lens
Aspheric Manufacturing
Precision polishing or molding of custom convex aspheric profiles in optical glass, fused silica and suitable optical plastics.
UV, VIS & NIR AR Coating
Antireflection coatings optimized for the substrate, wavelength range, angle of incidence, polarization and system requirements.
Profile Inspection & Packaging
Aspheric form, centration, dimensions and surface quality are inspected before clean handling and protective packaging.
Custom Manufacturing Options for Plano Convex Aspheric Lens
Focal Length & Geometry
Diameter, EFL, BFL, center thickness and clear aperture can be designed to specification.
Aspheric Prescription
Base radius, conic constant, aspheric coefficients and form-error requirements can be manufactured to drawing.
Material & Coating
Optical glass, fused silica and optical plastic are available with UV, VIS, NIR and custom AR coatings.
Plano Convex Aspheric Lens Material Comparison
| Optical Glass | Fused Silica | Optical Plastic | |
|---|---|---|---|
| Key Benefit | Wide glass selection and stable precision optics | High transmission, thermal stability and low absorption | Lightweight and suitable for precision molding |
| Spectral Range | Grade dependent, including visible and near-infrared options | Suitable for UV, visible and near-infrared designs as specified | Material dependent, commonly visible and near-infrared |
| Manufacturing Route | Precision polishing or molding, design dependent | Precision polishing for demanding laser and imaging optics | Precision molding for suitable profiles and production volumes |
| Required Inputs | Wavelength, focal length and imaging requirements | Thermal environment, laser conditions and UV performance | Temperature, durability and production-volume requirements |
Plano Convex Aspheric vs. Spherical Plano Convex Lens
| Plano Convex Aspheric Lens | Spherical Plano Convex Lens | |
|---|---|---|
| Primary Function | High-efficiency focusing, collimation and imaging with aberration control | General focusing and collimation with a spherical surface |
| Convex Surface | Custom non-spherical profile | Constant spherical radius |
| Spherical Aberration | Reduced through the aspheric prescription | Higher for comparable aperture and focal conditions |
| Custom Parameters | Base radius, conic constant, coefficients, thickness and coating | Radius, thickness, diameter and coating |
Applications of Plano Convex Aspheric Lens
Laser Focusing
Reduced-aberration focusing for wavelength-specific laser systems.
Beam Collimation
Efficient collimation for divergent laser and illumination sources.
Imaging Systems
Improved image quality in compact optical assemblies.
Optical Sensors
Application-specific focusing for detector and sensor modules.

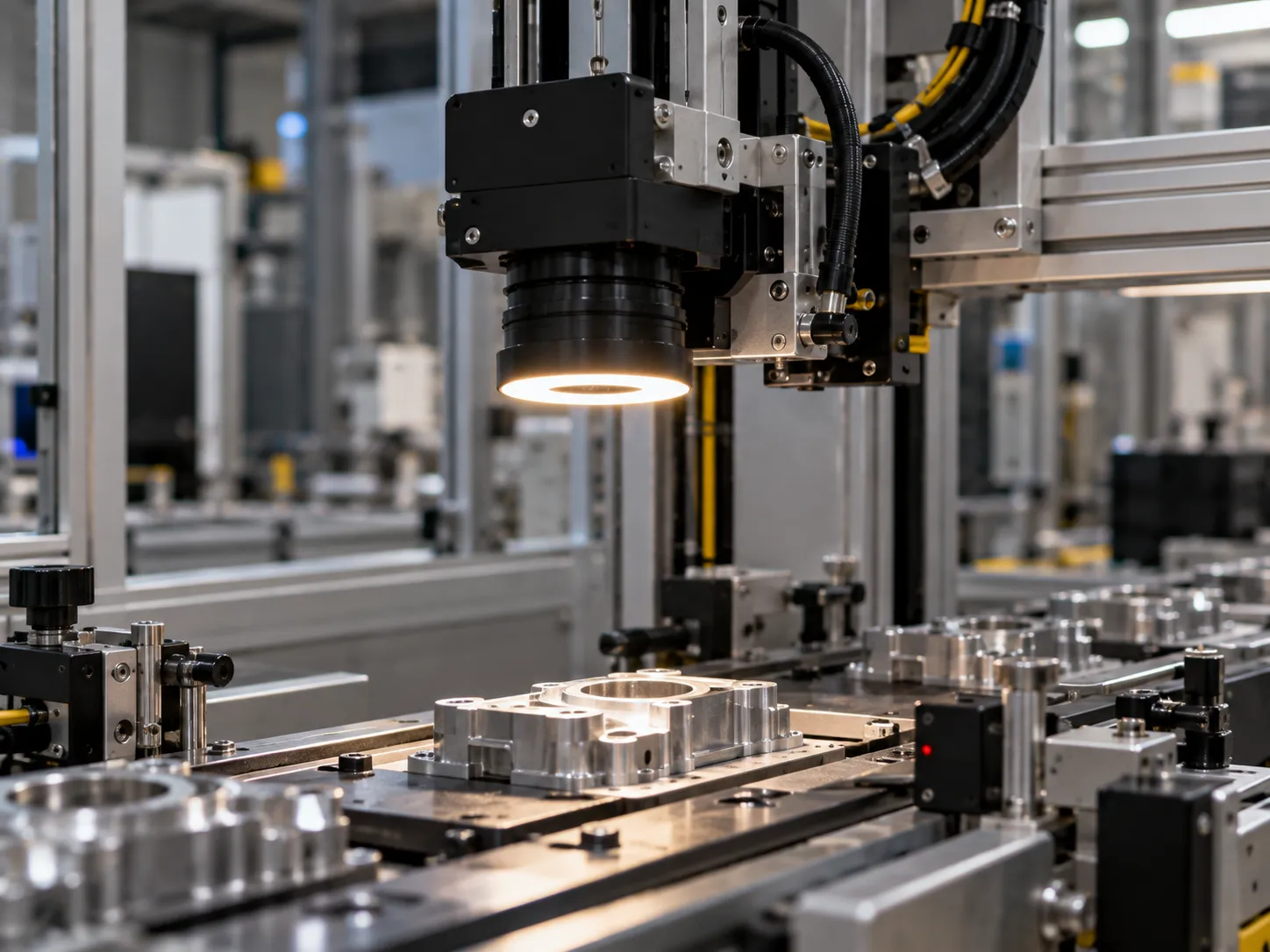

Machine Vision
Compact precision optics for industrial imaging and inspection.
LED & Illumination
Efficient light collection and beam control for illumination systems.
Plano Convex Aspheric Lens FAQ
What is a plano convex aspheric lens?
A plano convex aspheric lens has one flat surface and one convex aspheric surface designed for focusing, collimation or imaging while reducing spherical aberration.
What is the advantage of an aspheric surface?
An aspheric surface provides additional control over ray propagation, reducing spherical aberration and improving optical performance compared with a comparable spherical singlet.
Can plano convex aspheric lenses be used for laser focusing?
Yes. They are suitable for laser focusing and collimation when the material, aspheric profile and coating are matched to the wavelength and beam requirements.
Can the aspheric profile be customized?
Yes. Chenyu Optics can manufacture custom profiles based on the required radius, conic constant, aspheric coefficients, focal length and optical performance.
Can these lenses be molded?
Yes. Precision molding can be used for suitable optical glass or plastic designs, while precision polishing is available for other materials and manufacturing requirements.
What information should I provide for a quotation?
Please provide the wavelength, substrate, diameter, EFL, BFL if required, center thickness, base radius, conic constant, aspheric coefficients, clear aperture, surface accuracy or form error, surface quality, centration, coating and quantity.
Related Products for Plano Convex Aspheric Lens
Need Custom Plano Convex Aspheric Lenses?
Please provide the wavelength, substrate, diameter, effective focal length, back focal length if required, center thickness, base radius, conic constant, aspheric coefficients, clear aperture, surface accuracy or form error, surface quality, centration, coating and quantity.
