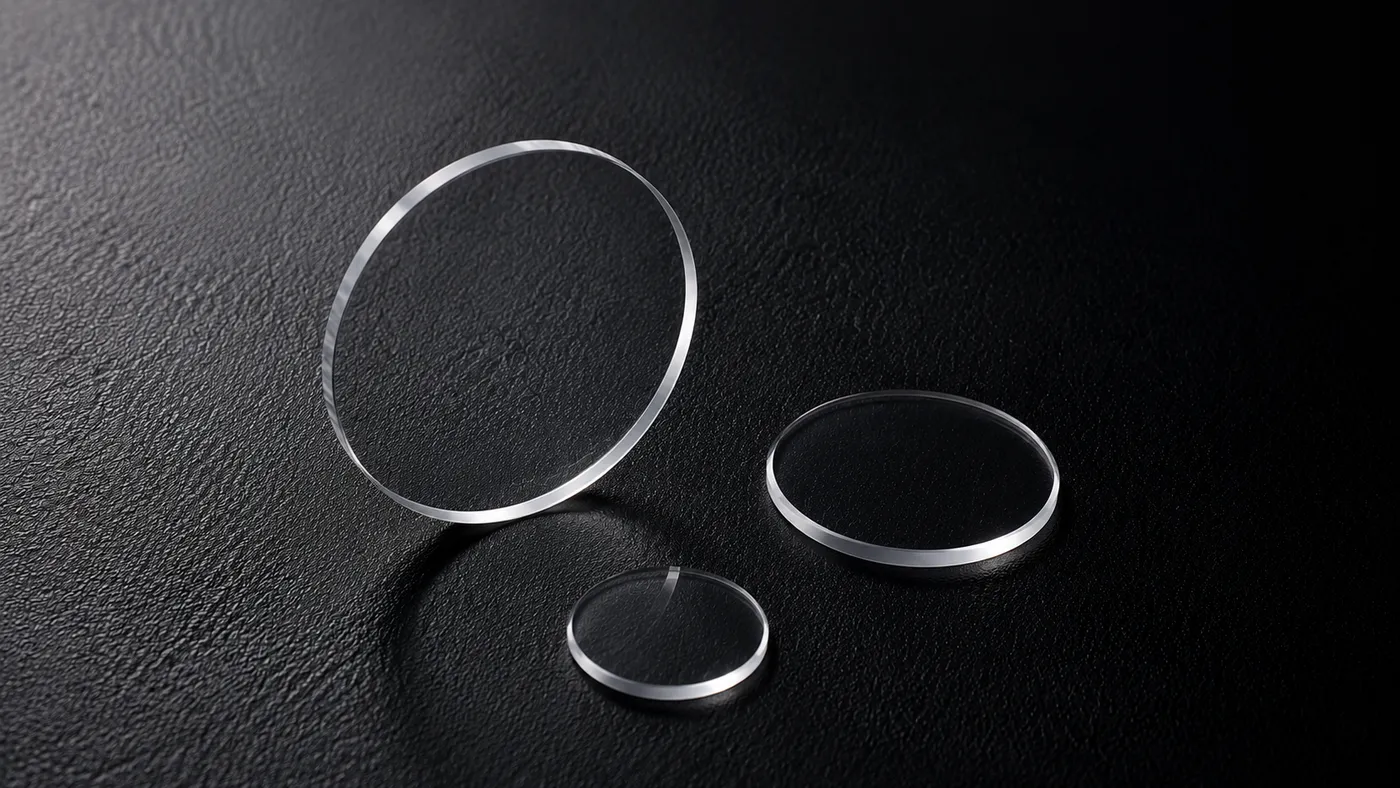

Sapphire Watch Window
Sapphire Watch Windows are precision optical components designed to provide high transparency, excellent scratch resistance and reliable protection for watch displays, optical sensors and precision instruments. Manufactured from high-purity sapphire substrates with outstanding hardness, high optical transmission and excellent chemical resistance, these windows provide long-term protection and stable optical performance. Chenyu Optics manufactures sapphire watch windows uncoated or with AR, broadband AR, anti-fingerprint and custom optical coatings.
Sapphire Watch Window Overview
Sapphire Watch Windows are precision optical components designed to provide high transparency, excellent scratch resistance and reliable protection for watch displays, optical sensors and precision instruments.
Manufactured from high-purity sapphire substrates with outstanding hardness, high optical transmission, excellent chemical resistance and superior surface durability, sapphire watch windows provide long-term protection and stable optical performance. They are widely used in luxury watches, smart devices, optical sensors, protective covers and precision optical assemblies where high durability and optical clarity are required.
Chenyu Optics supports custom sapphire watch window manufacturing according to customer drawings, including custom diameter, thickness, shape and coating design for prototype and repeat production.
Key Advantages of Sapphire Watch Window

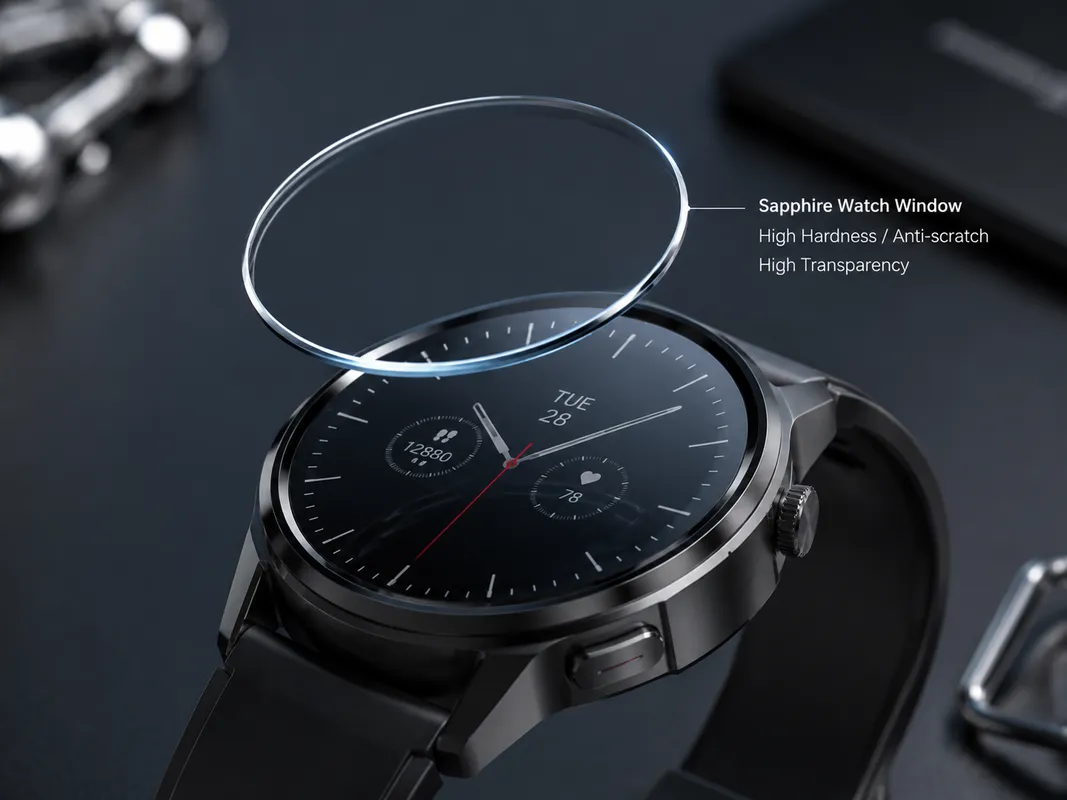

Watch, Sensor & Precision Instrument Applications
Sapphire watch windows are widely used for display and sensor protection in luxury watches, smart devices, optical sensors and precision optical assemblies.
Typical Specifications of Sapphire Watch Window
| Material | Sapphire (Al₂O₃) / Synthetic Sapphire / Custom Optical Substrate Available |
|---|---|
| Optical Function | Protecting displays, sensors and optical components while maintaining light transmission |
| Coating Options | Uncoated / AR Coating / Broadband AR Coating / Anti-Fingerprint Coating / Custom Optical Coating |
| Optical Characteristics | High hardness, excellent scratch resistance, high transmission, chemical stability, superior surface durability |
| Transmission Range | Approx. 200 nm – 5.5 μm |
| Hardness | Mohs 9 |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Parallelism | Custom |

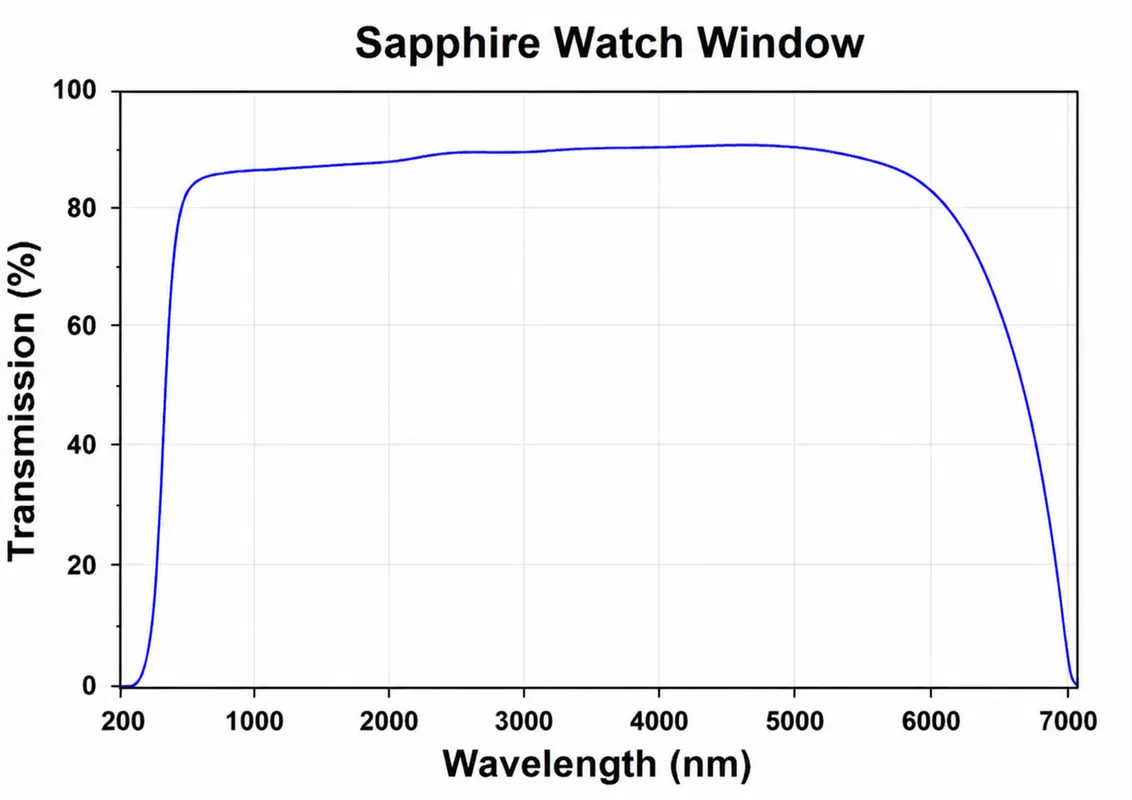

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Sapphire Watch Window
Chenyu Optics focuses on drawing-based precision sapphire manufacturing for high-durability protective and display applications. We support prototype verification, small-batch production and repeat manufacturing for non-standard sapphire watch windows.
Manufacturing Capability for Sapphire Watch Window
Precision Polishing
Controlled grinding and polishing procedures for high hardness sapphire substrates, ensuring low surface scattering and stable optical clarity.
Optical Coating
AR, broadband AR and anti-fingerprint coating options for display, sensor and protective window applications.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Sapphire Watch Window
Dimensions & Geometry
Custom diameter, thickness and shape can be manufactured according to customer drawings, with standard or custom window and cover-glass geometries.
Surface & Mechanical Quality
Surface flatness of λ/4 to λ/10 and surface quality of 60-40 to 10-5 can be selected according to optical and mechanical performance requirements.
Coating & Wavelength Design
Uncoated, AR, broadband AR, anti-fingerprint and custom optical coatings can be specified for display, sensor and protective applications.
Sapphire Window Material Comparison
| Sapphire (Al₂O₃) | BK7 / N-BK7 | Fused Silica | Chemically Strengthened Glass | |
|---|---|---|---|---|
| Transmission | UV to Mid-IR, approx. 0.2 – 5.5 μm | Visible to NIR, approx. 350 nm – 2.5 μm | UV to NIR, approx. 0.18 – 2.5 μm | Visible range, approx. 380 nm – 2.0 μm |
| Hardness | Mohs 9, extremely scratch resistant | Mohs 5–6, moderate hardness | Mohs 5.5–6.5, good hardness | Mohs 6–7, chemically strengthened surface |
| Mechanical Notes | Very hard and chemically durable, excellent long-term surface protection | Good mechanical stability, cost-effective, moderate hardness | High thermal stability, low thermal expansion, chemically durable | Improved impact and scratch resistance versus untreated glass, lower hardness than sapphire |
| Typical Use | Watch and sensor cover windows, harsh environment optics | General-purpose imaging and instrument windows | UV/NIR laser windows, high-power laser optics | Consumer device cover glass, low-cost protective glazing |
Applications of Sapphire Watch Window
Luxury Watch Displays
High durability windows for luxury watch display protection.
Smartwatch Protective Covers
Scratch-resistant covers for smart device displays.
Optical Sensor Windows
Protective windows for optical sensor assemblies.
Wearable Devices
Durable optical protection for wearable electronics.
Electronic Display Protection
Scratch and impact resistant display cover windows.
Medical & Scientific Instruments
Precision protective windows for instrument and inspection systems.
Sapphire Watch Window FAQ
What is the function of a sapphire watch window?
A sapphire watch window provides a highly durable transparent protective surface for watches, smart devices and optical components while maintaining excellent optical clarity.
Why is sapphire used for watch windows?
Sapphire offers extremely high hardness, excellent scratch resistance, chemical stability and high optical transmission, making it ideal for protective window applications.
What coating options are available for sapphire watch windows?
Sapphire watch windows can be manufactured with AR coatings, broadband AR coatings, anti-fingerprint coatings and custom optical coatings for different application requirements.
Can custom sapphire watch windows be manufactured?
Yes. Chenyu Optics provides customized sapphire watch windows with different sizes, shapes, thicknesses, surface quality, coatings and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide diameter, thickness, surface flatness, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about sapphire optical materials?
Additional sapphire optical material information can be found from Edmund Optics.
Related Products for Sapphire Watch Window
Need Custom Sapphire Watch Windows?
Send us your drawing, diameter, thickness, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable sapphire watch window manufacturing suggestion.
