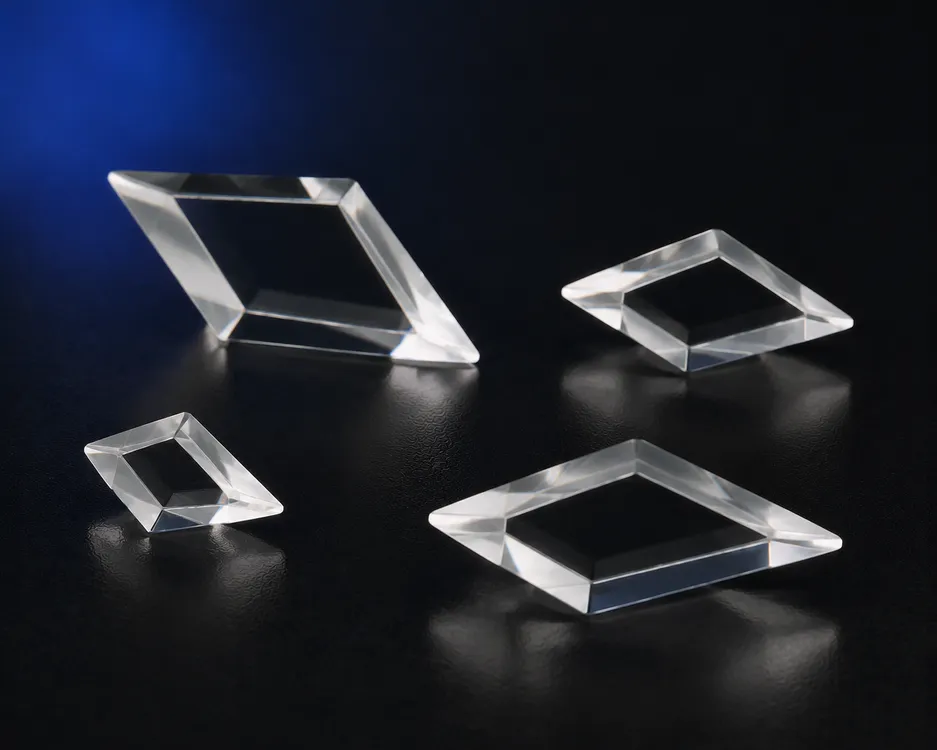

Rhomboid Prism
Rhomboid Prisms are precision optical components designed for lateral beam displacement while maintaining the original beam direction. The parallel entrance and exit faces allow light to be shifted without changing the image orientation. Chenyu Optics manufactures rhomboid prisms in BK7, fused silica and UV fused silica with custom dimensions and coatings.
Rhomboid Prism Overview
Rhomboid Prisms are precision optical components designed for lateral beam displacement while maintaining the original beam direction. The parallel entrance and exit faces allow light to be shifted without changing the image orientation.
They are commonly used in laser systems, optical alignment assemblies, imaging instruments and precision measurement equipment requiring controlled beam displacement. Unlike Dove prisms, rhomboid prisms do not rotate or invert the image.
Chenyu Optics supports custom rhomboid prism manufacturing according to customer drawings, including custom size, displacement distance and coating design for prototype and repeat production.
Key Advantages of Rhomboid Prism

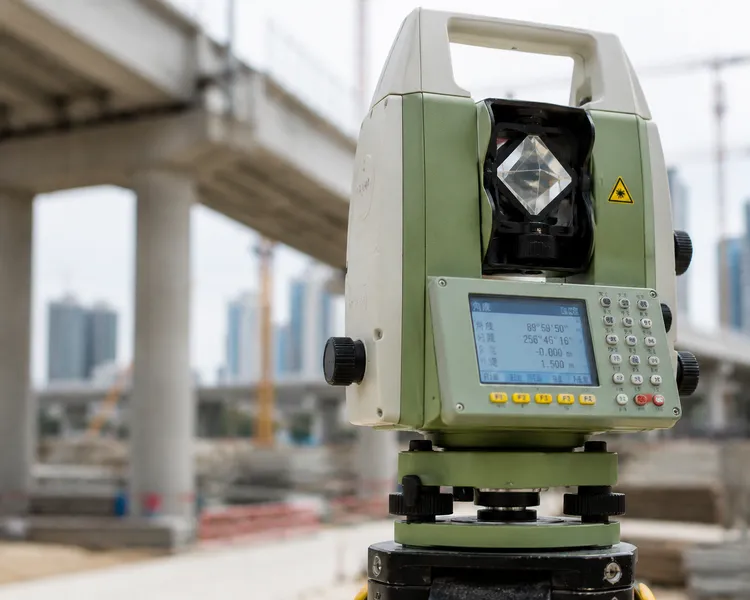

Laser Alignment & Beam Displacement
Rhomboid prisms are widely used for lateral beam displacement in laser optical assemblies, optical alignment systems and precision measurement equipment.
Typical Specifications of Rhomboid Prism
| Material Options | BK7, Fused Silica, UV Fused Silica |
|---|---|
| Optical Function | Beam displacement |
| Transmission | High optical transmission |
| Deviation Performance | Precision controlled |
| Surface Accuracy | λ/4 – λ/10 @ 633 nm |
| Surface Quality | 20-10, 40-20 scratch-dig |
| Angle Accuracy | Precision controlled |
| Dimensions | Custom sizes available |
| Edge Treatment | Fine ground, chamfered or polished |
| Coating Options | Uncoated, broadband AR, laser AR, mirror coating, UV AR, custom coating |
Rhomboid Prism Structure
Why Choose Chenyu Optics for Rhomboid Prism
Chenyu Optics focuses on drawing-based precision prism manufacturing for laser, alignment and measurement optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard rhomboid prisms.
Manufacturing Capability for Rhomboid Prism
Precision Polishing
Controlled polishing and angle processing for surface accuracy, surface quality and stable beam displacement performance.
Optical Coating
Broadband AR, laser AR, mirror and UV AR coating options for entrance and exit surfaces of visible and laser rhomboid prisms.
Inspection & Packaging
Dimensional inspection, angle verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Rhomboid Prism
Dimensions & Geometry
Custom size and displacement distance can be manufactured according to customer drawings, with precision-controlled angle tolerance.
Surface & Mechanical Quality
Surface accuracy, surface quality and angle accuracy can be selected according to optical performance and mounting structure.
Coating & Wavelength Design
Uncoated surfaces, broadband AR, laser AR, mirror and UV AR coatings can be specified for entrance and exit faces depending on the optical system.
Rhomboid Prism Material Comparison
| BK7 | Fused Silica | UV Fused Silica | |
|---|---|---|---|
| Transmission | Visible to near-infrared, limited UV performance | UV to NIR, depending on grade | Deep UV to visible, optimized UV transmission |
| Thermal Stability | Moderate thermal stability | Excellent, low thermal expansion | Excellent, low thermal expansion |
| Typical Use | General visible alignment and cost-sensitive systems | Laser systems, interferometry, broadband imaging | UV laser systems, UV alignment, analytical instruments |
| Selection Note | Preferred for general visible applications with lower cost requirements | Preferred when broadband UV-to-NIR performance is required | Preferred when deep UV transmission is required |
Applications of Rhomboid Prism
Beam Displacement Systems
Lateral beam shifting for optical path design applications.
Laser Optical Assemblies
Beam displacement and alignment for laser optical systems.
Optical Alignment Systems
Controlled beam displacement for precision alignment applications.
Imaging Instruments
Precision optical instruments requiring beam displacement without image rotation.
Interferometry Systems
Beam path shifting for interferometric measurement setups.
Machine Vision Systems
Optical path control for industrial machine vision applications.
Rhomboid Prism FAQ
What is the main function of a rhomboid prism?
A rhomboid prism shifts an optical beam laterally while maintaining the original beam direction and image orientation.
Can rhomboid prisms be used for laser applications?
Yes. They are commonly used for beam displacement and alignment in laser systems.
Does a rhomboid prism rotate the image?
No. Unlike Dove prisms, rhomboid prisms provide beam displacement without image rotation.
Can custom rhomboid prisms be manufactured?
Yes. Custom sizes, materials, angular tolerances and optical coatings are available.
What information should I provide for a quotation?
Please provide material, dimensions, displacement distance, surface quality, surface accuracy, angle tolerance, coating requirement, quantity and drawing if available.
Where can I learn more about optical prisms?
Additional optical prism information can be found from Edmund Optics.
Related Products for Rhomboid Prism
Need Custom Rhomboid Prisms?
Send us your drawing, material preference, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable rhomboid prism manufacturing suggestion.
