Germanium (Ge) Optical Windows
Chenyu Optics manufactures Germanium optical windows for thermal imaging, infrared cameras, MWIR/LWIR optical assemblies and industrial IR sensing systems. Available uncoated or with AR, BBAR, dual-band AR and DLC protective coatings.
Germanium Optical Windows Overview
Germanium (Ge) optical windows are precision infrared optical components used to transmit mid-wave infrared and long-wave infrared wavelengths while protecting detectors, lenses and sensor assemblies from external environments.
Germanium is selected for thermal imaging systems because it provides useful transmission from approximately 2 μm to 14 μm and has a high refractive index near 4.0. It is opaque in the visible spectrum, which helps block unwanted visible light in infrared detector systems.
Chenyu Optics supports custom Germanium window manufacturing according to drawings, including round, square, rectangular and special-shaped components. Surface quality, flatness, parallelism, thickness, chamfer, clear aperture and coating design can be specified for prototype and batch production.
Key Advantages of Germanium Optical Windows

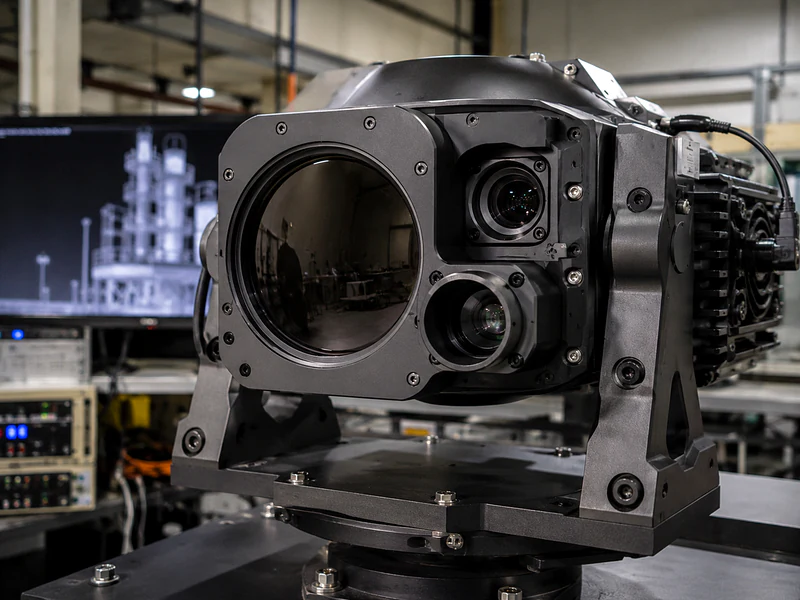

MWIR & LWIR Infrared Imaging
Germanium windows are widely used as protective or internal optical elements in thermal cameras, infrared surveillance systems, spectroscopy instruments and industrial IR monitoring modules.
Typical Specifications of Germanium Optical Windows
| Material | Optical Grade Germanium / Ge |
|---|---|
| Material Type | Monocrystalline or polycrystalline Germanium |
| Transmission Range | Approx. 2 – 14 μm, depending on thickness and coating |
| Refractive Index | Approx. 4.003 @ 10.6 μm |
| Density | Approx. 5.33 g/cm³ |
| Knoop Hardness | Approx. 780 kg/mm² |
| Surface Quality | 20-10, 40-20, 60-40 or custom |
| Surface Flatness | Up to λ/10 @ 10.6 μm or drawing-based |
| Parallelism | ≤ 30 arcsec, ≤ 3 arcmin or custom |
| Diameter / Size | Custom round, square, rectangular or special-shaped windows |
| Thickness Tolerance | ±0.1 mm, ±0.05 mm or custom |
| Clear Aperture | ≥90% of diameter or drawing-based |
| Chamfer | 0.1 – 0.3 mm × 45° or drawing-based |
| Coating Options | Uncoated, AR, BBAR 3–5 μm, BBAR 8–12 μm, dual-band AR, DLC protective coating |

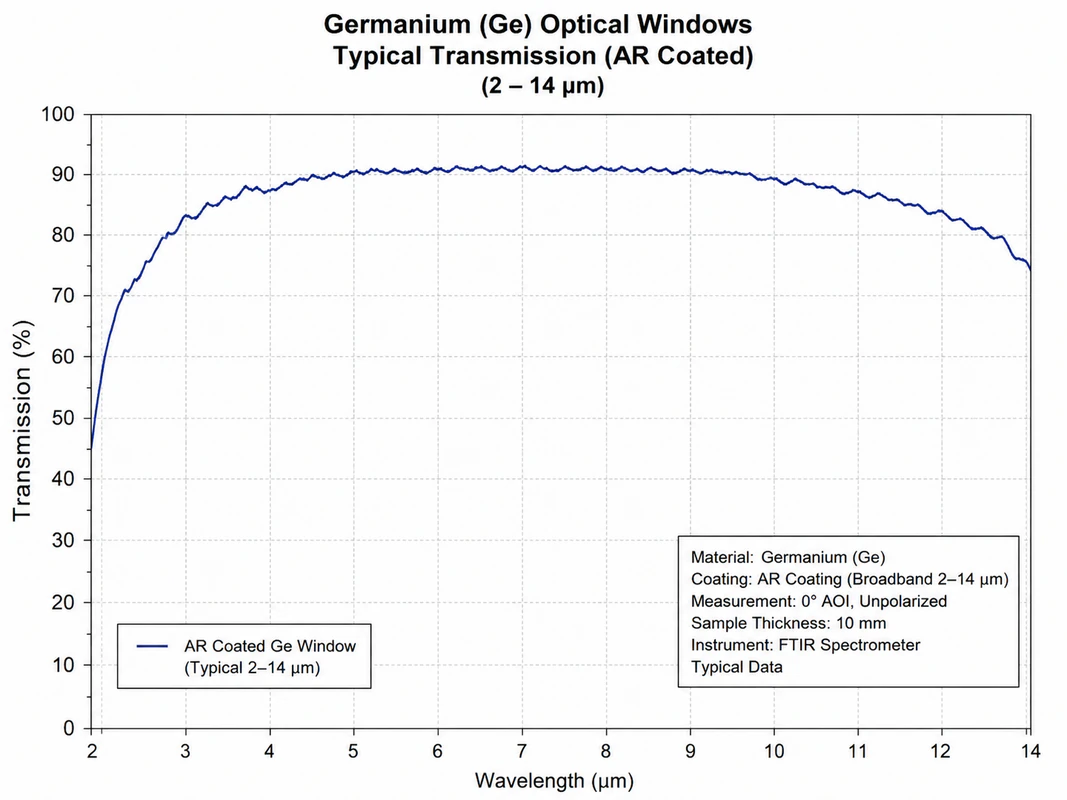

Optical Transmission Characteristics of Germanium Optical Windows
Why Choose Chenyu Optics for Germanium Optical Windows
Chenyu Optics focuses on drawing-based infrared optical component manufacturing for industrial, imaging and precision optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Germanium windows.
Manufacturing Capability for Germanium Optical Windows
Precision Polishing
Controlled lapping and polishing for flatness, surface quality, wedge control and low-scatter infrared optical surfaces.
Optical Coating
AR, BBAR, dual-band AR and DLC coating options for MWIR, LWIR and external-facing infrared window applications.
Inspection & Packaging
Dimensional inspection, surface review, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Germanium Optical Windows
Dimensions & Geometry
Round, square, rectangular, wedged and special-shaped Germanium windows can be manufactured according to customer drawings, including custom clear aperture, edge form and mounting requirements.
Surface & Mechanical Quality
Surface quality, flatness, parallelism, wedge, chamfer and dimensional tolerances can be selected according to imaging performance, sealing method and assembly structure.
Coating & Wavelength Design
Uncoated, single-band AR, broadband AR, dual-band AR and DLC protective coatings can be specified for MWIR, LWIR or field-exposed systems.
Germanium Optical Windows Material Comparison
| Material | Germanium (Ge) | Silicon | Zinc Selenide (ZnSe) | Calcium Fluoride (CaF₂) |
|---|---|---|---|---|
| Transmission | MWIR to LWIR, approx. 2 – 14 μm | Near-IR to MWIR, commonly 1.2 – 7 μm | Visible to far IR, commonly 0.6 – 20 μm | UV to MWIR, commonly 0.18 – 8 μm |
| Visible Transmission | Opaque in visible wavelengths | Opaque in visible wavelengths | Transmits visible red and infrared wavelengths | High visible transmission |
| Mechanical Notes | High density, good rigidity, brittle material | Lighter than Germanium, hard and stable | Softer material, requires careful handling | Lower hardness, sensitive to thermal shock |
| Typical Use | Thermal imaging windows, LWIR optics, IR sensors | MWIR windows, IR filters, lightweight assemblies | CO₂ laser optics, IR windows, multispectral optics | UV, visible, NIR and MWIR optical systems |
Applications of Germanium Optical Windows
Thermal Imaging
Protective windows for cooled and uncooled infrared camera systems.
MWIR Systems
Infrared optical assemblies operating in the 3–5 μm atmospheric band.
LWIR Systems
Long-wave infrared imaging and sensing systems operating in the 8–12 μm band.
Infrared Cameras
Objective windows and protective elements for thermal imaging cameras.
Infrared Spectroscopy
Sample cell windows and isolation plates for IR analysis instruments.
Industrial Monitoring
IR windows for furnace monitoring, process inspection and non-contact thermography.
Germanium Optical Windows FAQ
What wavelength range do Germanium optical windows transmit?
Germanium windows are commonly used from approximately 2 μm to 14 μm. Actual transmission depends on material quality, thickness, coating design, temperature and measurement conditions.
Why do Germanium windows usually need AR coating?
Germanium has a high refractive index near 4.0, which causes significant Fresnel reflection on uncoated surfaces. AR or BBAR coating is normally used to improve system transmission in the MWIR or LWIR band.
Can Germanium optical windows be used in visible alignment systems?
No. Germanium is opaque in the visible spectrum and appears dark metallic to the eye. If visible alignment is required, materials such as ZnSe or multispectral ZnS may be considered.
Is DLC coating available for Germanium optical windows?
Yes. DLC coating can be applied to the external-facing surface when improved abrasion resistance and environmental protection are required. The opposite surface is often AR or BBAR coated.
What temperature limitation should be considered for Germanium?
Germanium has a high temperature-dependent refractive index and increased absorption at elevated temperatures. It is generally not recommended for high-temperature optical paths without proper thermal design.
What information should I provide for a quotation?
Please provide diameter or size, thickness, clear aperture, surface quality, flatness, parallelism, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about infrared optical materials?
Additional infrared material information can be found from Edmund Optics.
Related Products for Germanium Optical Windows
Need Custom Germanium Optical Windows?
Send us your drawing, wavelength range, size, thickness, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Germanium window manufacturing suggestion.
