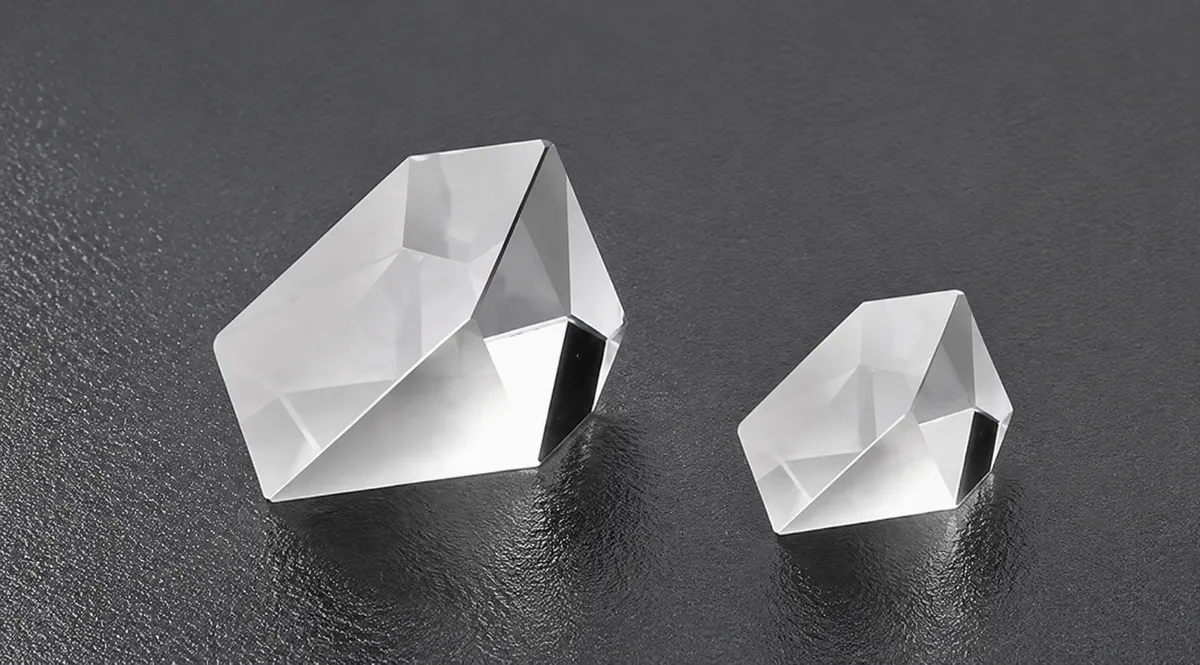

Schmidt Prism
Schmidt Prisms are precision optical components used for image rotation, beam deviation and compact optical path folding in imaging systems. Chenyu Optics manufactures Schmidt Prisms with high angular accuracy, precision optical surfaces and optional AR coatings for binoculars, telescopes and optical instruments.
Schmidt Prisms Overview
Schmidt Prisms are precision optical components used for image rotation, image inversion and optical path folding in compact imaging systems.
They are commonly selected for optical viewing systems because they provide accurate image orientation, efficient light path design and stable optical performance. They are widely used in binoculars, telescopes, periscopes and precision imaging instruments requiring compact optical configurations.
Chenyu Optics supports custom Schmidt Prism manufacturing according to customer drawings, including different sizes, materials and configurations. Surface quality, angular accuracy, flatness, dimensions, clear aperture and coating design can be specified for prototype and repeat production.
Key Advantages of Schmidt Prisms
Compact Image Rotation & Optical Instrument Assembly

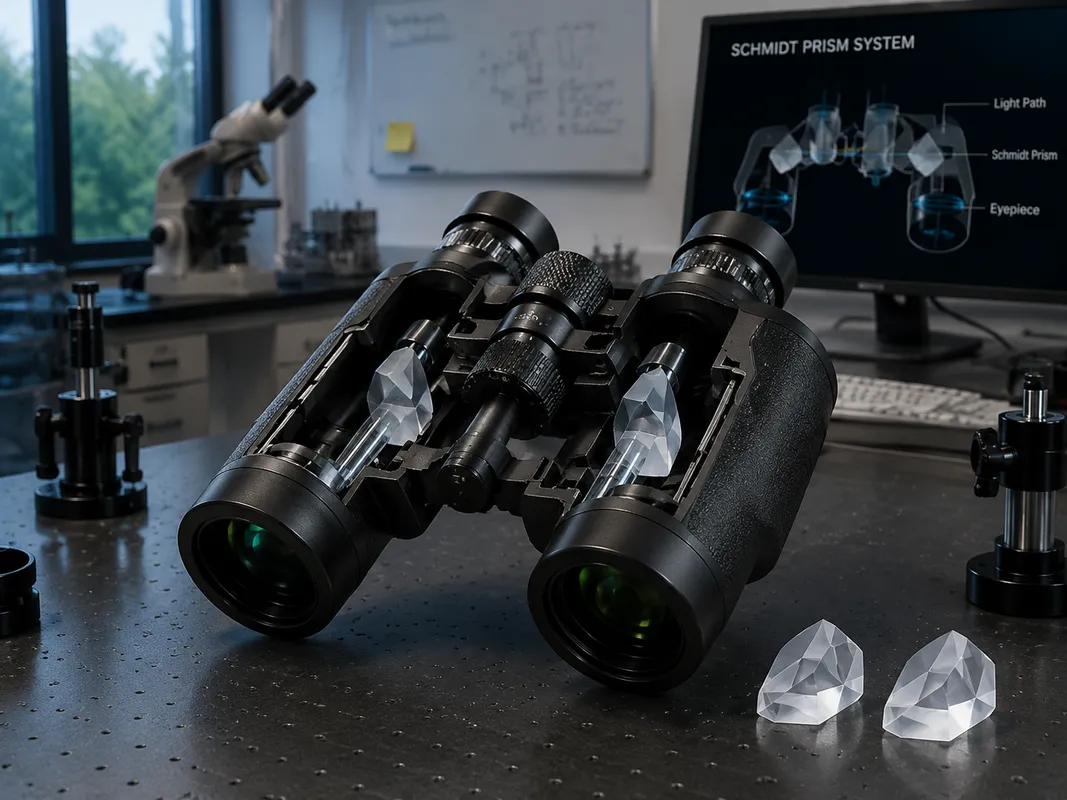

Schmidt Prisms are widely used as image-rotating elements in binoculars, telescopes, periscopes and other compact viewing instruments that require efficient optical path folding.
Typical Specifications of Schmidt Prisms
| Material | Optical Grade Glass / BK7 |
|---|---|
| Material Type | BK7, Fused Silica or Optical Glass |
| Transmission Range | Approx. 350 nm – 2500 nm, depending on material grade, thickness and coating |
| Refractive Index | Approx. 1.516 @ 589 nm (BK7) |
| Density | Approx. 2.51 g/cm³ (BK7) |
| Prism Type | Image rotation and beam deviation prism design |
| Angular Accuracy | ≤ 3 arcmin or custom |
| Surface Quality | 20-10, 40-20, 60-40 or custom |
| Surface Flatness | Up to λ/10 @ 633 nm or drawing-based |
| Image Orientation | Image inversion and rotation capability |
| Parallelism | ≤ 3 arcmin or custom |
| Size / Dimension | Custom round, square, rectangular or special-shaped prisms |
| Dimensional Tolerance | ±0.1 mm, ±0.05 mm or custom |
| Clear Aperture | ≥85% of prism area or drawing-based |
| Chamfer | 0.1 – 0.3 mm × 45° or drawing-based |
| Coating Options | Uncoated, AR, broadband AR, laser coating, custom coating |

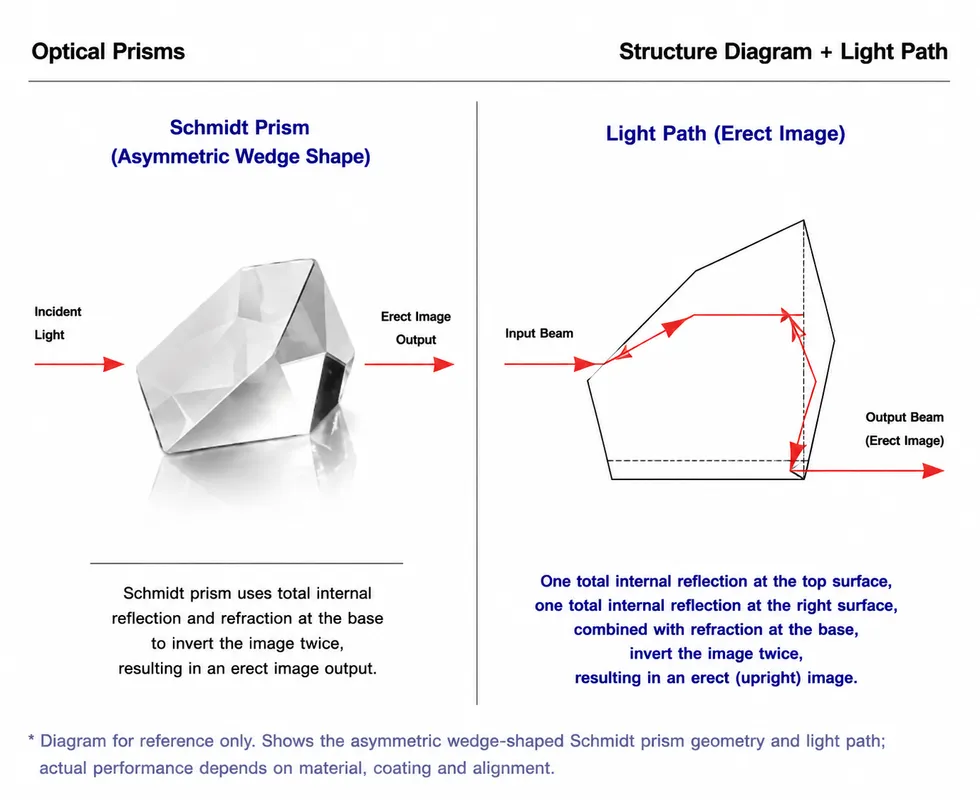

Schmidt Prism Structure
Why Choose Chenyu Optics for Schmidt Prisms
Chenyu Optics focuses on drawing-based precision optical component manufacturing for imaging, viewing and instrument-grade optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Schmidt Prisms.
Manufacturing Capability for Schmidt Prisms
Precision Polishing
Controlled lapping and polishing for roof angle accuracy, surface quality, flatness control and low-scatter optical surfaces.
Optical Coating
AR, broadband AR and laser coating options for improved transmission and durability in viewing and imaging systems.
Inspection & Packaging
Dimensional inspection, angle verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Schmidt Prisms
Dimensions & Geometry
Custom-sized and special-shaped Schmidt Prisms can be manufactured according to customer drawings, including custom clear aperture, edge form and mounting requirements.
Surface & Mechanical Quality
Surface quality, roof angle accuracy, flatness, chamfer and dimensional tolerances can be selected according to imaging performance, sealing method and assembly structure.
Coating & Application Design
Uncoated, AR, broadband AR and laser coatings can be specified for binoculars, telescopes, periscopes or other viewing and instrument systems.
Schmidt Prisms vs Other Prism Types
| Schmidt Prism | Porro Prism | Roof Prism | Penta Prism | Corner Cube Prism | |
|---|---|---|---|---|---|
| Function | Image rotation and beam deviation in a compact form factor | Image inversion and rotation via two reflecting surfaces | Image erection with a compact, straight-through path | Beam deviation by a constant 90° without image reversal | Retroreflection, returning light parallel to the incoming beam |
| Optical Path | Compact folded path, often paired with a second prism for full erection | Folded, offset entrance and exit axes | Compact in-line entrance and exit axes | Fixed 90° deviation, insensitive to input tilt | Beam returned along a reversed parallel path |
| Mechanical Notes | Roof-edge precision required, compact and lightweight | Simple geometry, cost-effective to manufacture | Higher manufacturing precision required for the roof edge | Robust, stable construction for alignment-critical setups | Precise apex angle required for accurate retroreflection |
| Typical Use | Binoculars, telescopes, periscopes | Binoculars, monoculars, rangefinders | Compact binoculars, rifle scopes, surveying instruments | Rangefinders, alignment systems, surveying instruments | Laser tracking, retroreflectors, alignment systems |
Applications of Schmidt Prisms
Binoculars
Image-rotating prisms for compact binocular optical systems.
Telescopes
Image inversion and rotation elements for terrestrial viewing telescopes.
Periscopes
Compact optical path folding for periscope and indirect-view systems.
Optical Instruments
Image orientation elements for viewing and observation instruments.
Rangefinders
Optical path folding and image orientation for handheld and mounted rangefinders.
Rifle Scopes
Compact prism assemblies for image-erecting optical sighting systems.
Schmidt Prisms FAQ
What is a Schmidt Prism used for?
A Schmidt Prism is used to rotate and invert an image while folding the optical path, commonly as part of compact image-erecting prism systems in binoculars, telescopes and periscopes.
What is the difference between a Schmidt Prism and a Porro Prism?
A Schmidt Prism provides a compact, in-line optical path suited to slim viewing instruments, while a Porro Prism uses an offset optical path and is generally simpler and lower cost to manufacture.
What materials are Schmidt Prisms made from?
Schmidt Prisms are commonly manufactured from BK7 optical glass, fused silica or other optical glass, depending on the required transmission range, mechanical strength and application.
Do Schmidt Prisms require AR coating?
AR or broadband AR coating is recommended for most viewing and imaging systems to reduce Fresnel reflection loss and improve overall optical transmission.
Can Schmidt Prisms be custom manufactured to a drawing?
Yes. Chenyu Optics manufactures Schmidt Prisms according to customer drawings, including custom size, roof angle accuracy, surface quality and coating requirements.
What information should I provide for a quotation?
Please provide dimensions, roof angle accuracy, surface quality, flatness, clear aperture, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about optical prisms?
Additional optical prism information can be found from Edmund Optics.
Related Products for Schmidt Prisms
Need Custom Schmidt Prisms?
Send us your drawing, size, roof angle accuracy, surface quality, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Schmidt Prism manufacturing suggestion.
