Corner Cube Prism

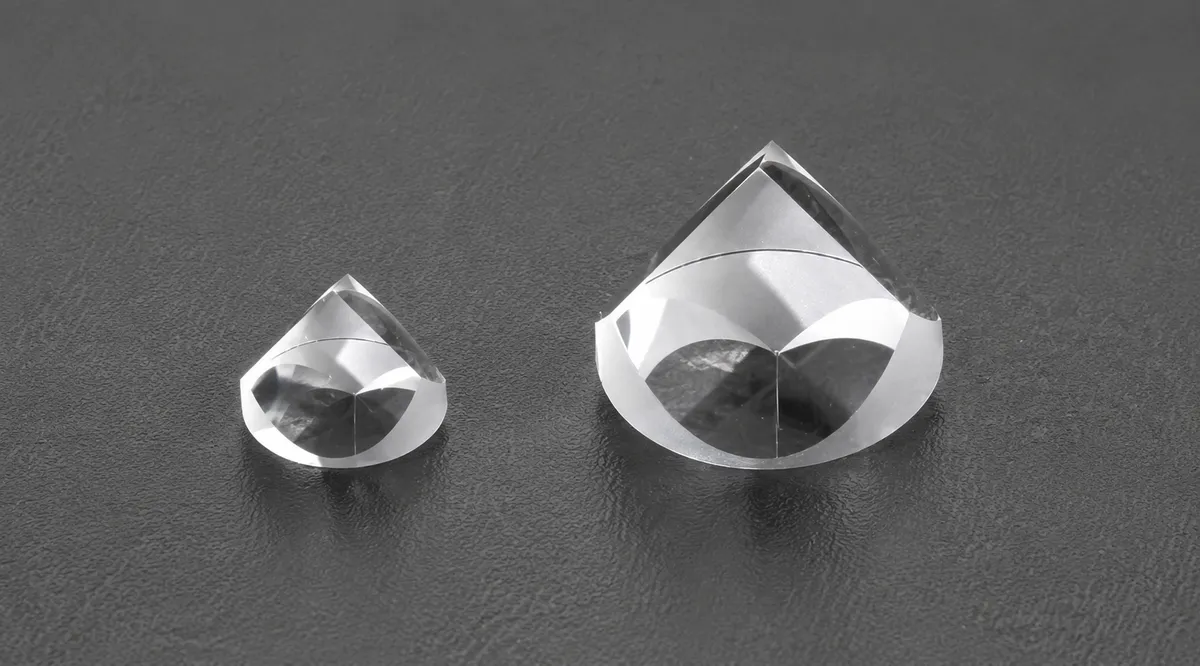

Corner Cube Prisms are precision optical components used for retroreflection, beam return and accurate optical alignment in measurement and laser systems. Chenyu Optics manufactures Corner Cube Prisms with high angular accuracy, precision optical surfaces and optional AR coatings for ranging, surveying and optical instruments.
Corner Cube Prisms Overview
Corner Cube Prisms are precision optical components used to provide accurate retroreflection, returning incident light back toward the source while maintaining stable optical alignment.
They are commonly selected for laser and measurement systems because they provide reliable beam return performance, high angular accuracy and alignment-free reflection. They are widely used in laser ranging, surveying equipment, tracking systems and precision optical instruments requiring consistent retroreflection.
Chenyu Optics supports custom Corner Cube Prism manufacturing according to customer drawings, including different sizes, materials and configurations. Surface quality, angular accuracy, flatness, dimensions, clear aperture and coating design can be specified for prototype and repeat production.
Key Advantages of Corner Cube Prisms
Retroreflection & Alignment-Free Beam Return
Corner Cube Prisms are widely used as retroreflective elements in laser ranging systems, surveying targets and tracking instruments that require accurate beam return without precise angular alignment.
Typical Specifications of Corner Cube Prisms
| Material | Optical Grade Glass / BK7 |
|---|---|
| Material Type | BK7, Fused Silica or UV-grade Optical Glass |
| Transmission Range | Approx. 350 nm – 2500 nm, depending on material grade, thickness and coating |
| Refractive Index | Approx. 1.516 @ 589 nm (BK7) |
| Density | Approx. 2.51 g/cm³ (BK7) |
| Reflection Type | Total Internal Reflection (TIR) |
| Retroreflection Angular Accuracy | ≤ 3 arcsec or custom |
| Surface Quality | 20-10, 40-20, 60-40 or custom |
| Surface Flatness | Up to λ/10 @ 633 nm or drawing-based |
| Beam Deviation | 180° beam return with high angular stability |
| Size / Dimension | Custom round, square, rectangular or special-shaped prisms |
| Dimensional Tolerance | ±0.1 mm, ±0.05 mm or custom |
| Clear Aperture | ≥85% of prism area or drawing-based |
| Chamfer | 0.1 – 0.3 mm × 45° or drawing-based |
| Coating Options | Uncoated, AR, broadband AR, laser wavelength coating, custom coating |

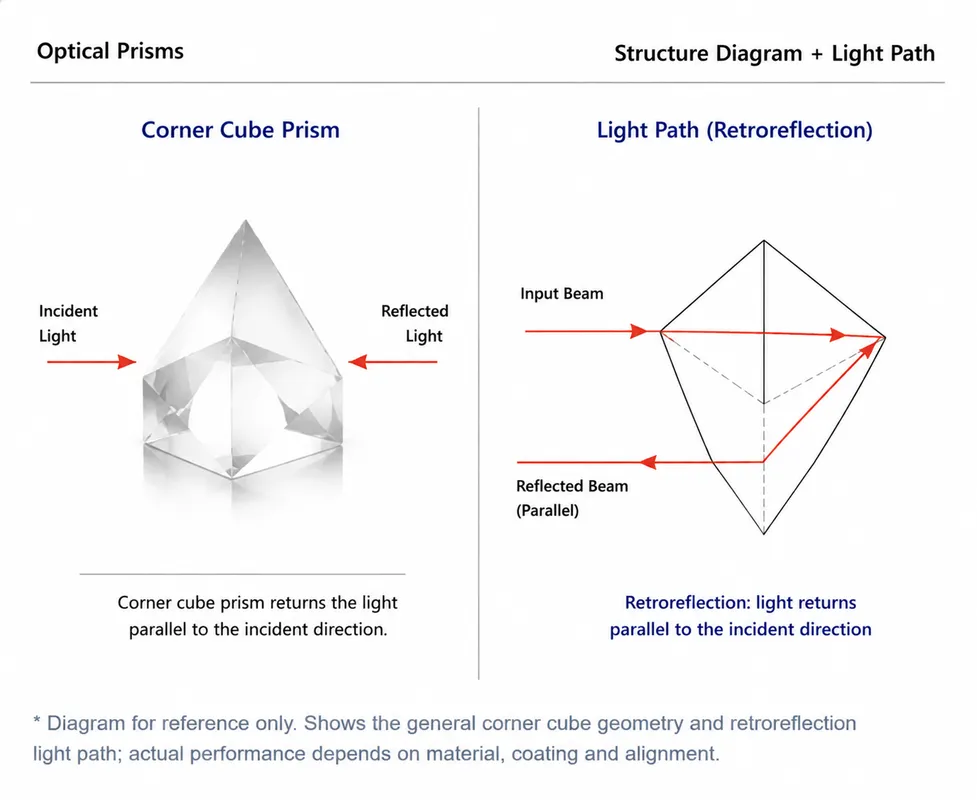

Corner Cube Prism Structure
Why Choose Chenyu Optics for Corner Cube Prisms
Chenyu Optics focuses on drawing-based precision optical component manufacturing for laser, measurement and alignment-critical optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Corner Cube Prisms.
Manufacturing Capability for Corner Cube Prisms
Precision Polishing
Controlled lapping and polishing for angular accuracy, surface quality, flatness control and low-scatter optical surfaces.
Optical Coating
AR, broadband AR and laser wavelength coating options for improved transmission and durability in ranging and alignment systems.
Inspection & Packaging
Dimensional inspection, angular accuracy verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Corner Cube Prisms
Dimensions & Geometry
Round, square, rectangular and special-shaped Corner Cube Prisms can be manufactured according to customer drawings, including custom clear aperture, edge form and mounting requirements.
Surface & Mechanical Quality
Surface quality, retroreflection angular accuracy, flatness, chamfer and dimensional tolerances can be selected according to ranging performance, sealing method and assembly structure.
Coating & Application Design
Uncoated, AR, broadband AR and laser wavelength coatings can be specified for laser ranging, surveying or tracking systems.
Corner Cube Prisms vs Other Prism Types
| Corner Cube Prism | Porro Prism | Roof Prism | Penta Prism | Wedge Prism | |
|---|---|---|---|---|---|
| Function | Retroreflection, returning light parallel to the incoming beam | Image inversion and rotation via two reflecting surfaces | Image erection with a compact, straight-through path | Beam deviation by a constant 90° without image reversal | Small, adjustable beam deviation or steering |
| Optical Path | Beam returned along a reversed parallel path | Folded, offset entrance and exit axes | Compact in-line entrance and exit axes | Fixed 90° deviation, insensitive to input tilt | Slight angular displacement of the beam |
| Mechanical Notes | Precise apex angle required for accurate retroreflection | Simple geometry, cost-effective to manufacture | Higher manufacturing precision required for the roof edge | Robust, stable construction for alignment-critical setups | Thin, lightweight form factor |
| Typical Use | Laser tracking, retroreflectors, alignment systems | Binoculars, monoculars, rangefinders | Compact binoculars, rifle scopes, surveying instruments | Rangefinders, alignment systems, surveying instruments | Beam steering, optical alignment, laser systems |
Applications of Corner Cube Prisms

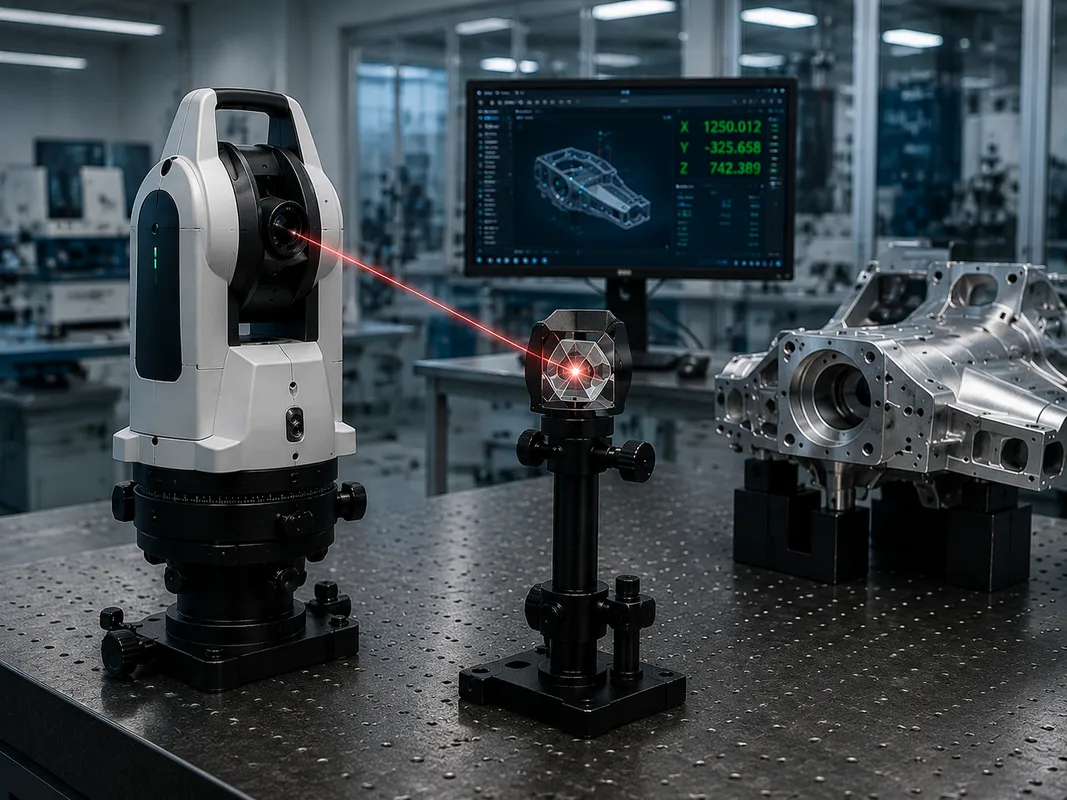

Laser Ranging
Retroreflective targets for laser distance measurement and ranging systems.
Surveying Instruments
Reflector prisms for total stations, levels and precision surveying equipment.
Tracking Systems
Stable beam return elements for optical and laser tracking applications.
Retroreflectors
Corner cube arrays and single-element retroreflectors for measurement targets.
Optical Alignment
Alignment-free reflection elements for optical test and calibration setups.
Measurement Equipment
Corner Cube Prisms for interferometers, distance meters and metrology instruments.
Corner Cube Prisms FAQ
What is a Corner Cube Prism used for?
A Corner Cube Prism is used to reflect incoming light directly back toward its source, making it useful for laser ranging, surveying targets, tracking systems and optical alignment.
Why is a Corner Cube Prism alignment-free?
The three mutually perpendicular reflecting faces return light parallel to the incoming beam over a range of incidence angles, so precise angular alignment of the prism is not required.
What materials are Corner Cube Prisms made from?
Corner Cube Prisms are commonly manufactured from BK7 optical glass, fused silica or UV-grade optical glass, depending on the required transmission range and application.
Do Corner Cube Prisms require AR coating?
AR or broadband AR coating is recommended for most laser and measurement systems to reduce Fresnel reflection loss and improve overall optical transmission.
How accurate is the retroreflection of a Corner Cube Prism?
Retroreflection angular accuracy is typically specified to within a few arcseconds, with tighter tolerances available for high-precision laser ranging and metrology applications.
What information should I provide for a quotation?
Please provide dimensions, retroreflection angular accuracy, surface quality, flatness, clear aperture, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about optical prisms?
Additional optical prism information can be found from Edmund Optics.
Related Products for Corner Cube Prisms
Need Custom Corner Cube Prisms?
Send us your drawing, size, retroreflection angular accuracy, surface quality, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Corner Cube Prism manufacturing suggestion.
