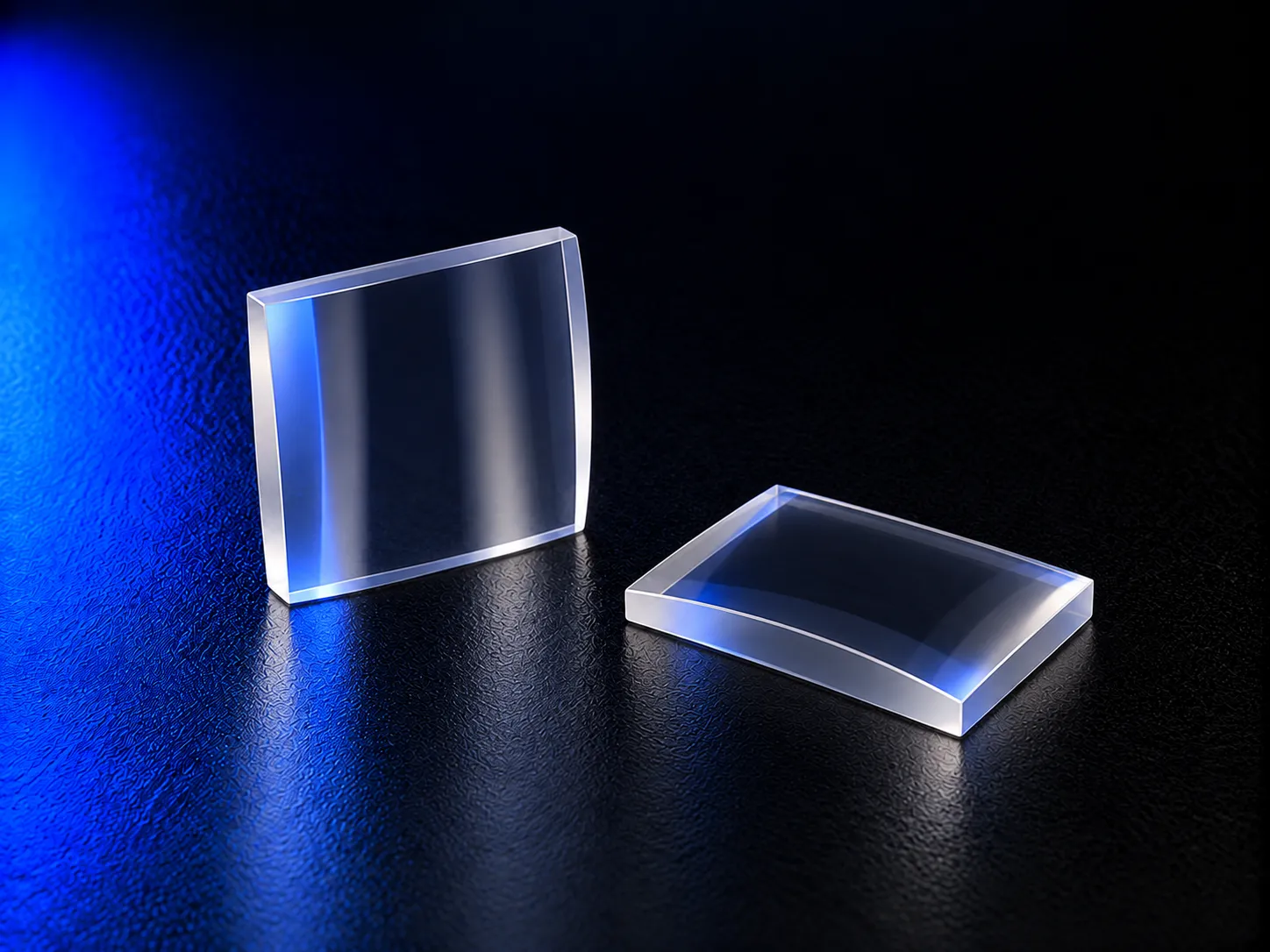

Cross Cylindrical Lens
Cross Cylindrical Lenses are precision optical components designed for two-dimensional beam shaping, line generation and optical focusing applications in laser systems, imaging systems and machine vision equipment. By combining two cylindrical optical surfaces with perpendicular axes, these lenses provide independent control of light distribution in two orthogonal directions. Chenyu Optics manufactures cross cylindrical lenses in optical glass, fused silica and custom optical materials, uncoated or with AR, broadband AR, UV AR and NIR AR coatings.
Cross Cylindrical Lens Overview
Cross Cylindrical Lenses are precision optical components designed for two-dimensional beam shaping, line generation and optical focusing applications in laser systems, imaging systems and machine vision equipment.
By combining two cylindrical optical surfaces with perpendicular axes, cross cylindrical lenses provide independent control of light distribution in two orthogonal directions, enabling precise beam expansion, shaping and illumination control. They are widely used in laser line generation systems, machine vision lighting, optical measurement equipment and scientific optical instruments where accurate beam shaping is required.
Chenyu Optics supports custom cross cylindrical lens manufacturing according to customer drawings, including custom focal length, cylindrical axis orientation, dimensions and coating design for prototype and repeat production.
Key Advantages of Cross Cylindrical Lens

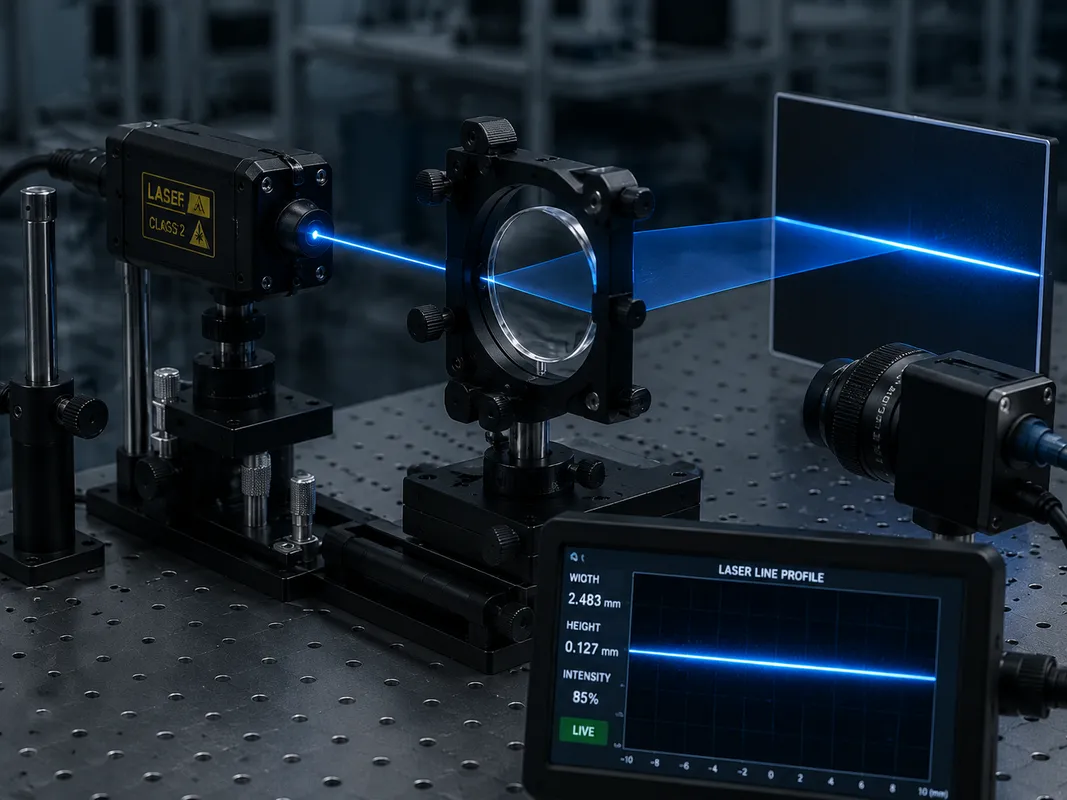

Laser Line Generation & Machine Vision Systems
Cross cylindrical lenses are widely used for two-dimensional beam shaping in laser line generation systems, machine vision lighting and optical measurement equipment.
Typical Specifications of Cross Cylindrical Lens
| Material Options | Optical Glass (BK7, N-BK7) / Fused Silica / Custom Optical Material Available |
|---|---|
| Optical Function | Beam shaping, line generation, focusing and light distribution control |
| Coating Options | Uncoated / AR Coating / Broadband AR Coating / UV AR Coating / NIR AR Coating / Custom Optical Coating |
| Optical Characteristics | Dual-axis cylindrical focusing, high transmission, low distortion, precise beam shaping, excellent optical surface quality |
| Focal Length | Custom |
| Cylindrical Axis | Custom |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Working Distance | Custom |

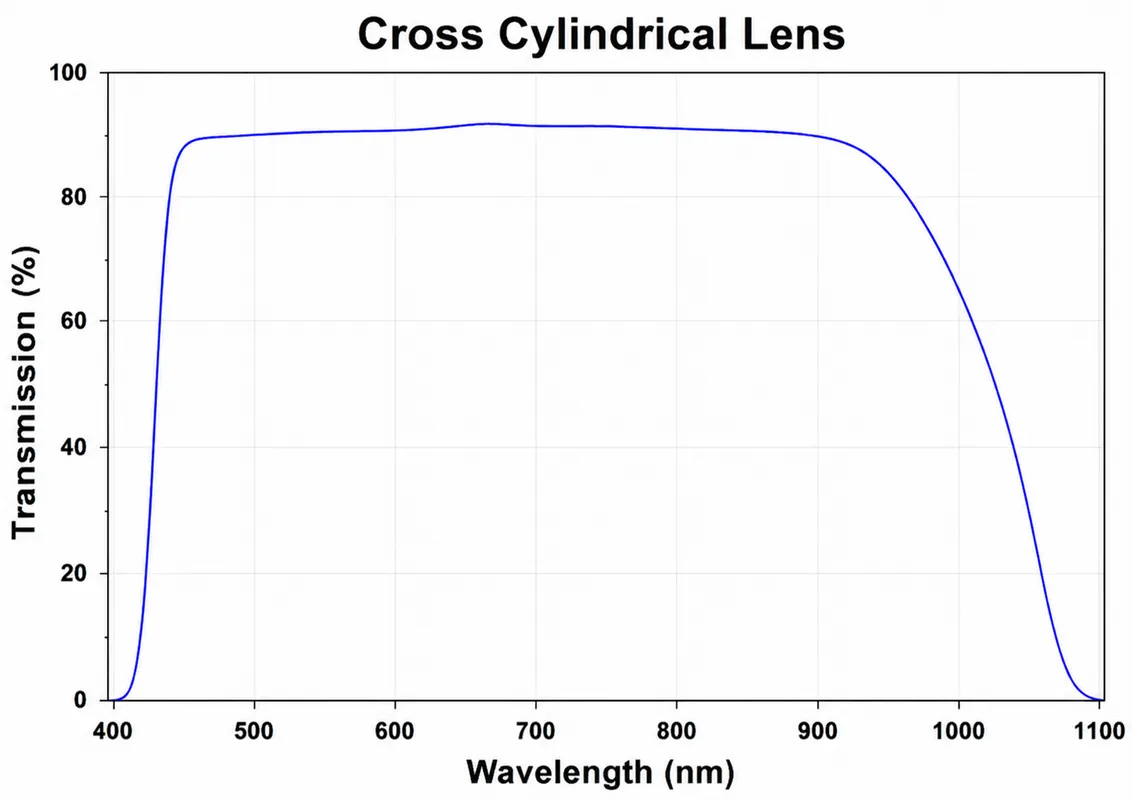

Lens Geometry & Optical Principle
Why Choose Chenyu Optics for Cross Cylindrical Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for beam shaping and illumination control systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard cross cylindrical lenses.
Manufacturing Capability for Cross Cylindrical Lens
Precision Cylindrical Polishing
Precise cylindrical surface machining, axis alignment and polishing to achieve accurate beam shaping and line uniformity.
Optical Coating
AR, broadband AR, UV AR and NIR AR coating options for laser, imaging and illumination applications.
Inspection & Packaging
Dimensional inspection, axis orientation review, optical performance testing and protective packaging before shipment.
Custom Manufacturing Options for Cross Cylindrical Lens
Focal Length & Axis Orientation
Custom focal length, cylindrical axis orientation and dimensions can be manufactured according to customer drawings and optical design requirements.
Surface & Optical Quality
Surface flatness of λ/4 to λ/10 and surface quality of 60-40 to 10-5 can be selected according to beam shaping and illumination performance requirements.
Material & Coating Design
Optical glass, fused silica and custom optical materials can be selected, with AR, broadband AR, UV AR, NIR AR and custom optical coatings available.
Cylindrical Lens Type Comparison
| Cross Cylindrical Lens | Single-Axis Cylindrical Lens | Spherical Lens | Custom Aspheric Lens | |
|---|---|---|---|---|
| Beam Control | Independent focusing/shaping in two orthogonal directions | Focusing/shaping in a single direction only | Uniform focusing in both axes (rotationally symmetric) | Aberration-corrected focusing along a single optical axis |
| Optical Function | Dual-axis beam shaping, line generation, illumination control | Line generation, one-dimensional beam expansion | General-purpose focusing and imaging | High-precision focusing with reduced spherical aberration |
| Design Complexity | Higher, two perpendicular cylindrical surfaces | Lower, single cylindrical surface | Standard spherical surface design | Higher, non-spherical surface profile |
| Typical Use | Machine vision lighting, laser line generation, beam shaping | Laser line projection, one-dimensional expansion | General imaging and focusing systems | Compact high-performance imaging and laser systems |
Applications of Cross Cylindrical Lens
Laser Beam Shaping Systems
Two-dimensional beam profile control for laser optical systems.
Laser Line Generation Systems
Precision line generation for alignment and measurement applications.
Machine Vision Illumination
Uniform illumination shaping for machine vision lighting systems.
Optical Measurement Equipment
Accurate beam shaping for optical measurement instruments.
Barcode Scanning Systems
Line-shaped beam generation for barcode and code-reading systems.
Scientific Research Instruments
Precision beam shaping for research and laboratory optical setups.
Cross Cylindrical Lens FAQ
What is the function of a cross cylindrical lens?
A cross cylindrical lens is used to control and reshape light in two perpendicular directions, enabling beam shaping, line generation and illumination control.
How does a cross cylindrical lens work?
A cross cylindrical lens combines two cylindrical optical surfaces with different orientations to independently modify beam expansion and focusing characteristics along two axes.
What materials are available for cross cylindrical lenses?
Cross cylindrical lenses can be manufactured from optical glass, BK7, N-BK7, fused silica and other custom optical materials depending on wavelength and application requirements.
Can custom cross cylindrical lenses be manufactured?
Yes. Chenyu Optics provides customized cross cylindrical lenses with different focal lengths, cylindrical orientations, dimensions, materials, coatings and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide focal length, cylindrical axis orientation, diameter, thickness, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about lens design?
Additional information on lens design can be found from Edmund Optics.
Related Products for Cross Cylindrical Lens
Need Custom Cross Cylindrical Lenses?
Send us your drawing, focal length, cylindrical axis orientation, dimensions and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable cross cylindrical lens manufacturing suggestion.
