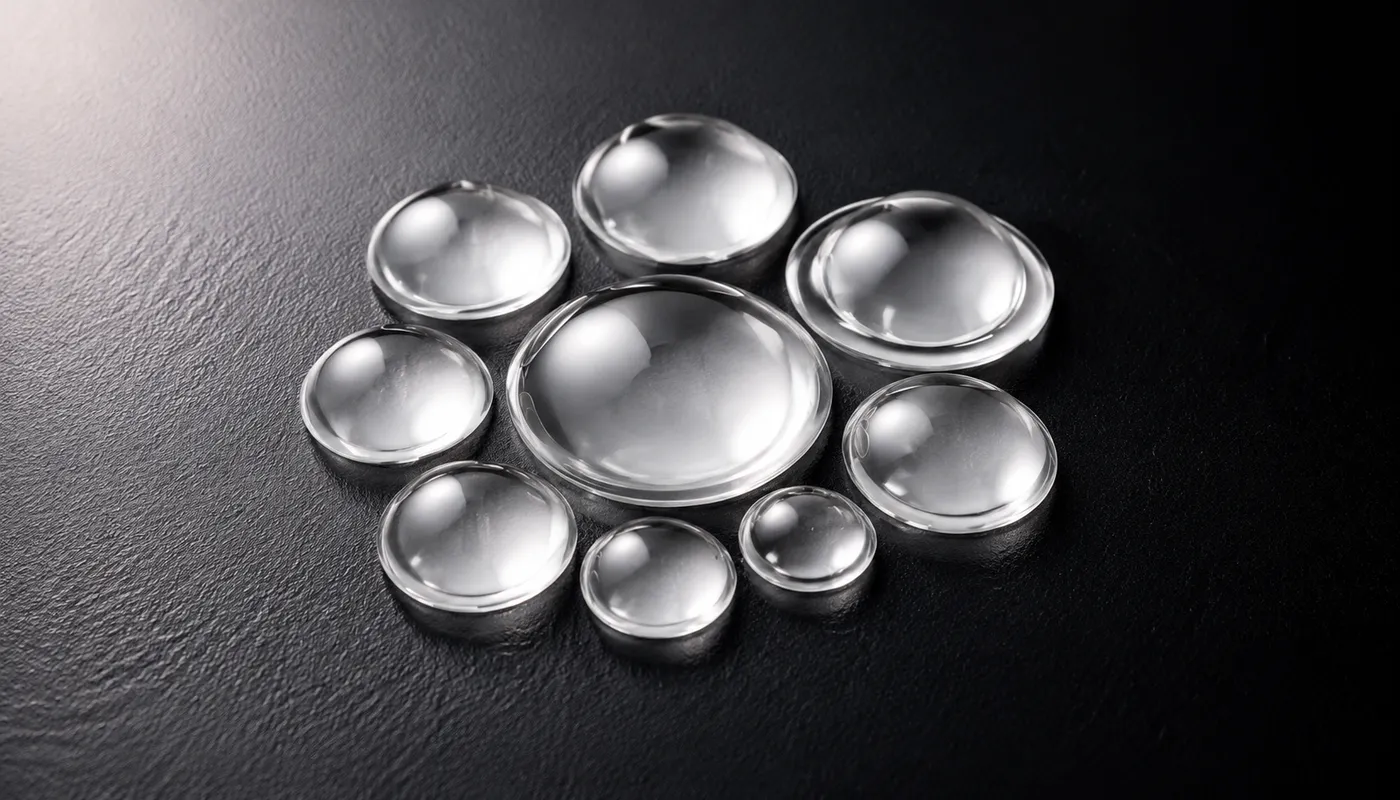

LED Optical Lens
LED Optical Lenses are precision optical components designed for light collection, beam shaping and illumination control applications in LED lighting systems, display equipment and optical devices. Manufactured from optical glass, PMMA, optical-grade plastic and fused silica, these lenses improve light utilization efficiency, control beam angles and achieve uniform illumination performance. Chenyu Optics manufactures LED optical lenses uncoated or with AR, broadband AR and protective coatings for lighting, imaging and optical sensing applications.
LED Optical Lens Overview
LED Optical Lenses are precision optical components designed for light collection, beam shaping and illumination control applications in LED lighting systems, display equipment and optical devices.
By using high-quality optical materials with optimized lens designs, LED optical lenses improve light utilization efficiency, control beam angles and achieve uniform illumination performance. They are widely used in LED lighting systems, automotive lighting, machine vision lighting, projection systems and optical sensing equipment where accurate light distribution and high optical efficiency are required.
Chenyu Optics supports custom LED optical lens manufacturing according to customer drawings, including custom beam angle, focal length, material and coating design for prototype and repeat production.
Key Advantages of LED Optical Lens

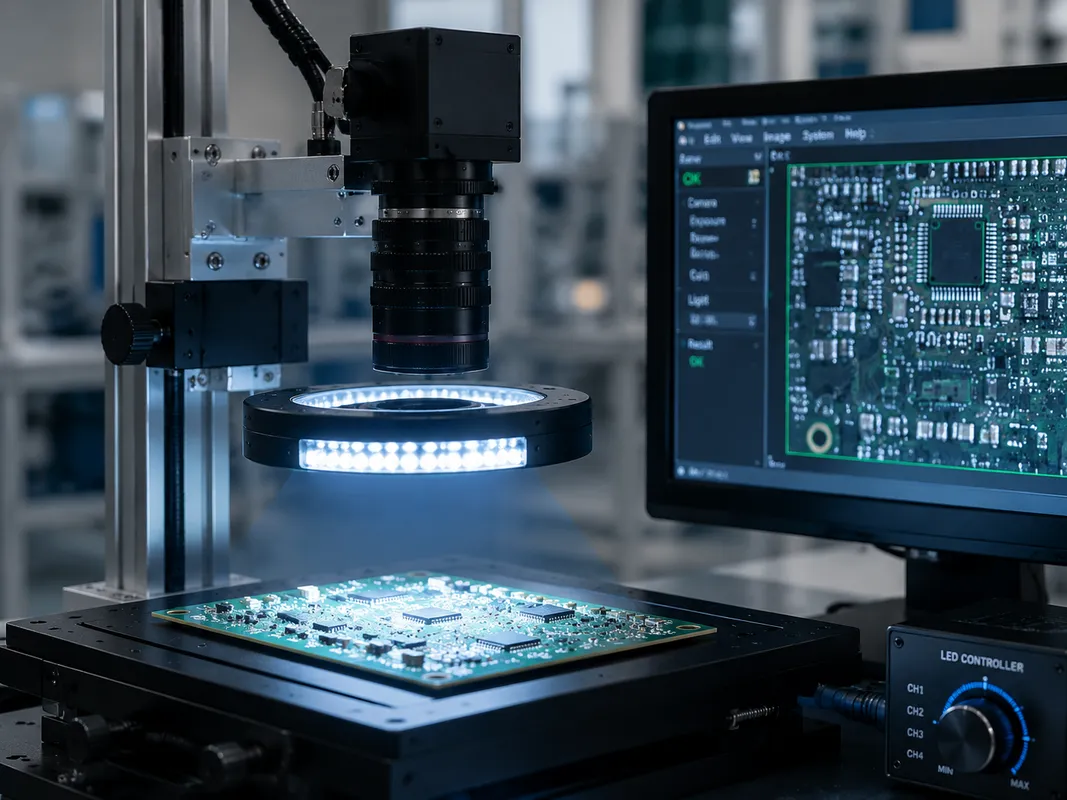

LED Lighting & Automotive Lighting Systems
LED optical lenses are widely used for beam shaping and uniform light distribution in LED lighting systems, automotive lighting and machine vision illumination equipment.
Typical Specifications of LED Optical Lens
| Material Options | Optical Glass / PMMA / Optical Grade Plastic / Fused Silica / Custom Optical Material Available |
|---|---|
| Optical Function | Collecting, focusing, collimating and shaping LED light output |
| Coating Options | Uncoated / AR Coating / Broadband AR Coating / Protective Coating / Custom Optical Coating |
| Optical Characteristics | High transmission efficiency, optimized light distribution, low distortion, excellent optical clarity, stable optical performance |
| Beam Angle | Custom |
| Focal Length | Custom |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Working Distance | Custom |

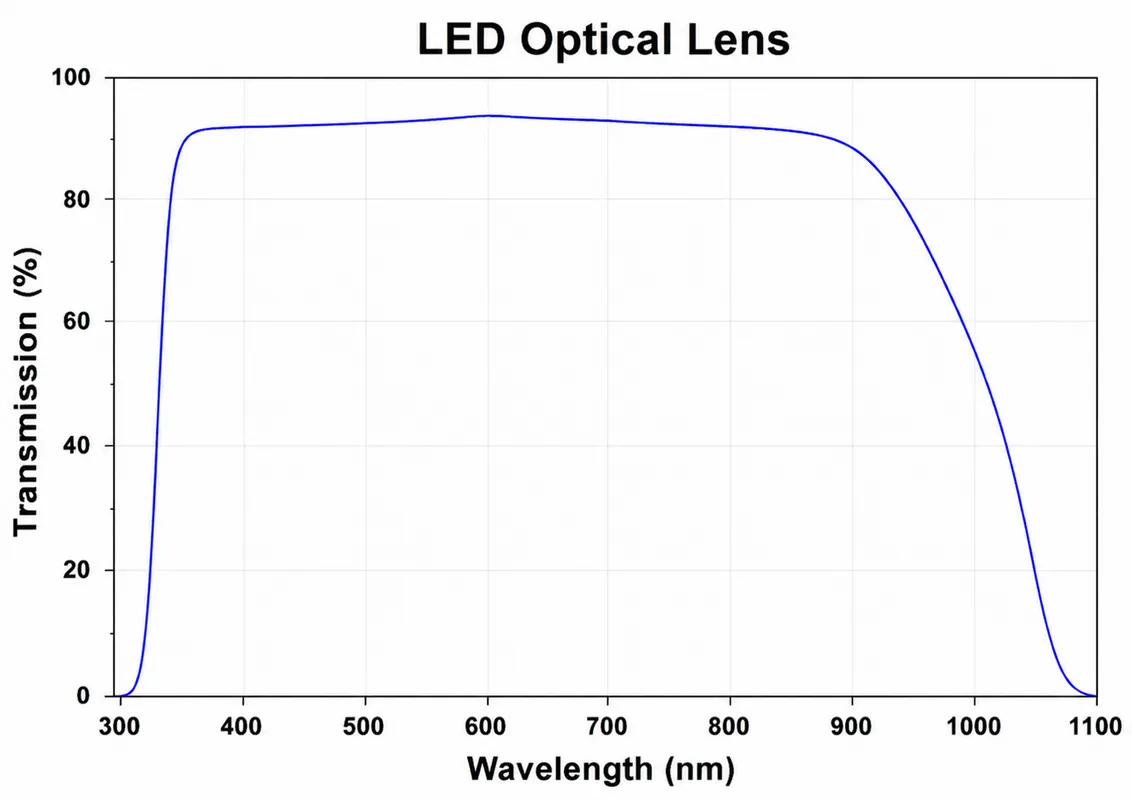

Lens Geometry & Optical Principle
Why Choose Chenyu Optics for LED Optical Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for LED lighting, automotive lighting and machine vision illumination systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard LED optical lenses.
Manufacturing Capability for LED Optical Lens
Precision Optical Processing
Precise optical design and surface processing to achieve accurate beam angle control and stable illumination performance.
Optical Coating
AR, broadband AR and protective coating options for LED lighting and illumination applications.
Inspection & Packaging
Dimensional inspection, surface review, illumination performance testing and protective packaging before shipment.
Custom Manufacturing Options for LED Optical Lens
Beam Angle & Focal Length
Custom beam angle and focal length can be manufactured according to customer drawings and illumination distribution requirements.
Material Selection
Optical glass, PMMA, optical-grade plastic or fused silica can be selected according to optical performance, environmental and cost requirements.
Coating & Surface Design
Uncoated, AR, broadband AR and protective coatings can be specified according to lighting application and operating environment.
LED Optical Lens Material Comparison
| Optical Glass (BK7) | PMMA | Optical Grade Plastic | Fused Silica | |
|---|---|---|---|---|
| Light Transmission | High, stable across visible range | High, excellent visible transmission | Good, application dependent | Very high, UV to NIR |
| Thermal Stability | High, low thermal expansion | Moderate, sensitive to elevated temperature | Moderate, depends on grade | Very high, low thermal expansion |
| Mechanical Notes | Good hardness and dimensional stability | Lightweight, cost-effective, moderate hardness | Lightweight, suited to molded high-volume parts | Excellent chemical and thermal durability |
| Typical Use | Precision LED lenses, machine vision lighting | Cost-effective LED lighting and display lenses | High-volume molded LED and automotive lighting lenses | High-temperature or UV-rich LED and industrial lighting |
Applications of LED Optical Lens
LED Lighting Systems
Beam shaping and light collection for general LED lighting.
Automotive Lighting Systems
Precise beam control for automotive lighting applications.
Architectural Lighting Equipment
Uniform illumination for architectural lighting design.
Machine Vision Illumination
Optimized light distribution for machine vision lighting systems.
Display Lighting Systems
Uniform backlighting and illumination for display equipment.
Optical Sensor Systems
Light collection and shaping for optical sensing applications.
LED Optical Lens FAQ
What is the function of an LED optical lens?
An LED optical lens is used to collect, focus and shape LED light output, improving illumination efficiency and controlling beam distribution.
Why are optical lenses used in LED lighting systems?
LED optical lenses optimize light distribution, reduce light loss and provide accurate beam control for different illumination requirements.
What materials are available for LED optical lenses?
LED optical lenses can be manufactured from optical glass, PMMA, optical-grade plastic, fused silica and other custom optical materials depending on application requirements.
Can custom LED optical lenses be manufactured?
Yes. Chenyu Optics provides customized LED optical lenses with different beam angles, focal lengths, materials, dimensions, coatings and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide beam angle, focal length, material, diameter, thickness, coating requirement, quantity and drawing if available.
Where can I learn more about LED optical design?
Additional information on LED optical design can be found from Edmund Optics.
Related Products for LED Optical Lens
Need Custom LED Optical Lenses?
Send us your drawing, beam angle, focal length, material and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable LED optical lens manufacturing suggestion.
