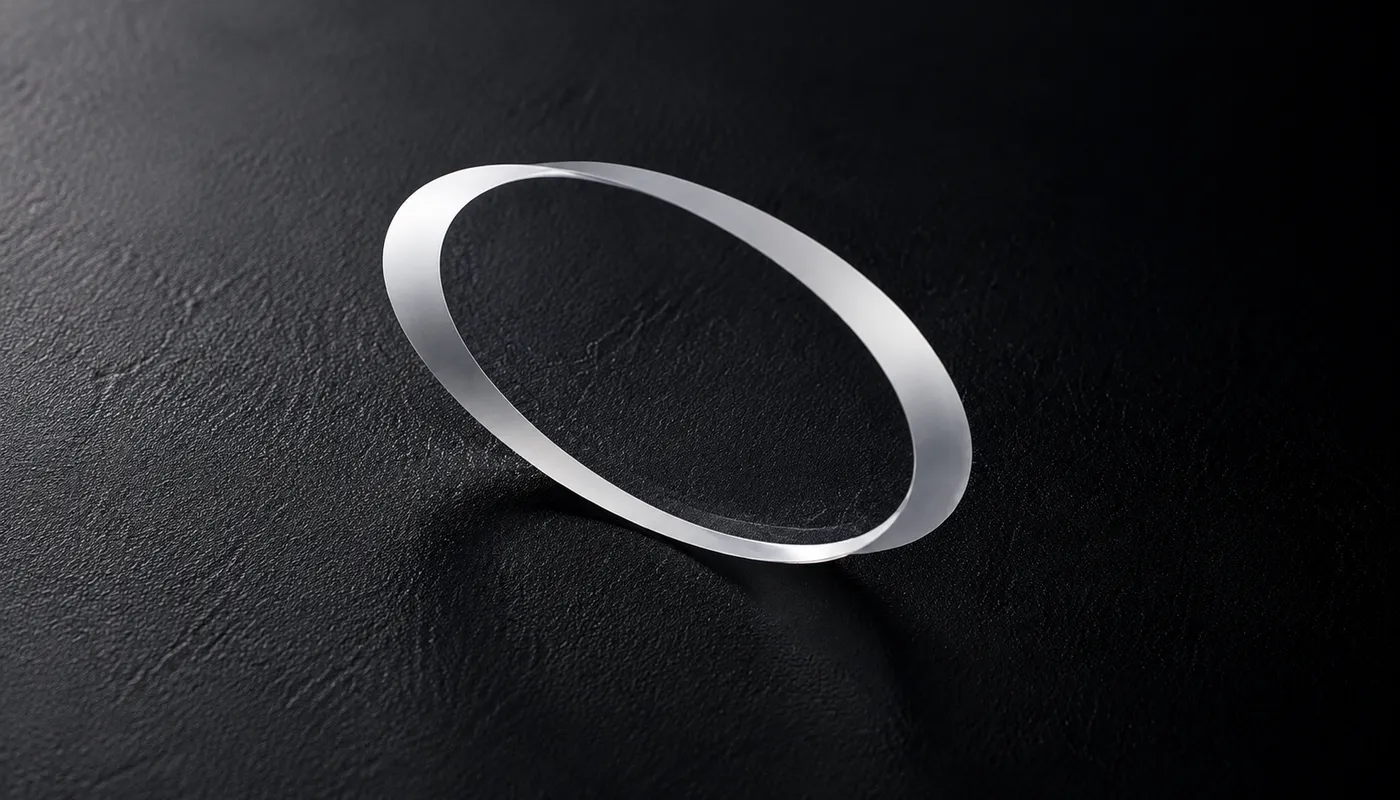

Brewster Window
Brewster Windows are precision optical components designed to provide low-reflection transmission at the Brewster angle for polarized laser beams, optical cavities and high-performance optical systems. Manufactured with precise angular polishing on fused silica, BK7 optical glass, sapphire or custom optical substrates, Brewster windows minimize p-polarized reflection losses without requiring additional optical coatings. Chenyu Optics manufactures Brewster windows uncoated or with AR and broadband AR coatings.
Brewster Window Overview
Brewster Windows are precision optical components designed to provide low-reflection transmission at the Brewster angle for polarized laser beams, optical cavities and high-performance optical systems.
By using high-quality optical substrates with precise angular polishing, Brewster windows minimize p-polarized reflection losses and maintain excellent beam transmission performance without requiring additional optical coatings. They are widely used in laser resonators, gas lasers, polarization control systems, spectroscopy equipment and scientific optical instruments where low-loss polarized light transmission is required.
Chenyu Optics supports custom Brewster window manufacturing according to customer drawings, including custom substrate, Brewster angle, diameter and thickness for prototype and repeat production.
Key Advantages of Brewster Window

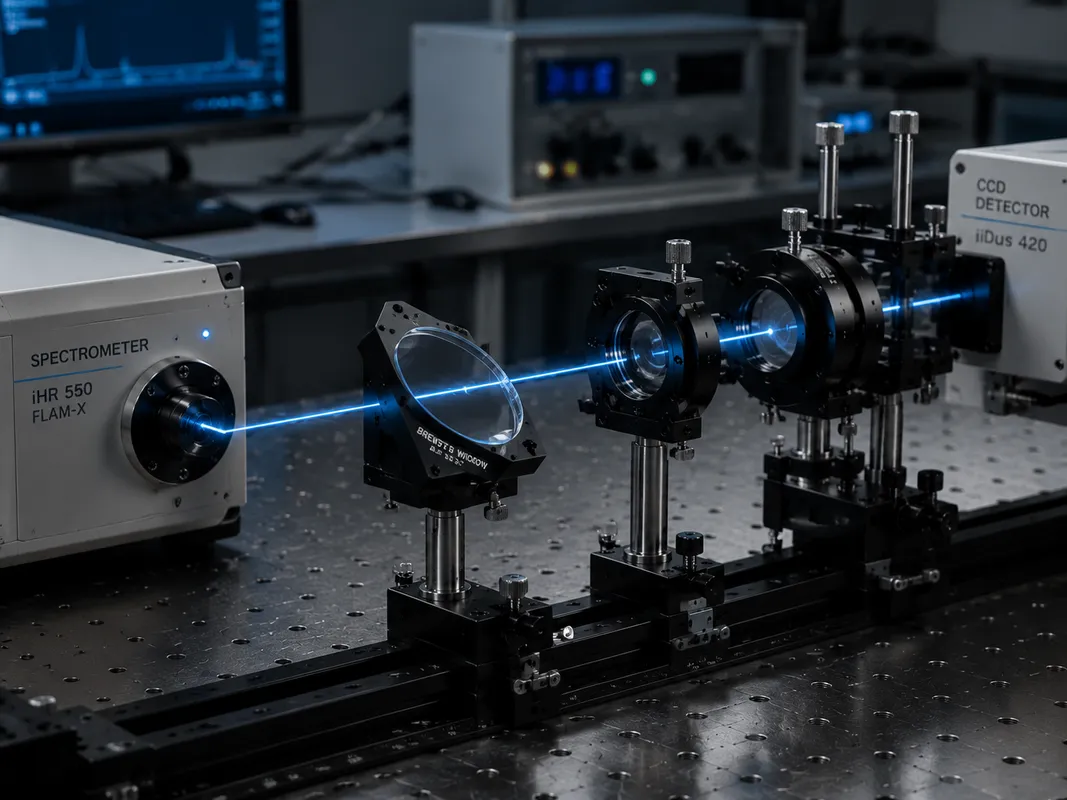

Laser Resonator & Polarization Control Systems
Brewster windows are widely used for low-loss polarized light transmission in laser resonators, gas laser systems, polarization control equipment and spectroscopy instruments.
Typical Specifications of Brewster Window
| Material | Fused Silica / BK7 Optical Glass / Sapphire / Custom Optical Substrate Available |
|---|---|
| Optical Function | Minimizing reflection losses for polarized light transmission at Brewster angle |
| Coating Options | Uncoated / AR Coating / Broadband AR Coating / Custom Optical Coating |
| Brewster Angle | Custom |
| Transmission Range | Custom, depending on substrate material |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/10, depending on requirement |
| Clear Aperture | Available |
| Angle of Incidence (AOI) | Custom |

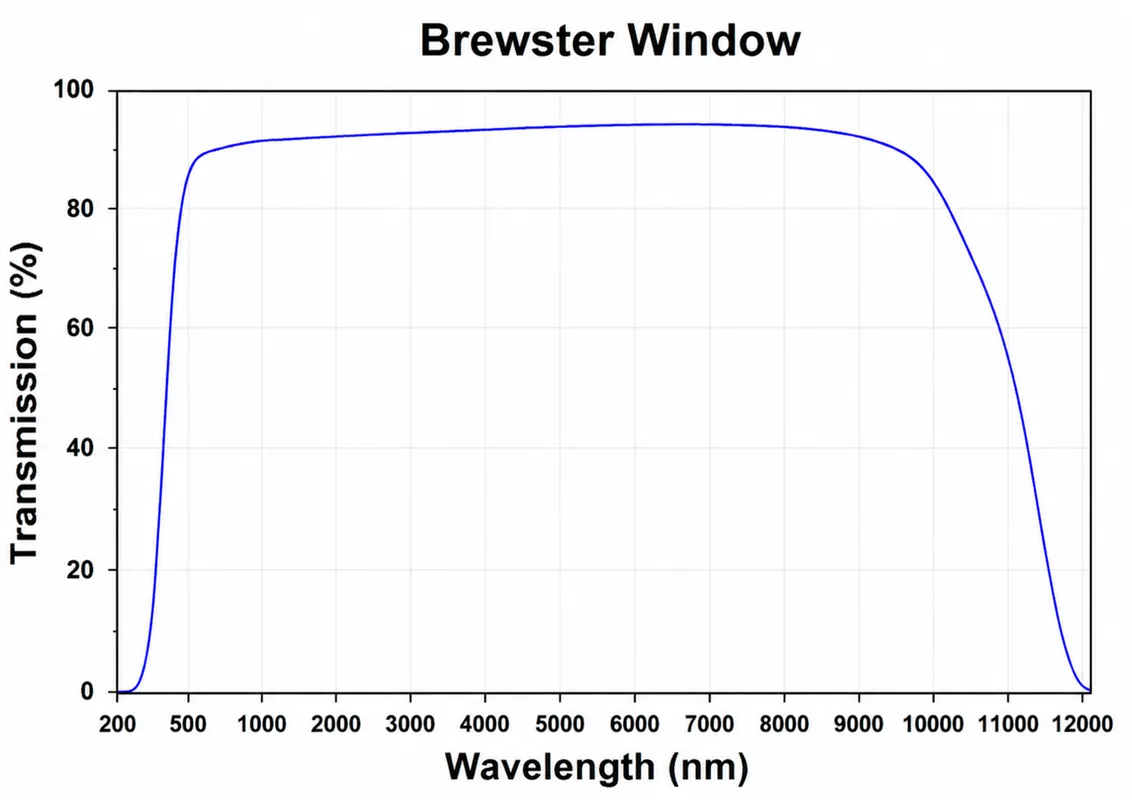

Reflectance at Brewster Angle (Typical)
Why Choose Chenyu Optics for Brewster Window
Chenyu Optics focuses on drawing-based precision Brewster window manufacturing for laser and polarization optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Brewster window designs.
Manufacturing Capability for Brewster Window
Precision Polishing
Controlled angular polishing and processing for accurate Brewster angle performance and low wavefront distortion.
Optical Coating
Uncoated Brewster surfaces plus AR and broadband AR coating options for applications requiring reduced reflection.
Inspection & Packaging
Dimensional inspection, angle verification, optical performance checking and protective packaging before shipment.
Custom Manufacturing Options for Brewster Window
Dimensions & Geometry
Custom diameter, thickness, clear aperture and Brewster angle can be manufactured according to customer drawings.
Surface & Mechanical Quality
Surface flatness of λ/4 to λ/10 and surface quality of 60-40 to 10-5 can be selected according to optical performance requirements.
Coating & Wavelength Design
Uncoated, AR, broadband AR and custom optical coatings can be specified for specific wavelength and polarization requirements.
Brewster Window Substrate Comparison
| Fused Silica | BK7 / N-BK7 | Sapphire | |
|---|---|---|---|
| Transmission | UV to NIR, approx. 0.18 – 2.5 μm | Visible to NIR, approx. 350 nm – 2.5 μm | UV to MWIR, commonly 0.2 – 5.5 μm |
| Refractive Index | Approx. 1.458 @ 587.6 nm | Approx. 1.517 @ 587.6 nm | Approx. 1.76 |
| Mechanical Notes | High laser damage resistance, low thermal expansion, chemically durable | Good mechanical stability, cost-effective, moderate hardness | Very hard and chemically durable |
| Typical Use | UV/high-power laser cavities, precision spectroscopy | General-purpose laser cavities, cost-effective polarization optics | Harsh environment, high-power or elevated-temperature laser systems |
Applications of Brewster Window
Laser Resonator Systems
Low-loss polarized transmission windows for laser cavity design.
Gas Laser Systems
Brewster angle windows for gas laser tube assemblies.
Polarization Control Systems
Precision windows for polarization management in optical setups.
Spectroscopy Instruments
Low-reflection windows for spectroscopic optical paths.
Optical Cavity Systems
Windows designed for low-loss intracavity transmission.
Scientific Research Equipment
Precision Brewster windows for research and laboratory optical setups.
Brewster Window FAQ
What is the function of a Brewster window?
A Brewster window is used to transmit polarized light with minimal reflection loss by placing the optical surface at the Brewster angle, commonly used in laser and optical cavity systems.
Why are Brewster windows used in laser systems?
Brewster windows reduce reflection losses for p-polarized laser light without requiring additional coatings, improving laser efficiency and polarization performance.
What materials are available for Brewster windows?
Brewster windows can be manufactured from fused silica, BK7 optical glass, sapphire and other custom optical substrates depending on wavelength requirements.
Can custom Brewster windows be manufactured?
Yes. Chenyu Optics provides customized Brewster windows with different materials, angles, sizes, thicknesses, surface quality and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide substrate material, Brewster angle, diameter, thickness, surface quality, coating requirement, quantity and drawing if available.
Where can I learn more about Brewster's angle optics?
Additional information on Brewster's angle and polarization optics can be found from Edmund Optics.
Related Products for Brewster Window
Need Custom Brewster Windows?
Send us your drawing, substrate material, Brewster angle, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Brewster window manufacturing suggestion.
