Laser Cavity Mirror
Laser Cavity Mirrors are precision optical components designed for high-performance laser resonator systems, providing controlled reflection, beam feedback and cavity stability for laser generation and amplification applications. Manufactured from fused silica, BK7 optical glass, sapphire and low expansion glass substrates with high-reflectivity (HR) and partial-reflectivity (PR) dielectric coating structures, these mirrors provide low optical loss, high laser damage resistance and stable reflectivity performance. Chenyu Optics manufactures laser cavity mirrors with HR dielectric, PR dielectric and laser line coating options for solid-state, fiber and gas laser systems.
Laser Cavity Mirror Overview
Laser Cavity Mirrors are precision optical components designed for high-performance laser resonator systems, providing controlled reflection, beam feedback and cavity stability for laser generation and amplification applications.
By using high-reflectivity (HR) and partial-reflectivity (PR) dielectric coating structures on precision optical substrates, laser cavity mirrors provide low optical loss, high laser damage resistance, excellent surface quality and stable reflectivity performance. They are widely used in solid-state lasers, fiber lasers, gas lasers, laser resonators and scientific optical instruments where precise cavity control is required.
Chenyu Optics supports custom laser cavity mirror manufacturing according to customer drawings, including custom reflectivity, wavelength range, substrate and dimension design for prototype and repeat production.
Key Advantages of Laser Cavity Mirror

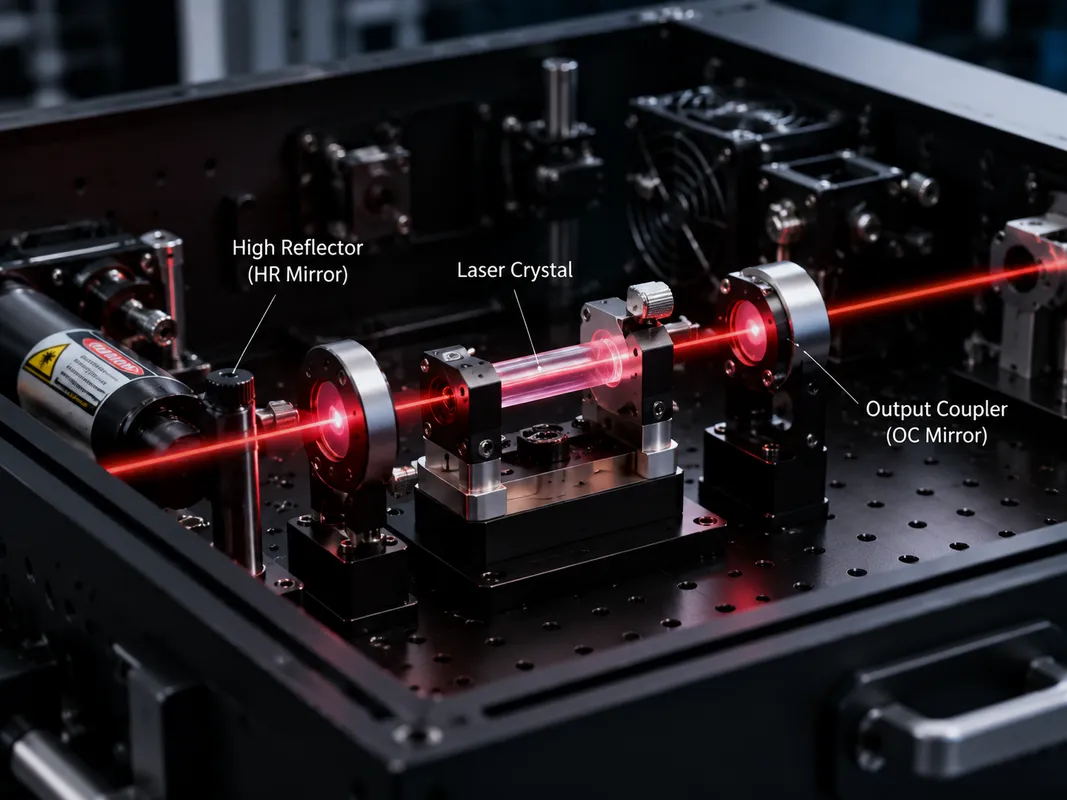

Solid-State & Fiber Laser Resonator Systems
Laser cavity mirrors are widely used for HR and PR reflectivity control in solid-state laser systems, fiber laser systems and laser resonator assemblies.
Typical Specifications of Laser Cavity Mirror
| Material Options | Fused Silica / BK7 Optical Glass / Sapphire / Low Expansion Glass / Custom Optical Substrate Available |
|---|---|
| Optical Function | Laser beam reflection, cavity feedback and output coupling |
| Coating Options | HR Dielectric Coating / PR Dielectric Coating / Laser Line Coating / Custom Optical Coating |
| Optical Characteristics | High reflectivity, low optical loss, high laser damage resistance, excellent surface quality, stable cavity performance |
| Mirror Type | High Reflectivity Mirror / Partial Reflectivity Mirror |
| Reflectivity | Custom |
| Wavelength Range | Custom |
| Diameter | Custom |
| Thickness | Custom |
| Surface Quality | 60-40 to 10-5, depending on requirement |
| Flatness | λ/4 to λ/20, depending on requirement |
| Clear Aperture | Available |
| Angle of Incidence (AOI) | Custom |

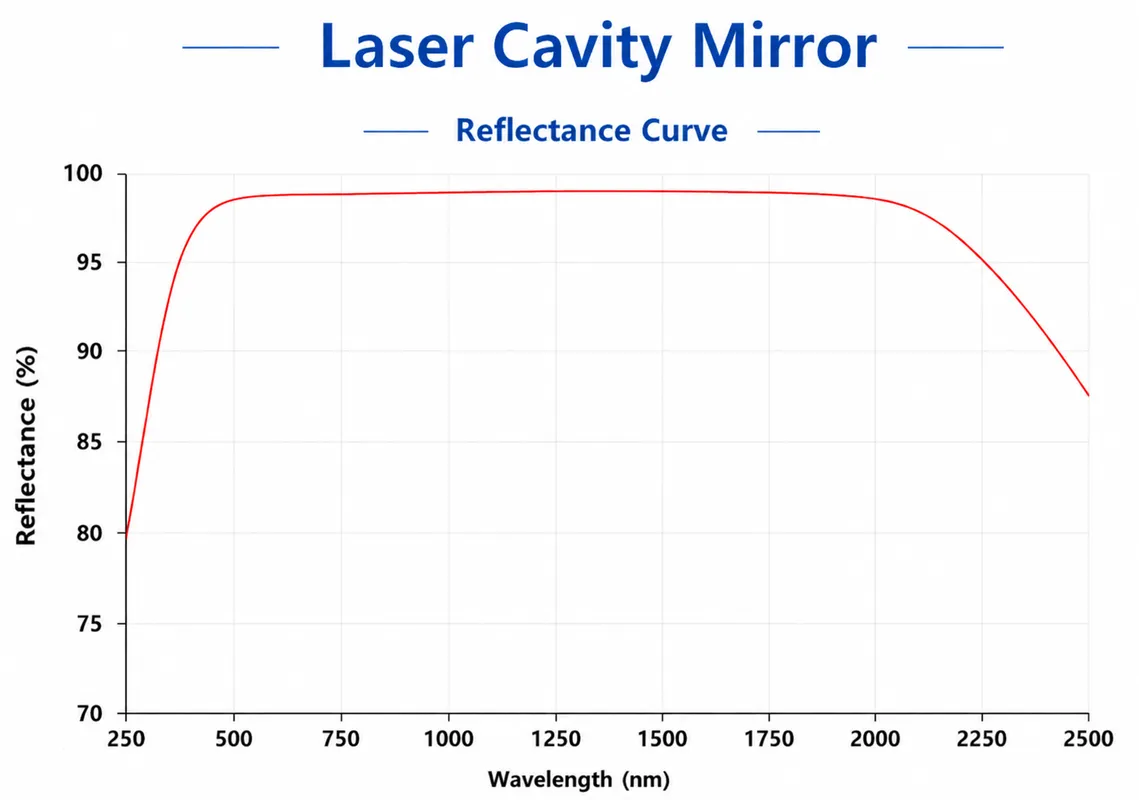

Cavity Reflectivity Geometry & Optical Principle
Why Choose Chenyu Optics for Laser Cavity Mirror
Chenyu Optics focuses on drawing-based precision mirror manufacturing for laser resonator, beam control and cavity optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard laser cavity mirrors.
Manufacturing Capability for Laser Cavity Mirror
Precision Optical Polishing
Precise surface polishing and dimensional control to achieve stable cavity performance and high laser damage resistance.
HR / PR Dielectric Coating
HR dielectric, PR dielectric and laser line coating options for laser resonator and output coupling applications.
Inspection & Packaging
Dimensional inspection, reflectivity verification, laser optical testing and protective packaging before shipment.
Custom Manufacturing Options for Laser Cavity Mirror
Reflectivity & Mirror Type
Custom reflectivity value and HR or PR configuration can be manufactured according to customer drawings and cavity design requirements.
Material Selection
Fused silica, BK7 optical glass, sapphire, low expansion glass or custom optical substrates can be selected according to wavelength and thermal requirements.
Coating & Wavelength Design
HR dielectric, PR dielectric, laser line and custom optical coatings can be specified for solid-state, fiber or gas laser applications.
Laser Mirror Type Comparison
| Laser Cavity Mirror (HR/PR) | Dichroic Mirror | Metal-Coated Mirror | Flat Mirror | |
|---|---|---|---|---|
| Reflectivity Behavior | Precisely tuned HR (near 100%) or PR (partial, custom %) at a specific laser wavelength | Reflects one wavelength band while transmitting another (wavelength-selective) | Broadband reflectivity across a wide spectral range | Reflects the full incident spectrum without wavelength selectivity |
| Optical Loss | Very low, optimized for cavity round-trip efficiency | Low within the reflection band, moderate at the transition edge | Moderate, depends on metal type (Al, Ag, Au) | Depends on coating, can be uncoated, metal or dielectric |
| Laser Damage Threshold | Very high, engineered for intracavity laser power | High, depends on dielectric stack design | Moderate, generally lower than dielectric HR coatings | Depends on coating type selected |
| Typical Use | Laser resonators, solid-state and fiber laser cavities | Fluorescence imaging, laser beam combining | General beam steering, broadband reflective optics | Beam folding, alignment systems |
Applications of Laser Cavity Mirror
Laser Resonator Systems
Precision reflectivity control for laser resonator cavities.
Solid-State Laser Systems
High laser damage resistance for solid-state laser cavities.
Fiber Laser Systems
Stable HR/PR performance for fiber laser resonators.
Gas Laser Systems
Low-loss reflectivity for gas laser cavity mirrors.
Laser Cavity Assemblies
Reliable optics for complete laser cavity assemblies.
Beam Control Systems
Precision reflectivity for laser beam control applications.
Laser Cavity Mirror FAQ
What is the function of a laser cavity mirror?
A laser cavity mirror provides controlled reflection inside a laser resonator to maintain optical feedback and support stable laser generation.
What is the difference between HR and PR laser cavity mirrors?
HR mirrors provide high reflectivity for efficient cavity reflection, while PR mirrors provide controlled partial reflection for laser output coupling.
What coating options are available for laser cavity mirrors?
Laser cavity mirrors can be manufactured with HR dielectric coatings, PR dielectric coatings, laser line coatings and custom optical coatings for different wavelength requirements.
Can custom laser cavity mirrors be manufactured?
Yes. Chenyu Optics provides customized laser cavity mirrors with different substrates, reflectivity values, wavelengths, coatings, dimensions, surface quality and optical specifications according to system requirements.
What information should I provide for a quotation?
Please provide mirror type (HR/PR), reflectivity value, wavelength range, dimension, coating requirement, quantity and drawing if available.
Where can I learn more about laser resonator optics?
Additional information on laser resonator optics can be found from Edmund Optics.
Related Products for Laser Cavity Mirror
Need Custom Laser Cavity Mirrors?
Send us your drawing, mirror type, reflectivity value, wavelength range and coating requirements. Chenyu Optics will review the optical and mechanical specifications and provide a suitable laser cavity mirror manufacturing suggestion.
