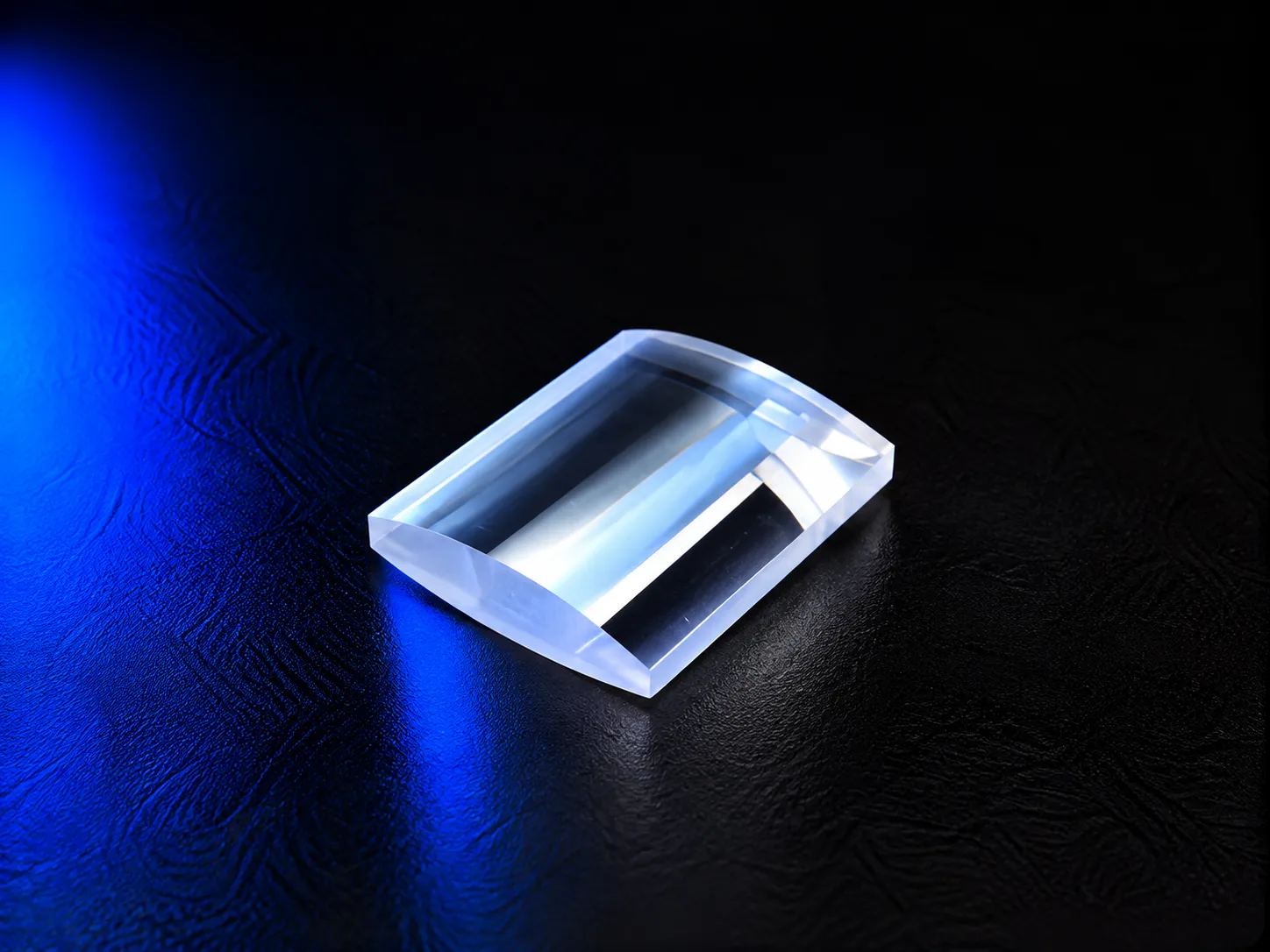

Double Convex Cylindrical Lens
Double Convex Cylindrical Lenses are precision lenses with two cylindrically curved convex surfaces along the same axis, focusing light to a line along a single axis rather than to a point, with optical power distributed across both surfaces. Chenyu Optics manufactures double convex cylindrical lenses in BK7, fused silica, optical glass and infrared materials, with custom focal length, dimensions, surface quality and coating according to customer drawings.
Double Convex Cylindrical Lens Overview
Double Convex Cylindrical Lenses are precision lenses with two cylindrically curved convex surfaces along the same axis, focusing light to a line along a single axis rather than to a point.
Compared with a plano convex cylindrical lens, distributing optical power across both surfaces allows a shorter focal length for a given radius and aperture, while the perpendicular axis remains unaffected, making it suitable for beam shaping, line generation and anamorphic imaging applications with more compact focal length requirements.
Chenyu Optics supports custom double convex cylindrical lens manufacturing according to customer drawings, including custom material, focal length, dimensions, surface quality and coating for prototype and repeat production.
Key Advantages of Double Convex Cylindrical Lens

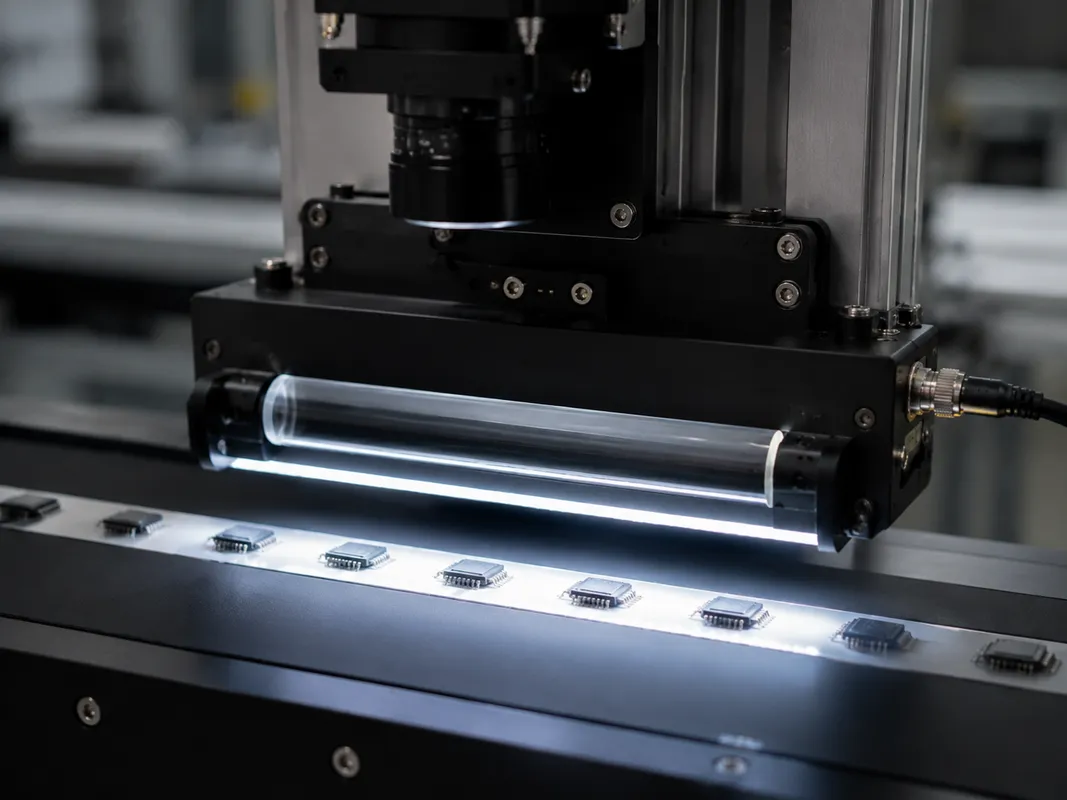

Beam Shaping, Line Generation & Laser Systems
Double convex cylindrical lenses are widely used in laser systems, beam shaping assemblies, line generation optics, machine vision systems and scientific instruments requiring single-axis focusing performance.
Typical Specifications of Double Convex Cylindrical Lens
| Material Options | BK7, Fused Silica, optical glass, and infrared materials as applicable |
|---|---|
| Coating Options | Uncoated, broadband AR, laser AR, UV AR, IR AR, custom coating |
| Optical Function | Single-axis line focusing / positive focal length |
| Focal Length | Custom, according to customer drawing |
| Surface Accuracy | Up to λ/10 @ 633 nm |
| Surface Quality | 20-10, 40-20 scratch-dig |
| Dimensions | Custom length, width and thickness available |
| Edge Treatment | Ground, chamfered or polished |

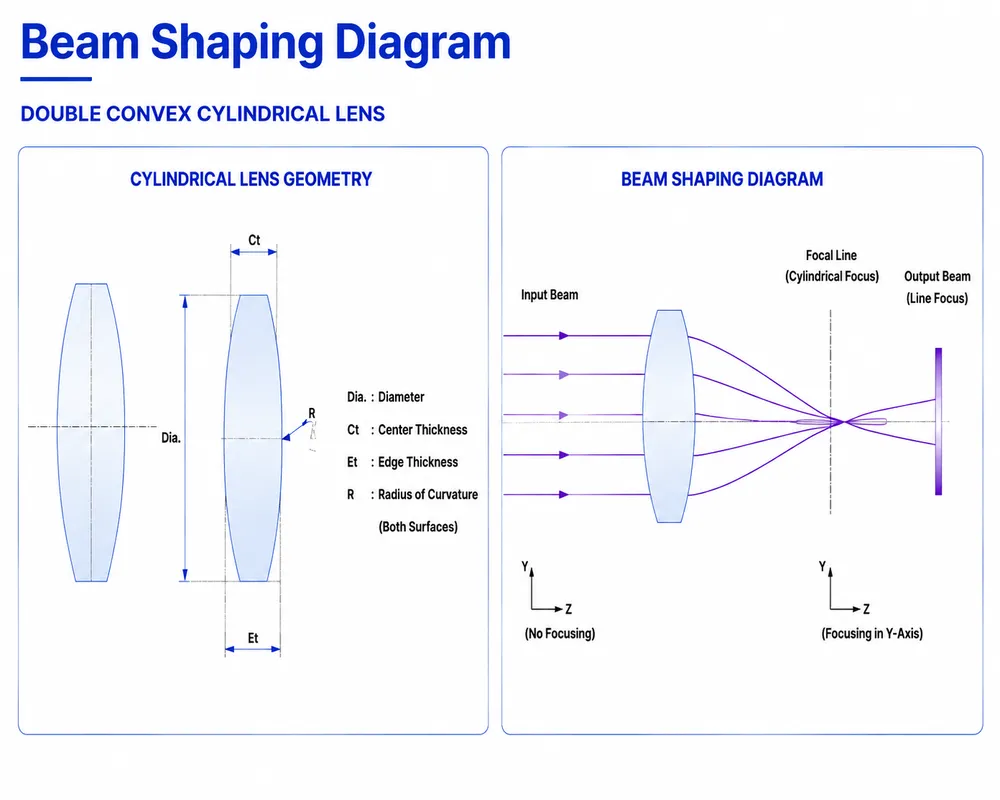

Beam Shaping Diagram
Why Choose Chenyu Optics for Double Convex Cylindrical Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for laser, imaging and machine vision optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard double convex cylindrical lenses.
Manufacturing Capability for Double Convex Cylindrical Lens
Precision Grinding & Polishing
Controlled grinding and polishing of both cylindrical surfaces for focal length accuracy, surface quality and optical performance.
AR Coating
Broadband, laser, UV or IR AR coatings selected according to wavelength and application requirements.
Inspection & Packaging
Dimensional inspection, focal length verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Double Convex Cylindrical Lens
Geometry & Dimensions
Length, width, thickness, focal length and edge treatment can be manufactured according to customer drawings and optical system requirements.
Surface & Optical Quality
Surface accuracy and surface quality can be selected according to beam shaping or imaging application requirements.
Coating Selection
Uncoated, broadband AR, laser AR, UV AR or IR AR coatings can be specified according to the operating wavelength and application environment.
Cylindrical vs. Spherical Lens Comparison
| Spherical Lens | Cylindrical Lens | |
|---|---|---|
| Focusing Behavior | Focuses light symmetrically to a point in both axes | Focuses light to a line along a single axis; perpendicular axis unaffected |
| Surface Configuration | Curvature is constant in every direction across the surface | Curvature exists along one axis only, with a flat or straight profile along the other |
| Typical Function | General-purpose focusing and imaging | Beam shaping, line generation, anamorphic imaging |
| Typical Applications | Imaging systems, laser focusing, machine vision | Laser diode beam correction, line generators, beam shaping systems |
Applications of Double Convex Cylindrical Lens
Laser Systems
Beam shaping and focusing optics for laser system design.
Imaging Systems
Anamorphic imaging elements for single-axis correction.
Beam Shaping
Double convex cylindrical lenses for laser diode beam correction and expansion.
Machine Vision
Line generation components for machine vision and inspection systems.
Scientific Instruments
Precision optical components for laboratory and research instruments.
Optical Systems Integration
Custom cylindrical lenses for OEM optical system assemblies.
Double Convex Cylindrical Lens FAQ
What is a double convex cylindrical lens?
A double convex cylindrical lens has two cylindrically curved convex surfaces along the same axis, focusing light to a line along a single axis rather than to a point.
How is a double convex cylindrical lens different from a plano convex cylindrical lens?
A double convex cylindrical lens has curvature on both surfaces, distributing optical power to achieve a shorter focal length than an equivalent plano convex cylindrical lens with the same radius and aperture.
Which materials are available for double convex cylindrical lenses?
Common materials include BK7, fused silica, optical glass, and infrared materials, selected according to the operating wavelength.
Can double convex cylindrical lens coatings be customized?
Yes. Coating options include uncoated, broadband AR, laser AR, UV AR, IR AR and custom coatings according to wavelength range and application.
What information should I provide for a quotation?
Please provide material, dimensions, focal length, coating type, surface quality, surface accuracy, quantity and drawing if available.
Where can I learn more about cylindrical lenses and coatings?
Additional information on cylindrical lenses and AR coatings can be found from Edmund Optics.
Related Products for Double Convex Cylindrical Lens
Need Custom Double Convex Cylindrical Lenses?
Send us your drawing, material, dimensions, focal length and coating requirements. Chenyu Optics will review the optical specifications and provide a suitable double convex cylindrical lens manufacturing suggestion.
