Laser Window
Laser Windows are precision components designed for laser transmission, protection and beam management. High-performance materials provide high transmission, low absorption, high laser damage threshold and stable optical performance.
Laser Window Overview
Laser Windows are precision protective optical components manufactured from high-purity fused silica (SiO₂). The material provides excellent ultraviolet transmission, low optical absorption and stable performance across UV, visible and near-infrared wavelengths.
Chenyu Optics manufactures laser windows from fused silica, optical glass, sapphire, calcium fluoride (CaF₂) and zinc selenide (ZnSe) for UV, visible, near-infrared and infrared laser systems.
Each laser window can be customized according to laser wavelength, CW or pulsed operation, power density, incident angle, polarization, dimensions, surface requirements and coating specifications.
Key Advantages of Laser Windows
Laser Transmission, Protection & Beam Management
Laser windows transmit the operating beam while protecting sensitive components from contamination, mechanical damage and environmental exposure in processing, instrumentation and high-power laser systems.
Typical Specifications of Laser Window
| Material | Fused Silica / Optical Glass / Sapphire / CaF₂ / ZnSe |
|---|---|
| Optical Function | Protective window / Optical transmission |
| Window Type | Laser Window |
| Transmission Range | UV / VIS / NIR / IR, material dependent |
| Laser Compatibility | Customized according to wavelength and power |
| Thickness | Customized |
| Diameter / Size | Customized |
| Coating | Laser AR / UV / VIS / NIR / IR / Custom |
| Surface Flatness | λ/10 @ 633 nm |
| Surface Quality | 20-10 / 40-20 scratch-dig |
Laser Window Transmission Curve
Why Choose Chenyu Optics for Laser Windows
Chenyu Optics supports drawing-based laser window manufacturing for laser, ultraviolet, sensing and aerospace optical systems, from prototype verification through repeat production.
Manufacturing Capability for Laser Windows
Precision Window Polishing
Controlled laser window shaping and polishing for custom curvature, wall thickness, surface accuracy and surface quality.
Optical AR Coating
UV, VIS, NIR, MWIR and LWIR coatings designed for the selected material, wavelength and incident angle.
Inspection & Packaging
Dimensional, surface and optical inspection followed by clean handling and protective packaging for precision optical windows.
Coating Options for Laser Windows
Laser AR Coating
Optimized for a specified laser wavelength to reduce reflection, improve transmission and support the required laser power density.
UV, VIS & NIR AR Coatings
Wavelength-specific coatings for ultraviolet, visible and near-infrared laser systems.
IR & Custom Laser Coatings
Designed according to wavelength, power density, incident angle, polarization and environmental requirements.
Laser Window Coating Selection
| Option | Typical Range | Recommended Use | Design Note |
|---|---|---|---|
| Uncoated | Material-dependent range | Broadband systems and prototypes | Natural surface reflection remains |
| UV AR | Customer-specified UV range | UV imaging, sensing and laser systems | Specify operating wavelength and laser conditions |
| VIS AR | Visible wavelength range | Imaging and optical sensor systems | Reduces visible surface reflection |
| NIR AR | Near-infrared wavelength range | NIR imaging and detection systems | Optimized for the specified incident angle |
| Custom AR | Customer specified | Laser and multispectral systems | Specify wavelength, AOI, power and environment |
Applications of Laser Windows
Laser Systems
High-transmission protective windows for laser beam paths.

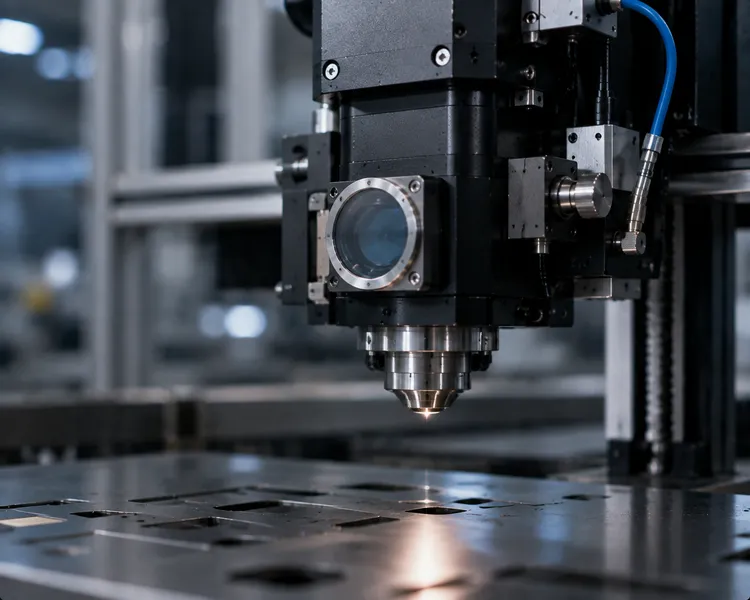

Laser Cutting
Protective optics for industrial laser cutting equipment.
Laser Welding
Low-absorption windows for high-power welding systems.
Laser Marking
Stable beam transmission for precision marking equipment.
Laser Processing
Durable optical protection for material-processing systems.
Optical Instruments
Precision windows for laser-based optical instruments.
High-Power Lasers
High-damage-threshold optics for demanding laser assemblies.
Scientific Research
Wavelength-specific windows for laboratory laser systems.
Laser Window FAQ
What is a laser window used for?
Laser windows transmit laser beams while protecting optical systems from contamination, mechanical damage and environmental exposure.
Which materials are suitable for laser windows?
Common materials include fused silica, optical glass, sapphire, CaF₂ and ZnSe. Selection depends on wavelength, power level and application requirements.
Can laser windows be used for high-power lasers?
Yes. Suitable low-absorption materials and high-damage-threshold coatings enable designs for high-power laser applications.
Can laser windows be customized?
Yes. Dimensions, materials, surface specifications and wavelength-optimized laser AR coatings can all be customized.
Handling & Manufacturing Notes
Need Laser Windows for Precision Optical Systems?
Send us your laser wavelength, laser type (CW or pulsed), power or energy density, material preference, window size, thickness, surface requirements, coating specification and quantity. Chenyu Optics will review the requirements and provide a suitable laser window solution.
