Raman Filter
Raman Filters are precision optical filters designed to transmit Raman signals while blocking unwanted laser wavelengths and background light. Using advanced dielectric coating technology, Raman filters provide high transmission at target Raman wavelengths and high optical density blocking at the laser line. Chenyu Optics manufactures Raman filters in optical glass and fused silica with custom center wavelengths, bandwidths and coating options.
Raman Filter Overview
Raman Filters are precision optical filters designed to transmit Raman signals while blocking unwanted laser wavelengths and background light.
Using advanced dielectric coating technology, Raman filters provide high transmission within the target Raman spectral range and high optical density blocking at the laser wavelength. They are widely used in Raman spectroscopy, fluorescence suppression, chemical analysis, optical sensing and scientific measurement systems.
Chenyu Optics supports custom Raman filter manufacturing according to customer drawings, including custom substrate materials, dimensions, center wavelengths, bandwidths and coating designs for prototype and repeat production.
Key Advantages of Raman Filter

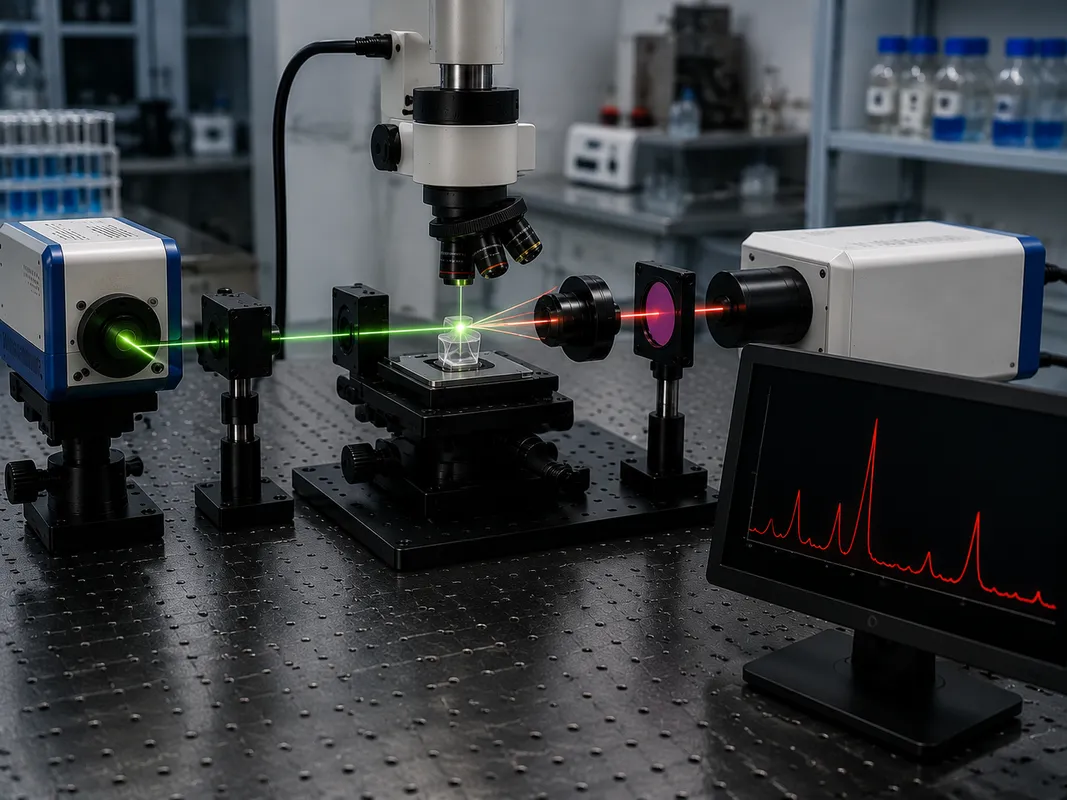

Raman Spectroscopy & Chemical Analysis Systems
Raman filters are widely used for laser rejection and Raman signal isolation in Raman spectroscopy systems, chemical analysis equipment, fluorescence suppression setups and scientific measurement instruments.
Typical Specifications of Raman Filter
| Material Options | Optical Glass, BK7, Fused Silica |
|---|---|
| Coating Type | Dielectric Raman filter coating |
| Optical Function | Raman signal transmission / laser rejection |
| Center Wavelength | Customizable |
| Bandwidth (FWHM) | Customizable |
| Transmission | High transmission within target Raman band |
| Blocking | High optical density at laser wavelength |
| Surface Quality | High precision optical finish |

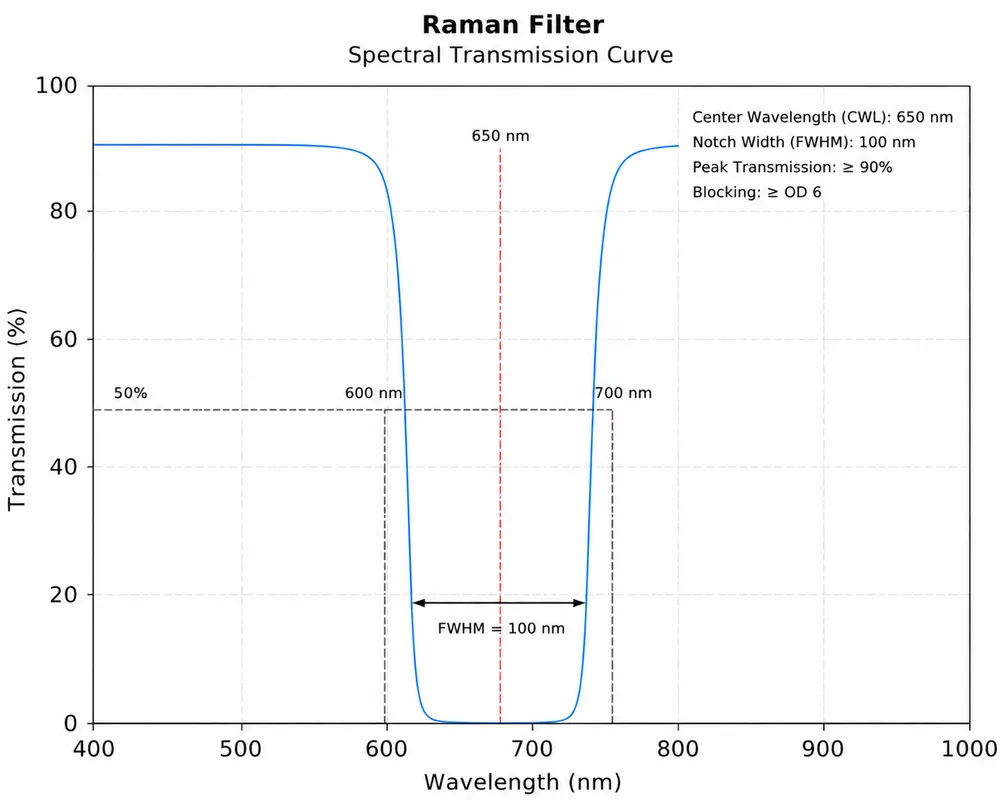

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Raman Filter
Chenyu Optics focuses on drawing-based precision filter manufacturing for Raman spectroscopy, chemical analysis, fluorescence suppression and scientific measurement systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Raman filters.
Manufacturing Capability for Raman Filter
Precision Polishing
High surface quality processing for stable filter performance.
Dielectric Coating
High performance dielectric Raman filter coating for precise center wavelength and laser rejection control.
Inspection & Packaging
Strict quality control on center wavelength, bandwidth and blocking, with clean protective packaging before shipment.
Custom Raman Filter Options
Raman System Filter Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Role in Raman System |
|---|---|---|---|---|
| Raman Filter | < 1 – 10 nm | >90% | OD4 – OD6+ | Transmits Raman signal, rejects laser line |
| Notch Filter | < 1 – 10 nm (rejection band) | >90% (outside band) | OD4 – OD6+ | Rejects excitation laser wavelength |
| Laser Line Filter | < 1 – 5 nm | >90% | OD4 – OD6+ | Cleans up laser source wavelength |
| Edge Filter | N/A (edge-based) | >90% | OD4 – OD6+ | Blocks laser, passes Raman-shifted light |
Applications of Raman Filter
Raman Spectroscopy Systems
Laser rejection and Raman signal transmission for spectroscopy instruments.
Chemical Analysis Equipment
Spectral filtering for chemical identification and analysis systems.
Fluorescence Suppression Systems
Reduction of background fluorescence interference in Raman measurements.
Optical Sensing Systems
Precision spectral filtering for optical sensor design.
Scientific Measurement Instruments
Accurate spectral filtering for research and laboratory instruments.
Material Identification Systems
Raman signal isolation for material and substance identification.
Raman Filter FAQ
What is a Raman filter used for?
A Raman filter transmits the Raman-shifted signal while blocking the excitation laser wavelength and unwanted background light.
What parameters define a Raman filter?
Key parameters include center wavelength, bandwidth (FWHM), peak transmission, optical density blocking, and incident angle.
How is a Raman filter different from a notch filter?
A Raman filter is often based on notch or edge filter designs specifically optimized to reject the laser line while passing the surrounding Raman-shifted signal.
Can Raman filters be customized for different laser wavelengths?
Yes. Filters can be customized for common Raman excitation wavelengths across UV, visible, and near-infrared ranges.
Does incident angle affect Raman filter performance?
Yes. The center wavelength can shift with incident angle, so coating design should match the optical setup.
What information should I provide for a quotation?
Please provide center wavelength, bandwidth, substrate material, dimensions, angle of incidence, quantity and drawing if available.
Where can I learn more about Raman filter design?
Additional information on Raman filter design can be found from Edmund Optics.
Related Products for Raman Filter
Need Custom Raman Filters?
Send us your center wavelength, bandwidth, substrate, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Raman filter manufacturing suggestion.
