Germanium Optical Material for Precision Optical Components

Germanium material solutions for infrared windows and lenses requiring high infrared transmission and stable optical performance.

Chenyu Optics provides germanium optical material solutions and precision manufacturing capability for infrared optical systems. Germanium (Ge) is widely selected for IR windows and lenses due to its excellent infrared transmission, high refractive index and suitability for MWIR and LWIR imaging applications.

REQUEST GERMANIUM OPTICAL SOLUTION EXPLORE GERMANIUM OPTICAL WINDOWS

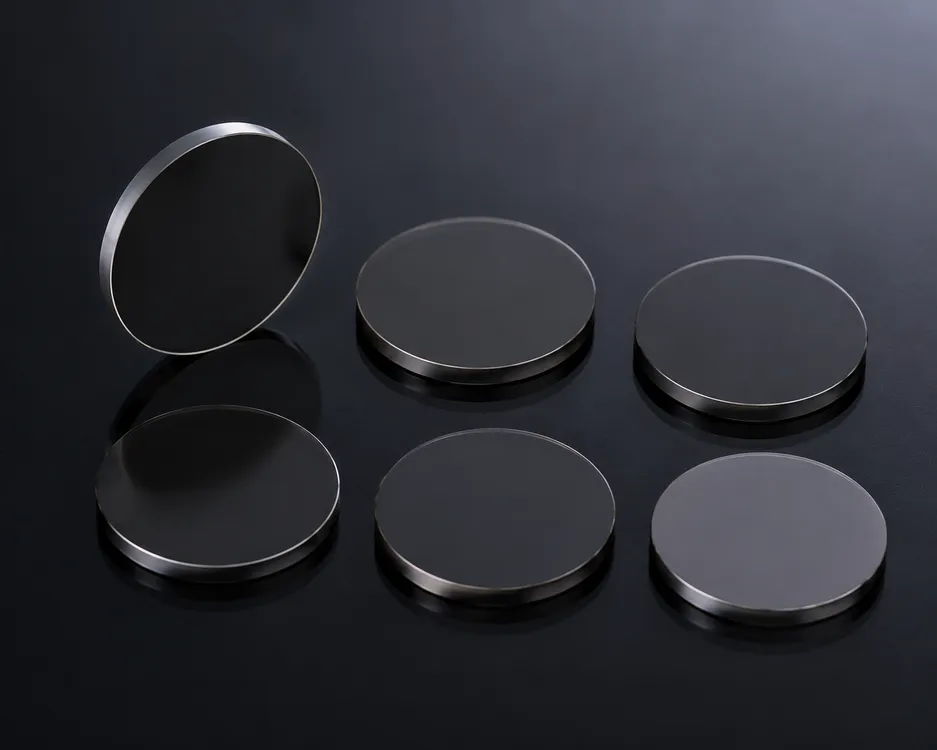

Germanium optical material and precision germanium infrared optical components

Germanium Optical Material Overview

Germanium (Ge) is a high-performance infrared optical material widely used for thermal imaging systems, infrared cameras and MWIR/LWIR optical applications.

Its high refractive index and strong infrared transmission make it suitable for precision infrared lenses and protective optical windows.

Engineers commonly select germanium for infrared windows, thermal imaging lenses, infrared camera optics and MWIR/LWIR optical systems.

Chenyu Optics manufactures custom germanium optical components according to customer drawings, including IR windows, lenses and precision optical parts.

Technical Parameter Typical Value Engineering Significance
Composition Germanium (Ge) Single-crystal material supports MWIR/LWIR transmission and precision infrared lens manufacturing.
Material Type Infrared Optical Crystal Selected and processed for consistent thermal-imaging and infrared optical performance.
Crystal Structure Single Crystal Single-crystal structure supports precision infrared optical fabrication.
Thermal Expansion MWIR and LWIR imaging systems Relevant to thermal imaging, infrared cameras and sensor systems.
Transmission Approx. 2–14 μm Supports important MWIR and LWIR thermal-imaging wavelength bands.
Density Approx. 5.33 g/cm³ Relevant to component weight, mounting and precision optical assembly design.
Refractive Index Approx. 4.0 @ 10 μm High refractive index supports compact lens design and requires suitable AR coatings.
Typical Components IR windows and infrared lenses Used for infrared transmission, thermal imaging and precision lens systems.

Values are general engineering references rather than guaranteed component specifications. Actual performance depends on germanium grade, wavelength, thickness, surface finish and coating.

Key Properties of Germanium Material

Germanium is selected when MWIR/LWIR transmission, high refractive index and precise infrared imaging performance are required.

Excellent Infrared Transmission

Germanium provides strong transmission performance across important MWIR and LWIR infrared ranges.

High Refractive Index

The high refractive index of germanium enables compact infrared lens designs.

Thermal Imaging Performance

Germanium is widely used in thermal imaging systems requiring precise infrared focusing.

Optical Stability

Optical-grade germanium provides stable performance for demanding infrared applications.

Precision Lens Capability

Germanium can be manufactured into high-performance infrared lenses and optical windows.

Property System Benefit Design Consideration
Infrared TransmissionSupports MWIR and LWIR imagingConfirm the complete detector band and temperature range.
High Refractive IndexEnables compact infrared lens designsSurface reflection makes suitable AR coatings important.
Thermal Imaging PerformanceSupports precise infrared focusingLens geometry, centration and wavefront should match the camera.
Optical StabilitySupports demanding IR applicationsTemperature-dependent optical behavior must be considered.
Precision Lens CapabilitySupports windows and powered opticsGeometry, finish, tolerances and coating require review.

How to Select Germanium Optical Material

Engineers should select germanium by evaluating wavelength, lens design, optical quality, coating, temperature and environmental requirements together.

Choose Germanium When

MWIR or LWIR transmission is required
The optical system operates in thermal-imaging infrared bands.
Thermal imaging lenses are needed
The component must focus infrared radiation onto a detector.
High-refractive-index optical designs are required
The system benefits from compact, powered infrared elements.
Infrared windows require stable transmission
The window must protect a camera or sensor while transmitting IR energy.

Consider Alternatives When

Lower weight is required
Consider silicon.
Higher mechanical durability is required
Consider sapphire or ZnS.
CO2 laser optics at 10.6 μm are required
Consider ZnSe.
Lower-cost infrared materials are required
Evaluate alternative IR materials against the operating band.
Selection Step Question Information Required
1. Wavelength Does calcium fluoride transmit the complete operating band? Minimum wavelength, maximum wavelength and transmission target
2. Environment What UV and infrared performance is required? UV cutoff, infrared limit, absorption target and operating environment
3. Mechanical Load What mechanical and thermal conditions must the component withstand? Pressure, impact, aperture, thickness and mounting method
4. Optical Quality How precisely must the component control the beam? Surface quality, flatness, parallelism and transmitted wavefront
5. Coating Is reduced surface reflection required? Wavelength, bandwidth, angle of incidence and operating environment

Germanium Compared with Other Optical Materials

Preliminary comparison for engineers selecting materials by optical range, environmental performance and application.

Material Main Advantage Typical Transmission Range Application Suitability
GermaniumHigh refractive index and MWIR/LWIR performance2–14 μmThermal imaging lenses and IR windows
SiliconLightweight infrared material1.2–15 μmMWIR systems
ZnSeExcellent CO2 laser transmission0.5–16 μmCO2 laser windows and lenses
ZnSDurable broadband infrared transmission0.4–14 μmMWIR/LWIR windows and domes
SapphireHigh hardness and durability0.17–5.5 μmProtective optical windows

Transmission ranges are approximate and vary by material grade, thickness and coating. Fused silica is generally preferred for UV transmission and low thermal expansion; alternative materials may be better for greater hardness or longer infrared wavelengths.

Germanium Optical Applications

Germanium is used for infrared windows, lenses, thermal imaging cameras, sensors and scientific IR instruments.

IW

Infrared Optical Windows

Germanium windows provide infrared transmission protection for cameras, sensors and optical systems.

IL

Infrared Optical Lenses

Germanium lenses are widely used for thermal imaging and infrared focusing applications.

TI

Thermal Imaging Systems

Germanium optical components support MWIR and LWIR thermal imaging cameras.

IS

Infrared Sensors

Germanium windows and lenses provide optical interfaces for infrared detection systems.

SI

Scientific Infrared Instruments

Germanium components support spectroscopy and precision infrared measurement equipment.

Application Primary Germanium Function Important Specification
Infrared Optical WindowIR transmission and system protectionWavelength, thickness, flatness and coating
Infrared Optical LensThermal imaging and IR focusingFocal length, centration, surface quality and coating
Thermal Imaging SystemMWIR/LWIR image formationDetector band, wavefront and temperature range
Infrared SensorProtective and powered optical interfaceOperating band, geometry, sealing and coating
Scientific IR InstrumentSpectroscopy and infrared measurementSpectral range, optical quality and surface finish

Custom Germanium Manufacturing Capability

Chenyu Optics manufactures custom germanium IR windows, lenses and optical components according to drawings, wavelengths and operating requirements.

Precision Machining

Custom germanium IR windows and lenses are manufactured according to customer drawings.

Optical Polishing

Precision polishing is provided for germanium infrared optical surfaces.

Custom Dimensions

Round, rectangular and custom-geometry components are available.

Surface Quality Control

Surface quality, flatness and dimensional accuracy are controlled.

IR AR Coating Options

Anti-reflection coatings are optimized for infrared wavelengths.

Component Parameter Available Configuration Specification Basis
Geometry Round, square, rectangular or custom Component function and assembly interface
Dimensions Custom to drawing Material availability and manufacturability review
Surface Quality Precision optical finish Imaging, sensing, laser and transmission requirements
Flatness Custom optical specification Wavelength, aperture and wavefront requirement
Parallelism Controlled to drawing Beam deviation and alignment requirements
Coating AR or BBAR options Wavelength, bandwidth, angle and environment

Germanium Optical Windows

Precision germanium windows for MWIR, LWIR and thermal-imaging systems.

EXPLORE GERMANIUM WINDOWS

Germanium Optical Lenses

Custom germanium lenses for infrared imaging and focusing.

EXPLORE GERMANIUM LENSES

Infrared Optical Components

Precision optical components for compatible infrared wavelength bands.

EXPLORE INFRARED OPTICS

Custom Optical Components

Drawing-defined optical parts for OEM infrared assemblies.

EXPLORE CUSTOM COMPONENTS

Germanium Optical Material Engineering FAQ

What is germanium optical material?

Germanium is a high-index infrared optical crystal used for MWIR/LWIR windows, lenses and thermal-imaging components.

What wavelength range does germanium transmit?

Optical-grade germanium typically provides useful transmission from approximately 2 to 14 μm. Actual performance depends on grade, thickness, temperature, surface finish and coating.

Why is germanium used for infrared lenses?

Germanium combines strong MWIR/LWIR transmission with a high refractive index, enabling compact lens designs for thermal imaging and infrared focusing.

Can germanium be used for infrared windows?

Yes. Germanium windows protect infrared cameras and sensors while transmitting compatible MWIR and LWIR bands. Thickness, temperature and coating should match the application.

What is the difference between germanium and silicon optics?

Germanium provides strong MWIR/LWIR performance and a higher refractive index, while silicon is lighter and commonly used in selected MWIR systems. Selection depends on wavelength, weight, temperature and design.

Can Chenyu Optics manufacture custom germanium optical components?

Yes. Chenyu Optics manufactures drawing-defined germanium windows and lenses with controlled dimensions, surface quality, flatness, centration and infrared coating specifications.

Need a Custom Germanium Optical Solution?

Chenyu Optics manufactures germanium IR windows and lenses according to drawings, wavelength requirements and application specifications for thermal imaging and infrared optical systems.
