Positive Meniscus Cylindrical Lens
Positive Meniscus Cylindrical Lenses are precision lenses with one convex and one concave cylindrical surface along the same axis, providing net positive optical power while focusing light to a line along a single axis rather than to a point. Chenyu Optics manufactures positive meniscus cylindrical lenses in BK7, fused silica, optical glass and infrared materials, with custom focal length, dimensions, surface quality and coating according to customer drawings.
Positive Meniscus Cylindrical Lens Overview
Positive Meniscus Cylindrical Lenses are precision lenses with one convex and one concave cylindrical surface along the same axis, providing net positive optical power and focusing light to a line along a single axis rather than to a point.
Compared with a plano convex or double convex cylindrical lens, the meniscus geometry helps correct aberration when combined with other cylindrical or spherical elements in an optical system, while the perpendicular axis remains unaffected, making it suitable for beam shaping and anamorphic imaging assemblies with tighter aberration control requirements.
Chenyu Optics supports custom positive meniscus cylindrical lens manufacturing according to customer drawings, including custom material, focal length, dimensions, surface quality and coating for prototype and repeat production.
Key Advantages of Positive Meniscus Cylindrical Lens
Beam Shaping, Line Generation & Laser Systems

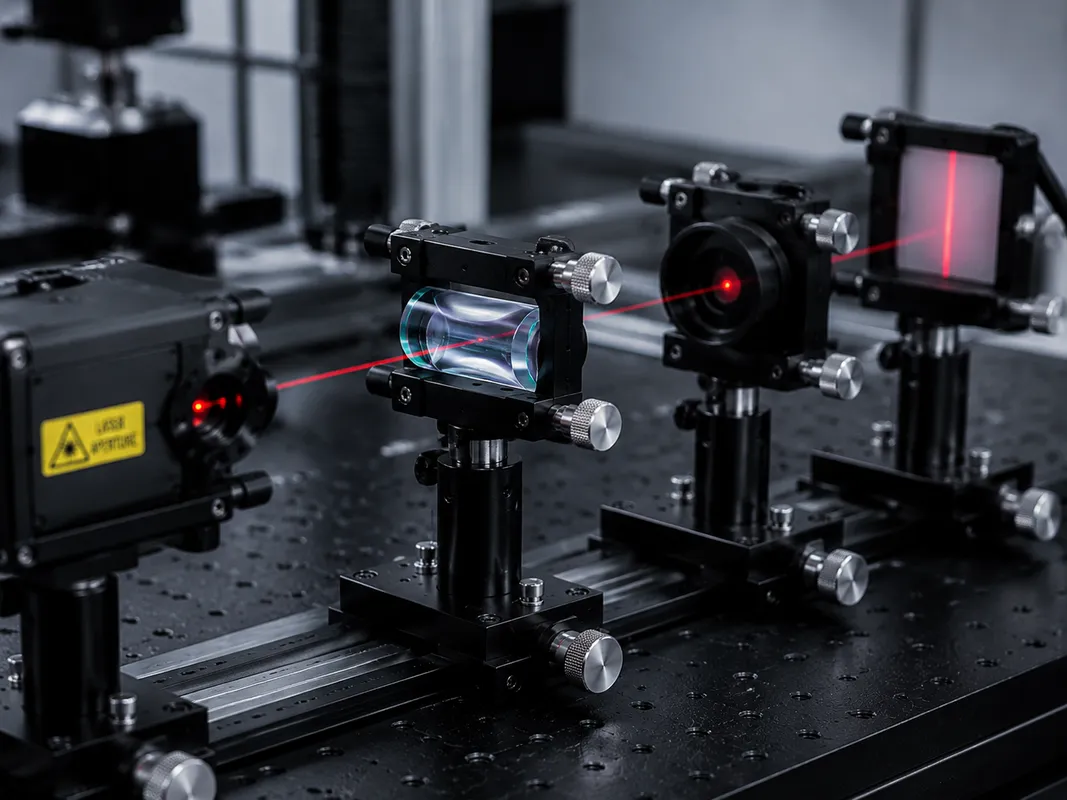

Positive meniscus cylindrical lenses are widely used in laser systems, beam shaping assemblies, line generation optics, machine vision systems and scientific instruments requiring single-axis focusing performance.
Typical Specifications of Positive Meniscus Cylindrical Lens
| Material Options | BK7, Fused Silica, optical glass, and infrared materials as applicable |
|---|---|
| Coating Options | Uncoated, broadband AR, laser AR, UV AR, IR AR, custom coating |
| Optical Function | Single-axis line focusing / positive focal length |
| Focal Length | Custom, according to customer drawing |
| Surface Flatness | Up to λ/10 @ 633 nm |
| Surface Quality | 20-10, 40-20 scratch-dig |
| Dimensions | Custom length, width and thickness available |
| Edge Treatment | Ground, chamfered or polished |

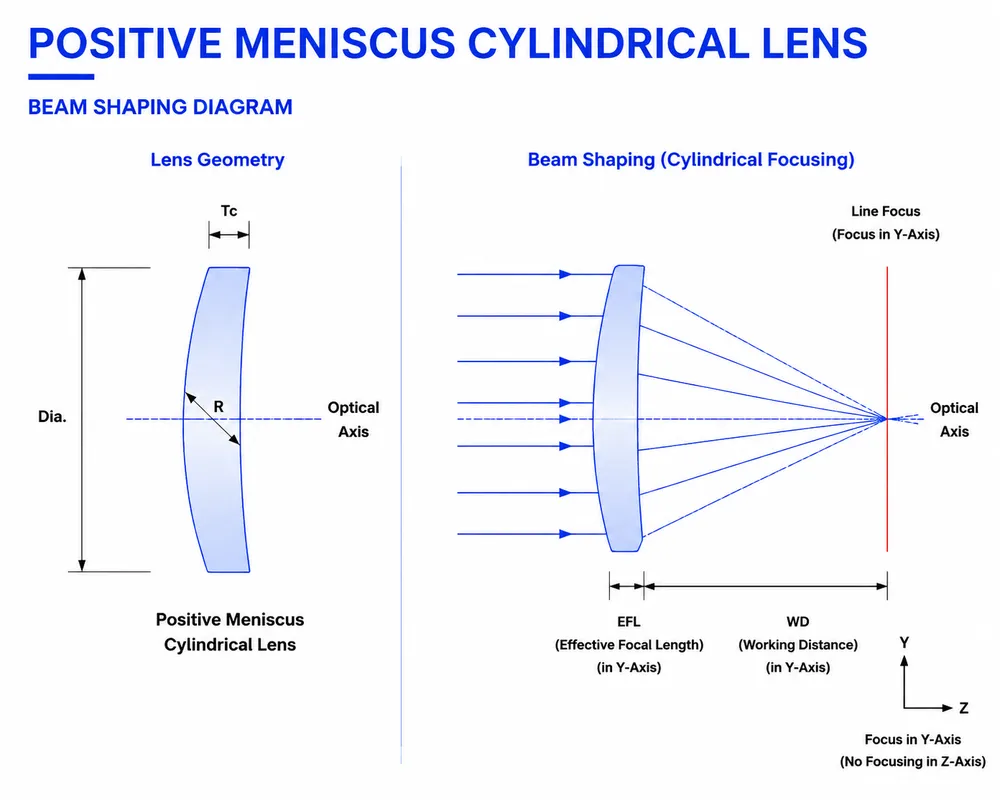

Beam Shaping Diagram
Why Choose Chenyu Optics for Positive Meniscus Cylindrical Lens
Chenyu Optics focuses on drawing-based precision lens manufacturing for laser, imaging and machine vision optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard positive meniscus cylindrical lenses.
Manufacturing Capability for Positive Meniscus Cylindrical Lens
Precision Grinding & Polishing
Controlled grinding and polishing of both convex and concave cylindrical surfaces for focal length accuracy, surface quality and optical performance.
AR Coating
Broadband, laser, UV or IR AR coatings selected according to wavelength and application requirements.
Inspection & Packaging
Dimensional inspection, focal length verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Positive Meniscus Cylindrical Lens
Geometry & Dimensions
Length, width, thickness, focal length and edge treatment can be manufactured according to customer drawings and optical system requirements.
Surface & Optical Quality
Surface accuracy and surface quality can be selected according to beam shaping or imaging application requirements.
Coating Selection
Uncoated, broadband AR, laser AR, UV AR or IR AR coatings can be specified according to the operating wavelength and application environment.
Cylindrical vs. Spherical Lens Comparison
| Spherical Lens | Cylindrical Lens | |
|---|---|---|
| Focusing Behavior | Focuses light symmetrically to a point in both axes | Focuses light to a line along a single axis; perpendicular axis unaffected |
| Surface Configuration | Curvature is constant in every direction across the surface | Curvature exists along one axis only, with a flat or straight profile along the other |
| Typical Function | General-purpose focusing and imaging | Beam shaping, line generation, anamorphic imaging |
| Typical Applications | Imaging systems, laser focusing, machine vision | Laser diode beam correction, line generators, beam shaping systems |
Applications of Positive Meniscus Cylindrical Lens
Laser Systems
Beam shaping and focusing optics for laser system design.
Imaging Systems
Anamorphic imaging elements for single-axis correction.
Beam Shaping
Positive meniscus cylindrical lenses for laser diode beam correction and expansion.
Machine Vision
Line generation components for machine vision and inspection systems.
Scientific Instruments
Precision optical components for laboratory and research instruments.
Optical Systems Integration
Custom cylindrical lenses for OEM optical system assemblies.
Positive Meniscus Cylindrical Lens FAQ
What is a positive meniscus cylindrical lens?
A positive meniscus cylindrical lens has one convex and one concave cylindrical surface along the same axis, providing net positive optical power while focusing light to a line along a single axis.
How is a positive meniscus cylindrical lens different from a double convex cylindrical lens?
A positive meniscus cylindrical lens has one convex and one concave surface rather than two convex surfaces, which helps correct aberration when combined with other elements in an optical system.
Which materials are available for positive meniscus cylindrical lenses?
Common materials include BK7, fused silica, optical glass, and infrared materials, selected according to the operating wavelength.
Can positive meniscus cylindrical lens coatings be customized?
Yes. Coating options include uncoated, broadband AR, laser AR, UV AR, IR AR and custom coatings according to wavelength range and application.
What information should I provide for a quotation?
Please provide material, dimensions, focal length, coating type, surface quality, surface accuracy, quantity and drawing if available.
Where can I learn more about cylindrical lenses and coatings?
Additional information on cylindrical lenses and AR coatings can be found from Edmund Optics.
Related Products for Positive Meniscus Cylindrical Lens
Need Custom Positive Meniscus Cylindrical Lenses?
Send us your drawing, material, dimensions, focal length and coating requirements. Chenyu Optics will review the optical specifications and provide a suitable positive meniscus cylindrical lens manufacturing suggestion.
