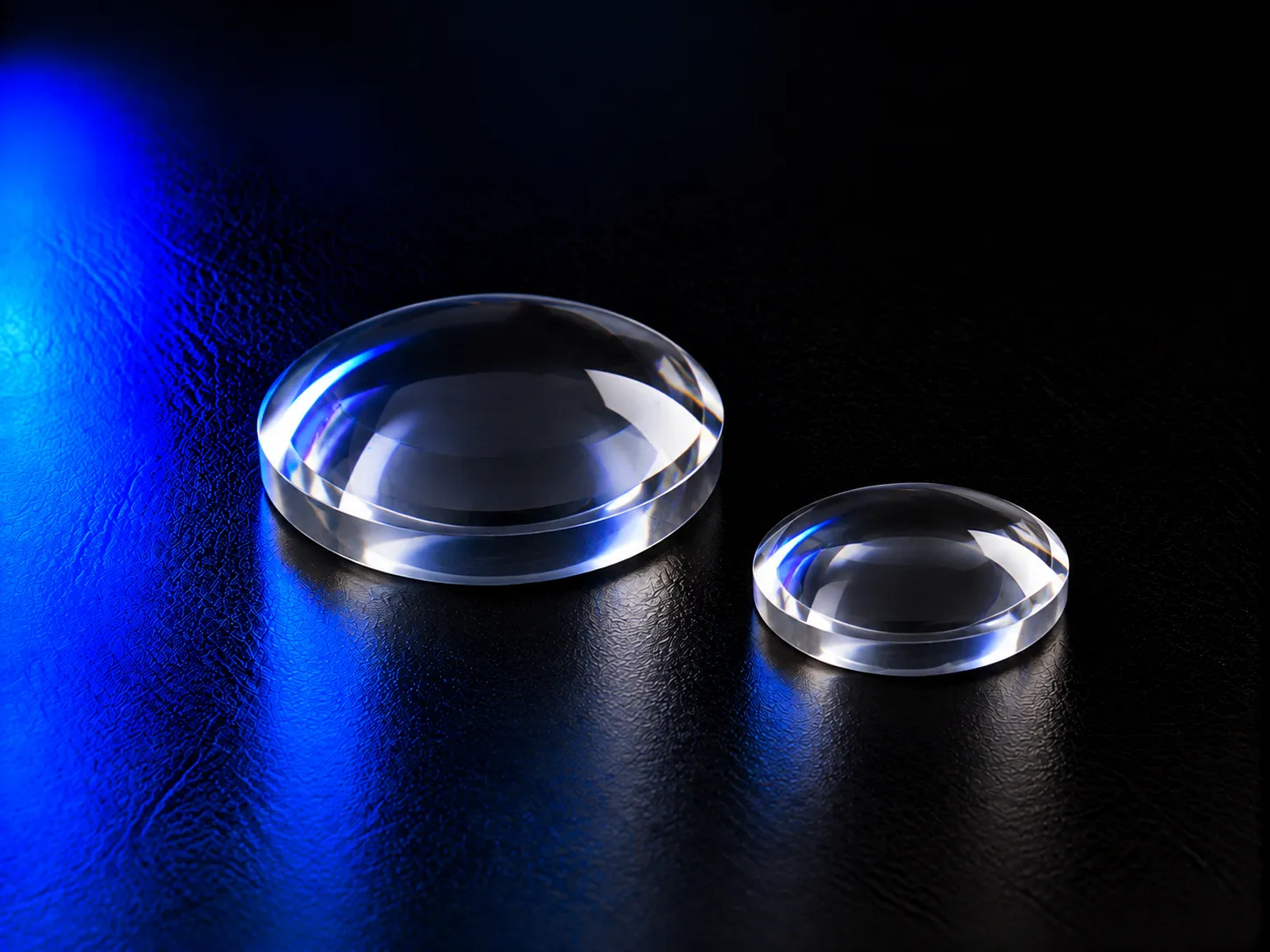

Condensing Lens
Condensing lenses collect, concentrate and redirect light efficiently into a focused area. Optimized lens geometry and material selection improve light collection efficiency and beam utilization in illumination and optical systems.
Condensing Lens Overview
Condensing Lenses collect, concentrate and redirect light efficiently into a focused area.
Chenyu Optics manufactures custom condensing lenses from optical glass, fused silica and PMMA. Diameter, focal length, surface profile, optical design and coating can be customized.
UV, VIS and NIR AR coatings are available for LED lighting, solar concentrators, sensors, projection and illumination systems.
Key Advantages of Condensing Lenses
LED, Illumination & Light Collection Systems
Condensing lenses improve light utilization by collecting and focusing energy from LED, solar, projection and sensing sources.
Typical Specifications of Condensing Lens
| Material Options | Optical Glass / Fused Silica / PMMA |
|---|---|
| Product Type | Condensing Lens |
| Optical Function | Light Collection / Focusing / Illumination Control |
| Diameter / Size | Customized |
| Focal Length | Customized |
| Lens Shape | Customized |
| Surface Design | Customized |
| Wavelength Range | UV / VIS / NIR, material dependent |
| Surface Accuracy | Customized |
| Surface Quality | Customized |
| Manufacturing Process | Precision Polishing / Optical Molding |
| Coating | UV AR / VIS AR / NIR AR |

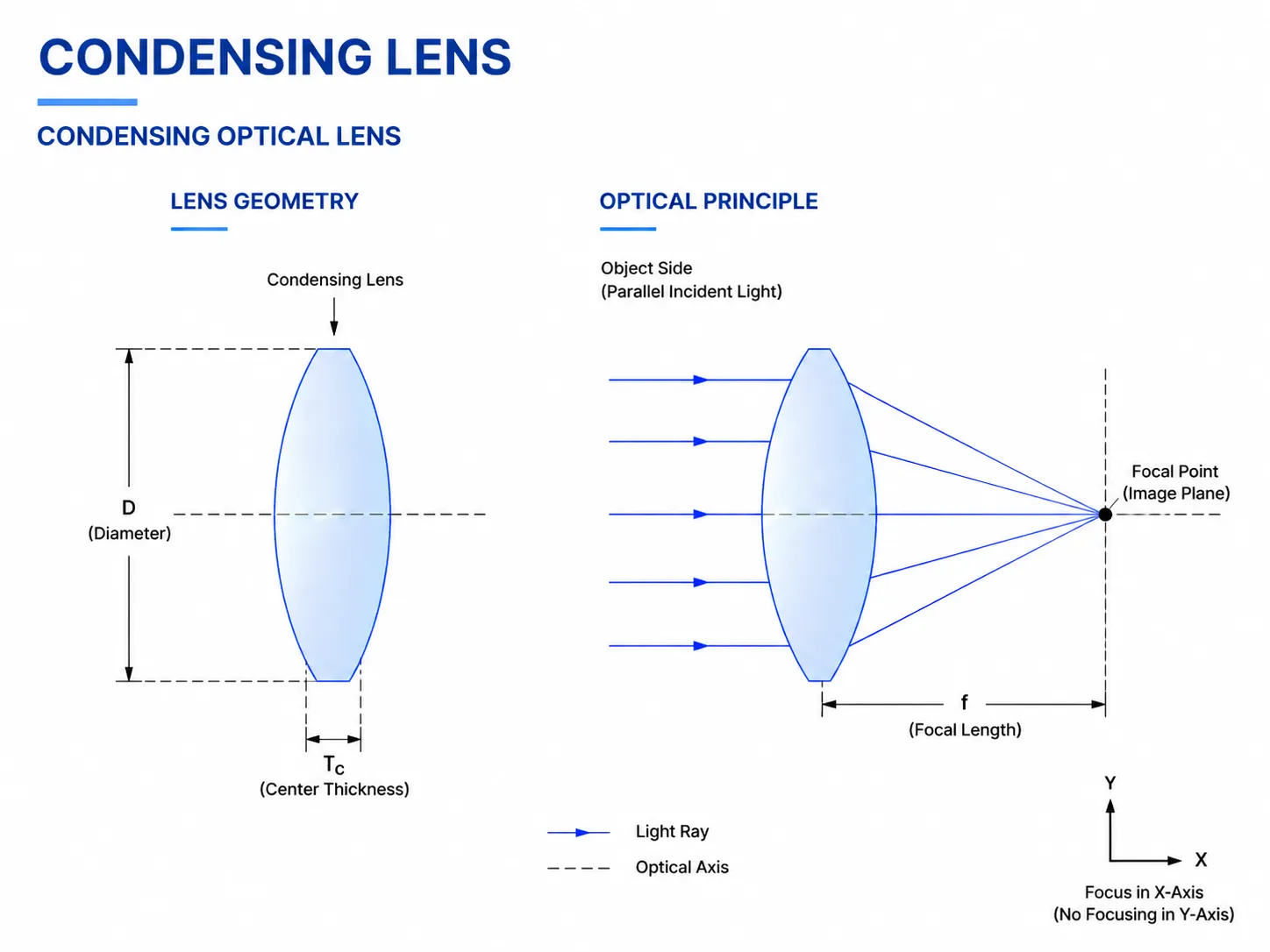

Condenser Lens Structure
Why Choose Chenyu Optics for Condensing Lenses
Chenyu Optics supports custom condensing lens production for illumination, sensing, projection and optical measurement systems.
Manufacturing Capability for Condensing Lenses
Precision Optical Polishing
Precision polishing of optical glass and fused silica with custom diameter, focal length, surface profile, accuracy and surface quality.
Wavelength-Specific AR Coating
UV, visible, NIR and IR anti-reflection coatings optimized for wavelength, angle of incidence, polarization and system requirements.
Inspection & Packaging
Dimensional, focal length, surface profile and optical performance inspection followed by clean handling and protective packaging.
Custom Condensing Lens Options
Condensing Lens Design Options
| Property | Optical Glass | Fused Silica | PMMA |
|---|---|---|---|
| Key Benefit | Balanced optical performance and cost | Excellent UV transmission and thermal stability | Lightweight and suitable for molded production |
| Wavelength Range | VIS / NIR, grade dependent | UV / VIS / NIR | VIS / selected NIR |
| Manufacturing Process | Precision polishing or molding | Precision polishing | Optical molding |
| Typical Applications | Illumination, projection and sensors | UV illumination and precision instruments | LED lighting and high-volume illumination |
| Customization | Diameter, focal length, profile and coating | Diameter, focal length, profile and coating | Diameter, beam angle, profile and coating |
Important Considerations for Condensing Lenses
Applications and Selection Considerations
LED Lighting
Collects LED output and delivers controlled, efficient illumination.
Projection Systems
Concentrates source light for bright and uniform projection optics.
Optical Sensors
Improves light collection efficiency for sensing and detection modules.
Solar Concentrators
Concentrates incident light onto a smaller receiver or detector area.

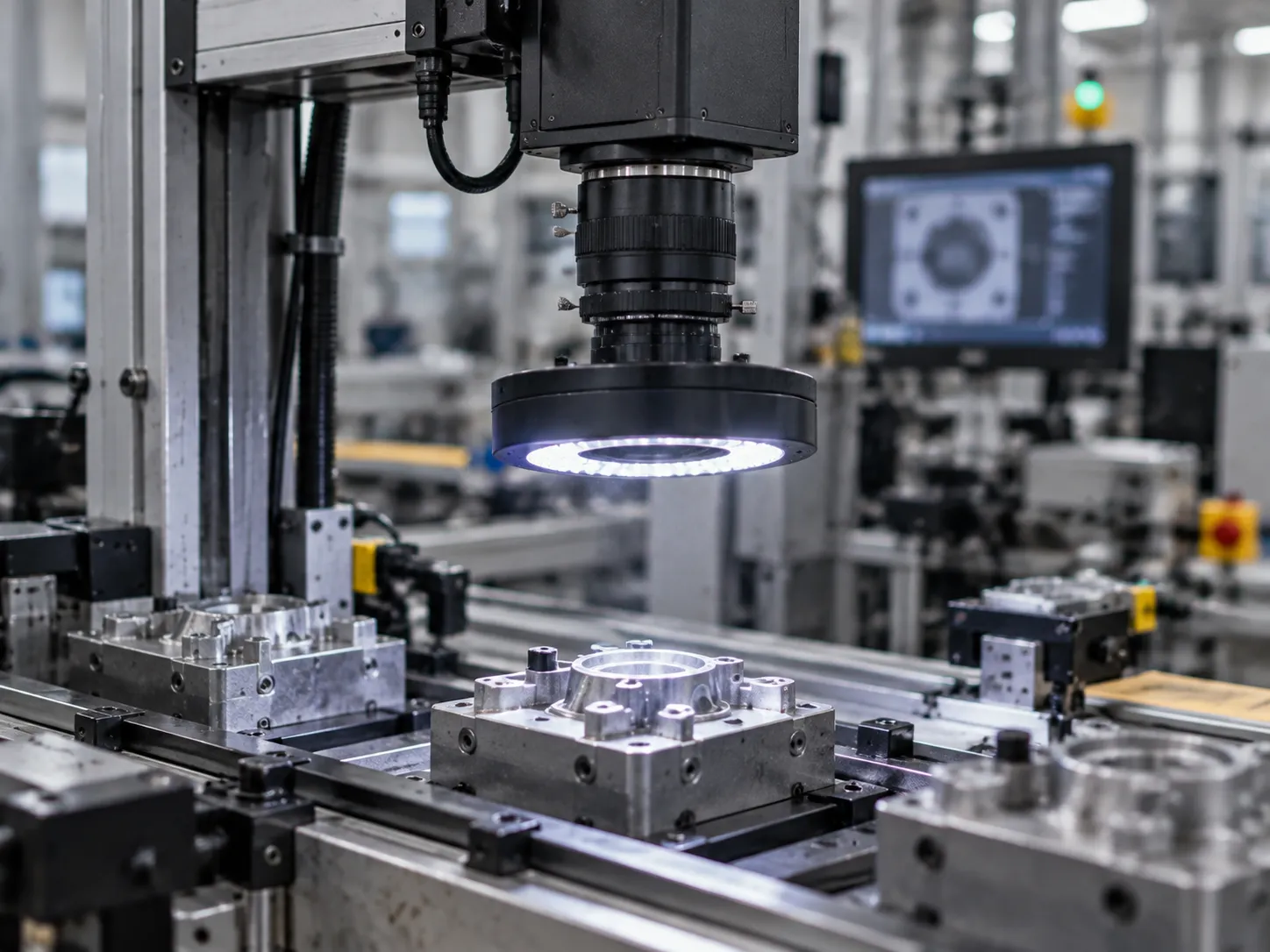

Machine Vision Lighting
Shapes illumination for stable contrast in automated inspection.
Optical Measurement
Controls source illumination in analytical and measurement instruments.
Condensing Lens FAQ
What is a condensing lens used for?
A condensing lens collects light from a source and concentrates it into a smaller area to improve optical efficiency and illumination performance.
What materials are commonly used for condensing lenses?
Optical glass, fused silica and PMMA are commonly used.
Can condensing lenses be customized for LED lighting?
Yes. Diameter, focal length, surface profile and optical design can be customized for the LED source and illumination requirement.
Are AR coatings available for condensing lenses?
Yes. UV, VIS and NIR AR coatings are available.
What information is needed for a custom condensing lens?
Provide the light source, wavelength, dimensions, focal length, working distance, illumination requirements and quantity.
What information should I provide for a quotation?
Please provide the light source model, emitting area, wavelength, target beam pattern, diameter, focal length, working distance, material, temperature, coating and quantity.
Related Products for Condensing Lens
Need Custom Condensing Lenses?
Send your light source, wavelength, diameter, focal length, working distance, target illumination, material, coating requirements and quantity for technical evaluation and quotation.
