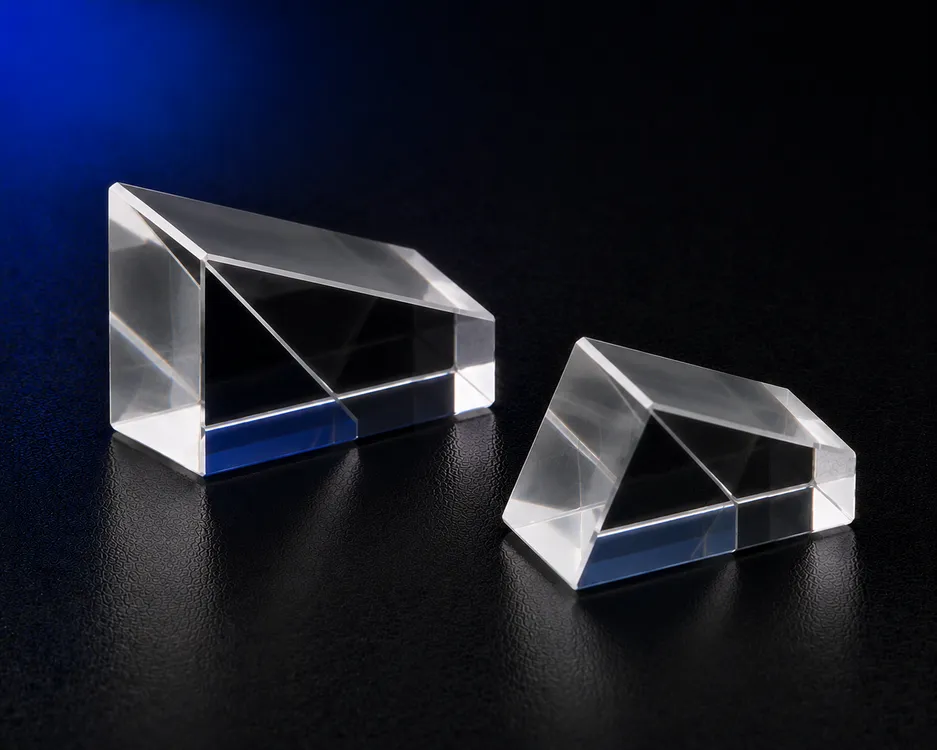

Direct Vision Prism
Direct Vision Prisms are precision dispersive optical prisms designed to separate wavelengths while maintaining the original viewing direction. They are typically composed of multiple optical materials with different dispersion characteristics to achieve direct-view spectral separation. Chenyu Optics manufactures direct vision prisms in BK7, fused silica and optical crown glass with custom dimensions and coatings.
Direct Vision Prism Overview
Direct Vision Prisms are precision dispersive optical prisms designed to separate wavelengths while maintaining the original viewing direction. They are typically composed of multiple optical materials with different dispersion characteristics to achieve direct-view spectral separation.
These prisms are widely used in spectroscopy, wavelength analysis, laser systems and scientific optical instruments requiring compact spectral dispersion solutions without introducing significant beam deviation.
Chenyu Optics supports custom direct vision prism manufacturing according to customer drawings, including custom material combination, prism angle and coating design for prototype and repeat production.
Key Advantages of Direct Vision Prism
Compact Spectroscopy & Wavelength Analysis
Direct vision prisms are widely used for wavelength separation in compact spectrometers, wavelength analysis instruments and spectral imaging systems.
Typical Specifications of Direct Vision Prism
| Material Options | BK7, Fused Silica, Optical Crown Glass |
|---|---|
| Optical Function | Wavelength separation, dispersion |
| Design Type | Direct-view dispersive prism |
| Transmission | High optical transmission |
| Surface Accuracy | λ/4 – λ/10 @ 633 nm |
| Surface Quality | 20-10, 40-20 scratch-dig |
| Angle Accuracy | Precision controlled |
| Dimensions | Custom sizes available |
| Edge Treatment | Fine ground, chamfered or polished |
| Coating Options | Uncoated, broadband AR, laser AR, custom coating |

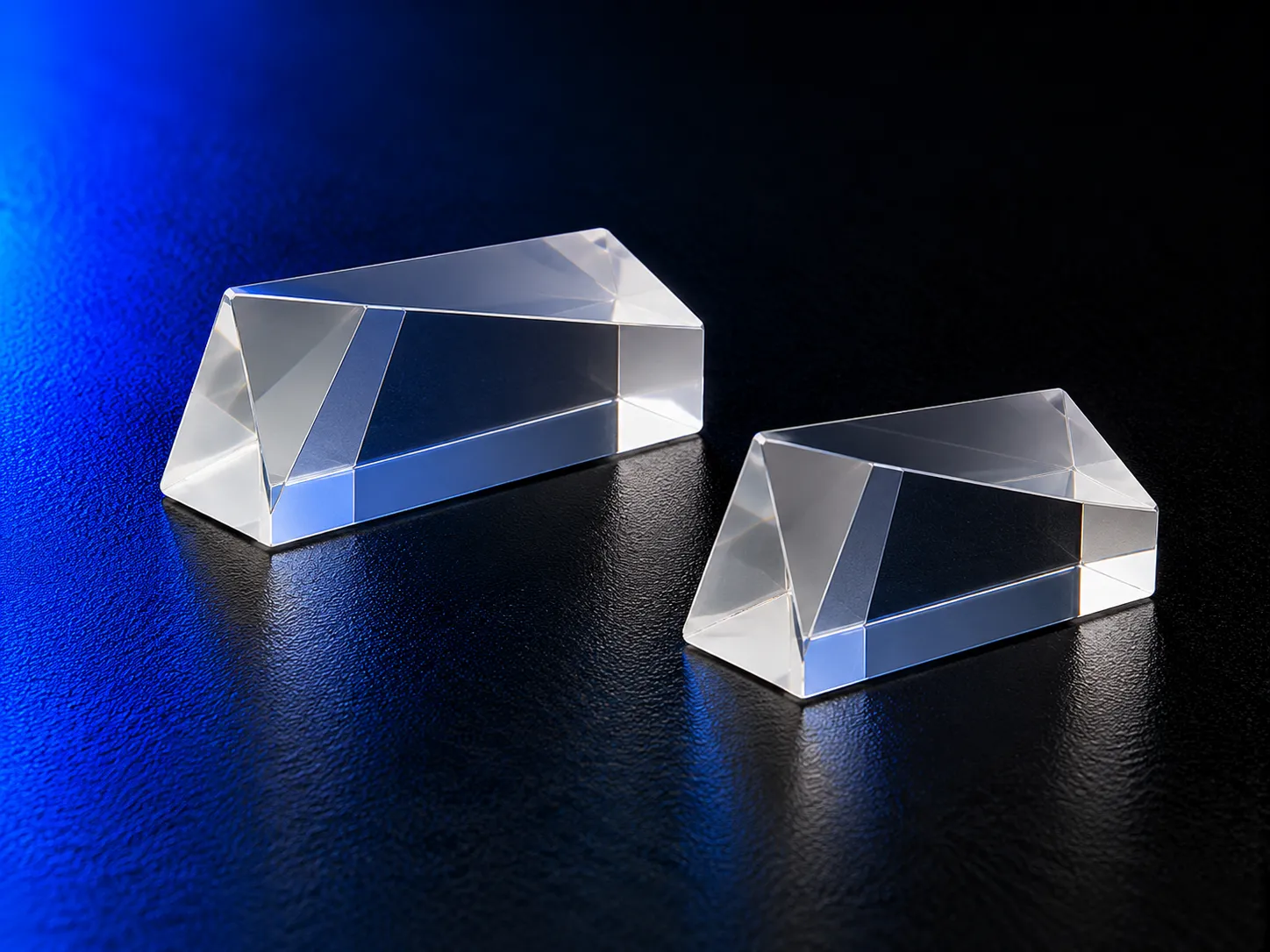

Direct Vision Prism Structure
Why Choose Chenyu Optics for Direct Vision Prism
Chenyu Optics focuses on drawing-based precision prism manufacturing for spectroscopy, laser and scientific optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard direct vision prisms.
Manufacturing Capability for Direct Vision Prism
Precision Polishing & Cementing
Controlled polishing and precision assembly of multi-material prism elements for surface accuracy and stable dispersion performance.
Optical Coating
Broadband AR and laser AR coating options for entrance and exit surfaces depending on the optical system.
Inspection & Packaging
Dimensional inspection, angle verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Direct Vision Prism
Dimensions & Geometry
Custom size and prism angle can be manufactured according to customer drawings, with material combination selected for the required dispersion characteristics.
Surface & Mechanical Quality
Surface accuracy, surface quality and angle accuracy can be selected according to spectral resolution requirements and mounting structure.
Coating & Wavelength Design
Uncoated surfaces, broadband AR and laser AR coatings can be specified according to the target wavelength range and optical system.
Direct Vision Prism Material Comparison
| BK7 | Fused Silica | Optical Crown Glass | |
|---|---|---|---|
| Transmission | Visible to near-infrared, limited UV performance | UV to NIR, depending on grade | Visible wavelength range, general-purpose transmission |
| Dispersion Behavior | Moderate dispersion, widely characterized reference material | Low dispersion, high homogeneity | Dispersion characteristics selected to complement BK7 or fused silica in a matched prism set |
| Typical Use | General visible spectroscopy and cost-sensitive systems | Broadband spectroscopy, laser systems, precision instruments | Matched-material direct vision prism sets for compact dispersion |
| Selection Note | Preferred as a reference or paired element in multi-material prism sets | Preferred when broadband UV-to-NIR performance is required | Preferred when paired with another material to achieve direct-view dispersion |
Applications of Direct Vision Prism
Spectroscopy Systems
Compact wavelength separation for spectroscopy instruments.
Wavelength Separation Instruments
Precision dispersion elements for wavelength analysis equipment.
Laser Optical Systems
Direct-view wavelength control for laser optical system design.
Scientific Research Equipment
Precision optical components for laboratory and research optical setups.
Optical Measurement Instruments
Dispersion elements for measurement and metrology equipment.
Spectral Imaging Systems
Compact wavelength separation for spectral imaging applications.
Direct Vision Prism FAQ
What is the function of a direct vision prism?
A direct vision prism separates different wavelengths while allowing the observer to view the spectrum without a significant change in viewing direction.
Why are multiple optical materials used in direct vision prisms?
Different materials provide different dispersion characteristics, allowing wavelength separation while maintaining a direct optical path.
Are direct vision prisms suitable for spectroscopy?
Yes. They are commonly used in compact spectrometers and spectral analysis systems.
Can direct vision prisms be customized?
Yes. Custom materials, prism angles, dimensions and AR coatings are available according to system requirements.
What information should I provide for a quotation?
Please provide material combination, dimensions, prism angle, surface quality, surface accuracy, coating requirement, quantity and drawing if available.
Where can I learn more about dispersive optical prisms?
Additional optical prism information can be found from Edmund Optics.
Related Products for Direct Vision Prism
Need Custom Direct Vision Prisms?
Send us your drawing, material preference, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable direct vision prism manufacturing suggestion.
