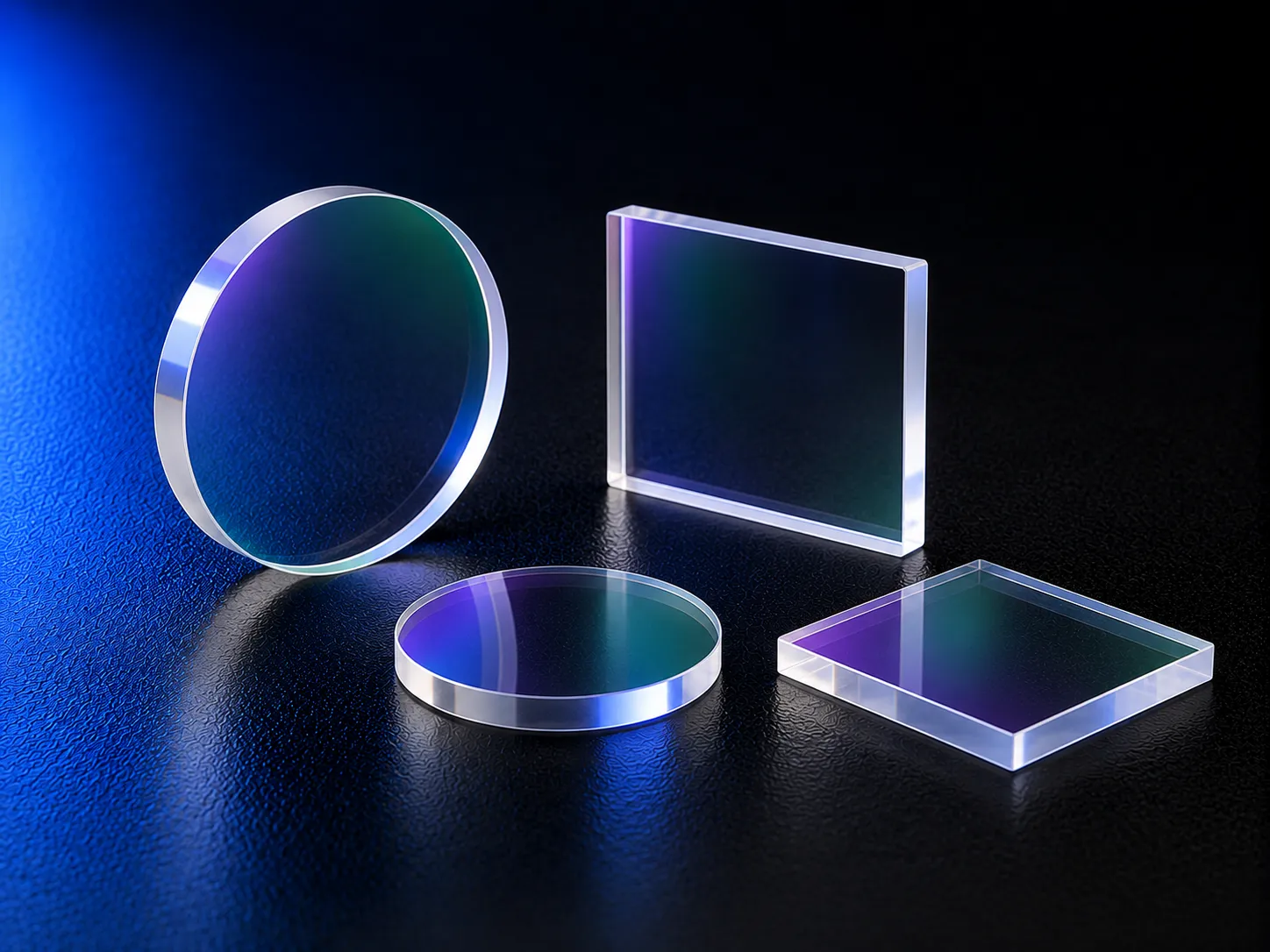

Laser Line AR Window
Laser line AR windows combine precision-polished fused silica, optical glass or sapphire substrates with wavelength-optimized anti-reflection coatings for high laser transmission, low reflection loss and reliable performance at specific laser wavelengths.
Laser Line AR Window Overview
Laser Line AR Windows maximize transmission and minimize reflection at specific laser wavelengths.
Chenyu Optics provides single-wavelength and narrow-band AR coating solutions on fused silica, optical glass and sapphire.
Dimensions, thickness, substrate, surface specifications and coating parameters can be customized according to laser wavelength, angle of incidence and power requirements.
Key Advantages of Laser Line AR Windows
Laser Transmission & Beam Delivery
Wavelength-optimized AR coatings reduce reflection loss and improve transmission in laser alignment, measurement and beam delivery systems.
Typical Specifications of Laser Line AR Window
| Material Options | Fused Silica / Optical Glass / Sapphire |
|---|---|
| Product Type | Laser Line AR Window |
| Optical Function | Laser transmission and reflection reduction at the design wavelength |
| Design Wavelength | Customer-specified |
| Required Bandwidth | Customer-specified narrow band |
| Angle of Incidence | Customer-specified |
| Polarization | Customer-specified: random, S or P |
| Laser Type | Customer-specified: CW or pulsed |
| Laser Power or Pulse Energy | Customer-specified |
| Pulse Duration | Customer-specified for pulsed lasers |
| Diameter / Size | Drawing-defined |
| Thickness | Drawing-defined |
| Clear Aperture | Drawing-defined |
| Surface Flatness | Drawing-defined at the stated reference wavelength and clear aperture |
| Surface Quality | 20-10 / 40-20 scratch-dig |
| Parallelism | Drawing-defined |
| Required Transmission or Reflectance | Customer-specified at the design wavelength, AOI and polarization |
| Damage-Threshold Requirement | Customer-specified with wavelength, laser type, power or pulse energy, pulse duration, repetition rate and beam diameter |
| Coating Type | Laser line AR coating |

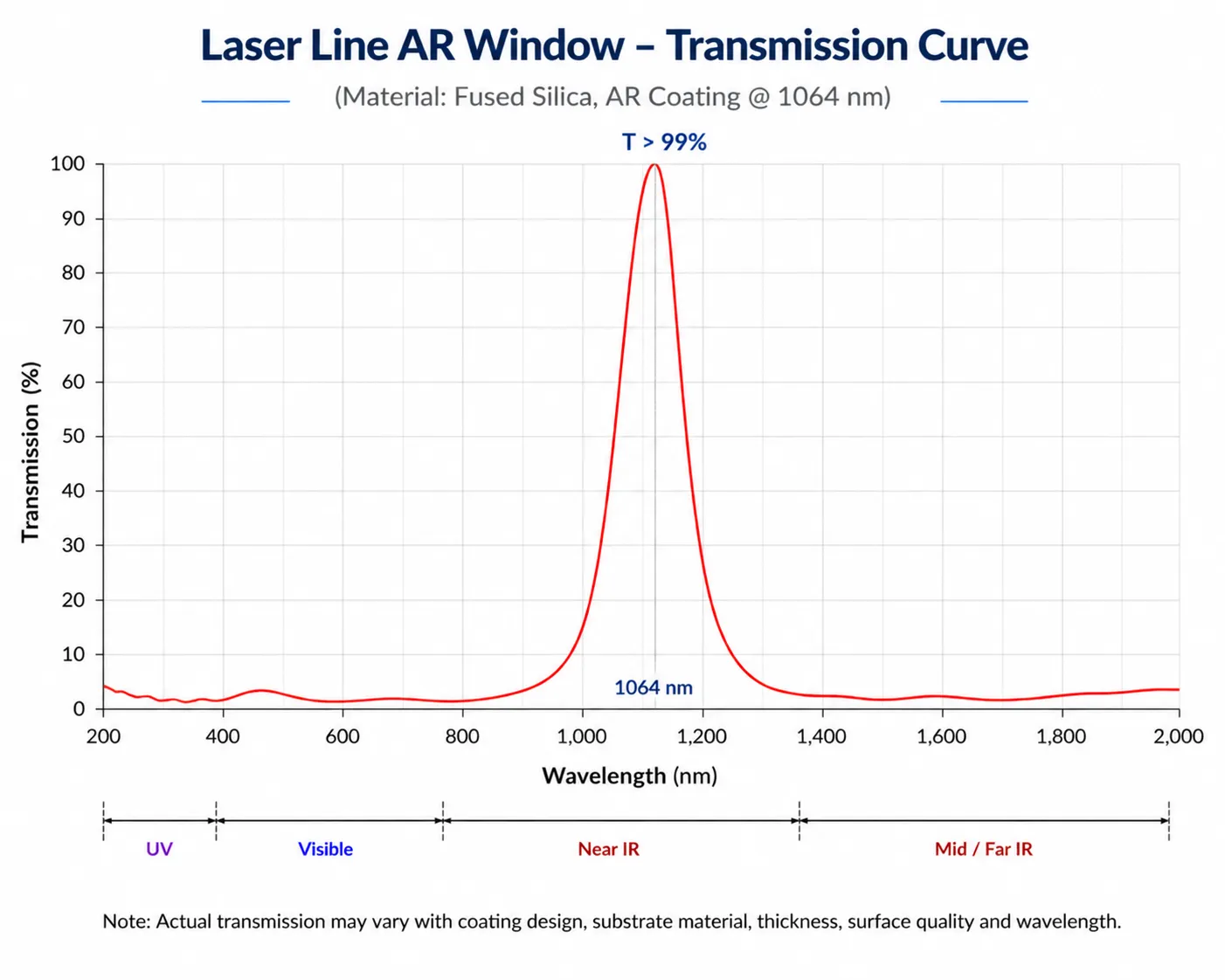

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Laser Line AR Windows
Chenyu Optics supports drawing-based laser line AR window manufacturing from prototype verification through repeat production.
Manufacturing Capability for Laser Line AR Windows
Precision Optical Polishing
Controlled surface flatness and 20-10 or 40-20 scratch-dig quality on custom substrates.
Laser Line AR Coating
Multilayer coatings optimized for wavelength range, angle of incidence and polarization.
Inspection & Packaging
Coating, dimensional and optical inspection followed by clean protective packaging.
Custom Laser Line AR Window Options
Laser Line AR vs Broadband AR Coatings
| Property | Laser Line AR Coating | Broadband AR Coating |
|---|---|---|
| Wavelength Coverage | One specified laser wavelength or a narrow wavelength band | A wider wavelength range |
| Primary Benefit | Minimum reflection and maximum transmission at the design wavelength | Consistent low reflection across a broader spectrum |
| Typical Use | Laser transmission, alignment and beam delivery | Imaging, illumination and multispectral optical systems |
| Design Inputs | Wavelength, AOI, polarization and laser power | Wavelength range, AOI and polarization |
| Trade-off | Highest performance over a narrow band | Broader coverage with less peak optimization |
Important Considerations for Laser Line AR Windows
Applications and Selection Considerations
Laser Beam Delivery
Wavelength-specific transmission windows for protected laser beam paths and delivery assemblies.
Laser Alignment
Low-reflection windows for alignment paths operating at the specified laser wavelength.
Laser Measurement
Transmission optics for laser power, beam-profile and wavelength-specific measurement systems.

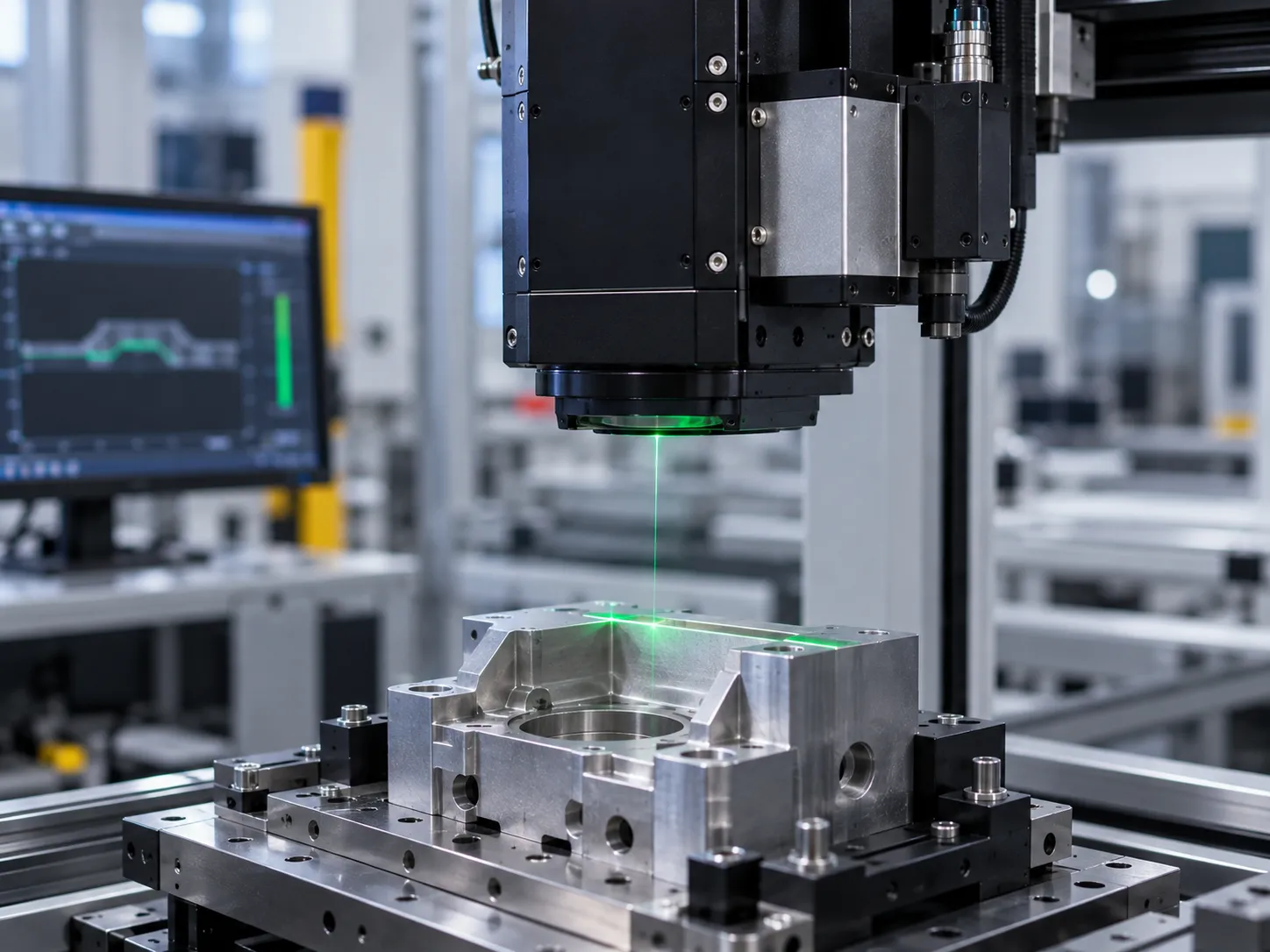

Laser Processing
Protective transmitting windows for cutting, marking, welding and other laser-processing equipment.
Scientific Laser Systems
Custom-coated windows for laboratory lasers, research platforms and precision experiments.
Wavelength-Specific Optical Instruments
Optimized transmission at the instrument's defined laser wavelength, AOI and polarization.
Laser Line AR Window FAQ
What is a laser line AR window?
An optical window coated to minimize reflection and maximize transmission at a specific laser wavelength.
What is the difference between broadband AR and laser line AR coatings?
Broadband AR coatings cover wider ranges, while laser line AR coatings maximize transmission at a specific wavelength.
Which materials are suitable for laser line AR windows?
Fused silica, optical glass and sapphire are selected according to wavelength, power and environment.
Can the coating wavelength be customized?
Yes. Coatings can be designed for the required wavelength, AOI, polarization and laser conditions.
Can the size and coating be customized?
Yes. Dimensions, thickness, substrate, surfaces and coating design can be customized.
What information is required for a quotation?
Provide wavelength range, transmission, AOI, polarization, substrate, dimensions, thickness, surface specifications, environment and quantity.
Related Products for Laser Line AR Window
Related capabilities: Laser Systems Optics and Optical Coating.
Need Custom Laser Line AR Windows?
Send your laser wavelength, power level, AOI, substrate, dimensions, coating requirements and quantity for technical evaluation and quotation.
