Variable ND Filter
Variable ND Filters are precision optical filters designed to provide adjustable optical density and accurate light intensity control. They enable continuous transmission adjustment while maintaining excellent optical performance and low wavefront distortion. Using advanced coating technology, Chenyu Optics manufactures variable ND filters with custom attenuation ranges, sizes and coating designs for imaging systems, laser applications and optical instruments.

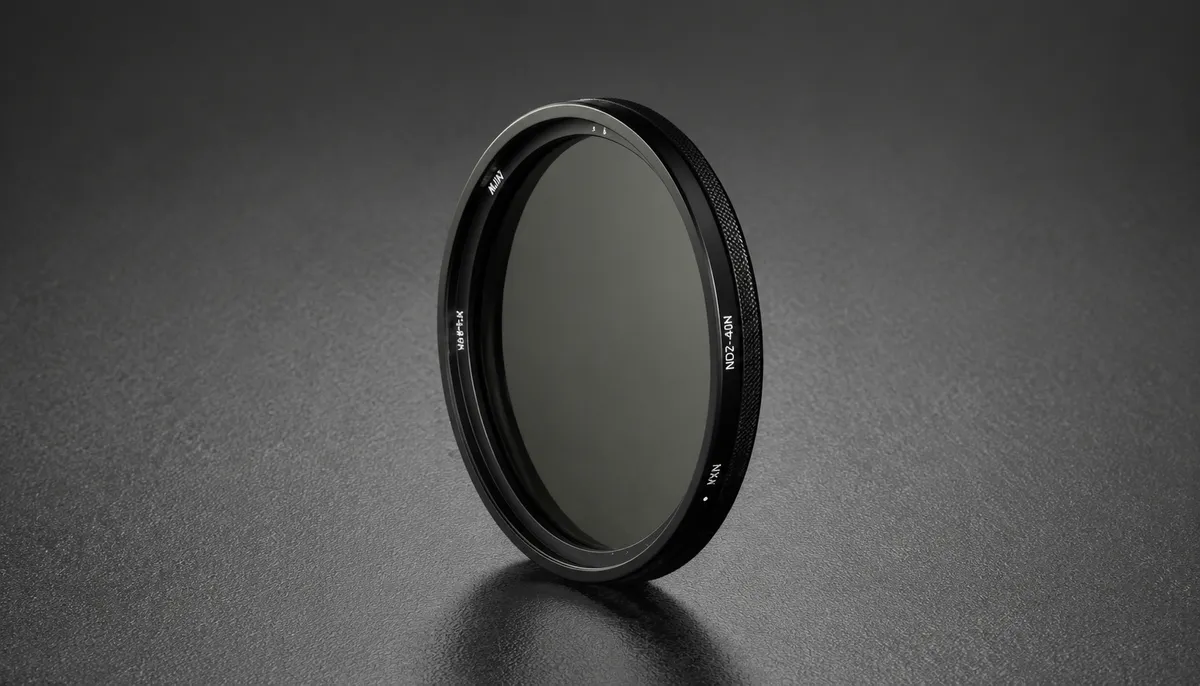

Variable ND Filter Overview
Variable ND Filters are precision optical filters designed to provide continuously adjustable light attenuation while controlling transmitted optical intensity. They enable precise exposure adjustment and light management without changing the optical path.
Using advanced coating technology, variable ND filters provide accurate optical density adjustment, excellent transmission performance and stable attenuation control. They are widely used in imaging systems, laser applications, photography, machine vision and optical instruments.
Chenyu Optics supports custom variable ND filter manufacturing according to customer requirements, including custom substrate material, dimensions, optical density range and coating design for prototype and repeat production.
Key Advantages of Variable ND Filter

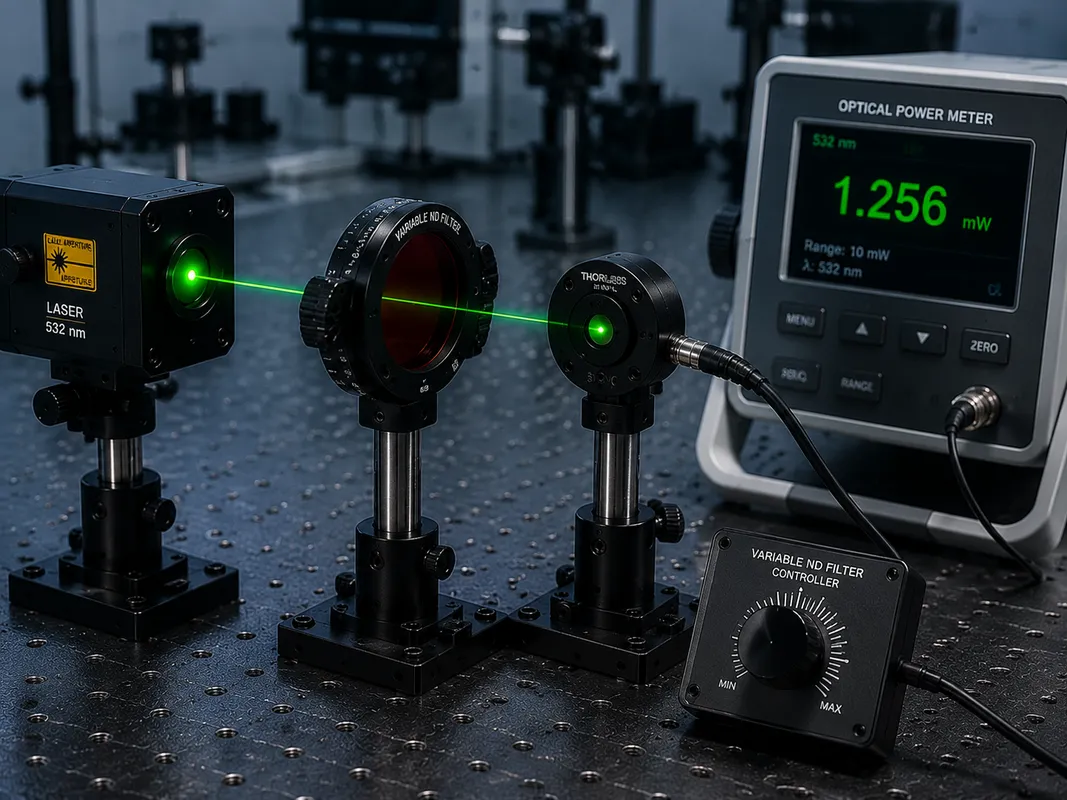

Imaging & Laser Attenuation Systems
Variable ND filters are widely used for adjustable light attenuation in imaging systems, laser applications, photography equipment and optical instruments.
Typical Specifications of Variable ND Filter
| Material Options | BK7, Fused Silica |
|---|---|
| Coating Type | Variable neutral density coating |
| Optical Function | Continuously adjustable light attenuation |
| Optical Density Range | Customizable |
| Attenuation Control | Continuous / rotational adjustment |
| Transmission | High transmission across operating range |
| Wavefront Distortion | Low |
| Surface Quality | High precision optical finish |

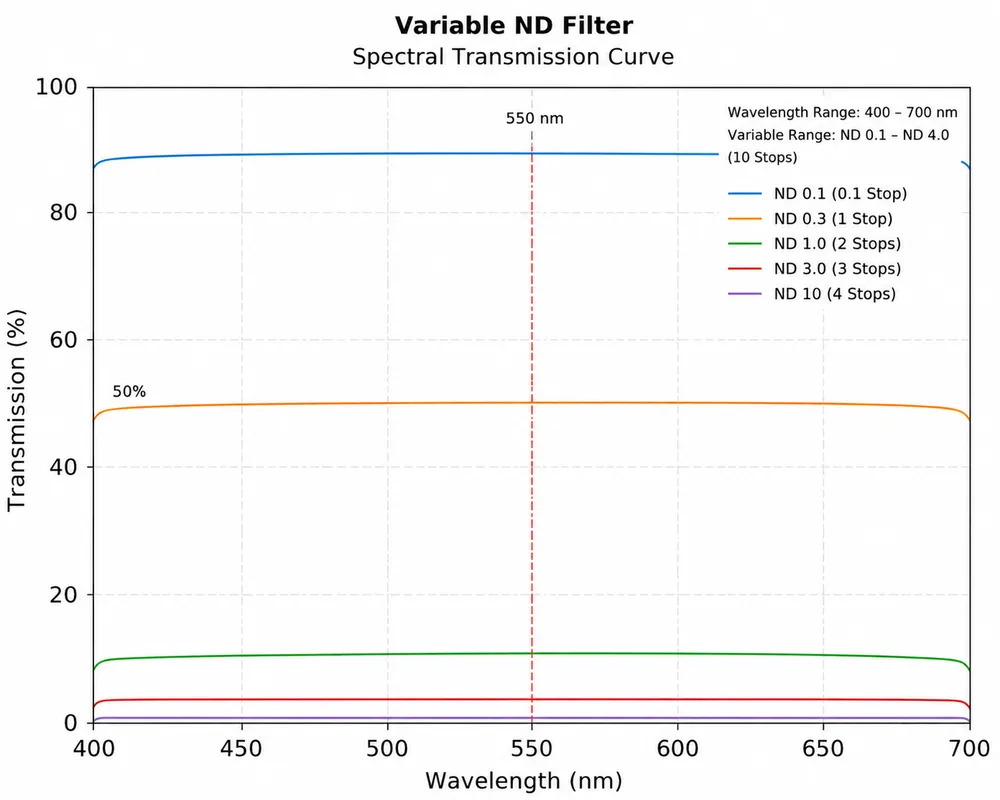

Spectral Transmission Curve (Typical)
Why Choose Chenyu Optics for Variable ND Filter
Chenyu Optics focuses on drawing-based precision filter manufacturing for imaging, laser and optical instrument applications. We support prototype verification, small-batch production and repeat manufacturing for non-standard variable ND filters.
Manufacturing Capability for Variable ND Filter
Precision Polishing
High surface quality processing for stable filter performance.
Precision Coating
High performance variable neutral density coating for accurate attenuation control.
Inspection & Packaging
Strict quality control on optical density, transmission uniformity and attenuation performance, with clean protective packaging before shipment.
Custom Variable ND Filter Options
Bandpass Filter Type Comparison
| Filter Type | Typical FWHM | Peak Transmission | Blocking (OD) | Typical Applications |
|---|---|---|---|---|
| Variable ND Filter | N/A | Adjustable | OD 0.1 – OD 3.0 (adjustable) | Exposure control, laser attenuation, imaging |
| Narrow Bandpass Filter | 1 – 10 nm | >90% | OD4 – OD6+ | Laser line selection, fluorescence |
| Standard Bandpass Filter | 10 – 50 nm | >90% | OD4 – OD6+ | Machine vision, instrumentation |
| Wide Bandpass Filter | 50 – 200 nm | >90% | OD4 – OD6 | Imaging, spectroscopy |
Applications of Variable ND Filter
Photography & Videography
Adjustable exposure control for cameras and video equipment.
Machine Vision Systems
Variable light attenuation for consistent imaging performance.
Laser Power Attenuation
Precise intensity control for laser-based applications.
Imaging Systems
Continuous attenuation for optical imaging equipment.
Optical Instruments
Adjustable light control for laboratory and testing instruments.
Exposure Control Equipment
Stable and repeatable attenuation for exposure-sensitive systems.
Variable ND Filter FAQ
What is the function of a variable ND filter?
A variable ND filter provides continuously adjustable light attenuation to control transmitted optical intensity without changing the optical path.
How does a variable ND filter differ from a fixed ND filter?
A fixed ND filter provides a single set optical density, while a variable ND filter allows continuous adjustment across a defined density range.
Can variable ND filters be customized for specific optical density ranges?
Yes. Optical density range, substrate material, dimensions, and coating design can be customized.
Why is wavefront distortion important for variable ND filters?
Low wavefront distortion helps maintain image quality and optical performance across the adjustable attenuation range.
What information should I provide for a quotation?
Please provide optical density range, substrate material, dimensions, quantity and drawing if available.
Where can I learn more about variable ND filter design?
Additional information on variable ND filter design can be found from Edmund Optics.
Related Products for Variable ND Filter
Need Custom Variable ND Filters?
Send us your optical density range, substrate, dimensions, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable variable ND filter manufacturing suggestion.
