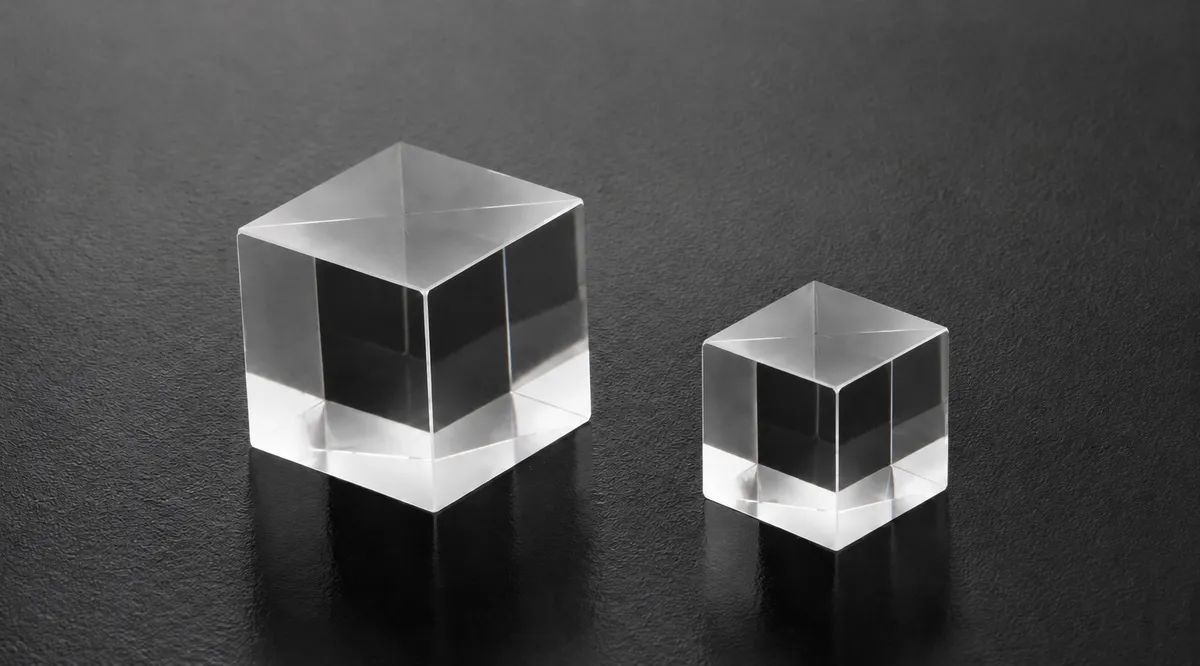

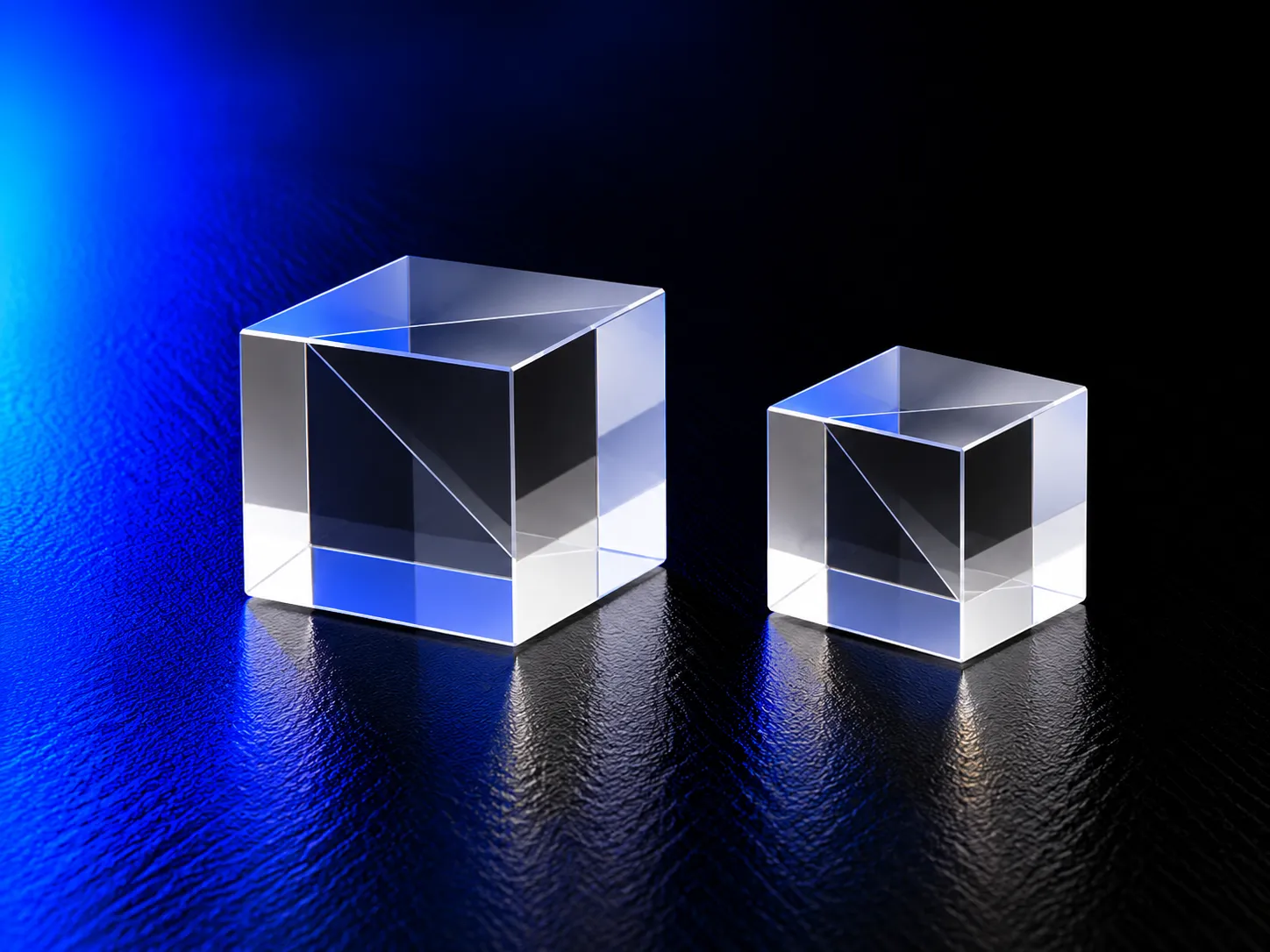

Polarizing Beam Splitter Prism
Polarizing Beam Splitter Prisms are precision optical component designed to separate polarized light paths and manage polarization states in laser systems, imaging instruments and optical assemblies. Chenyu Optics manufactures Polarizing Beam Splitter Prism with high optical accuracy, reliable polarization performance and optional AR coatings for scientific and industrial applications.
Polarizing Beam Splitter Prisms Overview
Polarizing Beam Splitter Prisms are precision optical components used to separate polarized light, control beam direction and manage polarization states in advanced optical systems.
For laser and imaging applications, Polarizing Beam Splitter Prisms provide efficient polarization separation, high extinction ratio and stable optical performance. They are widely used in laser systems, optical instruments, microscopy and measurement equipment where accurate polarization control is required.
Chenyu Optics supports custom Polarizing Beam Splitter Prism manufacturing according to customer drawings, including different sizes, materials and configurations. Surface quality, angular accuracy, flatness, extinction ratio, clear aperture and coating design can be specified for prototype and repeat production.
Key Advantages of Polarizing Beam Splitter Prisms
Polarization Control & Beam Separation
Polarizing Beam Splitter Prisms are widely used as polarization-management elements in laser systems, optical instruments, microscopy setups and measurement equipment requiring accurate beam separation.
Typical Specifications of Polarizing Beam Splitter Prisms
| Material | Optical Grade Glass / BK7 |
|---|---|
| Material Type | BK7, Fused Silica or Optical Glass with Polarizing Coating |
| Transmission Range | Approx. 350 nm – 2500 nm, depending on material grade, coating design and wavelength range |
| Refractive Index | Approx. 1.516 @ 589 nm (BK7) |
| Density | Approx. 2.51 g/cm³ (BK7) |
| Polarization Performance | High extinction ratio and polarization separation efficiency |
| Beam Separation Angle | 90° or custom configuration |
| Surface Quality | 20-10, 40-20, 60-40 or custom |
| Surface Flatness | Up to λ/10 @ 633 nm or drawing-based |
| Parallelism | ≤ 3 arcmin or custom |
| Size / Dimension | Custom cube, rectangular or special-shaped prisms |
| Thickness Tolerance | ±0.1 mm, ±0.05 mm or custom |
| Clear Aperture | ≥85% of prism area or drawing-based |
| Chamfer | 0.1 – 0.3 mm × 45° or drawing-based |
| Coating Options | AR coating, polarization beam splitting coating, broadband coating, custom coating |

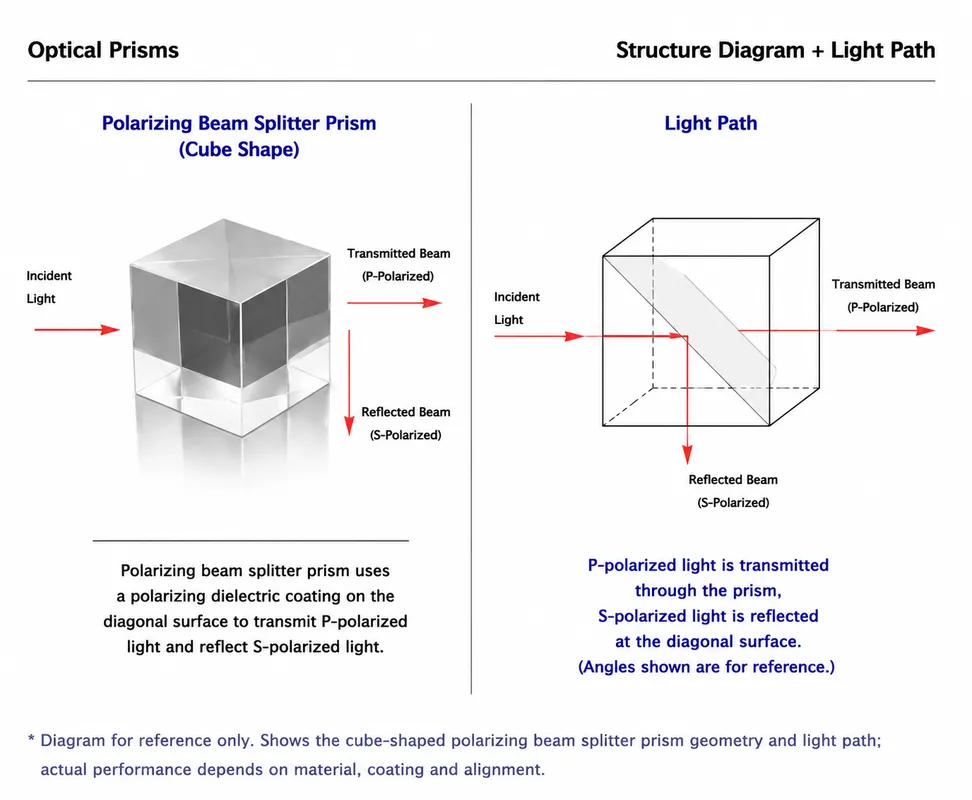

Polarizing Beam Splitter Prism Structure
Why Choose Chenyu Optics for Polarizing Beam Splitter Prisms
Chenyu Optics focuses on drawing-based precision optical component manufacturing for laser, imaging and polarization-critical optical systems. We support prototype verification, small-batch production and repeat manufacturing for non-standard Polarizing Beam Splitter Prisms.
Manufacturing Capability for Polarizing Beam Splitter Prisms
Precision Polishing
Controlled lapping and polishing for flatness, surface quality, angular accuracy and low-scatter optical surfaces prior to cementing and coating.
Optical Coating
AR coating, polarization beam splitting coating and broadband coating options for UV, VIS and NIR wavelength applications.
Inspection & Packaging
Dimensional inspection, extinction ratio verification, optical performance checking and clean protective packaging before shipment.
Custom Manufacturing Options for Polarizing Beam Splitter Prisms
Dimensions & Geometry
Custom cube, rectangular and special-shaped Polarizing Beam Splitter Prisms can be manufactured according to customer drawings, including custom clear aperture and mounting requirements.
Surface & Mechanical Quality
Surface quality, flatness, parallelism and dimensional tolerances can be selected according to polarization performance and assembly structure.
Coating & Wavelength Design
AR coating, polarization beam splitting coating and broadband coatings can be specified for laser, microscopy or measurement systems operating in UV, VIS or NIR wavelengths.
Polarizing Beam Splitter Prisms Material Comparison
| BK7 | N-BK7 | Fused Silica | N-SF11 | Sapphire | |
|---|---|---|---|---|---|
| Transmission | Visible to NIR, approx. 350 – 2500 nm | Visible to NIR, approx. 350 – 2500 nm, improved homogeneity | UV to NIR, approx. 185 – 2500 nm | Visible to NIR, approx. 400 – 2300 nm | UV to MWIR, commonly 0.2 – 5.5 μm |
| Refractive Index | Approx. 1.516 @ 589 nm | Approx. 1.517 @ 589 nm, tighter homogeneity grade | Approx. 1.458 @ 589 nm | Approx. 1.784 @ 589 nm | Approx. 1.768 @ 589 nm |
| Mechanical Notes | Standard optical crown glass, cost-effective and widely available | Higher homogeneity grade of BK7 for precision polarization optics | Low thermal expansion, good UV and laser damage resistance | High-index flint glass for compact polarizing prism designs | Very hard and chemically durable |
| Typical Use | General-purpose polarizing beam splitters for laser and imaging systems | Precision polarization optics and metrology-grade assemblies | UV laser systems, high-power laser polarization control | Compact polarizing beam splitter cube designs | Harsh-environment optics, high-durability polarization assemblies |
Applications of Polarizing Beam Splitter Prisms
Laser Systems
Polarization separation and beam control elements for industrial and scientific laser systems.
Optical Instruments
Polarization management components for precision optical instruments and test equipment.

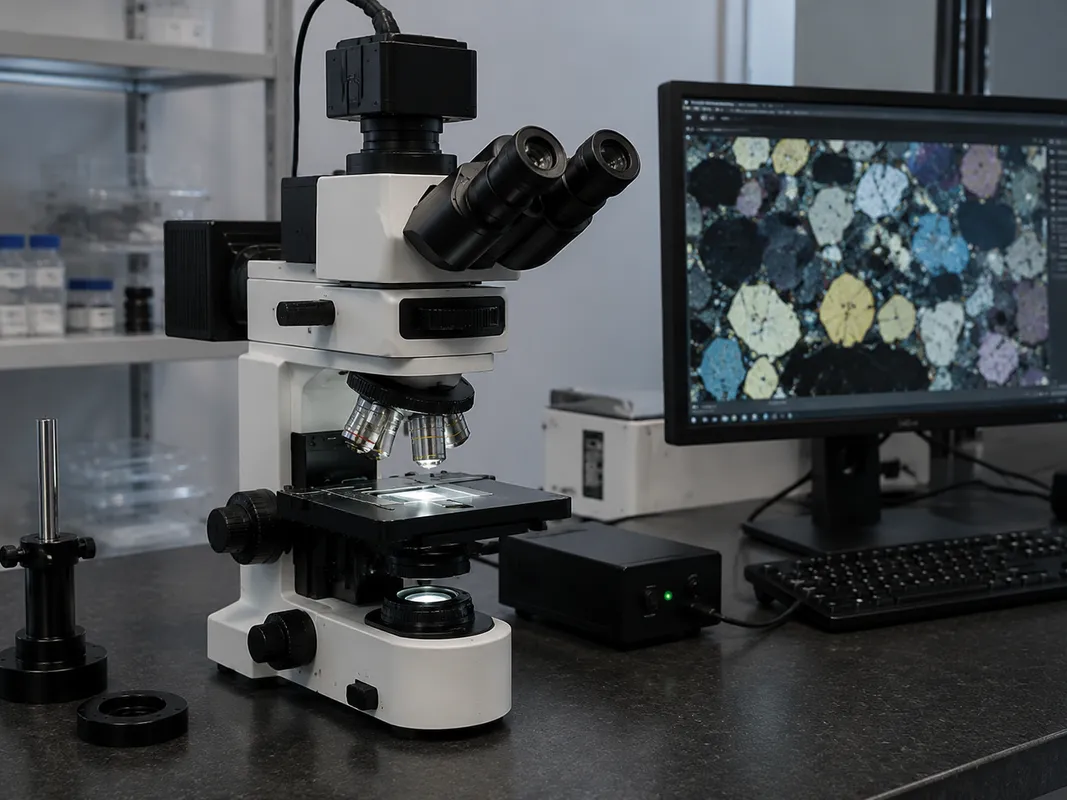

Microscopy
Beam splitting and polarization control elements for polarization-sensitive microscopy systems.
Interferometry
Polarization-based beam separation for interferometric measurement setups.
Measurement Equipment
Polarizing Beam Splitter Prisms for optical metrology and characterization instruments.
Photonics & OEM Systems
Custom Polarizing Beam Splitter Prisms integrated into OEM photonic and imaging assemblies.
Polarizing Beam Splitter Prisms FAQ
What is a Polarizing Beam Splitter Prism used for?
A Polarizing Beam Splitter Prism is used to separate incident light into two orthogonally polarized beams, commonly in laser systems, optical instruments, microscopy and measurement equipment requiring polarization control.
What materials are Polarizing Beam Splitter Prisms made from?
Polarizing Beam Splitter Prisms are commonly manufactured from BK7 optical glass, fused silica or other optical glass, combined with a polarizing beam splitting coating at the cemented interface.
What is extinction ratio and why does it matter?
Extinction ratio describes how effectively a Polarizing Beam Splitter Prism separates the two polarization states. A higher extinction ratio indicates better polarization purity and is important for laser, microscopy and interferometry applications.
Do Polarizing Beam Splitter Prisms require AR coating?
AR coating on the entrance and exit faces is recommended for most laser and imaging systems to reduce Fresnel reflection loss and improve overall optical transmission.
Can Polarizing Beam Splitter Prisms be custom manufactured to a drawing?
Yes. Chenyu Optics manufactures Polarizing Beam Splitter Prisms according to customer drawings, including custom size, angle, surface quality and coating requirements.
What information should I provide for a quotation?
Please provide dimensions, beam separation angle, required extinction ratio, surface quality, flatness, clear aperture, coating requirement, quantity, operating wavelength and drawing if available.
Where can I learn more about optical prisms?
Additional optical prism information can be found from Edmund Optics.
Related Products for Polarizing Beam Splitter Prisms
Need Custom Polarizing Beam Splitter Prisms?
Send us your drawing, size, beam separation angle, required extinction ratio, coating requirements and quantity. Chenyu Optics will review the optical and mechanical specifications and provide a suitable Polarizing Beam Splitter Prism manufacturing suggestion.
